A dry cooling coil (DCC) is a water or fluid coil designed to remove sensible heat from air while operating above the entering-air dew-point condition. When correctly selected and controlled, the coil cools air without intentionally producing condensate on the fin surface. This makes a DCC suitable for HVAC applications where temperature control is required but dehumidification, drain water, or wet coil operation is not part of the design objective.

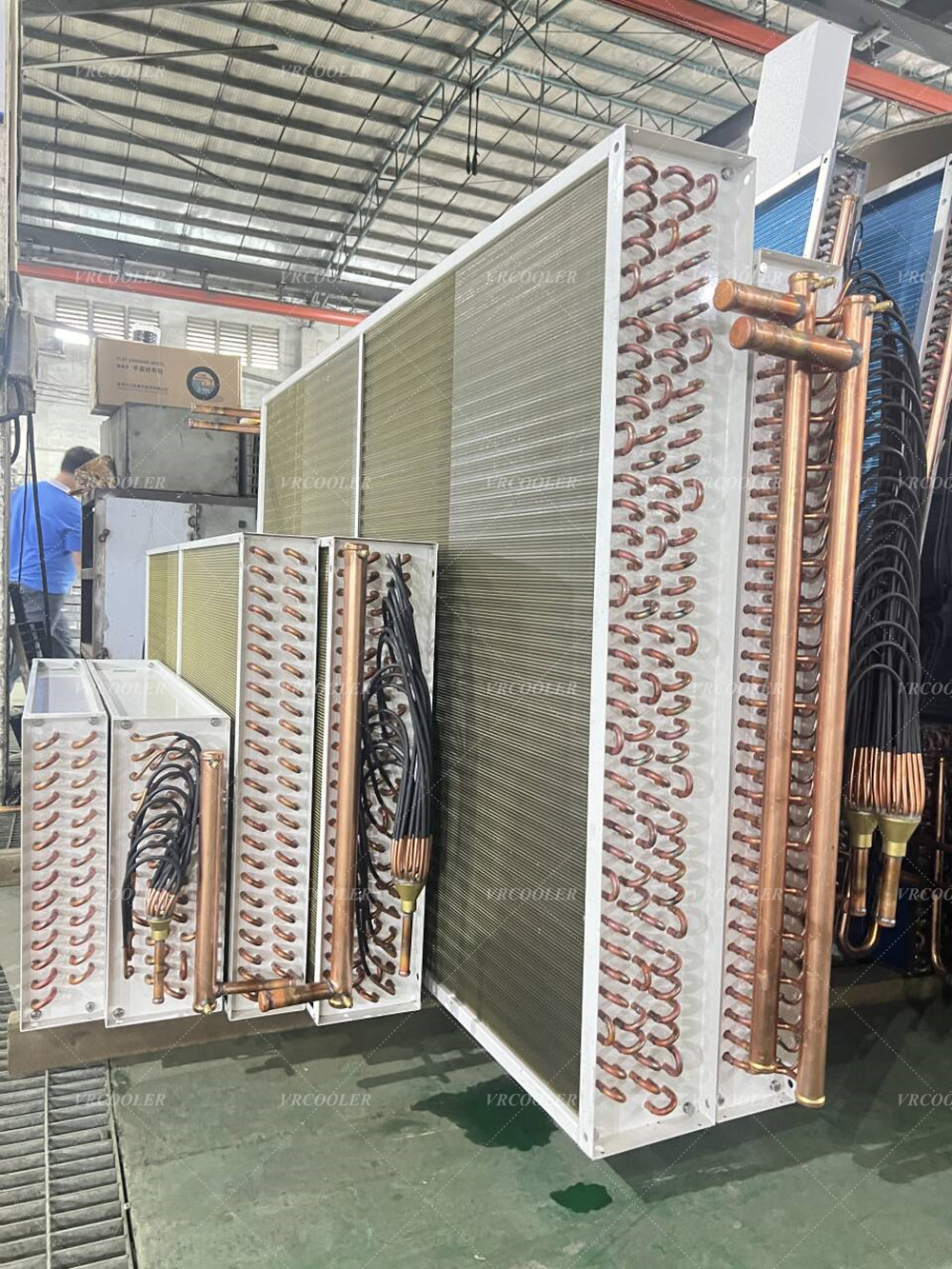

At CSTHEATEXCHANGER, we design and manufacture customized dry cooling coils for air-handling units, clean rooms, industrial HVAC systems, electronics cooling, process areas, and other applications. We match the coil to the project’s airflow, water or fluid conditions, air temperatures, pressure-drop limits, dimensions, materials, and condensation-control requirements.
A DCC is not automatically the right choice for every HVAC project. If the system must remove moisture from humid air, a wet cooling or dehumidification coil may be required instead. The first engineering decision is therefore to define whether the project needs sensible cooling only or sensible cooling plus latent cooling.

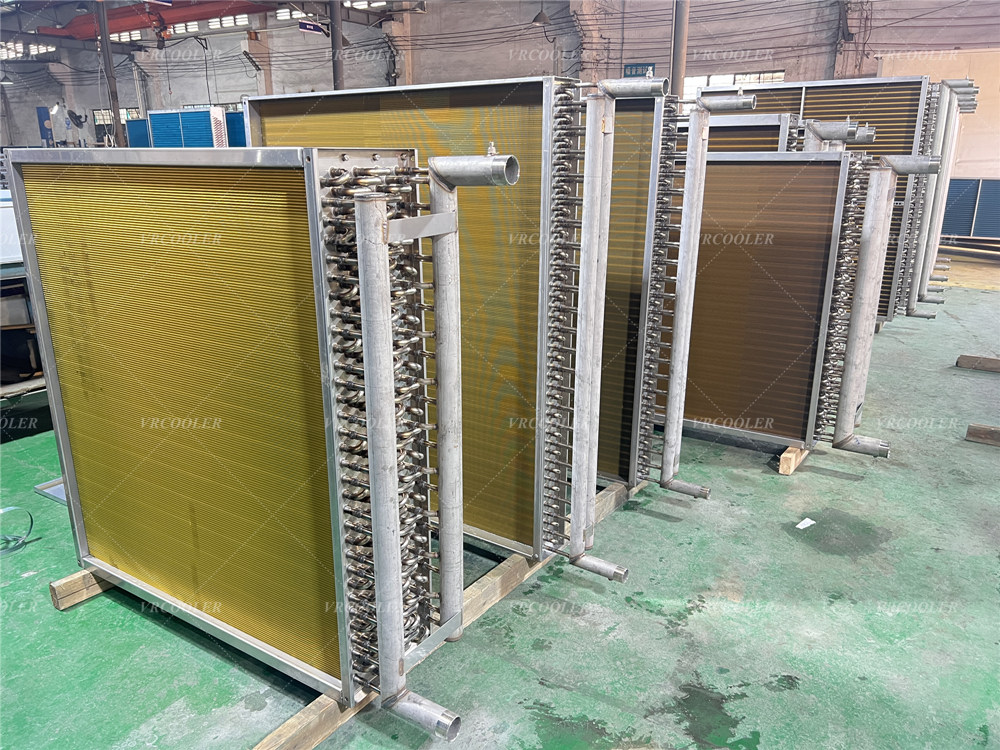

A typical DCC is a tube-and-fin heat exchanger installed in the air path. Water or another compatible cooling fluid flows through the tubes while air passes across the finned surface. Heat moves from the air into the fluid, reducing the dry-bulb temperature of the air.
A simplified process is:
Return air, recirculated air, or process air enters the coil section.
The air passes over the finned tube surface.
Cooling fluid absorbs sensible heat through the tubes.
The cooled air leaves the coil and enters the occupied zone, clean room, equipment area, or process section.
The warmed fluid returns to the chiller, dry cooler, cooling loop, or other heat-rejection system.
The coil surface must remain above the air dew point when the project requires dry operation. If the surface falls below the dew point, moisture can condense even if the coil was originally specified as a DCC. Therefore, dry operation depends on the coil design, fluid temperature, airflow, humidity, control sequence, insulation, and operating conditions together.
The choice depends on the project’s cooling and humidity requirements.
Requirement | Dry cooling coil (DCC) | Wet/dehumidifying cooling coil |
|---|---|---|
Main purpose | Sensible temperature reduction | Sensible cooling plus moisture removal |
Condensate | No intentional condensate when correctly controlled | Expected during operation below dew point |
Drain pan | Often not required for dry operation, subject to project conditions | Normally required |
Humidity control | Does not independently dehumidify | Can reduce air moisture |
Maintenance concern | Dry fin surface and water circuit | Coil, drain pan, condensate trap, and microbial-control measures |
Typical design priority | Temperature stability and clean, dry operation | Temperature and humidity control |
DCCs can be useful in clean rooms, data and electronics areas, laboratories, industrial process spaces, and HVAC systems with a separate humidity-control strategy. A DCC may also serve as a sensible trim coil after a dedicated dehumidification stage.
A wet coil is generally more appropriate when outdoor air or process air must be cooled below its dew point to meet a humidity target. ASHRAE technical information distinguishes cooling-coil operation below the air dew point as a condition in which condensation can occur. That distinction should be reflected in the project specification.
A dry cooling coil should be sized from the complete air and fluid conditions, not from the coil face dimensions alone.
Design input | Why it matters |
|---|---|
Airflow rate | Determines air-side heat-transfer capacity and face velocity |
Entering and leaving air temperatures | Defines the sensible cooling duty |
Entering-air humidity or dew point | Confirms whether dry operation is possible |
Fluid type | Determines thermal properties, material compatibility, and freeze protection |
Fluid entering and leaving temperatures | Establishes the available temperature difference |
Fluid flow rate | Affects heat transfer, circuiting, and water-side pressure drop |
Maximum air-side pressure drop | Influences fan selection and operating cost |
Maximum fluid-side pressure drop | Influences pump duty and control-valve selection |
Coil dimensions and installation orientation | Controls face area, rows, connections, and access |
Ambient and process conditions | Helps define corrosion, fouling, and insulation requirements |
Operating range and turndown | Supports stable performance under part-load conditions |
Noise and vibration limits | Important for occupied and sensitive spaces |
The sensible cooling duty can be estimated using the air-side relationship:
[ Q_s = \dot{m}{air} \times c_p \times (T{in} - T_{out}) ]
Where Qₛ is sensible cooling capacity, mₐᵢᵣ is air mass flow, cₚ is the specific heat of air, and the temperature difference is the entering-air temperature minus the leaving-air temperature. This equation is a preliminary engineering relationship, not a substitute for a full coil selection using the project’s actual air and fluid properties.
A no-condensation requirement affects the coil selection and the control strategy. We review the relationship between the entering-air dew point, fluid temperature, coil surface temperature, airflow, and desired leaving-air temperature.
The design review may include:
Maintaining the coil surface above the entering-air dew point;
Selecting a suitable fluid supply temperature;
Confirming the air-side temperature approach;
Avoiding unnecessarily low fluid temperatures;
Balancing circuiting for uniform surface temperature;
Using a control valve or variable-flow arrangement for part-load operation;
Protecting the coil from cold-start or low-flow conditions;
Monitoring air temperature, humidity, fluid temperature, and flow;
Insulating adjacent ductwork and piping where surface condensation is possible.
A project may require a DCC to operate dry only during normal conditions, while allowing occasional condensate during abnormal or peak-humidity conditions. That requirement should be stated clearly so that drain-pan, casing, and maintenance decisions match the intended operating envelope.
Material selection depends on the fluid, air quality, humidity, cleaning method, corrosion risk, operating temperature, and required service life.
CSTHEATEXCHANGER’s dry-coil product information identifies options such as:
Tube: copper, 304 stainless steel, 316 stainless steel, titanium, hot-dip galvanized steel, or aluminum, subject to application suitability;
Fin: aluminum, copper, stainless steel, or titanium;
Casing and cabinet: corrosion-resistant galvanized steel, aluminum, or stainless steel.
The material combination should be selected from the actual project conditions. For example, a clean commercial AHU, a coastal installation, a chemical process area, and a clean-room system may require different tube, fin, coating, casing, and fastener decisions.
Where higher corrosion resistance is required, the project team may consider stainless-steel tubes, coated fins, hydrophilic treatment, protective casing finishes, or other compatible construction details. Coating selection must also account for cleaning chemicals, fin-side heat transfer, and long-term adhesion.
A DCC must transfer enough heat while keeping fan and pump energy within the project limits. Increasing the number of rows or fin density may increase heat-transfer capacity, but can also raise air-side pressure drop and make the coil more sensitive to dust accumulation.
CSTHEATEXCHANGER reviews:
Coil face area and air velocity;
Tube diameter, pitch, and row count;
Fin type, thickness, and fin density;
Air-side pressure drop;
Fluid-side circuiting and pressure drop;
Header and connection size;
Fan and pump operating points;
Filter loading and maintenance conditions;
Coil access and cleaning clearance.
The best coil is not necessarily the smallest coil or the coil with the highest nominal heat-transfer coefficient. It is the coil that meets the required sensible capacity at an acceptable pressure drop, fits the equipment, remains serviceable, and operates without unwanted condensation.
The terms are similar but describe different equipment in many HVAC projects:
A dry cooling coil (DCC) is usually installed in an air-handling or process-air path to cool air using a circulating fluid.
A dry cooler is commonly an outdoor air-cooled heat exchanger that rejects heat from water, glycol, or another fluid to ambient air.
A project may use both. For example, a DCC can cool air inside an AHU while a dry cooler rejects heat from the building’s fluid loop outdoors. The two components have different air streams, duties, dimensions, controls, and installation environments.
CSTHEATEXCHANGER supplies both dry cooling coils and dry-air-cooler products. The selection should follow the location of the heat source, the location of the heat sink, the fluid circuit, and the required temperature levels.
A coil is only one part of the HVAC design. Integration should cover the air system, fluid loop, controls, structure, and maintenance plan.
Confirm duct dimensions, airflow direction, filters, access doors, temperature sensors, mixing sections, and nearby components. Ensure that the coil does not create bypass paths around the fin face.
Provide correctly sized supply and return connections, balancing provisions, isolation valves, strainers where required, air vents, drain points, control valves, and freeze protection where applicable.
A DCC may be controlled with a two-way or three-way valve, variable-speed pump, staged coil arrangement, or another project-specific sequence. The control logic should prevent excessive cooling, unstable valve hunting, low-flow operation, and unintended condensation.
Check coil weight, casing strength, mounting rails, vibration isolation, access clearance, service removal path, and transport limitations. Compact mechanical rooms often require the coil to be divided into modules or designed around a restricted access route.
Because a DCC is intended to operate without condensate, the fin surface can remain relatively dry during normal operation. It still requires maintenance to protect heat transfer and airflow.
A maintenance program should include:
Inspecting and replacing air filters;
Removing dust from the fin surface with a suitable soft brush or controlled air method;
Checking for bent fins and repairing them with an appropriate fin comb;
Inspecting tubes, headers, connections, and casing for corrosion or leakage;
Checking fluid quality, flow rate, pressure drop, and valve operation;
Confirming that the leaving-air temperature remains within the design range;
Checking humidity and dew-point conditions when dry operation is critical;
Inspecting insulation and nearby surfaces for signs of condensation;
Cleaning the coil with a material-compatible method when required.
If a DCC begins producing water unexpectedly, the operator should not assume that the coil is defective. The cause may be a lower-than-designed fluid temperature, increased entering-air humidity, reduced airflow, control malfunction, inadequate insulation, or a change in the operating sequence.
At CSTHEATEXCHANGER, we develop customized tube-fin heat exchangers and HVAC coils for commercial, industrial, clean-room, electronics, and process applications. We review the project requirements before finalizing the coil geometry, materials, connections, circuiting, and casing details.
Our engineering workflow includes:
Reviewing airflow, air temperatures, humidity, fluid conditions, and installation dimensions;
Confirming whether the project needs sensible-only cooling or dehumidification;
Calculating heat-transfer capacity and air- and fluid-side pressure drop;
Selecting tube, fin, casing, coating, and connection materials;
Reviewing control, drainage, insulation, maintenance, and service requirements;
Supporting sample or pilot production where required;
Performing the applicable pressure and leak testing before shipment.
Our quality policy describes customer RFQ review, technical-parameter assessment, design support, simulation assistance, sample and pilot stages, and production quality control. It also states that coils are leak tested according to the applicable inspection arrangement before delivery.
DCC commonly stands for dry cooling coil. It is a coil designed primarily for sensible air cooling, normally with the coil surface kept above the entering-air dew point so that intentional condensate is not produced.
Not as its primary function. A DCC is intended for sensible cooling. If the coil surface falls below the air dew point, condensation may occur, but reliable humidity control generally requires a properly selected wet or dehumidifying coil and condensate-management system.
Many DCC systems use chilled water, treated water, water-glycol, or another compatible fluid. The fluid choice depends on temperature, freeze-protection needs, chemistry, materials, pressure, and the project’s central cooling loop.
Keep the coil surface above the entering-air dew point by selecting suitable fluid temperatures and controlling flow. Also evaluate humidity, airflow, insulation, valve operation, and low-temperature or low-load conditions. A dew-point sensor or humidity-based control sequence may be useful in sensitive applications.
Yes. DCCs can be designed for clean-room HVAC when the coil materials, casing, cleanability, air leakage, pressure drop, humidity strategy, and installation requirements are specified for the room classification and process.
A DCC is a functional operating mode or coil design focused on sensible, generally non-condensing cooling. An AHU chilled-water coil may be selected for sensible cooling, dehumidification, or both. The actual distinction depends on the coil surface temperature relative to the air dew point and the project’s humidity requirement.
Yes. CSTHEATEXCHANGER can customize coil dimensions, tube and fin materials, row count, circuiting, connections, casing, and protective treatments based on the project’s airflow, fluid conditions, performance target, and installation constraints.
Provide airflow, entering and leaving air temperatures, entering-air humidity or dew point, fluid type, fluid supply and return temperatures, fluid flow rate, allowable pressure drop, coil dimensions, installation orientation, materials, casing requirements, and whether the system must operate without condensate under defined conditions.
Dry Cooling Coils (DCC) can provide stable sensible cooling for HVAC projects that require temperature control without intentional condensate. The design must connect the coil surface temperature with the air dew point, airflow, fluid circuit, pressure drop, controls, materials, installation space, and maintenance plan.
CSTHEATEXCHANGER can help you develop a customized dry cooling coil for your HVAC project. Send us the airflow, temperature and humidity conditions, fluid data, available dimensions, pressure-drop limits, and material requirements. Our team will review the application and recommend a practical DCC design direction.
