U.S. packers, shippers, and cold-storage operators are designing new produce cooling systems under a different set of constraints than five years ago. Refrigerant choice is now shaped by federal rule, water use is a real siting question in several growing regions, and the cold chain still has to hold temperature through peak harvest in high summer ambients. A dry cooler sits squarely inside that problem: it is the component that rejects the system's heat to ambient air, and it does so without evaporating water.
At CSTHEATEXCHANGER, we design and manufacture dry coolers, adiabatic coolers, hybrid dry coolers, free coolers, CO₂ gas coolers, air-cooled condensers, and fluid coolers as a single engineered product family. For a U.S. fresh produce project, we size the unit from your actual ambient design conditions, loop fluid, flow rate, and site layout — not from a nominal catalogue rating.

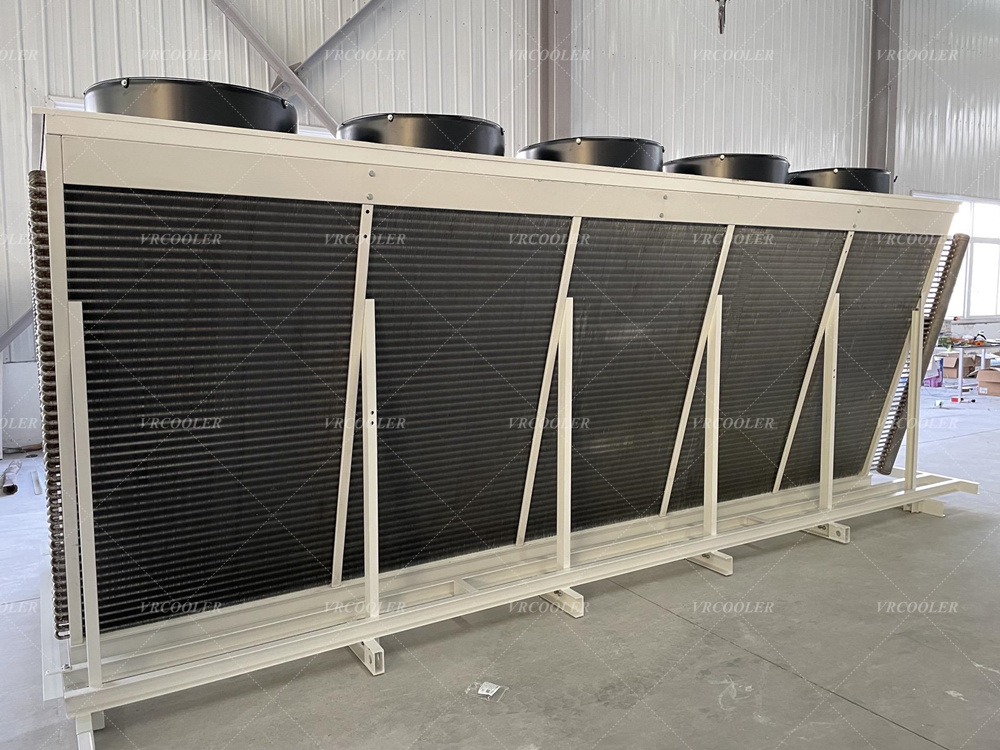

A dry cooler transfers heat from a circulating fluid to ambient air through a finned coil, with fans moving air across that coil. There is no evaporative water consumption in dry operation. As our product documentation states plainly: for the dry cooler to work properly, the air temperature must be lower than the temperature of the water in the system. Hot process fluid flows through the dry cooler tubes and is cooled by the relatively cold ambient air passing through the coil.
This is an important distinction that generic articles blur. A dry cooler is not a produce precooler. It does not touch the product. Its job is on the heat-rejection or secondary-loop side of the plant, supporting the equipment that actually cools the produce:
Plant function | What actually cools the produce | Where a dry cooler fits |
|---|---|---|
Forced-air cooling tunnels | Refrigerated air driven through vented cartons by fans | Rejects heat from the refrigeration plant or cools the glycol/water loop feeding the air coils |
Hydrocooling | Chilled water in direct contact with produce | Cools the water/glycol circuit serving the hydrocooler |
Room cooling and cold storage | Unit coolers inside the refrigerated room | Rejects condenser or gas-cooler heat to ambient |
Process and equipment cooling | — | Cools compressor jackets, oil circuits, process water, and ancillary loads |
Free-cooling operation | — | Cools the loop directly from ambient air when conditions allow, reducing mechanical refrigeration run time |
Being explicit about this boundary matters at the specification stage, because the duty you send us should be the heat-rejection duty or loop duty — not the produce cooling load in isolation.
Under the American Innovation and Manufacturing (AIM) Act, EPA restricts the use of high-GWP HFCs by sector. The 2023 Technology Transitions Rule set GWP limits and compliance dates for new equipment by subsector. On May 21, 2026, EPA finalized a reconsideration rule revising several of those deadlines. For cold storage warehouses, the limit changed from 150 or 300, as applicable, to 700 — starting 60 days after publication in the Federal Register and running until January 1, 2032, with either 150 or 300 applying thereafter depending on charge size and equipment configuration. Retail food supermarket systems moved to a 1,400 limit starting January 1, 2027 until January 1, 2032, and the same rule allows supermarket systems to increase cooling capacity up to 15% without being treated as installation of a new system.
The practical consequence for a produce operator planning a new build: the refrigerant decision has a dated horizon, and systems being designed today will face tighter limits in the 2032 window. That pushes new designs toward low-GWP architectures — CO₂ transcritical, ammonia, hydrocarbons, and secondary glycol loops — all of which change what the heat-rejection equipment has to be.
Always confirm the current applicable limits, dates, and charge-size thresholds for your specific subsector with EPA's published rule text and your refrigeration engineer. The subsector definitions and configuration conditions carry real weight.
CO₂ transcritical systems reject heat through a gas cooler operating at high pressure, not a conventional condenser. CSTHEATEXCHANGER produces CO₂ gas coolers and CO₂ cooling units within our dry air cooler line.
Ammonia and hydrocarbon systems are frequently designed with a limited-charge machine room and a secondary glycol or water loop distributing cooling to the packhouse. That secondary loop needs a fluid cooler or dry cooler.
Secondary-loop designs open the door to free cooling — using ambient air to cool the loop directly during cool hours or cool seasons. We build free coolers for exactly this duty.
A dry cooler rejects heat without evaporative water consumption in dry mode. For sites where water supply, water treatment, discharge permitting, or freeze management is a constraint, that is a design advantage on its own terms. Where peak-summer ambients are the limiting factor, an adiabatic or hybrid arrangement can be considered to assist only during peak conditions rather than running wet year-round. We manufacture adiabatic coolers, adiabatic condensers, adiabatic cooling units, hybrid dry coolers, and dry cooling towers alongside the standard dry cooler range, so the comparison can be made on one engineering basis.
Extension engineering guidance on produce cooling is direct about this: electrical energy is a major variable in postharvest cooling, and any practice that reduces energy requirements reduces the cost of cooling. The same guidance notes that temperature difference is the driving force behind heat transfer — the greater the ΔT, the more rapid the heat transfer. On the heat-rejection side, that principle is what makes approach temperature and coil sizing an energy decision, not just a capacity decision.
Our dry cooler construction is specified on our product pages, not implied:
Area | CSTHEATEXCHANGER published specification |
|---|---|
Panels and structure | Heavy-gauge hot-dip galvanized steel for unit steel panels and structural elements, featuring a zinc-aluminium coating |
Tubes | Staggered, seamless copper tubes — 15.9 mm or 12.7 mm diameter |
Fins | Aluminium, rippled and corrugated — 0.14 mm or 0.17 mm thickness |
Fin spacing | 2.5 mm, for optimal air turbulence |
Headers and connections | Thick, seamless copper headers with threaded steel connections |
Pressure test | Pressure tested at 15 bar |
Aggressive environments | Special pre-coated anti-corrosion aluminium fins, or copper fins at 0.2 mm thickness |
Fans | Axial fan with compact direct-drive short integrated motor and fan guard |
Fan balancing | Impeller and motor balanced as a complete unit using dynamic single-plane balancing, balance grade G6.3 |
Fan maintenance | Fan and motor totally maintenance free; bearing seals and motor encapsulation for long service life |
Our adiabatic cooler units add a protective enclosure for both manifolds and U-bends, unit designs for outdoor installation, and 100% leakage testing at 31 bar.
For a packhouse environment, two of those lines deserve emphasis. The anti-corrosion fin options exist because agricultural sites are not clean-air sites — field dust, organic debris, fertilizer and crop-protection residues, ammonia atmospheres near machine rooms, and coastal salt exposure all attack a bare aluminium fin. And the 2.5 mm fin spacing with rippled/corrugated fins is a stated air-turbulence design choice; in a debris-heavy agricultural setting, fouling rate and cleaning access should be discussed against it at the enquiry stage rather than discovered in the second season.
Our published engineering case history illustrates the kind of envelope we design to. One project specified outdoor operation from −20 °C to +30 °C running all year, water flow of 10,000 litres/hour entering at 80 °C and leaving at about 40 °C, 400 V / 50 Hz fan power, rooftop outdoor mounting with 3″ pipe up and down, and a footprint that had to fit inside a 20-foot container. The customer then required a V-type configuration instead of a flat coil, and later revised the duty toward a future 40 m³ total — so we re-solved it as two V-type units at 20 m³/h each.
That is directly relevant to a U.S. produce project, because the same three constraints recur: a wide seasonal ambient swing between winter and peak-harvest summer, a fixed installation footprint (roof, side-wall, skid, or container), and a duty that grows as the operation adds capacity. Tell us the future load at the enquiry stage and the staged design can be planned rather than retrofitted.
We use design software supplied by a well-known European HVAC software company, and through eight years of cooperation we have designed, processed, and exported dry coolers worldwide, with customer feedback that actual cooling performance is close to the theoretical design value. We can provide design data and production drawings for your review.
Standard packing is a wooden box; for export to European countries the wooden box is fumigated; where container space is tight we use PE film or pack according to the customer's specific request.
Dry cooler capacity is governed by the temperature difference between the loop fluid and ambient air. A unit sized for an annual average ambient will disappoint in the week that matters most, because peak harvest and peak ambient usually coincide. Provide:
Summer design dry-bulb temperature for the site (and coincident wet-bulb if adiabatic assist is under consideration)
Winter minimum, for freeze protection and for free-cooling potential
Site elevation, since air density affects fan and coil performance
Whether the unit must run year-round or seasonally
Fluid type — water, glycol solution, or other — and concentration
Flow rate, and inlet/outlet temperatures at the design point
Allowable pressure drop and available pump head
Design pressure and temperature
Freeze-protection strategy
For a CO₂ gas cooler duty, the requirement is different again: state discharge pressure, CO₂ mass flow, gas cooler outlet temperature target, and whether the system runs transcritical year-round or subcritical in cool weather.
State the required capacity in kW (or the equivalent design point), plus the load profile. Produce operations are strongly seasonal and often batch-driven — a tunnel pulling field heat out of a freshly loaded batch is a very different instantaneous load from a storage room holding temperature. Provide minimum and maximum operating capacity and the part-load conditions you expect.
Roof, ground pad, side-wall, skid, or container mounting; overall dimensional limits; weight limit; V-type or flat coil; connection sizes, positions, and orientation; service and cleaning access; airflow clearances and recirculation risk. Our case history shows configuration changing from flat to V-type after the first solution; catching that at enquiry saves a design cycle.
Tell us what the coil will actually breathe: field dust and organic debris, proximity to ammonia machine rooms, coastal salt, wash-down chemicals, fertilizer or crop-protection residues. Then the fin material and coating decision — standard aluminium, pre-coated anti-corrosion aluminium, or copper fins — can be made on evidence rather than optimism.
Fan speed control, staging, loop temperature control, free-cooling changeover logic, adiabatic assist activation, freeze protection, alarms, and any PLC or building-management integration. Harvest-season operations are not forgiving of manual intervention.
Option | Operating principle | Where it fits a produce site | Trade-off to confirm |
|---|---|---|---|
Dry cooler | Sensible heat rejection to ambient air; no evaporative water use in dry operation | Sites where water supply, treatment, discharge, or freeze management is constrained | Capacity limited by dry-bulb ambient; peak-summer sizing must be checked |
Adiabatic cooler / adiabatic condenser | Pre-cools entering air to approach wet-bulb during peak conditions | Sites with severe summer peaks but a desire to run dry most of the year | Water use during assist periods; water quality and control requirements |
Hybrid dry cooler / dry cooling tower | Combined dry and wet-assisted operation | Sites needing a wider capacity envelope from one footprint | More complex controls and maintenance scope |
Free cooler | Uses ambient air to cool the loop directly, reducing mechanical cooling run time | Secondary-loop designs in regions with meaningful cool hours | Changeover control logic; benefit depends on local climate profile |
CO₂ gas cooler | High-pressure heat rejection for transcritical CO₂ | New low-GWP CO₂ systems in cold storage and packhouses | Pressure rating, transcritical control strategy, outlet temperature target |
Air-cooled condenser | Refrigerant condensing against ambient air | Direct-expansion plant without a secondary loop | Refrigerant charge and piping run implications |
We supply all of these within one product family, so the selection conversation can compare them against your site data instead of defending a single format.
The failure shows up in the one week of the season you cannot afford it.
CO₂ transcritical heat rejection is a distinct duty with distinct pressure requirements. Name the refrigerant and cycle.
GWP limits and dates vary by subsector, charge size, and equipment configuration, and the cold storage warehouse provisions were revised in May 2026. Verify against the current rule before the architecture is frozen.
In an agricultural air stream, fouling rate and cleaning access belong in the same decision.
Our published case history is a working example: the duty doubled during the enquiry. State the growth plan and the staging can be designed in.
A correctly sized unit installed where it re-ingests its own discharge air will not deliver its rated capacity. Send the layout.
Inspect and clean the air-side coil surface on a schedule matched to the observed debris load, with more frequent checks through harvest
Keep airflow paths clear of packaging, pallets, vegetation, and stored material
Check fan operation, guards, mounts, and abnormal vibration
Monitor loop inlet/outlet temperatures, approach, and pressure drop to detect fouling early
Inspect coil fins for corrosion, mechanical damage, and flattening from careless cleaning
Verify freeze-protection provisions before winter and glycol concentration on a defined interval
For adiabatic or hybrid units, check water quality, distribution, and control activation
Inspect connections, supports, and casing for corrosion in humid or wash-down areas
Log observations so gradual degradation is distinguishable from a single fault
Work should follow the equipment documentation, your site safety procedures, and applicable local requirements.
Yes. CSTHEATEXCHANGER manufactures dry coolers, adiabatic coolers, hybrid dry coolers, dry cooling towers, free coolers, CO₂ gas coolers, air-cooled condensers, air-cooled heat exchangers, and fluid coolers. We design to the submitted ambient conditions, loop data, capacity, footprint, and environment, and can provide design data and production drawings for review.
No. It rejects heat from a fluid loop or refrigeration system to ambient air. The produce is cooled by forced-air tunnels, hydrocoolers, unit coolers, or other cooling equipment; the dry cooler serves the heat-rejection or secondary-loop side. Extension guidance identifies forced-air cooling as the preferred postharvest cooling method for most types of produce.
Staggered seamless copper tubes of 15.9 mm or 12.7 mm diameter, with rippled and corrugated aluminium fins of 0.14 mm or 0.17 mm thickness at 2.5 mm fin spacing, thick seamless copper headers, and threaded steel connections. Unit panels and structural elements use heavy-gauge hot-dip galvanized steel with a zinc-aluminium coating.
Special pre-coated anti-corrosion aluminium fins, or copper fins at 0.2 mm thickness. Send us the actual exposure — dust, ammonia proximity, coastal salt, wash-down chemistry — and the recommendation can be made against it.
Our dry coolers are pressure tested at 15 bar. Our adiabatic cooler units are 100% leakage tested at 31 bar. State any additional test or documentation requirement at enquiry so it is included in scope.
Yes. Our published case history includes re-engineering a flat cooler into V-type units to maximise capacity within a 20-foot container footprint, then splitting the duty across two units as the customer's future flow requirement grew.
The May 2026 EPA reconsideration rule changed the cold storage warehouse GWP limit from 150 or 300, as applicable, to 700 starting 60 days after Federal Register publication until January 1, 2032, with 150 or 300 applying thereafter depending on charge size and configuration. Supermarket systems moved to 1,400 starting January 1, 2027 until January 1, 2032. Confirm your subsector, charge size, and dates against the published rule with your refrigeration engineer — the outcome affects whether your heat rejection is a condenser, a CO₂ gas cooler, or a secondary-loop fluid cooler.
Summer and winter ambient design temperatures, site elevation, loop fluid and concentration, flow rate, inlet and outlet temperatures, required capacity, pressure-drop limit, design pressure and temperature, refrigerant and cycle if applicable, footprint and weight limits, mounting arrangement, connection sizes and orientation, corrosion environment, control requirements, and any layout drawing or site photo.
Contact CSTHEATEXCHANGER with your site data and constraints. Our engineering team will review the duty, configuration, materials, and installation envelope with you and issue drawings for confirmation before manufacture.
The U.S. fresh produce industry is specifying new cooling systems into a moving regulatory target, real water and energy constraints, and a harvest calendar that offers no tolerance for undersized equipment. Heat rejection is where those pressures meet: it determines whether a low-GWP architecture is practical, whether the site can run without evaporative water, and whether the plant holds its temperatures in August.
At CSTHEATEXCHANGER, we bring a single engineered product family — dry coolers, adiabatic and hybrid units, free coolers, CO₂ gas coolers, and air-cooled condensers — together with published construction specifications, verified design tooling, wide-ambient project experience, and non-standard geometry capability. Whether you are building a new packhouse, converting to a secondary glycol loop, adding a CO₂ transcritical system, or replacing heat-rejection equipment that no longer performs, we can engineer the unit around your site.
Send your ambient design conditions, loop data, capacity requirement, footprint limits, and layout drawings to CSTHEATEXCHANGER today. Contact our engineering team for a custom dry cooler review for your U.S. fresh produce cooling project.
