A rear-door rack application normally uses a liquid-to-air rear-door heat exchanger (RDHx). The exchanger replaces or attaches to the rear door of a server rack. Hot exhaust air from the servers passes through a fin-and-tube coil, while chilled water or a water-glycol fluid circulates inside the tubes and carries the captured heat away.
This close-coupled arrangement removes heat at the rack boundary before it recirculates into the data hall. It can help stabilize server inlet conditions, reduce hot spots, and support higher rack heat density without relying only on room-wide air conditioning.
At CSTHEATEXCHANGER, we design rear-door heat exchanger coils and assemblies for new data centers, high-density computing environments, and retrofit rack applications. We can customize coil dimensions, door or frame geometry, water connections, materials, fan configuration, and control interfaces around the rack and facility cooling loop.
Traditional room cooling removes heat after it has mixed into the data hall. As rack power density increases, this approach can create hot-air recirculation, localized hot spots, airflow imbalance, and additional load on CRAC or CRAH equipment.
An RDHx moves the heat-transfer surface directly behind the rack:
Server exhaust air enters the rear-door coil;
Water or water-glycol absorbs heat through the coil tubes;
Cooled air returns to the room instead of forming a hot plume;
The heated liquid flows to a cooling-distribution unit, chiller, dry cooler, or other heat-rejection system;
Cooled liquid returns to the rear door in a closed loop.
The U.S. Department of Energy identifies rear-door heat exchangers as local heat exchangers used for data-center cooling and notes that effective air management reduces hot-air recirculation to rack intakes. The RDHx therefore works as part of a complete cooling strategy, not as an isolated replacement for every facility cooling component.

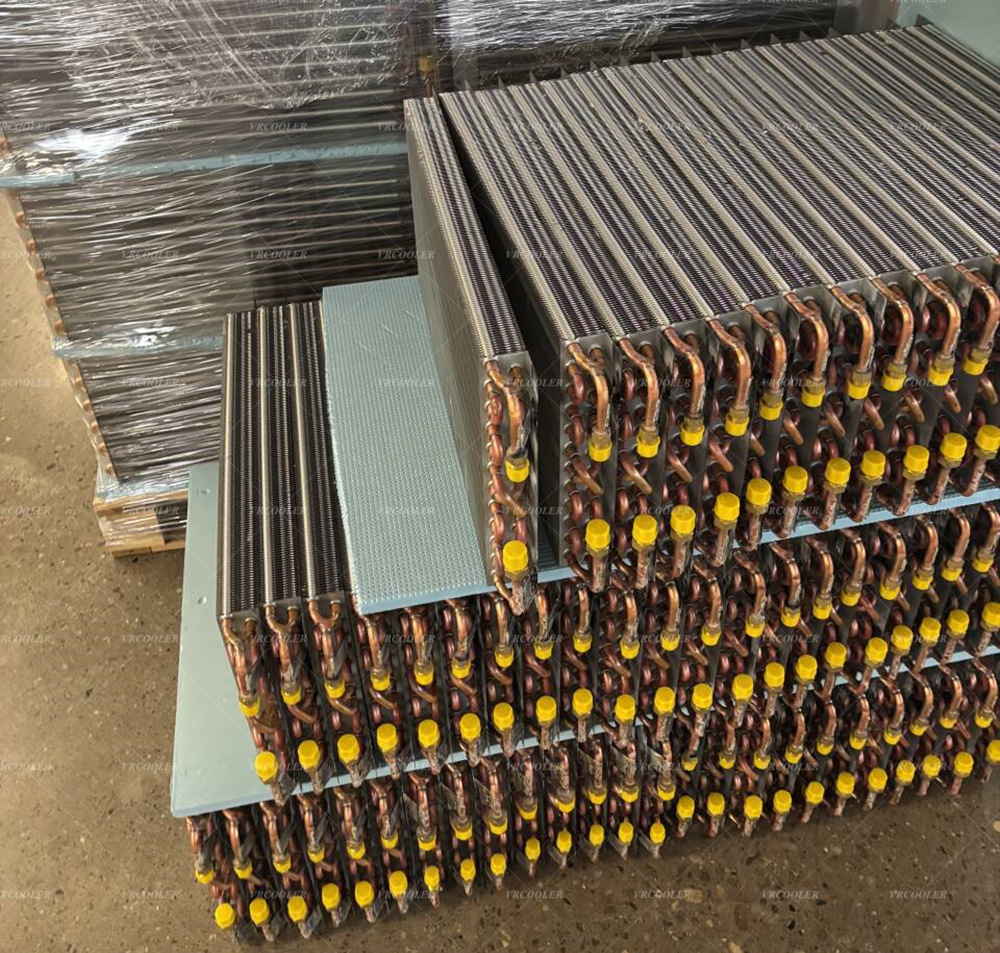

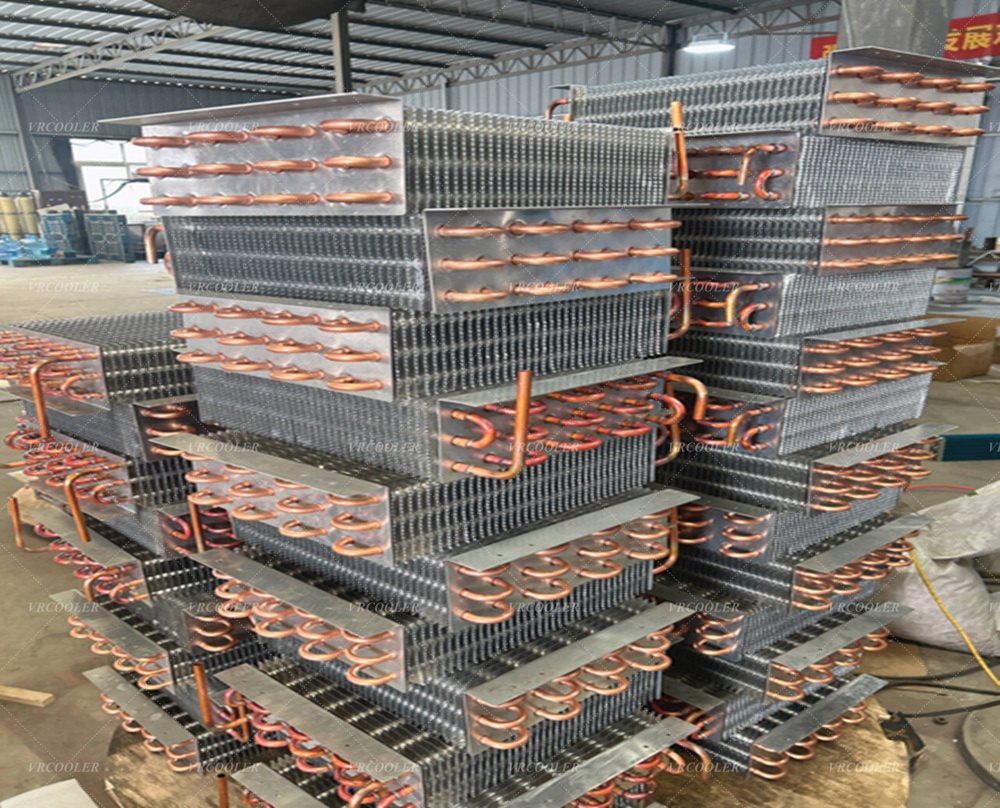

A rear-door heat exchanger is an air-to-liquid heat exchanger positioned in the exhaust-air path. Its coil is commonly built from tubes and fins selected for the required airflow, liquid temperature, heat load, pressure drop, and installation geometry.
A typical system operates as follows:
Servers draw room air through the rack front.
CPUs, GPUs, memory, storage, and power components add heat to the air.
The hot air leaves through the rack rear.
The RDHx coil absorbs heat from the exhaust air.
Chilled water or water-glycol carries heat through the liquid circuit.
The cooled air returns to the data hall near the room condition.
The warmed liquid travels to the facility heat-rejection system.
The exchanger does not need to modify the server hardware. This makes it useful for retrofits where selected high-load racks need additional cooling while standard racks continue using the existing room system.
CSTHEATEXCHANGER supports both passive and active rear-door configurations. The correct choice depends on server fan capability, rack heat load, airflow resistance, acoustic requirements, control strategy, and available electrical power.
Configuration | How it works | Suitable design direction |
|---|---|---|
Passive RDHx | Uses the server fans to move exhaust air through the coil | Medium-density racks when server airflow can overcome coil resistance |
Active RDHx | Adds integrated fans, commonly variable-speed EC fans, to increase airflow | Higher-density racks or applications requiring controlled airflow through the coil |
Hybrid deployment | Uses passive doors for moderate racks and active doors for selected high-load racks | Phased upgrades and mixed-density data halls |
A passive design can reduce auxiliary fan energy and simplify the assembly, but it must not create excessive backpressure at the rack. An active design provides more airflow control but adds fan power, controls, sound, and maintenance requirements.
The rack heat load alone does not define the coil. A reliable selection requires the rack, airflow, liquid loop, and installation data together.
Design input | Why it matters |
|---|---|
Rack heat load or IT power profile | Establishes the required heat-removal duty |
Rack height, width, depth, and rear-door clearance | Defines the physical envelope |
Server exhaust-air temperature and airflow | Determines air-side heat transfer and fan requirements |
Water or water-glycol inlet temperature | Sets the available temperature difference |
Liquid flow rate and allowable pressure drop | Determines tube circuiting, pump duty, and coil selection |
Required air outlet or room-return condition | Defines the cooling target |
Rack row arrangement and aisle layout | Affects air distribution and service access |
Active or passive operation | Determines fan, controls, and power requirements |
Leak detection and isolation requirements | Supports data-center risk management |
Facility heat-rejection equipment | Confirms how the liquid loop rejects captured heat |
Maintenance and filter conditions | Determines access, cleaning, and service intervals |
A design based only on a nominal rack power number can be misleading. Actual performance depends on server airflow, inlet temperature, liquid conditions, coil fouling, fan control, and the distribution of heat across the rack.
A rear-door coil must remove heat without restricting the server exhaust path more than the rack fans and operating controls can tolerate. Coil depth, fin density, tube arrangement, face velocity, and air-side pressure drop should be evaluated together.
Important design considerations include:
Full-height coverage of the rack exhaust area;
Uniform airflow across the coil face;
Appropriate fin spacing for the data-center air quality;
Low enough air-side pressure drop for passive operation;
Fan selection and modulation for active operation;
Avoidance of bypass gaps around the coil;
Access for filter removal and fin cleaning;
Adequate drainage if the coil can operate below the room dew point.
CSTHEATEXCHANGER can customize coil dimensions and frame details for the rack layout. The final fin density should be selected from the airflow, heat load, temperature difference, particulate conditions, and cleaning plan rather than from a catalogue preference.
The liquid circuit may use chilled water or water-glycol, depending on the facility design, ambient conditions, freeze protection, operating temperatures, and system controls. The rear-door exchanger should be integrated with the cooling-distribution unit, pump, expansion provisions, filtration, valves, sensors, and heat-rejection equipment.
The liquid-side design should address:
Supply and return temperature;
Required flow rate at the target heat load;
Circuit balancing across multiple racks;
Tube material and fluid compatibility;
Working pressure and test pressure;
Air removal and drain points;
Isolation valves and quick-disconnect arrangements;
Leak detection and automatic shutdown logic;
Water quality and corrosion control;
Redundancy for critical operation.
A rear-door heat exchanger does not eliminate the need for a properly designed facility water loop. The pump and heat-rejection system must be able to accept the recovered heat continuously, including peak workload conditions.
Because the RDHx is installed directly behind IT equipment, leak prevention and service access are central design requirements. The coil, headers, connections, hoses, valves, drip-management features, and mounting hardware should be selected as one assembly.
CSTHEATEXCHANGER’s quality policy states that coils are leak tested at the applicable pressure before delivery. For a rack application, the customer should also define the site-level requirements for:
Liquid isolation before door movement or maintenance;
Leak detection sensors and alarm routing;
Drip protection and condensate management;
Flexible hose movement and minimum bend radius;
Door swing, quick-disconnects, and service clearance;
Pressure testing after installation;
Inspection and commissioning records.
A safe installation depends on both the manufactured coil and the complete rack-water connection design. Final testing and commissioning should follow the facility’s approved data-center procedures.
Yes. In a suitable climate and system design, an RDHx can operate with a dry cooler as part of a closed liquid-cooling loop. The rear door captures heat from the server exhaust, and the dry cooler rejects that heat to outdoor air. When outdoor conditions are favorable, this can reduce reliance on mechanical chilling.
The combined arrangement requires review of:
Outdoor design temperature;
Water supply temperature required by the RDHx;
Dry-cooler capacity and fan control;
Pumping power and loop pressure drop;
Freeze protection where necessary;
Seasonal changeover and supplemental chiller operation;
Rack heat-load variation.
CSTHEATEXCHANGER’s published application information describes a free-cooling dry cooler and rear-door heat exchanger as a system in which the RDHx transfers rack heat to the water loop and the dry cooler rejects it to ambient air. The practical energy result must be calculated from the local climate, load profile, water temperatures, fan power, and controls.
RDHx maintenance should be scheduled around the data-center air quality and operating environment. Dust and particles can collect on filters and fins, increasing air-side pressure drop and reducing heat transfer.
A practical maintenance program includes:
Inspecting filters and coil surfaces;
Cleaning filters without installing them while wet;
Removing dust with a soft brush or controlled low-pressure air;
Using compatible neutral cleaning methods for sticky deposits;
Checking fan blades, motors, wiring, and abnormal noise on active units;
Inspecting fins for damage and straightening them carefully where required;
Checking liquid connections, valves, hoses, and leak sensors;
Recording inlet and outlet air temperatures;
Recording liquid supply and return temperatures and flow;
Comparing pressure drop and fan speed with the clean baseline.
CSTHEATEXCHANGER’s cleaning guidance recommends more frequent filter attention than coil deep cleaning, with the exact interval adjusted for clean data centers, dusty environments, or industrial computer rooms. The facility operator should adapt the schedule to measured filter loading and coil condition.
At CSTHEATEXCHANGER, we build customized heat exchangers for new systems and replacement projects. Our rear-door rack cooling solutions can be developed around the rack frame, coil face area, liquid conditions, airflow, active or passive configuration, connection layout, and facility integration requirements.
Our engineering and quality workflow includes:
Reviewing rack drawings, heat-load information, airflow, and liquid-loop data;
Confirming dimensions, connection positions, materials, and operating conditions;
Calculating heat transfer and pressure drop;
Reviewing leak-control, maintenance, and installation requirements;
Supporting prototype or sample production where required;
Completing applicable pressure and leak testing before shipment.
This approach allows a data-center operator to deploy rack-level cooling incrementally, while allowing an equipment integrator to develop a consistent rear-door product for a new rack platform.
It is a liquid-to-air heat exchanger mounted at the back of a server rack. The coil captures heat from server exhaust air and transfers it to circulating water or water-glycol, allowing cooler air to return to the data hall.
Usually, it works with the existing room cooling and facility liquid system. It removes heat close to selected racks, but pumps, controls, heat-rejection equipment, and an appropriate room-air strategy are still required.
Neither is universally better. Passive RDHx uses server fans and can reduce auxiliary power, while active RDHx adds fans for higher airflow control and heavier rack loads. Selection depends on rack heat, server airflow, pressure drop, sound, controls, and maintenance.
It can be considered for high-density GPU and HPC racks when the coil, airflow, liquid loop, controls, and facility heat-rejection system are correctly matched to the actual rack load. Final capacity must be confirmed by engineering calculation and testing.
Chilled water or water-glycol may be used depending on the facility design, temperature range, freeze-protection needs, material compatibility, and operating controls. The fluid and working pressure must be specified before the coil is finalized.
Maintain the liquid temperature and surface temperature above the room dew point when condensation is not permitted, or provide a suitable condensate-management design when low-temperature operation is required. Humidity, liquid supply temperature, airflow, and controls should be evaluated together.
Yes. CSTHEATEXCHANGER can review rack drawings and customize coil size, frame dimensions, connection layout, materials, and active or passive configuration. Door swing, mounting points, service clearance, and liquid connections must be confirmed for the target rack.
Provide rack dimensions, heat load, server exhaust airflow and temperature, liquid type, supply and return temperatures, flow rate, allowable pressure drop, active or passive preference, connection layout, door weight limits, leak-control requirements, and facility heat-rejection details.
A heat exchanger for a rear-door rack application should be designed around the complete rack and liquid-cooling loop. Coil area, airflow, pressure drop, water temperature, flow balancing, leak protection, condensation control, maintenance access, and facility heat rejection all influence the final result.
CSTHEATEXCHANGER can help you develop a customized rear-door heat exchanger for a new data-center rack, high-density computing deployment, or retrofit project. Send us the rack drawing, heat-load profile, server airflow, water-loop data, connection requirements, and installation constraints. Our team will review the application and recommend a practical RDHx design direction.
