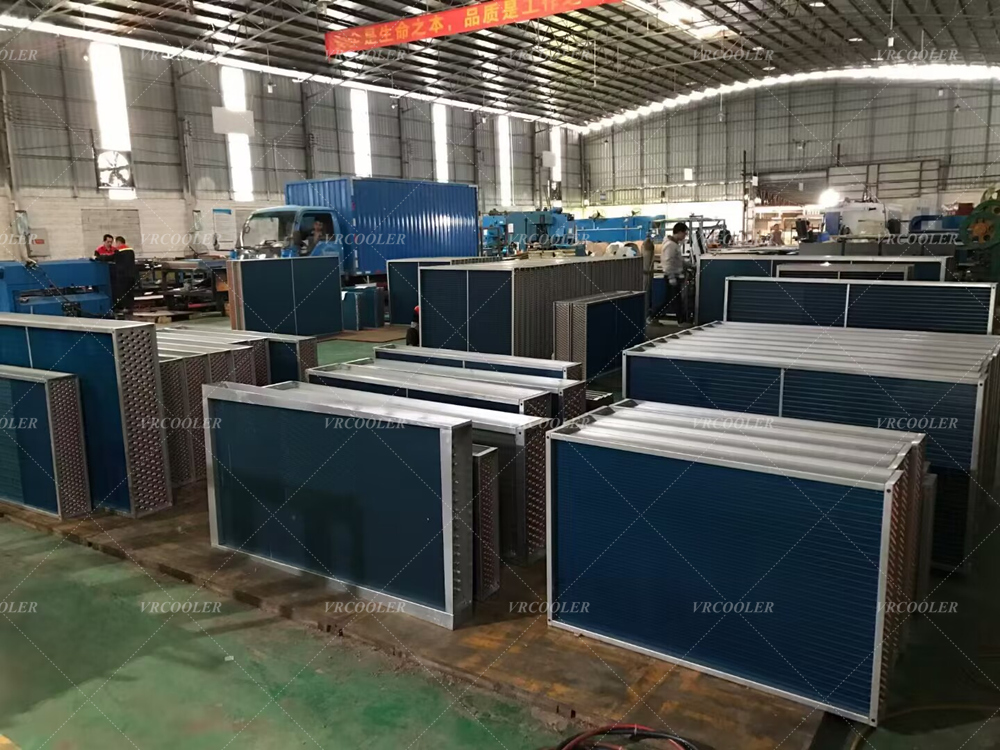

When a pastry chiller must protect product quality, appearance, and service continuity, the cooling coil and condenser cannot be selected as isolated parts. The evaporator-side cooling coil removes heat from the cabinet or room, while the condenser rejects that heat to the surrounding air or another cooling medium. The two heat-transfer components must work with the compressor, expansion device, fans, controls, cabinet construction, and intended operating conditions.
At CSTHEATEXCHANGER, we design and manufacture custom heat-exchanger solutions for commercial HVAC and refrigeration applications. Our product range includes cooling coils, evaporator and condenser assemblies, condenser coils, unit coolers, tube-and-fin heat exchangers, and other customized coil solutions. For a pastry chiller project, our engineering team starts with the actual operating data instead of forcing a standard coil into a cabinet where it may not fit or perform as expected.
A pastry chiller normally needs two main heat-transfer functions:
The cooling coil or evaporator absorbs heat from the refrigerated display or storage space. Air moves across the coil, and the cooled air is distributed around the pastries.
The condenser rejects the heat absorbed from the cabinet, together with the heat added by the refrigeration compressor, to the ambient air or a connected cooling circuit.
The right arrangement depends on the chiller design. A compact display cabinet may use a remote condensing arrangement, an integrated condenser, or another packaged configuration. The evaporator may be installed behind, below, above, or within an air-circulation section. The coil geometry, circuiting, tube size, fin arrangement, connection position, drain arrangement, and fan selection must match the available space and the refrigeration system.
CSTHEATEXCHANGER recommendation: define the complete heat-transfer duty first, then select the cooling coil and condenser as a matched pair. This approach helps reduce the risk of insufficient capacity, excessive pressure drop, poor airflow, difficult service access, or uneven cabinet temperatures.
At CSTHEATEXCHANGER, we support both replacement projects and new equipment development. Our official product range includes a Cooling Coil, Evaporator Condenser, and Condenser Coil within our commercial HVAC coil category. We also provide related coil and heat-exchanger solutions for refrigeration and air-cooling applications.
Our published product information identifies material options that may include aluminum, stainless steel such as 304 or 316, copper, steel, seamless steel, and copper-nickel, subject to the application and design requirements. We also work with different heat-transfer media, including water, steam, refrigerant, glycol, ammonia, and carbon dioxide, when the selected application requires them.
For pastry chillers, we can review requirements such as:
Refrigeration capacity and design conditions
Evaporating and condensing temperatures
Refrigerant or secondary fluid
Cabinet dimensions and installation orientation
Airflow direction and fan arrangement
Available coil face area and depth
Tube, fin, header, and connection requirements
Defrost method and condensate drainage
Corrosion environment and cleaning conditions
Replacement dimensions or new-equipment drawings
Service access and connection orientation
We do not treat a pastry chiller coil as a generic catalog item. We develop the heat exchanger around the equipment interface and the real operating envelope.
The cooling coil must handle the heat entering through the cabinet walls, glass, doors, lighting, fans, product loading, and surrounding air. The load may change significantly between a closed storage chiller and an open display cabinet.
When requesting a quotation from CSTHEATEXCHANGER, provide the expected product load, operating temperature, ambient temperature, pull-down requirement, daily operating pattern, and whether the cabinet is opened frequently. These details help us assess the required coil surface and circuiting instead of relying on a nominal cabinet size alone.
A pastry display needs controlled airflow. Too little airflow can produce temperature variation and reduce heat transfer. Excessive or poorly directed airflow may create unwanted drying, turbulence, noise, or uneven conditions around the display area.
The cooling coil should be evaluated together with:
Fan airflow and available static pressure
Coil face velocity
Coil depth and number of rows
Fin spacing and frost or condensate considerations
Air bypass around the coil
Air distribution to each cabinet zone
Access for cleaning and inspection
The final selection is a system decision. A larger coil is not automatically better if the cabinet fan, duct path, drain pan, or available installation space cannot support it.
For a direct-expansion evaporator, refrigerant distribution affects how effectively the coil surface is used. The circuit design should be reviewed with the expansion device, refrigerant, pressure drop, superheat control, and expected load variation.
For a chilled-fluid design, the coil must instead be matched to the fluid flow rate, entering and leaving temperatures, glycol concentration if applicable, and pump-side pressure drop. At CSTHEATEXCHANGER, we can review refrigerant, water, glycol, and other specified media as part of the heat-exchanger design process.
A cooling coil operating below the surrounding air dew point may produce condensate. The design should therefore consider drain-pan slope, drain connection position, insulation, access, and cleaning procedures.
Pastry equipment is often installed in customer-facing or food-preparation environments. A practical design should make routine inspection and cleaning straightforward without compromising the cabinet layout. Final hygiene and installation requirements should be confirmed by the equipment manufacturer and the project’s applicable standards.
The condenser is responsible for rejecting the heat collected by the refrigeration system. If the condenser is undersized, restricted, dirty, or exposed to unsuitable ambient conditions, condensing pressure may rise and the compressor may operate under greater stress.
When selecting a condenser for a pastry chiller, review the following points:
Selection factor | Why it matters |
|---|---|
Ambient design temperature | Determines the temperature difference available for heat rejection |
Total heat rejection | Includes the cabinet load and compressor heat input |
Airflow and fan capacity | Influences heat transfer and operating stability |
Available installation space | Controls coil face area, depth, and connection layout |
Fin and tube configuration | Affects heat-transfer area, air-side pressure drop, and cleanability |
Refrigerant circuiting | Influences refrigerant distribution and pressure drop |
Noise and vibration limits | Important for bakeries, cafés, retail counters, and open kitchens |
Service access | Helps operators inspect, clean, and maintain the coil |
Corrosion and environment | Guides material and coating discussions where needed |
CSTHEATEXCHANGER can review air-cooled condenser coil requirements and custom dimensions for new equipment or replacement applications. We can also discuss other heat-transfer arrangements when the project uses a water, glycol, or industrial cooling circuit.
Component | Main function | Typical location in a pastry chiller system | Main design priority |
|---|---|---|---|
Cooling coil / evaporator | Removes heat from the refrigerated air or fluid | Inside the cabinet air path or a connected cooling section | Stable cooling, airflow, condensate management, and temperature distribution |
Condenser | Rejects system heat to ambient air or a cooling circuit | Inside the condensing section or at a remote location | Heat rejection, ambient tolerance, airflow, pressure drop, and serviceability |
Matched heat-exchanger package | Coordinates both heat-transfer duties with the refrigeration system | Selected according to the equipment architecture | Balanced performance, fit, reliability, and maintainability |
The cooling coil and condenser serve different functions, but both influence the final refrigeration result. Selecting one without checking the other can create an imbalance between evaporating performance, condensing conditions, compressor operation, and cabinet temperature control.
Our process is built around application data and equipment integration:
Review the application: We identify the pastry chiller type, product temperature, ambient conditions, operating schedule, and refrigeration architecture.
Check the heat-transfer duty: We evaluate the required cooling and heat-rejection functions, including the specified medium and design temperatures.
Review the installation envelope: We check coil dimensions, connection positions, airflow direction, drain requirements, fan arrangement, and service access.
Select the construction: We discuss tube, fin, header, frame, material, and connection requirements according to the application.
Develop the design: Our design capability supports tailor-made heating and cooling units for specific equipment requirements.
Support replacement or new equipment: We can work from drawings, existing coil information, photographs, dimensions, or a new equipment concept.
This process is particularly useful when a standard coil does not match the pastry chiller cabinet, when a replacement must fit an existing frame, or when an equipment builder needs a new evaporator and condenser arrangement.
Cabinet dimensions do not describe the actual refrigeration duty. Product loading, glass area, door openings, ambient temperature, airflow, and operating schedule can all change the required heat-transfer capacity.
A coil with high air-side or refrigerant-side pressure drop may reduce system efficiency or require a fan and controls that the equipment cannot provide. Coil selection should consider the entire air and refrigerant circuit.
A replacement coil may look similar but still differ in tube layout, circuiting, connection position, fin spacing, or heat-transfer duty. Provide the original coil information and operating conditions to the manufacturer whenever possible.
Dust, grease, and debris can accumulate on air-side surfaces. The installation should allow inspection and cleaning of the cooling coil, condenser, fans, filters, drain components, and connections.
A quoted capacity is meaningful only when the test conditions are clear. Ask for the operating temperatures, airflow, fluid or refrigerant conditions, pressure drop, and assumptions behind the selection.
Regular inspection helps protect heat-transfer performance and reduce avoidable refrigeration problems. A maintenance plan may include:
Inspecting and cleaning accessible evaporator and condenser coil surfaces
Keeping condenser airflow paths clear of dust, packaging, and surrounding obstructions
Checking fan blades, motors, mounts, and abnormal vibration
Checking drain pans, drain lines, and condensate flow
Inspecting piping, fittings, and accessible connection points for signs of leakage
Reviewing temperature and pressure trends for unusual changes
Checking insulation on refrigerant lines where applicable
Confirming that controls, safety switches, and thermostats operate correctly
Recording maintenance observations so gradual performance changes are easier to identify
The U.S. Environmental Protection Agency’s commercial refrigeration guidance also emphasizes preventive maintenance, leak detection, coil cleaning, and inspection of condenser and evaporator components. Maintenance should be carried out by qualified refrigeration personnel and according to the equipment manufacturer’s instructions and applicable local requirements.
Yes. CSTHEATEXCHANGER lists cooling coils, evaporator and condenser assemblies, and condenser coils within its commercial HVAC coil offering. We can review the evaporator-side and condenser-side requirements together for a new pastry chiller or a replacement project.
A custom design may be possible when you provide the existing coil dimensions, connections, circuit information, operating conditions, photographs, and available installation space. Our team uses this information to review fit and application requirements before confirming a design.
Depending on the application, our published material options include aluminum, stainless steel such as 304 and 316, copper, steel, seamless steel, and copper-nickel. The appropriate selection depends on the refrigerant or fluid, temperature, pressure, corrosion environment, cleaning method, and equipment requirements.
No. A cooling coil or evaporator removes heat from the refrigerated air or fluid. A condenser rejects heat from the refrigeration system to the ambient air or another cooling medium. They have different duties and should be selected for their respective operating conditions.
Send the required cooling capacity, operating temperatures, ambient temperature, refrigerant or fluid, airflow or flow rate, coil dimensions, connection details, installation orientation, fan information, and any available drawing or existing-coil photograph. If some data is not available, send the equipment model, cabinet dimensions, and the information you do have so we can identify the next engineering questions.
Yes. We support tailor-made heat-exchanger solutions for new equipment and replacement applications. The final design, materials, dimensions, and performance should be confirmed against the project’s operating conditions and technical requirements.
Contact CSTHEATEXCHANGER with your pastry chiller application details. Tell us whether you need a cooling coil, condenser coil, evaporator-condenser assembly, or a matched heat-transfer solution. Our team will review the operating data, installation space, and design objectives with you.
A pastry chiller depends on stable heat transfer, balanced airflow, suitable refrigeration circuiting, and practical maintenance access. The cooling coil and condenser should be selected as part of the complete system—not as unrelated components chosen only by appearance or nominal size.
At CSTHEATEXCHANGER, we combine commercial HVAC coil manufacturing, refrigeration heat-exchanger experience, application review, and tailor-made design support. Whether you are developing a new pastry display cabinet, replacing an existing coil, or improving a refrigeration assembly, we can help you define a heat-exchanger solution around your actual requirements.
Send your drawings, coil dimensions, operating conditions, or equipment details to CSTHEATEXCHANGER today. Contact our team for a custom cooling coil and condenser review for your pastry chiller project.
