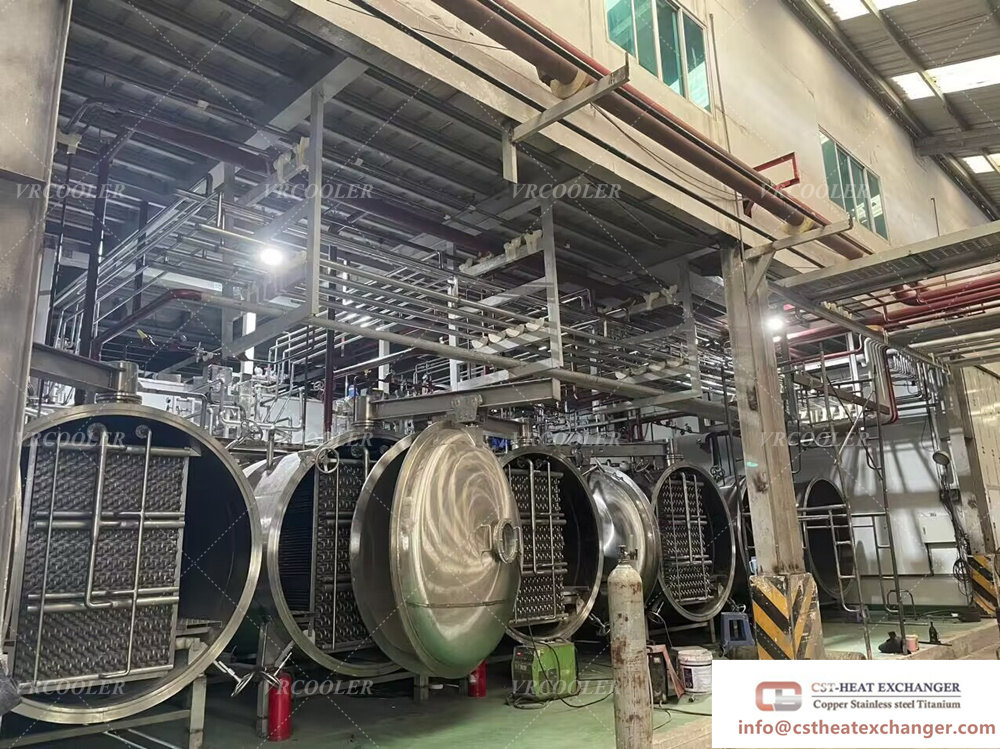

A heat recovery project only pays back if the recovered heat actually lands in the water. In a domestic hot water storage tank (HWST), the component that does that landing is the internal coil. Get its surface area, tube material, expansion behaviour, and orientation right and the tank absorbs waste heat quietly for years. Get them wrong and the project produces a coil that scales, stresses, leaks, or simply cannot transfer the recovered duty at the low temperature difference the heat source actually offers.
At CSTHEATEXCHANGER, we manufacture U-tube bundle heat exchangers, stainless steel coils, heating coils, spiral coils, and immersion-type tank heat exchangers as custom-engineered products. Our published stainless steel coil line explicitly serves waste heat recovery, large heat pump, combined cycle, high-temperature CHP, geothermal, biomass, waste-to-energy, and concentrated solar power applications — which is precisely the set of heat sources that feed HWST recovery projects.
The U-tube configuration is not an arbitrary shape. Our published product engineering states the reasons directly:
Largest heat exchange area for a given diameter. Under the same shell diameter, the U-tube bundle offers the largest heat exchange area — which matters when the coil has to fit inside a fixed tank shell.
Free thermal expansion, no thermal stress. There is only one tube plate, and both ends of the tubes are fixed to that same plate. The tubes can expand freely, so there is no thermal stress and the thermal compensation performance is good.
Strong pressure capability. The construction is suitable for operation under high temperature and high pressure.
Removable and cleanable. The tube bundle can be pulled out of the shell, which makes repair and cleaning straightforward.
Simple and cost-effective. The structure is comparatively simple and the cost is low.
Heat recovery sources cycle. A CHP jacket, a heat pump condenser loop, a flue-gas recovery circuit, or a process waste-heat stream does not deliver a constant temperature — it starts, stops, modulates, and swings with the parent process. Meanwhile the tank water sits at storage temperature. Every one of those cycles puts differential expansion into the coil.
A U-tube bundle absorbs that movement by design, because the tube legs are free to grow. This is the single most relevant property for an HWST recovery coil, and it is the reason the geometry is preferred over fixed-tube-sheet constructions in cycling duty.
Our own product documentation is candid about the trade-off: the U-tube construction is particularly suitable for high-temperature, high-pressure, and corrosive media that are cleaned on the tube side, and it is not the right choice when the shell-side medium fouls and needs mechanical cleaning, because the U-bend region cannot be mechanically brushed through.
For an HWST, map that honestly:
Side | What it carries in an HWST recovery project | Cleaning implication |
|---|---|---|
Tube side (inside the coil) | The heat recovery medium — hot water, glycol, steam, condensate, or a process fluid | Tube-side cleaning is practical; chemical or mechanical cleaning of straight runs is accessible |
Shell side (the tank water) | Potable or service hot water, with scale-forming hardness | Scale forms on the coil's outer surface; plan chemical descaling and bundle removal rather than mechanical brushing |
That is why hardness data belongs in the enquiry, not in the commissioning report. In a hard-water region the outer surface will scale, and the design decision — surface margin, tube spacing, bundle removability, descaling access — has to be made before manufacture.
Our U-tube bundle heat exchanger heat-transfer material options are published as: carbon steel, stainless steel, aluminium, copper, brass and its alloys, copper-nickel alloys, nickel, titanium, graphite, glass, and other special materials.
Our stainless steel coil line specifies 304 or 316L tube material, with fins available in stainless steel or aluminium, and a full range of finishes including bare tubes, hot-dip galvanizing, phenolic, and Teflon.
For domestic hot water service, the practical shortlist is normally 304 or 316L stainless steel, with copper, copper-nickel, or titanium considered where the water chemistry, chloride content, or client standard demands it. Bare tubes are the usual HWST choice — finned surfaces foul and scale faster in a water-immersed, hardness-bearing environment and are harder to descale.
Our stainless steel coil documentation states the duty range plainly: steam heating, hot water or glycol heating, chilled water cooling, refrigerant cooling, and ammonia cooling. The first two are exactly the HWST recovery cases.
It also states construction flexibility that matters for tank-internal work:
Pitched tubes for horizontal and vertical flow; vertical tube mounting available
Multiple row depths and unlimited heights or lengths
Gas-tight casings for high-pressure applications
Range of fin designs and spacing where a finned surface is appropriate
For a tank-internal coil, "unlimited heights or length" is the useful line: the coil can be developed to the tank's internal geometry rather than forcing the tank to accept a standard bundle.
We use design software supplied by a well-known European HVAC software company, and through eight years of cooperation we have designed, processed, and exported heat exchangers worldwide, with customer feedback that actual performance is close to the theoretical design value. We provide design data and production drawings for review.
Our published stainless steel coil offer covers customized large stainless steel or copper-nickel tube heat exchangers for corrosive and industrial applications with large cooling capacity, with a minimum order quantity of one set. A single-tank retrofit is a viable order, not a volume-only proposition.
Standard packing is a wooden box; for export to European countries the wooden box is fumigated; where container space is tight we use PE film or pack according to the customer's specific request.
If the HWST holds potable water, the coil is not simply a heat-transfer component — it is a barrier between the drinking water system and the heat recovery medium. This must be settled at the specification stage, against the code in force at the project location.
US model and state plumbing codes address this directly. Cross-connection provisions for heat exchangers require that potable water be separated from the heat-transfer medium; double-wall heat exchangers separate the potable water from the heat-transfer medium by providing a space between the two walls that is vented to the atmosphere. Some local jurisdictions are explicit about immersed coils — requiring that a submerged element/coil in an indirect-fired water tank used for heating potable water be double-wall in construction per ASME Section VIII, Division 1 and UL listed for potable water. Under Uniform Plumbing Code provisions, a single-wall heat exchanger may be permitted where the heat-transfer medium is potable water or has a toxicity rating classified as 1.
The engineering consequence is straightforward:
Determine whether the tank water is potable or non-potable service water.
Identify the heat-transfer medium and its toxicity classification. Glycol, process fluids, and treated loop water are not the same case as potable water.
Confirm the single-wall vs. double-wall requirement with the authority having jurisdiction and the project's plumbing engineer — before the coil is designed.
Confirm any listing, certification, or code-compliance requirement and state it at enquiry so it is inside the quoted scope.
Tell us the outcome of that determination with your enquiry. Wall construction, material, and certification requirements all follow from it, and retrofitting a compliance requirement into a finished coil is not possible.
CDC guidance for controlling Legionella in potable water systems recommends storing hot water at temperatures above 140 °F (60 °C) and ensuring hot water in circulation does not fall below 120 °F (49 °C), with continuous recirculation where possible. The same guidance identifies 77–113 °F (25–45 °C) as the growth range most favourable to Legionella, notes growth can occur as low as 68 °F (20 °C), and recommends thermostatic mixing valves installed as close as possible to fixtures so that scalding is prevented while circulating hot water stays above 120 °F. It also recommends selecting appropriately sized storage tanks and fitting them with recirculating pumps to maintain flow and avoid unfavourable temperature gradients.
This has three direct consequences for an internal recovery coil:
If the tank is held above 60 °C and the recovery source delivers 70–80 °C, the available ΔT is modest. Low-grade recovery sources such as heat pump condensers or low-temperature process streams make it smaller still. Surface area, not nominal capacity, is what delivers the duty. State the actual source supply and return temperatures, not an optimistic figure.
Where the coil sits in the tank determines whether it heats the volume the system actually draws from, and whether it fights or supports the tank's temperature gradient. CDC guidance explicitly flags avoiding unfavourable temperature gradients in storage tanks. Provide the tank's internal geometry, inlet/outlet positions, recirculation return position, and any existing primary heating element or coil location.
In most HWST recovery designs the recovery coil raises the water toward a useful temperature and a primary heater carries the final rise and holds the storage setpoint. Tell us which role the coil plays. Sizing a pre-heat coil and sizing a sole-source coil are different exercises, and the control interaction between the two matters.
Medium — hot water, glycol solution and concentration, steam, condensate, or process fluid
Supply and return temperatures at the design point, and the expected range
Flow rate, and whether flow is constant or modulating
Availability profile — continuous, intermittent, or tied to a parent process schedule
Design pressure and temperature on the tube side
Allowable tube-side pressure drop and available pump head
Fouling tendency and any solids content
Tank volume, internal diameter, internal height, and orientation
Tank material and internal lining, if any
Potable or non-potable service
Storage setpoint and allowable variation
Water hardness and chemistry, plus any treatment in place
Chloride content if stainless steel is under consideration
Existing heating elements or coils and their positions
Inlet, outlet, recirculation return, drain, and sensor positions
Required heat transfer duty in kW at the stated temperatures
Whether the coil is pre-heat, primary, or supplementary
Minimum and maximum operating conditions
Required recovery time or draw profile, if the design is draw-driven
Flange or connection type, size, standard, and orientation
Tube plate and mounting arrangement
Tank opening dimensions — the bundle must pass through the available manway or flange
Withdrawal clearance outside the tank for bundle removal
Support and anti-vibration arrangement inside the tank
Overall bundle envelope and weight limits
Applicable pressure-equipment code and inspection regime
Single-wall or double-wall construction determination
Required listings or certifications for potable service
Hydrostatic test pressure and leak-test standard
Material certificates and traceability
Drawing approval requirement before manufacture
Because the shell side is the tank water and the U-bend cannot be mechanically brushed, decide up front:
Scale management strategy — chemical descaling, water treatment, or surface margin
Tube pitch and spacing sufficient for descaling access between tubes
Bundle removability and the clearance it needs
Inspection interval and how the coil surface will actually be reached
Option | How it works | Where it fits | What to confirm |
|---|---|---|---|
Internal U-tube bundle coil | Immersed bundle transfers recovery heat directly into stored water | Maximum area within a fixed tank diameter; cycling heat sources; high-temperature or high-pressure recovery media | Shell-side scaling strategy; bundle withdrawal clearance; potable wall-construction requirement |
Internal spiral / helical coil | Immersed spiral coil in the tank | Compact tanks and simpler geometries | Surface area achievable within the tank; removability |
External shell-and-tube with pumped loop | Heat exchanged outside the tank, water circulated through | Where both sides need full cleaning access, or the tank cannot be opened | Extra pump, controls, piping, and stratification effects |
Double-wall immersed coil | Two walls with a vented space between them | Potable tanks where code requires a double barrier | Code determination by AHJ; certification and listing; reduced heat transfer through the double wall |
Finned immersed coil | Extended surface increases area | Clean water, low-hardness, low-fouling cases only | Scaling and descaling difficulty — usually the wrong choice in hard water |
We build U-tube bundles, shell-and-tube heat exchangers, shell-and-tube evaporators, spiral coils, stainless steel coils, and heating coils within one product family, so the comparison can be made against your tank data rather than defended from a single format.
A 300 kW waste heat stream is not 300 kW into a 60 °C tank. The temperature difference governs. Provide real supply and return temperatures.
The coil's outer surface is in the tank water. Hardness determines the scaling rate, the surface margin, and the maintenance plan. Omitting it guarantees a performance complaint in year two.
Extended surface adds area on paper and adds descaling difficulty in practice. Bare tube is usually correct for HWST immersion.
Single-wall vs. double-wall is a code determination, not a preference. It must be settled with the AHJ before design.
A removable bundle that cannot physically be withdrawn in the plant room is not removable. Check clearance on the layout drawing.
Start-stop recovery sources load the coil thermally on every cycle. The U-tube geometry handles this well — but the support arrangement, connection stress, and control strategy still need to reflect it.
If the recovery coil and the primary heater fight each other, the recovered heat is displaced rather than used. Define the sequencing intent with your controls engineer.
Inspect the coil's outer surface for scale at intervals set by the measured water hardness, more frequently in the first year until the rate is known
Descale chemically per the tank and coil material limits; do not assume mechanical cleaning is possible on the U-bend side
Monitor recovery-side inlet/outlet temperatures and the achieved tank temperature rise — a widening approach signals fouling
Monitor tube-side pressure drop for internal fouling or partial blockage
Inspect the tube plate, gasket, and flange joint for leakage at each planned opening
Check supports and anti-vibration provisions, particularly in cycling service
Verify storage temperature control against the site's water management program
Keep the tank's recirculation functioning so stratification and stagnant zones do not develop
Log measurements so gradual degradation is separable from a single fault
Work on potable water systems, pressure equipment, and hot water above scald temperature should follow the equipment documentation, the site water management program, and applicable local code, performed by qualified personnel.
Yes. CSTHEATEXCHANGER manufactures U-tube bundle heat exchangers, stainless steel coils, heating coils, spiral coils, and shell-and-tube heat exchangers, engineered to the submitted tank geometry, recovery-side conditions, duty, materials, and code requirements. We provide design data and production drawings for review, and our minimum order quantity for customized coils is one set.
Because both tube ends are fixed to a single tube plate, the tubes can expand freely — no thermal stress, good thermal compensation — which suits the start-stop, temperature-swinging nature of recovery heat sources. It also provides the largest heat exchange area for a given diameter, has strong pressure capability, and the bundle can be pulled out for repair and cleaning.
Our published U-tube bundle material options include carbon steel, stainless steel, aluminium, copper, brass and alloys, copper-nickel alloys, nickel, titanium, graphite, and glass. Our stainless steel coil line specifies 304 or 316L tubes, with finishes including bare tube, hot-dip galvanizing, phenolic, and Teflon. For domestic hot water the selection should be made against water chemistry, chloride content, temperature, and any applicable potable-water requirement.
That is a code determination for your jurisdiction, not a product default. Plumbing code cross-connection provisions require potable water to be separated from the heat-transfer medium, with double-wall constructions providing a space between walls vented to the atmosphere; some local codes require submerged coils in indirect-fired potable tanks to be double-wall per ASME Section VIII Division 1 and UL listed for potable water, while UPC provisions permit single-wall where the heat-transfer medium is potable water or rated toxicity class 1. Confirm with your plumbing engineer and the authority having jurisdiction, then tell us the requirement.
CDC guidance for potable water systems recommends storing hot water above 140 °F (60 °C) and keeping circulating hot water above 120 °F (49 °C), with thermostatic mixing valves near fixtures to prevent scalding. Your actual setpoint should follow your water management program and local code — send it to us, because it sets the available temperature difference and therefore the required surface area.
The coil's outer surface is exposed to the tank water, so hardness drives scaling. Send your water hardness and chemistry with the enquiry so surface margin, tube pitch for descaling access, bare-tube vs. finned selection, and bundle removability can be decided deliberately. Note that the U-bend region cannot be mechanically brushed — chemical descaling and bundle removal are the practical maintenance routes.
Send the existing coil dimensions, tube layout and pitch, tube material and size, tube plate and flange details, connection positions, tank opening dimensions, and the original duty if known, plus photographs. We use that to review fit before confirming a design.
Our published stainless steel coil applications include waste heat recovery, combined cycles, high-temperature CHP, large heat pump, gas expander, geothermal, biomass, waste-to-energy, concentrated solar power, and oil and gas — with service duties covering steam heating, hot water or glycol heating, chilled water cooling, refrigerant cooling, and ammonia cooling.
Recovery medium and concentration, supply and return temperatures, flow rate, availability profile, tube-side design pressure and temperature and pressure-drop limit, required duty in kW, tank volume and internal dimensions, tank material, potable or non-potable service, storage setpoint, water hardness and chloride content, existing heater positions, tank opening and withdrawal clearance, connection type and orientation, applicable code and testing requirements, and any drawing or photograph.
Contact CSTHEATEXCHANGER with your tank data, recovery-side conditions, and code determination. Our engineering team will review the duty, geometry, materials, and construction with you and issue drawings for confirmation before manufacture.
An HWST heat recovery coil sits at the intersection of three disciplines: heat transfer at a small temperature difference, potable water compliance, and mechanical durability under a cycling heat source. The U-tube bundle geometry answers the third requirement by design — free tube expansion, no thermal stress, maximum area per diameter, removable for cleaning — but only a coil engineered to your tank, your water, and your code determination will answer all three.
At CSTHEATEXCHANGER, we bring U-tube bundle manufacturing, a published material range from carbon steel through 316L stainless, copper-nickel and titanium, a coil line explicitly built for waste heat recovery, heat pump, CHP, geothermal, biomass and solar duties, unlimited coil length and height capability for tank-internal geometry, verified design tooling, drawing approval before manufacture, and a one-set minimum order for custom work.
Send your tank dimensions, storage setpoint, water hardness, recovery-side conditions, code requirements, and any existing coil drawings to CSTHEATEXCHANGER today. Contact our engineering team for a custom internal U-tube coil review for your domestic hot water storage tank heat recovery project.
