A large paddy pile is a heat problem that does not solve itself. Paddy arrives warm from the field or the dryer, the pile is deep, and the grain is an insulator — so the heat stays where it was deposited. In a silo or flat store holding thousands of tonnes, the centre of the pile can sit at a temperature that favours insect development for weeks while the surface looks and feels fine.
A grain cooling system attacks that directly: it delivers refrigerated, humidity-controlled air into the pile independently of the weather, drives a cooling front through the mass, and brings the whole bulk down to a temperature where insects cannot complete a life cycle and quality loss slows.
At CSTHEATEXCHANGER, our Grain Cooler is a purpose-built agriculture equipment air-cooled grain chiller for silos and warehouses, engineered around a two-stage cooling, big-temperature-difference high-efficiency design with low operating cost. It is specified for rice along with maize, wheat, barley, soya beans, sunflower seeds, sorghum, cotton seeds, green coffee beans, lucerne pellets, and feed pellets.
Ambient aeration works when the outside air is genuinely colder and drier than the grain. In paddy-growing regions — humid, tropical, or subtropical — that condition often does not exist when you need it, particularly right after harvest when the grain is warmest.
Peer-reviewed research on stored rice is explicit on this point: there are many storage situations where ambient conditions are insufficient to cool the grain, so refrigerated air units are used instead. In grain chilling, the grain is cooled using a refrigeration system that controls the temperature and relative humidity of the aeration air independently of the ambient conditions — and grain chilling is described as the most used technology in the rice industry to remove excess heat after harvest or drying, significantly preserving stored rice quality and allowing long-term storage regardless of ambient conditions.
CSTHEATEXCHANGER position: for a large paddy pile in a warm climate, refrigerated cooling is not an upgrade over ambient aeration — it is the only method that guarantees the target grain temperature on a defined schedule.
The published evidence gives clear, quantified targets — and they explain why this technology displaces fumigation rather than merely supplementing it:
Threshold | What the research shows |
|---|---|
13–35 °C | Insects cannot survive or thrive outside this temperature range |
Below 25 °C → below 20 °C | Keeping grain below 20 °C reduces the insect development rate compared with 25 °C product temperature |
15 °C or below | Grain chilling in industrial silo complexes kept stored paddy insect-free, even for extended periods and in extreme weather, when product temperature was held at 15 °C or below — a storage temperature below 15 °C is therefore recommended |
Chilled below 15 °C in under a week | Prevents most insect species from completing even one life cycle, since development from egg to adult takes at least a month at ideal temperatures of 30–35 °C |
A simulation for a paddy silo reported cooling the product to a top-layer temperature of 14.6 °C in less than five days, after which the average grain temperature rose only to about 15.5 °C.
Because grain is a good insulator, the research notes that once the grain has been initially cooled, only occasional re-chilling for short periods is required to maintain chilled storage conditions. Grain chilling therefore becomes an economical route to chemical-free pest control even in tropical conditions — and while grain chilling costs more than ambient aeration alone, reported analysis found it lower than the cost of ambient aeration and fumigation combined.
Our own product engineering states the same physical principle: grain is a band heat transmitter — in other words, a good insulator. The radiation of heat from the outside is of little influence, even when stored inside steel silos or warehouses. For this reason, no insulation of walls is required.
That is the operational headline for a large-pile operator: you are buying a cooling cycle, not a continuous refrigeration load. No silo wall insulation is required to make it work.
Our published operating description:
The cold air from the Grain Cooler unit is introduced at the bottom of the silo. This air begins to cool the bottom layer of grain. The air pushes the heat to pass upwards through the mass of grain and escapes as warm exhaust air. As the cooling process develops, a cooling zone is formed and slowly moves up through the grain. The cooling operation is completed as soon as the escaping air is cold. The same sequence occurs in the case of flat storage plants.
Three practical consequences for a large paddy pile:
The cooling front is the process. You are not "air-conditioning the building" — you are pushing a defined cooling zone from the bottom of the pile to the top. Completion is measured at the exhaust: when the escaping air is cold, the pass is done.
Flat stores follow the same sequence. Large paddy piles in warehouses and flat storage plants use the same bottom-in, top-out cooling front, which matters because much of the world's paddy is not in steel silos.
Exhaust air monitoring is your completion signal. Specify where and how exhaust temperature will be measured before commissioning, not after.

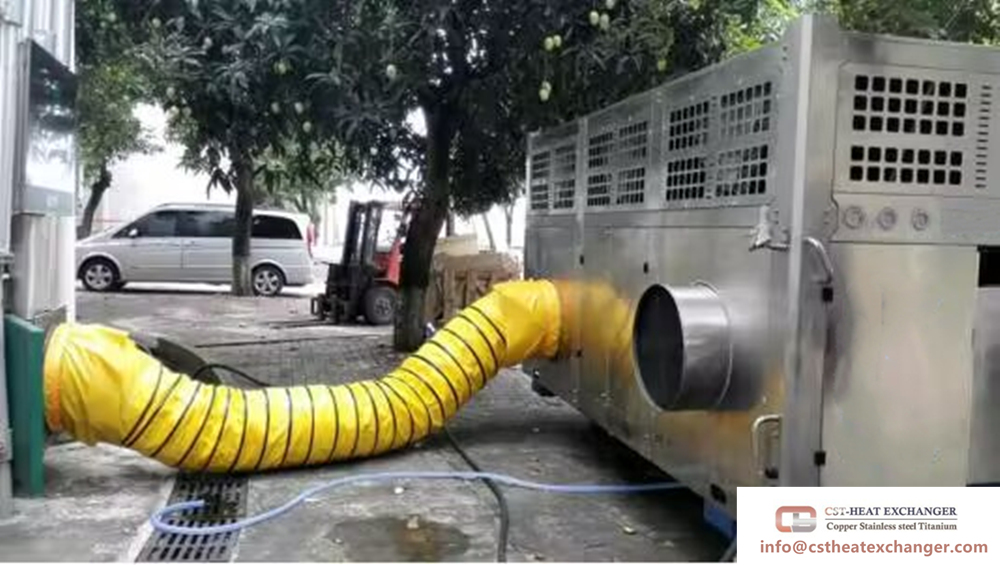

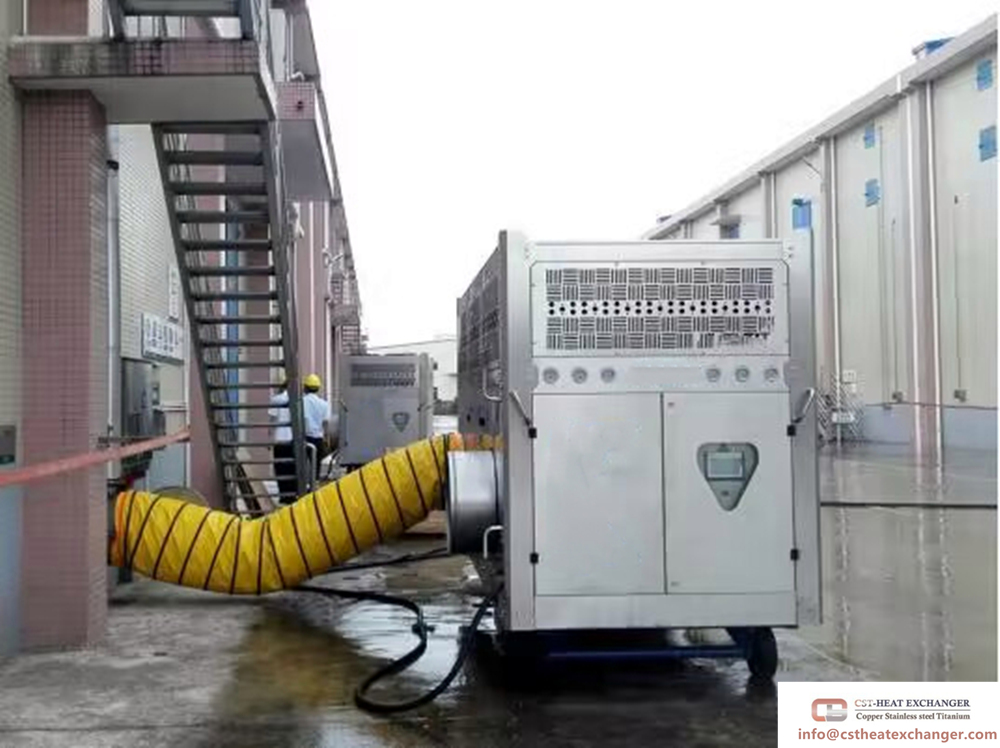

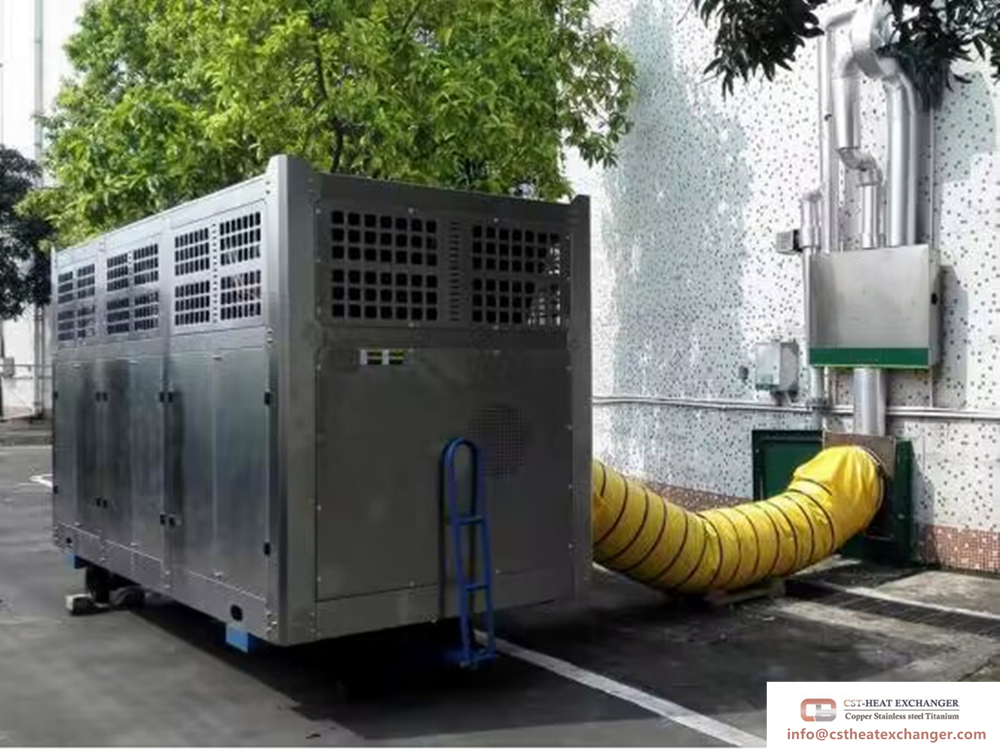

Our documentation is direct about installation: the refrigeration can be used in silos and warehouses. In silos, the cooler air outlet is connected to the existing aeration inlet pipe. The use of the cooling system is usually immediate and no additional works are necessary.
For an operator with existing aeration infrastructure, that is the decisive commercial point — the unit connects to the aeration inlet you already have.
Our Grain Cooler feature set, as published:
Keeps grain storage quality, delays food aging, and realises food freshness storage
Inhibits plant diseases and insect pests, avoids chemical fumigation pollution — green storage, safe storage, reduced loss
Two-stage cooling, big temperature difference, high-efficiency design, low operation cost
Reliable operation, easy operation
The two-stage cooling with a big temperature difference design is the feature that matters most for deep piles. Cooling a large paddy mass requires both a low enough supply-air temperature to create the driving temperature difference and control of the air's humidity so the cooling front does not re-wet the grain it passes through. A single-stage arrangement forces a compromise between those two requirements; a two-stage arrangement is built to deliver both.
CSTHEATEXCHANGER designs and manufactures the complete refrigeration heat-transfer product family that a grain cooling project draws on — unit coolers, air coolers, evaporators, ammonia evaporators, glycol air coolers, monoblock refrigeration units, air-cooled condensers, dry coolers, and CO₂ gas coolers — together with commercial and industrial coils. We use design software supplied by a well-known European HVAC software company, and through eight years of cooperation we have designed, processed, and exported units worldwide, with customer feedback that actual performance is close to the theoretical design value. We provide design data and production drawings for review.
Our packing standard is a wooden box; for export to European countries the wooden box is fumigated; where container space is tight we use PE film or pack according to the customer's specific request.
Storage type — steel silo, concrete silo, flat store, or warehouse bulk pile
Total tonnage per store and number of stores to be served
Pile depth or silo height, and diameter or floor footprint
Existing aeration system: duct layout, plenum or in-floor ducting, fan capacity, and static pressure
Aeration inlet pipe size and position — this is the connection point
Airflow available per tonne
Whether the store is filled in one campaign or progressively
Paddy variety and whether stored as paddy with husk
Incoming grain temperature — field-warm, dryer-hot, or already partly cooled
Incoming moisture content, and whether drying is complete
Target grain temperature and the time allowed to reach it
Cleanliness — chaff, dust, and fines content, which affects airflow resistance
Intended storage duration and turnover pattern
Site ambient design temperature and relative humidity at the cooling season
Whether cooling will run year-round or post-harvest only
Site elevation
Available electrical supply — voltage, phase, frequency, and capacity
Whether the unit will be fixed or moved between stores
Required cooling capacity and target cooling time per store
Number of cooling passes expected per season
Whether one unit will be rotated across several stores or one unit per store
Re-chilling strategy and trigger temperature
Temperature monitoring: cable positions, layers monitored, and exhaust air measurement point
Unit location, foundation or skid, and weather exposure
Duct connection type, size, and transition to the existing aeration inlet
Hose or ducting run length to the store
Mobility requirement if the unit serves multiple stores
Control interface, alarms, and any integration with existing storage management systems
Service access and clearance
Strategy | How it controls pests and quality | Where it fits a large paddy pile | What to confirm |
|---|---|---|---|
Refrigerated grain cooling (grain chiller) | Holds bulk below the insect development threshold independently of weather | Large piles in warm or humid climates where ambient air cannot reach target temperature | Target temperature, cooling time, aeration duct connection, re-chilling plan |
Ambient aeration | Uses cool outside air when available | Climates with reliably cool, dry periods | Whether ambient conditions actually reach the required temperature when needed |
Chemical fumigation | Kills insects present | Traditionally used, but facing resistance development and residue concerns | Resistance, residue, regulatory restrictions, and repeat treatment cost |
Cooling + one-time initial fumigation | Clean start followed by temperature maintenance | Where an existing infestation must be cleared before chilled storage begins | Facility cleaning before storage — research emphasises proper cleaning of the storage facility as the foundation for successful chemical-free chilled paddy storage |
Research on chemical-free paddy storage using a grain chiller highlights that proper cleaning of the storage facility before storage is essential to success, with a one-time fumigation cycle noted as part of that starting sequence in reported practice. A chiller manages temperature; it does not substitute for sanitation of an empty store.
The chiller pushes air through your ducting and your grain. Duct layout, available airflow per tonne, and static pressure determine whether the cooling front actually advances. Send the aeration system details, not just the tonnage.
Cooling 5,000 tonnes from 35 °C is a different duty from cooling 5,000 tonnes from 25 °C. State the real intake condition, including dryer-hot paddy if that is the case.
Paddy quality depends on not re-wetting the grain. Humidity control of the supply air is part of the requirement — state your moisture content and target.
Because grain self-insulates, only occasional re-chilling is typically required after the initial cooling pass. Designing and budgeting as if the plant runs continuously misprices the project.
Our engineering position is that no insulation of walls is required, because external heat radiation has little influence on the stored mass. Spend the budget on cooling capacity and monitoring instead.
Fines increase airflow resistance and create channels where the cooling front stalls. Grain cleanliness belongs in the enquiry.
Mobility is a real advantage — but a single unit rotated across many large piles may not complete the initial cooling pass on every store inside the window that prevents a life cycle from completing. Map the cooling schedule against the harvest calendar before deciding unit count.
Verify store cleaning and residual grain removal before filling — the foundation of chemical-free chilled storage
Monitor grain temperature at multiple depths, not just the surface, since insect activity concentrates at the centre of the mass when temperatures are low
Monitor exhaust air temperature to confirm each cooling pass is complete
Track the interval between re-chilling passes and log trigger temperatures
Inspect and clean the unit's air-side heat-transfer surfaces on a schedule matched to the dust load — paddy handling environments are dust-heavy
Check duct connections, hoses, and transitions for air leakage, which wastes cooling on every pass
Inspect fans, guards, mounts, and abnormal vibration
Verify refrigeration-side operation, controls, and safety devices
Keep records of grain temperature, moisture, and insect monitoring so trends are separable from single events
Operation should follow the equipment documentation, your storage management programme, and applicable local requirements, performed by qualified personnel.
Yes. Our Grain Cooler is an air-cooled grain chiller built for silos and warehouses, specified for rice among other crops, using a two-stage cooling, big-temperature-difference high-efficiency design with low operation cost. CSTHEATEXCHANGER engineers the unit around your store type, tonnage, incoming grain condition, target temperature, aeration infrastructure, and site climate.
Both. The refrigeration can be used in silos and warehouses, and the same bottom-in, top-out cooling sequence occurs in flat storage plants.
In silos, the cooler air outlet is connected to the existing aeration inlet pipe, and use of the cooling system is usually immediate with no additional works necessary. Send your duct layout, inlet pipe size and position, fan capacity, and static pressure so this can be confirmed for your specific store.
No. Grain is a good insulator, so heat radiation from outside has little influence even in steel silos or warehouses — no insulation of walls is required.
Published research recommends a storage temperature below 15 °C for insect-free paddy storage, notes that grain below 20 °C already slows insect development compared with 25 °C, and observes that insects cannot survive or thrive outside 13–35 °C. Your own target should follow your storage programme, product specification, and local requirements — send it to us, because it defines the cooling duty.
Typically not. Research reports that once the grain has been initially cooled, only occasional re-chilling for short periods is required to maintain chilled storage conditions, because of the insulating properties of the grain itself.
Cooling manages temperature to suppress insect development and is described in the literature as avoiding chemical fumigation pollution, with reported cost lower than ambient aeration plus fumigation combined. Research also stresses that proper cleaning of the storage facility before storage is essential to chemical-free success, with a one-time fumigation cycle noted in reported practice as part of establishing a clean start. Your pest management programme should be set with your agronomist or storage specialist and applicable regulations.
Our Grain Cooler is specifically recommended for rice, maize, wheat, barley, soya beans, sunflower seeds, sorghum, cotton seeds, green coffee beans, lucerne pellets, and feed pellets.
Store type and tonnage, pile depth or silo height, existing aeration duct layout and inlet pipe size, available airflow and static pressure, incoming paddy temperature and moisture content, target grain temperature and allowed cooling time, number of stores to serve, site ambient temperature and humidity, electrical supply details, mobility requirement, and any layout drawing or site photograph.
Contact CSTHEATEXCHANGER with your store data, grain condition, and target temperature. Our engineering team will review the duty, unit configuration, and aeration connection with you, and provide design data and production drawings for confirmation.
For a large paddy pile, the storage risk is concentrated in the part you cannot see — the warm core where insect development runs unchecked and quality quietly degrades. Ambient aeration cannot reach that core reliably in a warm, humid climate. Refrigerated grain cooling can, on a schedule you control, and the grain's own insulating behaviour then holds the result with only occasional re-chilling.
At CSTHEATEXCHANGER, we bring a purpose-built grain chiller with two-stage, big-temperature-difference cooling, direct connection to your existing silo aeration inlet, no requirement to insulate store walls, coverage of both silos and flat stores, a crop list that names rice first, and the refrigeration heat-transfer manufacturing depth behind it — unit coolers, evaporators, ammonia and glycol air coolers, monoblock units, condensers, and dry coolers built in-house.
Send your store tonnage, pile depth, aeration duct details, incoming paddy temperature and moisture, and target storage temperature to CSTHEATEXCHANGER today. Contact our engineering team for a custom grain cooling system review for your large paddy storage project.
