A properly designed gas-to-gas plate air preheater can transfer heat from hot smoke or exhaust gas generated during oil-based heat treatment to a separate incoming-air stream. This lowers the temperature of the treated exhaust gas while preheating combustion air, make-up air, or another clean process-air stream.
The key limitation is important: a plate air preheater transfers heat; it is not, by itself, a complete oil-smoke purification system. Oil mist, soot, dust, condensable vapors, and corrosive compounds should be characterized and managed with suitable upstream separation, filtration, drainage, bypass, and downstream emission-control equipment.
At CSTHEATEXCHANGER, we design industrial air-to-air heat exchangers and plate air preheaters around the actual gas temperature, flow rate, composition, pressure drop, heat-recovery target, materials, and maintenance requirements. For a bolt factory, the design should cool the smoke safely while making the recovered heat useful in the same process or a nearby air system.
Bolt manufacturing can include heating, carburizing, quenching, tempering, washing, and other thermal processes. In an oil-based heat-treatment line, hot exhaust gas may carry sensible heat away from the furnace or quench area. Releasing all of this heat directly to the exhaust system wastes energy and can increase the temperature burden on downstream ductwork and emission-control equipment.
A heat-recovery arrangement can provide two connected benefits:
Cool the hot smoke before the final exhaust stage, subject to the required emission-control and condensation limits.
Preheat a clean air stream for furnace combustion, process ventilation, make-up air, or another compatible heating demand.
The recovered heat is not automatically fuel savings. Its value depends on whether the bolt factory has a stable and nearby demand for the preheated air, whether the exhaust can be cooled without unwanted condensation, and whether the exchanger remains clean and serviceable.
The U.S. Department of Energy identifies high-temperature gases, process-heating exhaust, and heated liquids as industrial waste-heat sources. Its technology assessment also notes that heat-recovery feasibility depends on heat quantity, temperature, composition, minimum allowable temperature, and plant logistics. These factors are directly relevant to oil heat-treatment smoke.

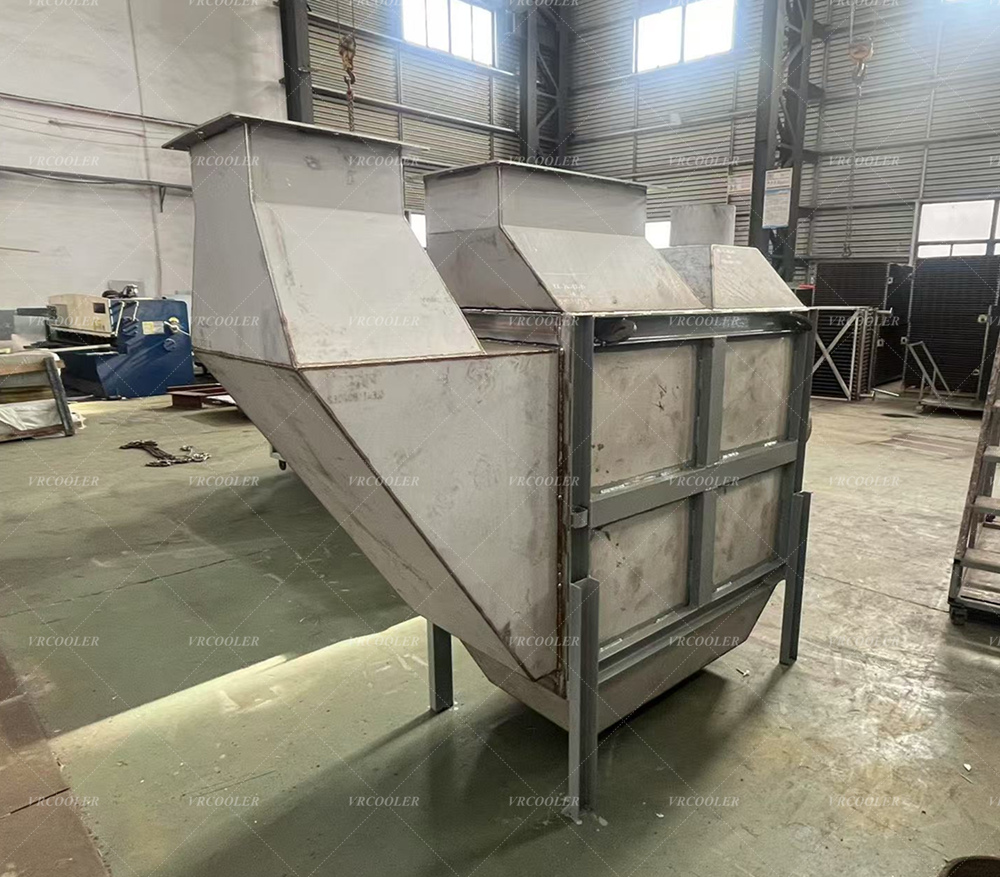

A plate air preheater is an indirect gas-to-gas heat exchanger. Hot oil-treatment smoke flows through one group of corrugated plate channels, while clean incoming air flows through separate adjacent channels. Heat passes through the metal plates; the two gas streams should remain separated.
A typical arrangement is:
Hot smoke leaves the heat-treatment furnace, quench hood, or exhaust collection point.
A hood, duct, spark-control measure, mist separator, or pre-filter manages large droplets and contaminants where required.
The hot gas enters the smoke side of the plate air preheater.
Clean combustion or process air enters the opposite side.
Heat transfers through the welded corrugated plates.
The preheated clean air returns to the furnace or process-air system.
The cooled exhaust gas moves to the downstream treatment and discharge system.
Counterflow or crossflow arrangements can be considered depending on the available temperature approach, footprint, duct routing, and pressure-drop limit. The correct arrangement must be calculated from the actual process data.
Oil heat-treatment smoke is not the same as clean combustion exhaust. The following information should be collected before equipment selection:
Design input | Why it matters |
|---|---|
Smoke temperature range | Determines material, thermal expansion, and allowable outlet temperature |
Gas flow rate and variation | Establishes heat duty and exchanger size |
Oil type and consumption | Indicates potential oil mist, vapor, and condensable loading |
Smoke composition | Supports corrosion, fouling, and emission-control assessment |
Dust, soot, and particulate concentration | Determines pre-filtration, cleaning, and pressure-drop needs |
Water vapor and dew-point information | Helps prevent unwanted condensation and corrosion |
Required cooled-gas temperature | Must remain compatible with ducting and downstream treatment |
Clean-air inlet temperature and flow | Defines the useful heat-recovery target |
Allowed pressure drop | Affects fan power and system operating cost |
Operating schedule | Determines turndown, bypass, and control requirements |
Available installation space | Controls the module size, duct connections, supports, and access |
A single smoke temperature reading is not enough for design. The system may operate differently during furnace loading, heating, soaking, oil quenching, production changes, start-up, and shutdown. CSTHEATEXCHANGER should receive the normal, minimum, and peak operating conditions before finalizing the heat exchanger.
Oil vapors and mist can condense on cooler heat-transfer surfaces. Deposits may reduce heat transfer, increase pressure drop, obstruct passages, create odor, and increase the cleaning burden. If combustible deposits accumulate, the system may also require additional fire and process-safety review.
A practical design should consider the following measures:
A mist eliminator, baffle, spark-control device, washable filter, or other pre-treatment may be required before the smoke enters the plate core. The appropriate equipment depends on droplet size, smoke composition, temperature, and the plant’s emission-control design.
If the smoke is cooled below the relevant dew point, oil and water may condense inside the exchanger or duct. The target outlet temperature should therefore be selected with the gas composition, moisture level, downstream equipment, and corrosion risk in mind.
The exchanger should include practical isolation, inspection, drain, service, and cleaning provisions. Modular construction can help with maintenance, but the access method must be confirmed in the plant layout.
Useful measurements include hot-side inlet and outlet temperature, clean-air inlet and outlet temperature, gas flow, pressure drop on both sides, fan load, and alarm conditions. A rising pressure drop or falling heat-recovery performance can indicate fouling or a control problem.
The U.S. Department of Energy identifies anti-fouling and anti-clogging capability as important for hot-gas heat-recovery systems. For oil-treatment smoke, fouling prevention should be part of the process design, not an afterthought.
For a bolt factory that has a nearby air-heating demand, a gas-to-gas plate air preheater can recover heat directly into clean air without adding an intermediate water loop. The choice should be made from the process layout rather than from the equipment name alone.
Configuration | Main benefit | Main design concern |
|---|---|---|
Gas-to-gas plate air preheater | Directly transfers smoke heat to clean air; compact arrangement | Oil mist, fouling, leakage control, and pressure drop |
Gas-to-liquid heat exchanger | Can serve a distributed hot-water or thermal-fluid loop | Adds pumps, intermediate fluid, and another heat-transfer step |
Air cooler without heat recovery | Simple way to lower gas temperature | Rejects useful heat and may require more fan or cooling capacity |
Direct mixing of hot smoke and fresh air | May appear simple | Not appropriate when clean air and contaminated gas must remain separated |
A plate air preheater is especially relevant when the clean-air demand is located close to the heat-treatment line and operates at a compatible schedule. If no suitable air demand exists, a different recovery concept may offer better lifecycle value.
Material selection depends on gas temperature, contaminants, moisture, condensation risk, cleaning chemicals, and the required service life. CSTHEATEXCHANGER’s plate air preheater platform uses corrugated metal plates and can be configured with material options such as stainless steel, corrosion-resistant steel, or enameled steel where appropriate to the application.
The final selection should consider:
High-temperature strength and thermal expansion;
Resistance to oil-related deposits and acidic compounds;
Water and condensate exposure;
Welded-joint integrity;
Cleaning method and chemical compatibility;
Duct, frame, and support temperatures;
Required leakage control between the two gas streams.
The exact material recommendation should not be made from the term “oil smoke” alone. A representative gas analysis and operating temperature profile are needed for a responsible design review.
Our engineering process is built around the customer’s actual operating conditions:
Application review: We confirm the heat-treatment process, smoke source, clean-air destination, operating schedule, and layout.
Thermal calculation: We calculate heat duty, gas-side temperatures, heat-transfer area, temperature approach, and expected recovery.
Pressure-drop review: We check the smoke-side and clean-air-side resistance against the available fan capacity.
Fouling and material review: We assess oil mist, particulate loading, condensation risk, corrosion, cleaning, and maintenance access.
Mechanical design: We configure the plate core, welded construction, frame, supports, duct connections, inspection points, and bypass arrangement.
Control concept: We consider temperature sensors, dampers, bypass control, high-temperature protection, and abnormal-operation conditions.
Production and quality control: We support sample or pilot production where required and perform the applicable inspection and testing before shipment.
CSTHEATEXCHANGER’s official product information describes the plate air preheater as a modular, compact gas-to-gas heat exchanger for air preheating and waste heat recovery. The published design information also emphasizes welded construction, material flexibility, thermal-expansion considerations, and maintenance access.
To evaluate a plate air preheater for cooling heat-treatment oil smoke, please provide:
Heat-treatment equipment type and process description;
Smoke source and duct location;
Normal and peak smoke temperature;
Smoke flow rate or fan capacity;
Oil type, consumption, and operating pattern;
Available gas analysis, particulate data, and moisture information;
Required smoke outlet temperature;
Clean-air flow rate and inlet temperature;
Target clean-air outlet temperature or heat-recovery duty;
Maximum allowable pressure drop;
Existing filters, mist separators, dampers, and emission-control equipment;
Installation drawings, duct sizes, access space, and support conditions;
Required materials, standards, inspection, and documentation.
Photos of the furnace, quench area, smoke duct, fan, filter, stack, and available installation space can help our engineers understand the complete system.
No. A plate air preheater transfers heat between separated gas streams. It may reduce exhaust temperature and recover heat, but oil mist, particulate, VOCs, and other pollutants require suitable process controls and emission-treatment equipment.
Yes, if the exchanger is sized for the actual smoke flow, temperature, composition, and allowable pressure drop. The cooled outlet temperature must also remain compatible with condensation limits, duct materials, downstream treatment, and safe operation.
It can. Oil mist and condensable vapors may deposit on the gas-side surfaces. Upstream separation, suitable operating temperatures, adequate gas velocity, access for cleaning, pressure-drop monitoring, and a maintenance plan should be considered during design.
It can be considered when the furnace and clean-air system can accept the preheated air, the operating schedules are compatible, and the temperature and flow are controlled. The clean air must remain separated from the contaminated smoke.
There is no universal temperature. It must be calculated from the smoke composition, moisture and oil content, dew-point and condensation risk, downstream equipment, duct material, environmental requirements, and heat-recovery target.
Not automatically. A technical review is needed to confirm smoke cleanliness, temperature, flow, pressure drop, heat demand, installation space, maintenance access, and the complete emission-control system. A different heat-recovery configuration may be more suitable in some plants.
Yes. CSTHEATEXCHANGER can review new and retrofit projects and develop customized industrial heat exchangers around process drawings, operating data, duct dimensions, and site constraints. Final design requires confirmed engineering parameters.
For a bolt factory using oil heat treatment, a plate air preheater can provide an effective gas-to-gas route to reduce hot smoke temperature and recover part of its heat for clean combustion or process air. The system must be designed as more than a heat exchanger: oil-mist control, particulate management, condensation prevention, pressure drop, leakage control, cleaning access, bypass operation, and downstream emissions treatment all matter.
CSTHEATEXCHANGER can help you evaluate a customized plate air preheater for your bolt-factory heat-treatment line. Send us your smoke temperature, flow rate, oil information, clean-air demand, duct layout, existing filtration, and target outlet conditions. Our engineering team will review the application and recommend a practical heat-recovery design direction.
