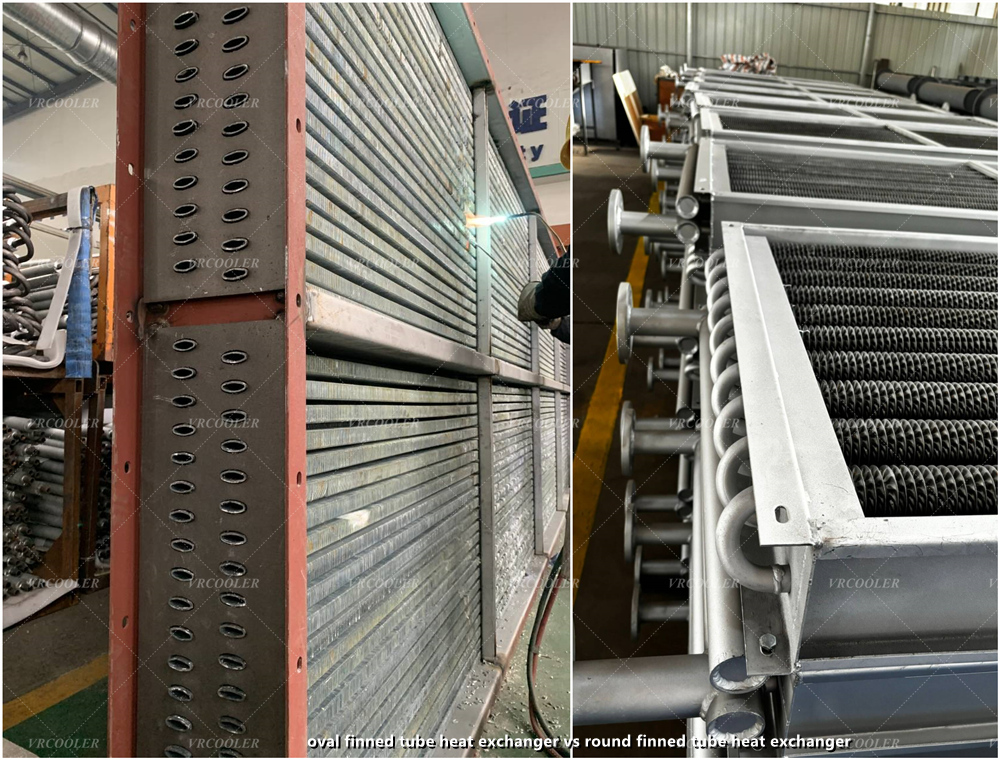

Oval Finned Tube Heat Exchanger vs. Round Finned Tube Heat Exchanger

Which Is Better, Oval or Round Finned Tube?

Neither tube shape is universally better. An oval or elliptical finned tube heat exchanger is often attractive when the project prioritizes lower air-side resistance, compact installation, reduced wake formation, or lower dust and particle accumulation. A round finned tube heat exchanger is often preferred when the project values familiar manufacturing, broad component availability, established maintenance practices, and straightforward internal pressure design.

The right choice depends on the air or gas quality, required heat duty, allowable pressure drop, operating pressure, temperature, corrosion risk, cleaning method, footprint, and total lifecycle cost.

At CSTHEATEXCHANGER, we manufacture and customize both elliptical/oval finned-tube heat exchangers and conventional finned-tube designs. We select the tube geometry around the application rather than treating one design as a universal replacement for the other.

Oval vs. Round Finned Tube Heat Exchanger: Comparison Table

This table provides direction, not a guaranteed performance ranking. Final results depend on tube dimensions, fin type, pitch, row arrangement, fluid properties, air velocity, temperature difference, and the complete exchanger design.

When Should You Choose an Oval Finned Tube Heat Exchanger?

Oval or elliptical tubes are useful when the air-side geometry is a major design constraint. Their streamlined shape can reduce flow separation behind the tube compared with a circular tube under comparable conditions. This may lower air-side resistance and improve the relationship between heat transfer and fan power when the coil is properly designed.

An oval finned-tube heat exchanger may be considered for:

• Flue-gas and exhaust-gas heat recovery;

• Air heaters and air coolers;

• Boiler economizer or preheater duties;

• Industrial radiators and process coolers;

• Applications with limited fan pressure;

• Air or gas streams containing dust or particles;

• Compact equipment where the face area or depth is constrained;

• Custom replacement projects where the existing geometry favors an elliptical tube.

CSTHEATEXCHANGER’s elliptical finned-tube product information identifies compactness, a favorable heat-transfer coefficient, and lower pressure drop as potential advantages of the aerodynamic oval profile. These benefits still need to be confirmed for the project’s actual gas velocity, tube size, fin arrangement, and operating conditions.

What Are the Main Benefits of Round Finned Tubes?

Round tubes remain a strong choice for many heat exchangers because their geometry is familiar, structurally efficient, and widely supported by standard fabrication and maintenance methods.

Round finned tubes may be the better fit when the project requires:

• Higher internal pressure capability within the selected material and wall thickness;

• Familiar tube expansion, brazing, welding, or header construction;

• Easier access to standard replacement components;

• Existing round-tube coil drawings or spare parts;

• Well-established inspection and pressure-testing procedures;

• A standard HVAC coil or air-cooled heat exchanger arrangement;

• A broad range of tube diameters and fin materials.

Round tubes are not automatically inefficient. A well-designed round-tube exchanger can deliver excellent performance when the fin density, tube pitch, row arrangement, air velocity, fluid circuiting, and pressure-drop target are correctly matched.

How Does Tube Shape Affect Heat Transfer and Pressure Drop?

Tube shape changes the external airflow around the tube and therefore affects the air-side heat-transfer coefficient, wake size, turbulence, and pressure drop. It also changes the available external surface distribution and the way fins contact the tube.

The result is not determined by tube shape alone. A practical comparison should hold the following factors constant or clearly state how they differ:

• Tube hydraulic and external dimensions;

• Fin material and thickness;

• Fin pitch and surface treatment;

• Tube pitch in the longitudinal and transverse directions;

• Number of rows and passes;

• Air mass flow and face velocity;

• Fluid flow rate and temperature;

• Required heat duty;

• Air-side and fluid-side pressure-drop limits.

A smaller pressure drop can reduce fan power, but a lower pressure drop is not automatically a lower total cost. If an oval tube requires specialized tooling, custom headers, or more complex field repair, the project should compare the energy benefit with the manufacturing and service implications.

The U.S. Department of Energy’s heat-exchanger research emphasizes the need to evaluate heat transfer and pressure drop together. That principle applies directly to oval-versus-round tube selection: the preferred geometry is the one that meets the duty at an acceptable lifecycle energy and maintenance cost.

Which Tube Shape Performs Better in Dusty or Abrasive Gas?

Oval tubes can be advantageous in selected dusty or abrasive gas streams because their streamlined profile may reduce the size of the downstream wake and lower the tendency for particles to impact the tube at high local velocity. This can help reduce localized erosion in some applications.

However, oval geometry does not eliminate erosion or fouling. Actual service life depends on:

• Particle size and concentration;

• Gas velocity and temperature;

• Particle hardness and shape;

• Tube and fin materials;

• Gas-flow distribution;

• Upstream filtration or separation;

• Cleaning frequency;

• Tube-wall thickness and protective measures.

Round tubes can still perform reliably in dirty gas service when the exchanger uses appropriate tube material, velocity control, protective shields, soot-blowing or cleaning provisions, and a suitable arrangement. For either design, CSTHEATEXCHANGER recommends evaluating the gas composition and fouling mechanism before finalizing the coil.

Which Design Is Easier to Manufacture and Replace?

Round finned tubes generally have the advantage in standardization. Many manufacturers, maintenance teams, and replacement suppliers are familiar with round tubes, common fin patterns, and conventional headers. This can simplify procurement where a standard coil must be replaced quickly.

Oval finned tubes are more application-specific. They can offer a strong performance case, but the project should confirm:

• Availability of the selected tube profile;

• Tooling and forming requirements;

• Header and connection construction;

• Fin-to-tube contact method;

• Repair and plugging procedures;

• Cleaning tools and access;

• Spare-part strategy;

• Transport and installation constraints.

For a new machine or a custom industrial system, these requirements can be included in the initial design. For a direct replacement, the existing equipment drawings and maintenance history should be reviewed before changing from round to oval tubes.

Which Design Has the Lower Cost?

There is no responsible universal answer that oval or round tubes always cost less. The purchase price depends on the exchanger size, tube material, fin material, number of rows, headers, casing, design pressure, testing, coating, quantity, tooling, and delivery requirements.

A round-tube design may have a lower initial procurement cost when it uses standard dimensions and an established production line. An oval design may justify additional engineering or tooling when it reduces fan energy, allows a smaller footprint, reduces erosion risk, or improves access to a difficult performance target.

The project should compare total cost across four categories:

For a high-runtime industrial system, a modest purchase-price difference may be less important than long-term fan power, fouling, erosion, and availability. For a simple replacement coil, standard round-tube compatibility may be more valuable than a theoretical performance advantage.

How Do Materials and Fin Selection Change the Decision?

Tube geometry should be selected together with material and fin design. CSTHEATEXCHANGER supports customized combinations of tubes, fins, headers, casings, and protective finishes for different heat-transfer media and air environments.

Common project considerations include:

• Copper tubes for suitable water, refrigerant, or HVAC applications;

• Stainless-steel tubes for selected corrosive or high-temperature services;

• Aluminum fins where low weight and good air-side conductivity are useful;

• Stainless-steel or coated fins for more demanding environments;

• Galvanized or stainless-steel casings based on corrosion and installation conditions;

• Tube-wall thickness based on pressure, temperature, corrosion allowance, and mechanical requirements;

• Fin pitch based on heat transfer, dust loading, and cleaning access.

The correct combination can differ between an HVAC coil, a clean air cooler, a boiler economizer, a flue-gas exchanger, and a process radiator. A tube profile should not be chosen separately from the fluid, air stream, and maintenance plan.

How Does CSTHEATEXCHANGER Select Oval or Round Tubes?

At CSTHEATEXCHANGER, we begin with the application data rather than assuming a preferred tube shape. Our review includes:

1. Defining the hot and cold fluid or air streams;

2. Confirming heat duty and operating temperature range;

3. Reviewing air or gas composition, dust, fouling, and corrosion risks;

4. Setting allowable air-side and fluid-side pressure drops;

5. Comparing oval and round geometry for the available footprint;

6. Selecting tube, fin, header, casing, and coating materials;

7. Reviewing cleaning, inspection, repair, and spare-part requirements;

8. Checking structural, thermal-expansion, and connection details;

9. Completing applicable pressure and leak testing before shipment.

We can build custom oval finned-tube heat exchangers from project drawings and can also develop round finned-tube assemblies for standard or replacement applications. The final selection should be supported by heat-transfer and pressure-drop calculations for the complete exchanger.

Which Applications Commonly Favor Each Geometry?

These are starting points, not final specifications. A complete calculation and design review remains necessary.

Frequently Asked Questions

Is an oval finned tube heat exchanger more efficient than a round finned tube heat exchanger?

It can provide a favorable heat-transfer-to-pressure-drop balance in some air-side applications, but it is not automatically more efficient. Fin design, tube dimensions, spacing, airflow, fluid conditions, and exchanger size must be compared at the same duty and pressure-drop limits.

Does an oval tube always have lower pressure drop?

No. An optimized oval profile can reduce flow resistance in certain arrangements, but pressure drop depends on the complete tube bank, fin geometry, face velocity, row count, and flow distribution. Final performance must be calculated or tested for the actual design.

Are round finned tubes stronger than oval tubes?

A circular tube is structurally efficient for internal pressure, but the actual allowable pressure depends on material, wall thickness, temperature, welds, headers, supports, and applicable design requirements. An oval tube can also be engineered for the specified service.

Which tube shape is better for dusty flue gas?

An oval tube may be a strong candidate because its aerodynamic profile can reduce wake-related particle impact in some gas streams. However, filtration, gas velocity, tube material, fin pitch, erosion allowance, cleaning access, and gas distribution are equally important.

Which design is easier to clean?

Round tubes are often familiar to maintenance teams, but cleaning accessibility depends more on fin spacing, casing access, row arrangement, and the cleaning method than on tube shape alone. The selected oval profile should be reviewed with the planned tools and service procedure.

Can CSTHEATEXCHANGER manufacture both oval and round finned-tube heat exchangers?

Yes. CSTHEATEXCHANGER manufactures custom elliptical/oval finned-tube heat exchangers and conventional finned-tube assemblies for industrial, HVAC, air-cooling, heat-recovery, and replacement applications.

Which option is better for a retrofit project?

Use the existing coil dimensions, connections, heat duty, airflow, pressure drop, and maintenance history as the starting point. A round tube may simplify a standard replacement, while an oval tube may be justified when the retrofit has a clear airflow, footprint, erosion, or energy objective.

What information should be included in a quotation request?

Provide the heat duty, fluid temperatures and flow, air or gas temperature and flow, composition and dust loading, design pressure, allowable pressure drop, available dimensions, tube and fin materials, connection details, cleaning method, and whether the unit is new, replacement, or retrofit equipment.

Conclusion: Choose the Tube Shape for the Actual Duty

The choice between an oval finned tube heat exchanger and a round finned tube heat exchanger should be based on the complete application—not on tube shape alone.

Choose an oval/elliptical design when streamlined airflow, lower resistance, compactness, or particle-flow behavior is central to the project. Choose a round-tube design when standardization, pressure-containing familiarity, replacement availability, and conventional maintenance are the stronger priorities. In both cases, the final design must meet the required heat duty, pressure drop, materials, service life, and maintenance conditions.

CSTHEATEXCHANGER can help you compare and customize the right finned-tube heat exchanger for your application. Send us your operating conditions, drawings, airflow data, fluid information, pressure-drop limits, and maintenance requirements. Our team will review whether oval or round tubes provide the more practical technical and lifecycle solution.
