A hydroelectric generator commonly uses a water-to-air generator air cooler. Internal air circulates through the generator, absorbs heat from the stator core, windings, rotor, and other heat-producing components, and then passes across finned-tube cooling coils. Cooling water flows inside the tubes and removes heat from the generator air before the air returns to the generator interior.
This closed air-circulation arrangement helps control the thermal condition of the generator without continuously replacing the internal air. It is suitable for many large hydroelectric generators, subject to the machine design, cooling-water conditions, required heat duty, allowable pressure drop, and installation geometry.
At CSTHEATEXCHANGER, we design and manufacture generator air coolers for hydropower applications, including custom units based on drawings, dimensions, operating data, and replacement requirements. Our product information identifies generator air-cooler applications for hydroelectric generators and states that the listed design can support generator capacities up to 11,500 kW; final capacity must be confirmed for the specific machine and operating conditions.
A hydroelectric generator converts the mechanical energy of a water turbine into electrical energy. During operation, electrical and mechanical losses become heat. The main heat sources can include:
Stator windings and stator core;
Rotor windings or rotor-related components;
Generator bearings and nearby oil systems;
Excitation components;
Ventilation and friction losses;
Other machine-specific electrical and mechanical losses.
If the heat is not removed, the temperature of windings, insulation, bearings, and internal components can rise beyond the intended operating range. Thermal stress can accelerate aging, reduce operating margin, trigger alarms, and contribute to unplanned outages.
A generator air cooler transfers this heat to a secondary cooling-water circuit. It therefore supports the generator’s thermal management, but it must be integrated with the machine ventilation path, cooling-water system, instrumentation, protection, and maintenance procedures.
A typical system operates as a closed air loop:
Air inside the generator absorbs heat from the stator, rotor, core, windings, and other components.
Internal fans or rotor-driven ventilation move the warm air toward the air-cooler section.
Warm generator air flows across the finned-tube coil.
Cooling water passes through tubes inside the coil.
Heat transfers from the generator air through the fins and tube walls into the water.
Cooled air returns to the generator interior.
Heated water leaves the cooler and travels to the plant’s cooling-water system.
A well-designed cooler must remove the required heat without creating excessive air-side pressure drop. Excessive resistance can alter the generator ventilation pattern and reduce the intended air circulation. Water-side pressure drop must also remain compatible with the plant pump and closed cooling loop.
The air cooler is not a replacement for all generator cooling systems, but it can play a central role in maintaining the internal air temperature that affects multiple components.
Component or area | Cooling concern | Air-cooler design relevance |
|---|---|---|
Stator windings | Heat from electrical losses and insulation-temperature limits | Required air temperature and heat-removal duty |
Stator core | Core losses and local hot spots | Air distribution and cooler face coverage |
Rotor and rotor windings | Rotational electrical losses and internal heat circulation | Airflow resistance and internal ventilation path |
Generator bearings | Heat may be associated with friction and nearby oil systems | Overall machine temperature and adjacent cooling provisions |
Excitation equipment | Electrical losses and enclosure heat | Cooling-air availability and localized heat load |
Generator housing | Internal thermal balance and hot-air recirculation | Cooler placement, sealing, and air-side pressure drop |
The final thermal design should use the generator manufacturer’s heat-load distribution, ventilation data, permissible temperatures, and alarm settings. A general-purpose HVAC coil should not be substituted without checking the machine’s airflow, water, pressure, vibration, sealing, and service requirements.
A reliable selection requires information from both the generator and the cooling-water circuit.
Design input | Why it matters |
|---|---|
Generator rated output and operating profile | Establishes the machine scale and heat-load range |
Total heat to be removed | Defines required cooler capacity |
Generator internal airflow | Determines air-side heat transfer and pressure drop |
Entering and leaving generator-air temperatures | Defines the air-side duty |
Cooling-water inlet temperature | Sets the available temperature difference |
Cooling-water flow rate | Determines water-side heat transfer and pressure drop |
Water chemistry and cleanliness | Affects tube materials, fouling, and maintenance |
Allowable air-side pressure drop | Protects the intended generator ventilation pattern |
Allowable water-side pressure drop | Confirms pump and closed-loop compatibility |
Available coil envelope | Determines face area, rows, passes, and connections |
Ambient, humidity, and condensation conditions | Supports insulation and condensation control |
Vibration and structural requirements | Important for long-term generator service |
Replacement or retrofit dimensions | Preserves fit, connections, and service access |
For a preliminary water-side calculation, the removed heat can be expressed as:
[ Q = \dot{m}{water} \times c_p \times (T{out} - T_{in}) ]
The actual selection must also reconcile the water-side result with the air-side heat balance, coil effectiveness, fin efficiency, fouling allowance, pressure drop, and generator ventilation requirements.

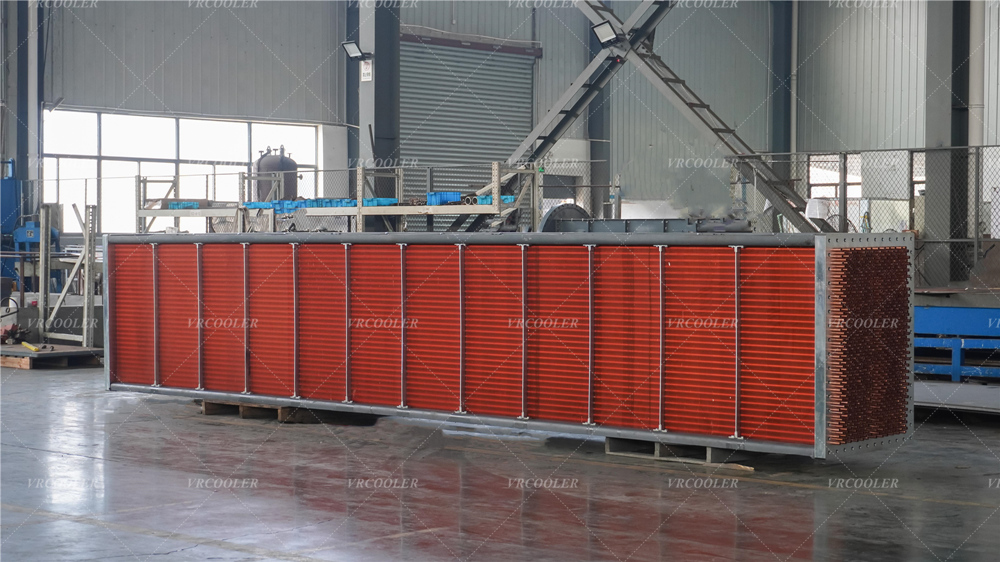

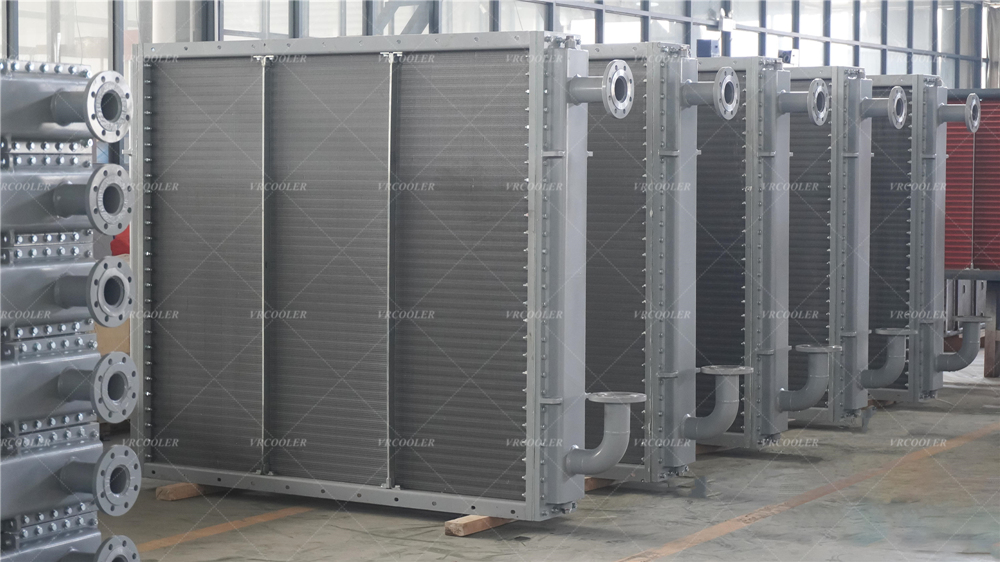

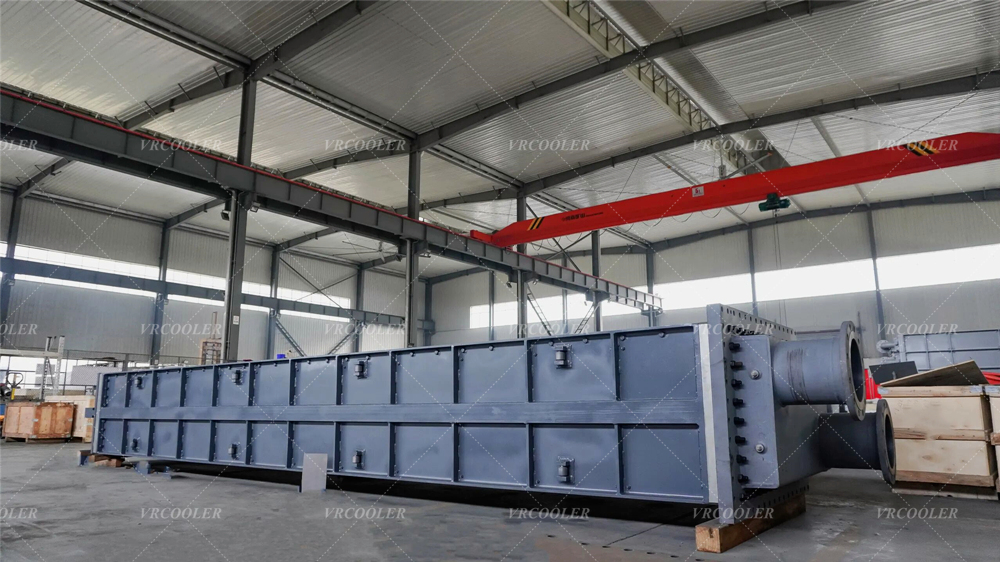

Generator air coolers commonly use finned-tube heat exchanger coils. Air passes over the finned external surface, while water flows inside the tubes. The tube and fin materials, circuiting, headers, casing, and mounting arrangement are customized for the generator and plant conditions.
CSTHEATEXCHANGER’s generator-cooler information includes generator air coolers, finned-tube generator air coolers, custom air coolers made according to drawings, and generator heat exchangers for hydropower applications. This range allows the selection to address both new-machine projects and replacement or retrofit work.
The coil design may include:
Copper or stainless-steel tubes, subject to water chemistry and pressure;
Aluminum, copper, stainless-steel, or coated fins, subject to the air environment;
Headers sized for the required water flow and circuiting;
Removable or serviceable coil sections where access is limited;
Protective coatings or corrosion-resistant materials for demanding water conditions;
Custom connection positions and mounting details;
Multiple coil sections arranged around the generator housing.
Material selection should be based on actual cooling-water chemistry, dissolved solids, biological activity, temperature, pressure, treatment, and cleaning method. Water from a river, reservoir, or open cooling source may require a different risk assessment from a treated closed-loop circuit.
The air cooler must transfer heat without restricting the generator ventilation system beyond the approved limit. Coil depth, fin density, tube pitch, number of rows, face velocity, and fouling allowance all influence pressure drop.
The design review should include:
Required airflow through each cooler section;
Available pressure difference from the generator ventilation system;
Face velocity across the coil;
Fin spacing for dust, lint, and cleaning access;
Air bypass around the coil;
Sealing between the generator housing and cooler frame;
Temperature uniformity at the cooler outlet;
Access for inspection and cleaning;
Pressure-drop change as the coil becomes fouled.
A coil with a high nominal heat-transfer area may not be suitable if it creates excessive resistance. In a generator application, the airflow pattern is part of the machine’s thermal design, so pressure drop and heat duty must be evaluated together.
The water circuit should be treated as a critical part of the generator cooling system. The heat exchanger coil is only one component in the path between the generator and the plant heat sink.
Important water-side design points include:
Supply and return temperature;
Required flow at rated and partial load;
Water pressure and pressure drop;
Header and branch-pipe balancing;
Isolation valves for maintenance;
Vent and drain points;
Strainers or filtration where required;
Water treatment and corrosion control;
Fouling and scaling allowance;
Freeze protection where applicable;
Leak monitoring and alarm response;
Redundancy or bypass strategy.
The plant should confirm whether the air cooler is connected to a closed cooling-water loop, an open water source, a cooling tower circuit, or another heat-rejection system. Water quality and availability can affect material selection, cleaning frequency, and expected service life.
Some generator cooling applications require enhanced separation and leak monitoring between the cooling medium and sensitive generator components. CSTHEATEXCHANGER publishes a double-tube-sheet air-cooler design in which a cavity between tube-sheet plates can provide a containment and monitoring area for leakage detection.
A double-tube-sheet or similar protected construction may be considered when the project prioritizes:
Reduced risk of cooling-medium contact with electrical components;
Early leak detection;
Separation between fluid circuits;
Maintenance monitoring;
Additional protection for high-value equipment.
The correct design depends on the actual fluid, pressure, generator configuration, applicable standards, and owner requirements. Double-tube-sheet construction can change the cost, dimensions, inspection method, and maintenance procedure and should be specified at the engineering stage.
Yes. Generator air coolers are often replacement or retrofit items because the generator housing, cooler openings, water connections, support points, and ventilation path already exist.
For a retrofit, CSTHEATEXCHANGER can review:
Existing cooler drawings and nameplate information;
Physical dimensions and mounting holes;
Coil face area and number of sections;
Water inlet and outlet locations;
Airflow direction and pressure-drop limits;
Existing heat duty and operating temperatures;
Material and corrosion history;
Access and lifting limitations;
Required replacement schedule and spare strategy.
A 1:1 dimensional replacement is not automatically a thermal replacement. The new coil should be checked against the actual generator airflow, water flow, fouling condition, and observed operating temperatures. If the original cooler underperformed, the retrofit review should identify whether the cause was insufficient area, fouling, low water flow, air bypass, poor sealing, or another system issue.
Maintenance should protect both sides of the heat exchanger. Air-side fouling reduces airflow and heat transfer, while water-side scaling or corrosion reduces water flow and thermal performance.
A practical maintenance plan includes:
Inspecting air-side fin surfaces for dust and debris;
Cleaning fins using methods that do not bend or damage them;
Monitoring air-side pressure drop;
Inspecting water inlet and outlet temperatures;
Checking water flow and pressure drop;
Reviewing strainers and filtration;
Inspecting headers, tube sheets, seals, and connections;
Checking for leaks, moisture, or abnormal corrosion;
Monitoring generator winding, bearing, and internal-air temperatures;
Verifying alarms and protective shutdown signals;
Inspecting vibration, supports, and fasteners;
Recording performance trends for early fault detection.
If the generator air temperature rises, do not assume that the coil itself has failed. Possible causes include reduced water flow, fouled fins, scaled tubes, blocked strainers, air bypass, fan or ventilation problems, high cooling-water temperature, or an inaccurate sensor.
A generator air cooler should be tested as a heat exchanger and as part of the generator cooling system.
Dimensional and material inspection;
Tube, header, and tube-sheet inspection;
Pressure and leak testing;
Connection and circuit verification;
Fin and casing inspection;
Documentation of the applicable test pressure;
Review of drawings and replacement interfaces.
CSTHEATEXCHANGER’s quality policy states that coils are leak tested at the applicable pressure before delivery. The actual pressure, test medium, acceptance criteria, and documentation should be defined by the project specification and applicable code requirements.
Water flushing and cleanliness verification;
Controlled filling and air venting;
Hydrostatic or pressure testing of the installed circuit;
Flow balancing across multiple cooler sections;
Airflow and air-temperature measurement;
Water supply and return temperature measurement;
Generator temperature monitoring at different loads;
Alarm, interlock, bypass, and isolation-valve testing;
Vibration and structural inspection;
Performance comparison with the approved design values.
The commissioning baseline is valuable for future operation and maintenance. It should include the generator load, cooling-water conditions, internal-air temperatures, flow rate, pressure drop, and ambient conditions.
At CSTHEATEXCHANGER, we design and manufacture custom generator air coolers and heat exchangers for power-generation applications. For hydroelectric generators, we can review new-unit requirements, old-unit replacement drawings, retrofit constraints, cooling-water data, generator airflow, and installation details.
Our project workflow can include:
Reviewing generator drawings, heat-load data, airflow, and water conditions;
Confirming the required air-cooler capacity and allowable pressure drop;
Selecting tube, fin, header, casing, and protective materials;
Designing circuiting, connections, mounting, and service access;
Reviewing leak protection, double-tube-sheet, or monitoring requirements where applicable;
Supporting sample, prototype, or replacement-unit approval;
Completing applicable pressure and leak testing before shipment;
Providing technical information for site installation and commissioning.
This engineering approach allows CSTHEATEXCHANGER to supply a hydro-generator air cooler that is matched to the machine instead of treating the application as a standard HVAC coil replacement.
It is a water-to-air heat exchanger that removes heat from the air circulating inside a hydroelectric generator. Cooling water flows through finned tubes, while warm generator air passes over the coil and returns to the machine at a lower temperature.
The cooler helps control the internal air temperature that affects the stator core, stator windings, rotor-related components, bearings, excitation equipment, and generator housing. The exact heat sources and temperature limits depend on the generator design.
Yes. CSTHEATEXCHANGER can review existing drawings, dimensions, connections, airflow, water conditions, heat duty, and mounting details for replacement or retrofit generator air coolers.
The water source may be a treated closed-loop circuit or another plant cooling system, depending on the project. Tube and header materials must be selected for water chemistry, pressure, temperature, fouling, corrosion, and cleaning requirements.
Excessive pressure drop can restrict generator ventilation and alter the intended internal airflow. The cooler must deliver the required heat removal while remaining within the generator’s approved air-side resistance.
It is a protected heat-exchanger construction using two tube-sheet plates and an intermediate cavity that can support leakage containment and monitoring. It may be considered when additional separation between the cooling medium and sensitive generator components is required.
Yes. CSTHEATEXCHANGER can design generator air coolers around drawings, coil dimensions, tube and fin materials, connections, mounting points, airflow direction, water conditions, and replacement requirements.
Provide generator output, heat-removal duty, internal airflow, air inlet and outlet temperatures, cooling-water flow and temperatures, water chemistry, allowable pressure drop, cooler dimensions, connection locations, mounting details, material requirements, and whether the project is new, replacement, or retrofit.
An air cooler for a hydroelectric generator must be selected as part of the generator’s complete thermal and ventilation system. Heat duty, internal airflow, water flow, water chemistry, air- and water-side pressure drop, material compatibility, leak protection, vibration, maintenance access, and retrofit dimensions all affect the final design.
CSTHEATEXCHANGER can help you develop a generator air cooler for a new hydropower unit, replacement project, or retrofit application. Send us the generator drawing, cooling-water data, airflow information, operating temperatures, and installation constraints. Our team will review the requirements and recommend a practical heat-exchanger design.
