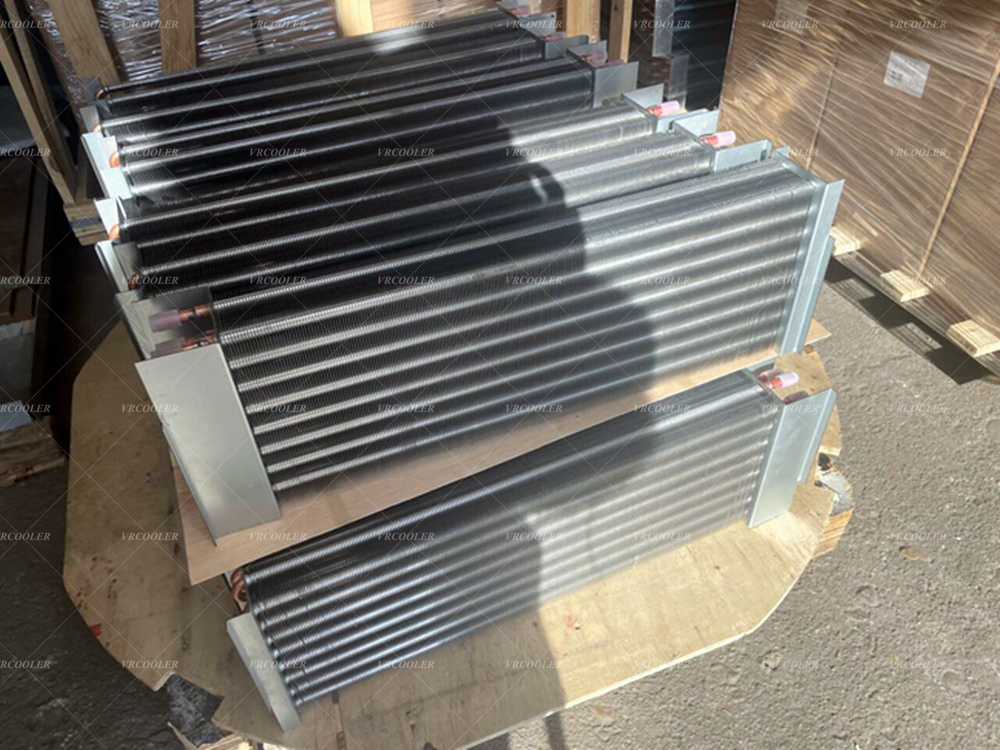

CSTHEATEXCHANGER Custom Coil for Refrigeration Supermarket Cases

Custom coil for a supermarket refrigeration case is a purpose-designed evaporator coil that matches the cabinet dimensions, cooling load, refrigerant, airflow, fin spacing, defrost method, condensate drainage, and connection layout. A standard coil may fit the general application but still create installation, airflow, frosting, or capacity problems if its circuiting and geometry do not match the case.

At CSTHEATEXCHANGER, we design and manufacture custom refrigeration coils for new supermarket cases, OEM production, retrofit projects, and replacement of damaged or discontinued evaporators. We can work from technical drawings, operating data, or an old coil sample and develop a practical solution around the real cabinet and refrigeration system.

Why Do Supermarket Refrigeration Cases Need Custom Evaporator Coils?

A supermarket case is a compact refrigeration system with limited internal space and a demanding operating schedule. The evaporator coil must absorb heat while working with the case fan, air path, shelving arrangement, product load, controller, drain system, and defrost cycle.

A generic coil can cause problems when it has:

• The wrong overall length, height, or depth;

• Incorrect tube diameter or number of rows;

• Unsuitable fin spacing for the operating temperature;

• Poor refrigerant distribution between circuits;

• Connection positions that do not match the cabinet;

• Insufficient space for drainage or defrost components;

• Excessive air resistance for the case fan;

• A material or coating that does not suit the installation environment.

For this reason, the coil should be engineered as part of the case rather than treated as an interchangeable component. The required cooling capacity is important, but physical fit, stable airflow, frost behavior, and service access are equally important.

How Does CSTHEATEXCHANGER Design a Custom Coil for Supermarket Cases?

1. We confirm the refrigeration case and operating conditions

Before selecting tube and fin geometry, we review the complete application. The following information helps us calculate and configure the coil correctly:

The information can come from a new case specification, a CAD drawing, a refrigeration system data sheet, or an existing coil that needs replacement. If some information is not available, clear photographs and measurements of the old coil can help us establish the basic geometry before engineering confirmation.

2. We match the coil to the case geometry

Supermarket cases often use narrow, low-profile, curved, angled, or otherwise space-limited evaporator sections. The coil must fit behind the air grille or inside the case while maintaining an effective air path.

CSTHEATEXCHANGER can review and adjust details such as:

• Overall coil length, height, and depth;

• Flat, angled, U-shaped, L-shaped, or special geometry;

• Tube diameter and tube pitch;

• Number of tube rows;

• Fin type and fin thickness;

• Header and distributor position;

• Inlet and outlet direction;

• Mounting brackets and fixing holes;

• Drain pan and condensate outlet arrangement;

• Space for sensors and defrost components.

The goal is not only to produce a coil that can be installed. The goal is to preserve the designed airflow and allow the case to operate and be serviced as intended.

Which Coil Materials Are Suitable for Supermarket Refrigeration Cases?

The material combination should be selected according to the refrigerant, temperature range, humidity, cleaning conditions, and corrosion risk.

Common options include:

• Copper tubes with aluminum fins: A widely used tube-and-fin configuration for refrigeration and commercial cooling applications, offering effective heat transfer and practical manufacturing.

• Stainless steel construction: Suitable for applications requiring increased corrosion resistance or specific hygiene and durability considerations.

• Copper-nickel, brass, titanium, or other special materials: Available for selected environments where the process conditions require a different material approach.

• Protective fin coatings: E-coating, epoxy-type coatings, or hydrophilic treatment can be considered when condensate behavior or corrosion resistance is important.

CSTHEATEXCHANGER reviews the operating environment before recommending the final material. Coastal humidity, frequent cleaning, aggressive air contaminants, high moisture, and low-temperature operation may all affect the service life of the coil.

How Do Fin Spacing and Circuiting Affect a Supermarket Case Coil?

Fin spacing and refrigerant circuiting have a direct effect on cooling performance, air resistance, frosting behavior, and maintenance.

Fin spacing

A tighter fin arrangement can provide more heat-transfer surface in a compact coil, but it may also increase airflow resistance and become more sensitive to frost or dirt. Wider fin spacing can support airflow and frost tolerance in colder applications, although it may require more coil volume to provide the same heat-transfer area.

The correct choice depends on the case temperature, humidity, airflow, defrost schedule, and required capacity. Fin spacing should not be selected from capacity alone.

Refrigerant circuiting

Circuit design controls refrigerant distribution through the coil. An unsuitable circuit can create uneven refrigerant flow, poor use of the heat-transfer surface, excessive pressure drop, or unstable superheat conditions.

For a custom design, we review:

• Number of circuits;

• Circuit length and flow path;

• Inlet and outlet positions;

• Header and distributor arrangement;

• Refrigerant velocity and oil-return considerations;

• Compatibility with the expansion device and control method.

CSTHEATEXCHANGER uses engineering design and calculation support to match circuiting to the requested operating conditions. The final design must be confirmed against the actual refrigerant, pressure, capacity, and system controls.

How Should Defrost and Condensate Drainage Be Designed?

A supermarket evaporator coil may operate below the dew point, and low-temperature cases can accumulate frost on the fin surface. The coil therefore has to work with the case defrost and drainage arrangement.

A custom coil review should include:

1. Defrost method: electric, hot-gas, off-cycle, or another system arrangement;

2. Heater clearance: adequate room for heater installation and removal where heaters are used;

3. Drainage slope: a practical path for condensate to leave the coil and drain pan;

4. Drain outlet location: compatibility with the case frame and drain piping;

5. Fin spacing: suitable for the expected frost and cleaning conditions;

6. Service access: the coil, heater, sensor, and drain components should be inspectable.

Poor drainage can lead to ice accumulation, water carryover, odor, corrosion, and repeated service calls. These details should be confirmed during coil design rather than after the case is assembled.

Can CSTHEATEXCHANGER Make a Replacement Coil from an Old Sample?

Yes. A replacement coil can be developed from a technical drawing, an existing coil, or a detailed measurement package. This is useful when the original coil is leaking, corroded, damaged, expensive to source, or no longer available.

For an old-coil replacement, we review or measure:

• Overall dimensions;

• Tube diameter, pitch, and row count;

• Fin type, thickness, and spacing;

• Circuit layout and connection positions;

• Header dimensions;

• Mounting brackets and fixing holes;

• Drain pan and condensate outlet;

• Refrigerant type and operating condition;

• Case photographs and installation clearances.

Outer dimensions alone are not enough to reproduce an evaporator. Tube circuiting, fin density, connection orientation, and operating conditions also affect performance. When a physical sample cannot be shipped, clear full-view photographs, close-ups, measurements, and running data can provide a useful starting point for quotation and engineering review.

What Quality Checks Should a Custom Refrigeration Coil Include?

A custom coil should be checked for both fit and pressure-bearing reliability before shipment. Depending on the project, quality checks may include:

• Dimensional inspection against the approved drawing;

• Tube and fin assembly inspection;

• Connection and header inspection;

• Pressure and leak testing;

• Coating or surface-treatment inspection;

• Drain pan, bracket, and accessory verification;

• Export packing suitable for the shipment route.

CSTHEATEXCHANGER’s quality process includes customer RFQ review, technical parameter assessment, design support, sample or pilot production when required, and production quality control. Our quality policy also states that coils are leak tested according to the applicable inspection arrangement before delivery.

Why Choose CSTHEATEXCHANGER for a Supermarket Case Coil?

At CSTHEATEXCHANGER, we support both new equipment and replacement projects. Our product range includes commercial refrigeration coils, industrial coils, unit cooler evaporators, air-cooling units, tube-and-fin coils, and customized heat-transfer equipment.

Our engineering team can help coordinate the coil with the refrigeration case by reviewing the available space, refrigerant, cooling load, airflow, circuiting, fin selection, defrost requirements, and installation details. We can also develop solutions using copper, aluminum, stainless steel, and other materials when the application requires a different construction approach.

A practical custom-coil project normally follows this sequence:

1. Customer sends a drawing, old coil sample, photographs, or measurements;

2. CSTHEATEXCHANGER reviews the application and manufacturability;

3. The required operating and dimensional parameters are confirmed;

4. We provide a quotation and design direction;

5. A sample or pilot unit is produced when required;

6. The coil is tested, packed, and prepared for shipment.

Frequently Asked Questions About Custom Coils for Supermarket Cases

What is a supermarket refrigeration case evaporator coil?

It is the heat-transfer component inside a refrigerated display case that absorbs heat from the case air as refrigerant passes through the coil. Its design affects product temperature, airflow, frost behavior, energy use, and service reliability.

Can one standard coil fit every supermarket display case?

No. Case dimensions, cooling load, refrigerant, airflow, temperature, fin spacing, defrost method, and connection layout vary. A custom coil is often needed when a standard product cannot meet the required fit or operating conditions.

What information is needed for a custom coil quotation?

Send the case type, coil dimensions, cooling capacity, refrigerant, operating temperatures and pressures, airflow or fan information, fin spacing, connection details, defrost method, mounting arrangement, and photographs or drawings. For a replacement, include the old coil measurements and operating history when available.

Is copper tube and aluminum fin construction suitable for supermarket cases?

It is a common tube-and-fin configuration for commercial refrigeration applications. Suitability depends on the refrigerant, pressure, temperature, humidity, corrosion risk, and required service conditions. The final material should be confirmed for the specific case.

How does frosting affect coil selection?

Frost reduces the open airflow area and can lower heat-transfer performance. Fin spacing, coil depth, airflow, case humidity, defrost method, and drainage should therefore be evaluated together rather than selected independently.

Can CSTHEATEXCHANGER reproduce a discontinued evaporator?

CSTHEATEXCHANGER can review replacement projects based on drawings, photographs, measurements, or an old physical coil sample. A technical review is required to confirm the dimensions, circuiting, materials, refrigerant compatibility, and expected operating conditions.

Does CSTHEATEXCHANGER support OEM production?

Yes. The company provides customized heat exchangers and evaporator units for new-build and replacement applications. Sample production and serial production can be discussed after the technical parameters and quality requirements are confirmed.

Conclusion: Build the Supermarket Case Around the Right Coil

A custom coil for refrigeration supermarket cases should be designed around the complete equipment, not just a nominal capacity. Accurate dimensions, balanced refrigerant circuiting, suitable fin spacing, effective drainage, compatible materials, reliable leak testing, and practical service access all contribute to stable case operation.

CSTHEATEXCHANGER is ready to review your supermarket case coil project. Send us your case drawing, old evaporator photographs, dimensions, refrigerant information, cooling requirement, and connection layout. Our team will assess the application and develop a custom coil solution for your new case, OEM program, retrofit, or replacement requirement.
