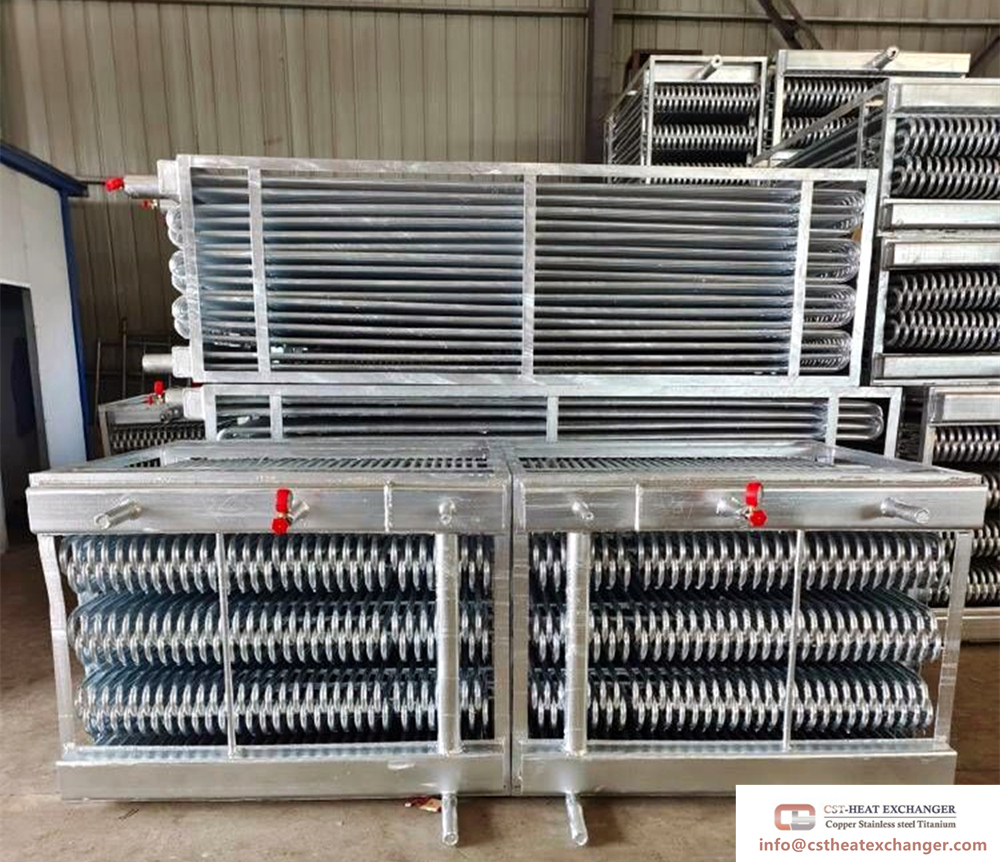

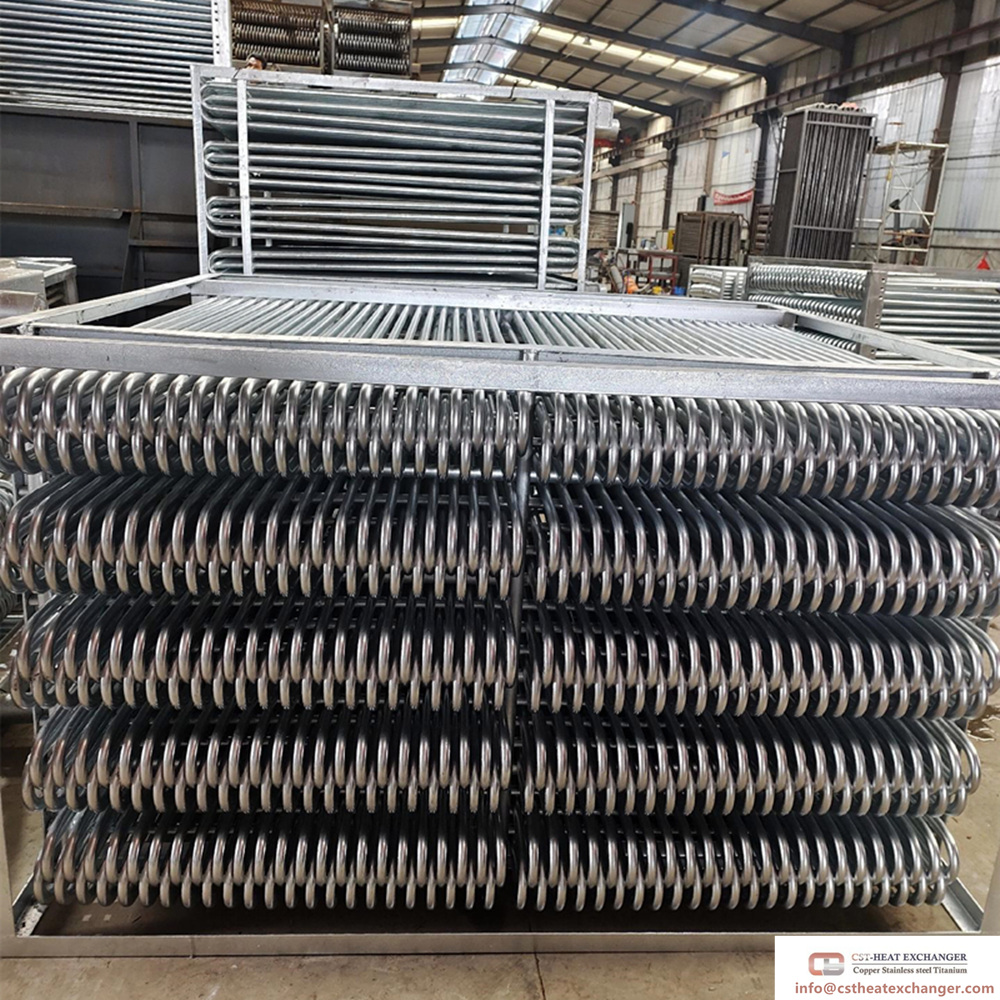

An SS304 evaporative condenser coil bundle is a refrigerant-side heat exchanger manufactured from 304 stainless steel and installed inside an evaporative condenser. Refrigerant flows through the coil tubes. Spray water wets the outside of the coil, while air movement accelerates evaporation. Heat leaves the refrigerant through the tube wall and is transferred to the spray water and air, allowing the refrigerant to condense.
The coil bundle is therefore different from a conventional dry air-cooled condenser. It operates in a wet, water-exposed environment and must be selected for refrigerant pressure, condensing temperature, spray-water chemistry, corrosion risk, fouling, cleaning, drainage, and inspection access.
At CSTHEATEXCHANGER, we design and manufacture custom condenser coils, tube bundles, and heat exchangers for project-specific dimensions, refrigerants, pressures, materials, connection layouts, and installation requirements. SS304 can be a suitable material for some evaporative-condenser services, but the final grade must be checked against the water chemistry and operating environment rather than selected by material name alone.
An evaporative condenser combines refrigerant condensation with evaporative heat rejection:
Hot, high-pressure refrigerant vapor enters the coil bundle.
Spray nozzles distribute water over the external tube surfaces.
Fans or natural airflow move air through the wet coil area.
A portion of the spray water evaporates and carries away heat.
The refrigerant releases latent heat through the tube wall and condenses inside the tubes.
Condensed refrigerant leaves the coil and continues through the refrigeration system.
Spray water that does not evaporate returns to the basin for recirculation, treatment, filtration, and controlled blowdown.
The evaporation process can provide lower condensing temperatures than a dry condenser under suitable ambient conditions, but the system introduces water management, drift, scale, biological control, and corrosion requirements.
The coil bundle must be designed as part of the complete condenser. Tube diameter, circuiting, coil face area, spray coverage, air velocity, fan capacity, water flow, and refrigerant pressure drop all affect final performance.
SS304 is an austenitic stainless-steel grade commonly considered for corrosion-resistant heat-exchanger construction. It may be attractive when the coil is exposed to moisture, spray water, cleaning operations, and an industrial atmosphere where ordinary carbon steel or less-resistant materials may not provide the required service life.
Potential reasons to evaluate SS304 include:
Resistance to general atmospheric moisture;
Suitable strength for many coil and tube-bundle applications;
Weldable construction when proper procedures are used;
Compatibility with selected refrigerant-side designs;
Smooth, cleanable tube surfaces;
Availability in tubing and fabricated component forms;
Improved corrosion resistance compared with unprotected carbon steel.
However, SS304 is not immune to corrosion. Chlorides, concentrated dissolved solids, stagnant wet areas, deposits, crevices, aggressive chemicals, and poor water treatment can create localized corrosion or shorten service life. The correct choice depends on the actual water analysis, temperature, concentration cycles, cleaning chemicals, and design details.
If the water contains elevated chlorides or the installation is exposed to a severe marine or chemical environment, the project may need to evaluate a more resistant material, protective strategy, or different water-management approach. That decision should be made before manufacturing.
No. SS304 should be evaluated against the complete spray-water chemistry. Important parameters include:
Chloride concentration;
Conductivity and total dissolved solids;
pH and alkalinity;
Silica and hardness;
Water temperature;
Biocide and corrosion-inhibitor program;
Blowdown and cycles of concentration;
Cleaning chemical concentration;
Presence of deposits or suspended solids;
Dead legs, crevices, and areas of poor drainage.
The U.S. Environmental Protection Agency explains that evaporation leaves dissolved substances behind and can increase total dissolved solids. If concentration becomes excessive, scale formation and corrosion can occur. This is directly relevant to evaporative condensers because the spray water is repeatedly recirculated and partially evaporated.
Material selection and water treatment must therefore be developed together. A stainless-steel coil cannot compensate for uncontrolled concentration, blocked strainers, poor spray distribution, or unsuitable chemical dosing.
The coil bundle should be designed around the refrigerant, water, air, and mechanical interfaces.
Design input | Why it matters |
|---|---|
Refrigerant type | Determines pressure, temperature, compatibility, and circuit design |
Refrigerant mass flow | Establishes required condensing capacity |
Inlet vapor condition | Defines superheat and inlet heat load |
Required condensing temperature | Sets the thermal target |
Refrigerant pressure drop | Influences compressor discharge and system performance |
Spray-water flow and temperature | Determines wet-side heat transfer and coverage |
Water chemistry | Controls scale, corrosion, and material selection |
Airflow and ambient design condition | Affects evaporation and heat rejection |
Coil dimensions | Determines tube length, rows, passes, and installation fit |
Design and test pressure | Defines tube wall, headers, welds, and inspection requirements |
Drainage and cleaning access | Supports hygiene and long-term serviceability |
Connection layout | Ensures field piping and service compatibility |
For a preliminary condenser balance, the rejected heat includes the refrigerant’s condensing duty and any superheat that must be removed before or during condensation. The detailed selection should use refrigerant property data, mass flow, condensing temperature, spray-water conditions, air conditions, coil geometry, and pressure-drop calculations.
The circuit arrangement determines refrigerant velocity, pressure drop, heat-transfer distribution, oil return, and the way the coil is divided into parallel paths.
A coil designer should review:
Number of refrigerant circuits;
Tube diameter and wall thickness;
Circuit length and elevation changes;
Inlet and outlet header design;
Refrigerant distribution between parallel circuits;
Superheat and desuperheating zones;
Condensate or liquid drainage path;
Oil return and velocity requirements;
Pressure-drop limits;
Service isolation and connection access.
Too few circuits can increase refrigerant pressure drop and reduce effective flow distribution. Too many parallel circuits can make distribution and oil return more difficult. The correct circuiting depends on refrigerant type, mass flow, operating envelope, coil orientation, and the condenser’s control sequence.
CSTHEATEXCHANGER can customize tube-bundle dimensions, headers, connection locations, and circuiting around the refrigeration system rather than forcing the system to fit a generic coil.
The water spray must wet the intended coil surface evenly. Dry areas can create local hot spots and reduce heat transfer, while excessive water flow can increase pump power, drift, carryover, and water-treatment demand.
The condenser design should address:
Nozzle type and spray pattern;
Nozzle spacing and access;
Water flow at minimum and maximum load;
Strainers and nozzle blockage protection;
Coil orientation and drainage;
Basin level and pump protection;
Drift eliminators where required;
Blowdown and makeup-water control;
Water-quality monitoring;
Access for nozzle inspection and cleaning.
Spray coverage is a system-level issue. A high-quality SS304 coil can still underperform if nozzles are blocked, the spray pump is undersized, the water distribution is uneven, or the coil is installed with an unplanned shadow area.
Evaporative condensers require an active water-management program. The U.S. Centers for Disease Control and Prevention states that scale, corrosion, sediment control, and system cleaning are critical for cooling-tower operation and Legionella prevention. Its guidance also specifically includes evaporative condensers among aerosol-producing devices that require attention to water management.
The maintenance and treatment plan should include:
Monitoring conductivity or another blowdown-control indicator;
Controlling cycles of concentration;
Maintaining the approved biocide program;
Using compatible corrosion inhibitors;
Inspecting and cleaning strainers and nozzles;
Removing scale before it blocks heat transfer;
Preventing sediment accumulation in the basin;
Checking drift eliminators and airflow paths;
Maintaining drains and overflow paths;
Documenting cleaning and treatment results;
Following the site’s water-safety and regulatory procedures.
Water treatment is not a substitute for suitable material selection, and SS304 is not a substitute for water treatment. Both are necessary parts of evaporative-condenser reliability.
Consideration | Potential SS304 advantage | Design limitation or caution |
|---|---|---|
Moisture exposure | Better resistance than unprotected carbon steel in many environments | Still vulnerable to localized corrosion under unsuitable water chemistry |
Cleanability | Smooth metal surface can support inspection and cleaning | Deposits and crevices can still cause under-deposit attack |
Fabrication | Suitable for welded tube-bundle construction with controlled procedures | Welding quality, passivation, and heat-affected areas require review |
Refrigerant pressure | Can be engineered for specified pressure and temperature | Wall thickness, headers, welds, and code requirements determine final rating |
Spray-water service | May suit controlled, moderate water chemistry | Chloride, concentration, and chemical exposure must be evaluated |
Lifecycle | Can support long service in appropriate conditions | Higher material cost does not guarantee long life without treatment |
The correct decision is based on total lifecycle performance, not simply the initial stainless-steel specification.
At CSTHEATEXCHANGER, we review the refrigerant, water, air, dimensions, pressure, materials, and installation requirements before finalizing a coil-bundle design.
A project workflow can include:
Reviewing the refrigeration duty and operating envelope;
Confirming refrigerant compatibility and pressure requirements;
Reviewing spray-water chemistry and cleaning conditions;
Selecting SS304 or another suitable tube and header material;
Designing tube arrangement, circuiting, headers, and connections;
Checking heat transfer and refrigerant-side pressure drop;
Reviewing spray access, drainage, inspection, and cleaning provisions;
Confirming dimensions, supports, lifting, and replacement interfaces;
Completing applicable pressure and leak tests before delivery.
The company’s quality policy describes customer RFQ review, technical-parameter assessment, design support, sample or pilot stages, production controls, and coil leak testing at the applicable pressure. The exact refrigerant-side test pressure and acceptance criteria should be specified for the project and equipment code.
Yes, if the replacement is matched to the existing evaporative condenser and refrigeration system. A replacement coil should not be selected only by external dimensions.
The replacement review should confirm:
Refrigerant type and mass flow;
Design and operating pressure;
Condensing temperature and capacity;
Coil circuiting and connection arrangement;
Tube and header dimensions;
Spray-water distribution and access;
Airflow and fan capacity;
Drainage and support points;
Water chemistry and corrosion history;
Existing scale, fouling, and leakage evidence;
Pressure-test and commissioning requirements.
If the original coil failed because of water chemistry or poor spray distribution, installing a new SS304 bundle without correcting the cause may repeat the failure.
A maintenance plan should cover the refrigerant circuit, external coil surface, spray system, basin, fans, pumps, and water-treatment system.
Recommended activities include:
Inspecting the coil for corrosion, deposits, and mechanical damage;
Checking refrigerant-side pressure and temperature trends;
Inspecting headers, welds, supports, and connections;
Cleaning spray nozzles and strainers;
Checking water flow and spray coverage;
Monitoring conductivity, pH, biocide, and inhibitor parameters;
Removing basin sediment and scale;
Inspecting fan blades, motors, guards, and drift eliminators;
Verifying drains, overflow, makeup-water, and blowdown systems;
Testing leak detection and safety controls;
Keeping records of cleaning, treatment, and inspection results.
Cleaning chemicals must be compatible with SS304, gaskets, coatings, seals, and the rest of the condenser. Strong or uncontrolled chemicals can damage the coil even when the base metal is stainless steel.
It is a group of refrigerant-carrying tubes arranged as a heat exchanger inside an evaporative condenser. Spray water wets the external surfaces, and air movement accelerates evaporation so that refrigerant vapor can condense inside the tubes.
SS304 may be suitable for controlled water chemistry and moderate service conditions, but it is not universally suitable. Chlorides, dissolved solids, temperature, cleaning chemicals, and cycles of concentration must be reviewed before final material approval.
In an evaporative condenser coil bundle, refrigerant normally flows inside the coil while spray water flows over the outside. This differs from a water-cooled condenser in which cooling water may flow through a separate tube circuit.
Control water concentration, maintain blowdown, monitor water chemistry, keep spray nozzles clear, use compatible treatment, and clean the coil and basin according to the approved maintenance plan. Material selection alone cannot prevent scale.
Yes. CSTHEATEXCHANGER can review refrigerant type, pressure, flow, condensing temperature, dimensions, circuiting, headers, connections, spray coverage, and replacement requirements for a custom coil-bundle design.
An evaporative condenser uses spray water and air to reject heat from refrigerant. A dry condenser rejects heat to air without continuously wetting the coil. Evaporative designs can achieve different condensing performance but require water treatment, drift control, cleaning, and biological-risk management.
Provide refrigerant, cooling capacity, refrigerant flow, inlet and outlet conditions, design pressure, condensing temperature, spray-water temperature and chemistry, airflow, coil dimensions, connection locations, circuiting requirements, and maintenance or replacement constraints.
CSTHEATEXCHANGER’s quality policy states that coils are leak tested at the applicable pressure before delivery. The project quotation should define the test pressure, medium, inspection method, acceptance criteria, and documentation package.
An Evaporative Condenser Coil Bundle (SS304) can be a practical solution when the coil must handle refrigerant pressure while operating in a wet, spray-water environment. Reliable performance depends on more than stainless-steel tube material: refrigerant circuiting, heat-transfer area, water chemistry, spray coverage, air movement, drainage, pressure testing, and maintenance all influence service life.
CSTHEATEXCHANGER can help you develop a customized SS304 evaporative condenser coil bundle for a new condenser, replacement project, or refrigeration-system retrofit. Send us the refrigerant data, capacity, pressure, condensing conditions, spray-water chemistry, dimensions, and connection drawings. Our team will review the application and recommend a suitable coil-bundle design direction.
