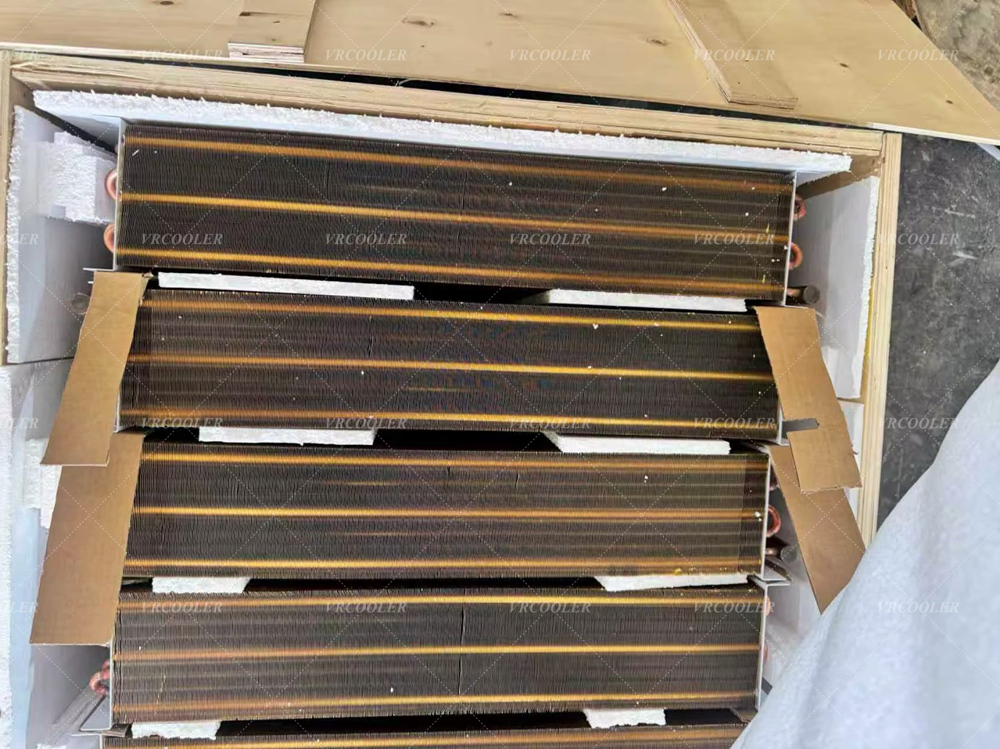

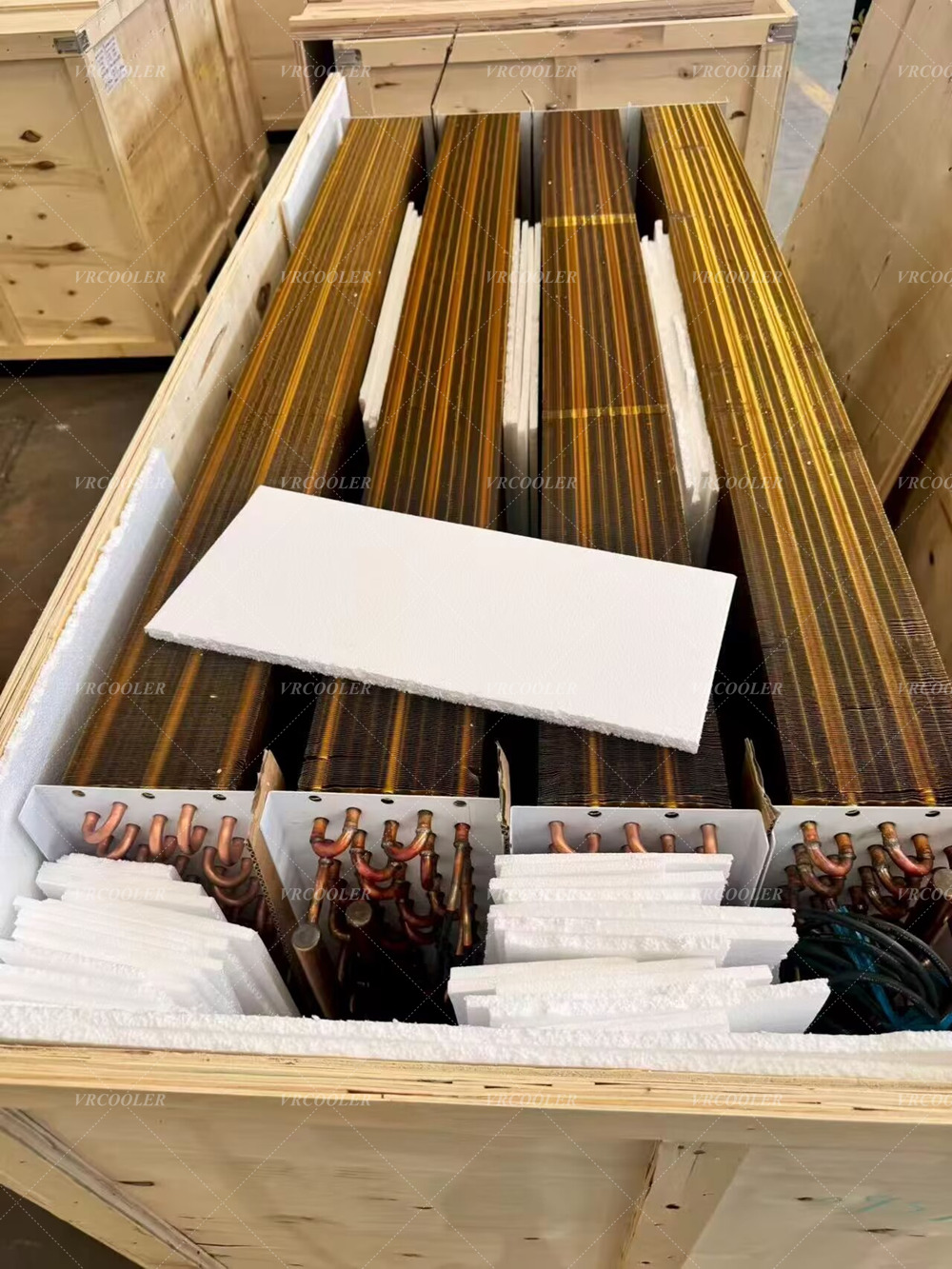

A ventilation system commonly uses a copper-tube finned water coil for either heating or cooling air. A hot-water coil transfers heat from a hot-water circuit into the ventilation air. A chilled-water coil removes sensible heat from the air and may also remove moisture when its surface temperature falls below the entering-air dew point.
Both coil types can use copper tubes with aluminum fins, but they are not selected from the same operating conditions. The hot-water coil is designed around heating capacity, water temperature, airflow, and freeze protection. The chilled-water coil is designed around cooling capacity, water temperature, airflow, humidity, condensate, drain-pan design, and air-side pressure drop.
At CSTHEATEXCHANGER, we design and manufacture custom copper-tube water coils for ventilation systems, air-handling units, new equipment, and replacement projects. We can customize tube diameter, fin material, fin spacing, circuiting, headers, casing, connection locations, coatings, and dimensions around the project’s airflow and water conditions.
Both coils are air-to-water heat exchangers. Air flows across the finned external surface while water flows through the tubes. The fins enlarge the air-side heat-transfer area, and the tubes carry the heating or cooling medium.
Hot water enters the coil, transfers heat through the copper tube and fins, and warms the ventilation air. The water leaves at a lower temperature and returns to the boiler, heat-pump loop, district-heating circuit, or other heat source.
Chilled water enters the coil and absorbs heat from the ventilation air. Depending on the coil surface temperature and entering-air dew point, the coil may provide:
Sensible cooling only;
Sensible cooling plus dehumidification;
Cooling followed by reheat or humidity-control treatment.
If condensation is expected, the ventilation unit needs suitable drain-pan, condensate-trap, slope, access, and water-management provisions. A chilled-water coil should not be specified as a simple “cold version” of a hot-water coil without reviewing humidity and drainage.
Design factor | Hot-water coil | Chilled-water coil |
|---|---|---|
Primary duty | Heat ventilation air | Cool ventilation air and, when required, dehumidify |
Medium | Hot water, glycol, or another heating fluid | Chilled water, glycol, or another cooling fluid |
Main thermal concern | Heating capacity and leaving-air temperature | Cooling capacity, leaving-air temperature, and dew point |
Condensate | Normally not expected | May be expected during dehumidification |
Drain pan | Often not required for dry heating operation | Commonly required when condensation can occur |
Frost/freezing risk | Coil water can freeze during cold-air or shutdown conditions | Glycol and low-temperature protection may be required |
Circuiting priority | Balanced heat transfer and low water pressure drop | Cooling distribution, dehumidification, pressure drop, and drainage |
Typical controls | Heating valve, discharge-air sensor, freeze protection | Cooling valve, leaving-air sensor, humidity/dew-point control |
Common applications | Fresh-air preheating, space heating, process-air heating | Comfort cooling, outdoor-air cooling, AHU dehumidification |
A ventilation system may use both coils in the same air-handling unit. For example, a hot-water preheat coil can protect the system during cold outdoor-air operation, while a chilled-water coil controls summer supply-air temperature and humidity.
Copper tubes are widely used in ventilation coils because they offer good thermal conductivity, established fabrication methods, and compatibility with many water-coil construction approaches. Copper also supports common tube expansion, brazing, header, and circuiting methods when the design and joining procedures are properly controlled.
CSTHEATEXCHANGER’s hot-water coil information identifies copper, cupro-nickel, aluminum, carbon steel, titanium, and stainless-steel tube options, along with aluminum, copper, stainless-steel, and titanium fin options. This allows the material selection to follow the air and water environment rather than using copper by default in every project.
Copper-tube ventilation coils may be combined with:
Aluminum fins for low weight and efficient air-side transfer;
Copper fins for selected corrosion or compatibility requirements;
Coated aluminum fins for demanding air environments;
Stainless-steel casings for hygiene or corrosion resistance;
Galvanized-steel casings for standard commercial ventilation equipment;
Removable headers for service and replacement access;
Custom side plates, end plates, mounting frames, and connection positions.
In corrosive air, salt-laden outdoor air, chemical environments, or systems exposed to aggressive cleaning agents, the tube, fin, casing, coating, and fastener materials should be selected as a complete package.
A reliable coil selection requires both air-side and water-side data.
Design input | Why it matters |
|---|---|
Airflow rate | Determines face velocity, heat-transfer duty, and pressure drop |
Entering-air temperature | Establishes the heating or cooling load |
Required leaving-air temperature | Defines the thermal target |
Entering-air humidity or dew point | Confirms whether chilled-water condensation will occur |
Water type | Affects thermal properties, viscosity, corrosion, and freeze protection |
Water entering and leaving temperatures | Defines the available temperature difference |
Water flow rate | Controls heat transfer and water-side pressure drop |
Maximum air-side pressure drop | Influences fan selection and energy use |
Maximum water-side pressure drop | Influences pump and valve selection |
Coil face dimensions | Sets the available air-side area |
Number of rows and fin spacing | Balances capacity, pressure drop, fouling, and cleanability |
Connection size and location | Ensures piping compatibility |
Casing and mounting details | Supports installation and service access |
Operating and ambient conditions | Defines corrosion, frost, and condensation risks |
The air-side sensible load can be estimated as:
[ Q_s = \dot{m}{air} \times c_p \times (T{in} - T_{out}) ]
For a chilled-water coil that dehumidifies air, the latent component must also be included. The final selection should use psychrometric conditions, water properties, coil geometry, fin efficiency, fouling allowance, and pressure-drop calculations.
Hot-water coils must deliver the required discharge-air temperature while maintaining stable water flow and protecting against freezing.
Important design considerations include:
Hot-water supply and return temperatures;
Minimum water flow during low-load operation;
Airflow at design and minimum ventilation rates;
Required leaving-air temperature;
Heating valve authority and control range;
Coil circuiting and water-side pressure drop;
Outdoor-air percentage and winter design condition;
Freeze-stat or low-temperature protection;
Drainability and coil orientation;
Glycol concentration when freeze protection is required;
Access for inspection and cleaning.
If the coil is installed in a unit that handles cold outdoor air, the control sequence should not allow the water circuit to stagnate while the fan continues to introduce low-temperature air. The project should define the freeze-protection sequence, pump operation, valve position, alarm response, and restart procedure.
Chilled-water coils may be used for sensible cooling or for cooling and dehumidification. The design must connect chilled-water temperature with the entering-air dew point and required leaving-air condition.
Important considerations include:
Chilled-water supply and return temperatures;
Airflow and entering-air humidity;
Required leaving-air dry-bulb and dew-point condition;
Coil surface temperature;
Number of rows and circuiting;
Air-side pressure drop;
Condensate carryover at the selected face velocity;
Drain-pan depth, slope, and material;
Condensate trap and drain connection;
Coil access for cleaning and inspection;
Reheat or downstream humidity-control requirements.
If no condensation is permitted, the chilled-water supply temperature and coil surface must remain above the entering-air dew point under the defined operating conditions. CSTHEATEXCHANGER also supplies dry cooling coils for sensible-only operation when a ventilation project needs cooling without intentional condensate.
Fin spacing and air velocity influence heat transfer, pressure drop, fouling, cleaning access, and condensate behavior.
A tighter fin pitch may increase heat-transfer surface area, but it can also increase air-side pressure drop and make the coil more sensitive to dust or fibers. A wider fin spacing can improve cleanability and reduce resistance, but may require a larger face area or deeper coil to reach the same capacity.
The selection should review:
Face velocity and airflow distribution;
Fin pitch, thickness, and profile;
Dust, lint, salt, and particulate loading;
Filter efficiency and expected loading;
Coil depth and number of rows;
Fan energy and allowable pressure drop;
Condensate drainage and carryover;
Cleaning tools and access clearance.
The best coil is the one that meets the required air condition with acceptable fan and pump energy while remaining cleanable and stable across the operating range.
A ventilation coil can sometimes be designed for a dual-temperature or changeover water circuit, but this requires careful review. A coil optimized for hot-water heating may not provide the required chilled-water dehumidification performance, and a coil designed for low-temperature cooling may not provide the required heating output without additional area or water flow.
A changeover or dual-duty project should confirm:
Hot-water and chilled-water design temperatures;
Required capacity in both modes;
Flow direction and circuiting;
Valve and control strategy;
Condensation and drainage requirements in cooling mode;
Freeze protection in heating or shutdown mode;
Water chemistry and material compatibility;
Seasonal commissioning and balancing.
In many air-handling systems, separate heating and cooling coils provide more predictable control, easier maintenance, and clearer performance verification. The final choice depends on the AHU layout, available space, operating sequence, and project budget.
The water coil must be coordinated with the fan, filters, ductwork, casing, controls, piping, drainage, and access panels.
Confirm the coil face dimensions, airflow direction, upstream filter arrangement, downstream access, bypass gaps, and uniform air distribution. Avoid uneven velocity profiles that create local underperformance or condensate carryover.
Provide correctly sized supply and return connections, isolation valves, balancing valves, strainers, vents, drains, flexible connections, and supports. Do not transfer unsupported pipe loads or thermal expansion forces to the coil headers.
Use suitable heating or cooling valves, supply-air sensors, return-air sensors, outdoor-air sensors, humidity or dew-point sensors where required, and interlocks with the fan and pump. The control sequence should address low load, fan failure, low flow, freezing, condensation, and shutdown.
For a dehumidifying chilled-water coil, provide a correctly sloped drain pan, condensate outlet, trap, cleanout, and inspection access. Drainage should be verified at commissioning rather than assumed from the coil dimensions.
At CSTHEATEXCHANGER, we manufacture standard and custom water coils for new ventilation equipment, air-handling units, built-up systems, and direct replacement applications.
Our project workflow can include:
Reviewing airflow, air temperatures, humidity, and water conditions;
Confirming whether the coil is for heating, cooling, dehumidification, or changeover operation;
Selecting copper tubes, fins, headers, casing, coatings, and connection materials;
Optimizing tube circuiting, fin spacing, rows, and pressure drop;
Matching the coil to the existing frame and air-handling-unit opening for replacement work;
Reviewing drain-pan, freeze-protection, and service-access requirements;
Providing drawings and performance data for approval;
Completing applicable pressure and leak testing before shipment.
CSTHEATEXCHANGER’s published hot-water coil information describes custom replacement coils, variable circuiting and fin-spacing selection, multiple tube and fin materials, and casing options. Its quality policy describes customer RFQ review, design support, sample or pilot stages, production controls, and applicable coil leak testing.
A ventilation coil should be maintained on both its air and water sides.
Recommended activities include:
Replacing or cleaning upstream air filters;
Inspecting fins for dust, lint, salt, and chemical deposits;
Cleaning fins with a material-compatible method;
Straightening damaged fins where appropriate;
Checking tube, header, and connection areas for leaks or corrosion;
Monitoring water flow and supply/return temperatures;
Checking control-valve operation and water-side pressure drop;
Inspecting drain pans, traps, and condensate lines for chilled-water coils;
Verifying freeze protection for hot-water coils in outdoor-air systems;
Checking insulation for surface condensation;
Recording coil performance and pressure-drop trends.
Copper tubes do not eliminate the need for water treatment or air filtration. Poor water quality can cause internal fouling or corrosion, while dirty air can block fins and raise fan energy. In coastal or corrosive environments, the coil should be inspected more frequently and may require protective coatings or alternative materials.
It is a finned-tube air-to-water heat exchanger with copper tubes carrying hot water or chilled water. Air passes across the fins, transferring heat to or from the water as part of a ventilation or air-handling system.
A hot-water coil heats ventilation air by transferring heat from hot water. A chilled-water coil cools air and may dehumidify it when its surface temperature is below the entering-air dew point. Their temperature, circuiting, drainage, controls, and protection requirements differ.
Yes. Copper-tube finned coils are commonly used in AHUs and ventilation equipment for heating, cooling, and dehumidification. The coil must be selected for the AHU airflow, water conditions, pressure drop, dimensions, and humidity requirements.
Not always. A chilled-water coil operating above the air dew point may remain dry, but a coil selected for dehumidification normally requires a properly designed drain pan, trap, drain connection, and access for cleaning and inspection.
Provide airflow, entering and leaving air conditions, humidity or dew point, water type, supply and return temperatures, water flow rate, allowable air- and water-side pressure drops, coil dimensions, connections, casing materials, and whether the coil is new, replacement, or retrofit equipment.
Sometimes, but not automatically. The coil must be checked for capacity, circuiting, pressure drop, control range, condensation, drainage, and freeze protection in both modes. Separate heating and cooling coils may provide more predictable performance.
Depending on the application, CSTHEATEXCHANGER identifies options including cupro-nickel, aluminum, carbon steel, titanium, stainless steel, aluminum fins, copper fins, stainless-steel fins, coated fins, and galvanized or stainless-steel casings.
Yes. CSTHEATEXCHANGER can review the existing coil’s dimensions, connections, airflow, water conditions, heat duty, frame, and installation access to develop a custom replacement coil.
Copper hot-water and chilled-water coil heat exchangers are practical solutions for ventilation systems when the coil is designed around the complete air and water circuit. Hot-water coils require heating capacity and freeze protection. Chilled-water coils require cooling capacity, humidity and dew-point review, and condensate management when dehumidification is intended.
CSTHEATEXCHANGER can help you select or customize a copper water coil for a ventilation system, AHU, new installation, or replacement project. Send us the airflow, entering and leaving air conditions, water data, available dimensions, pressure-drop limits, and connection drawings. Our team will review the application and recommend a suitable hot-water, chilled-water, or dual-duty coil design.
