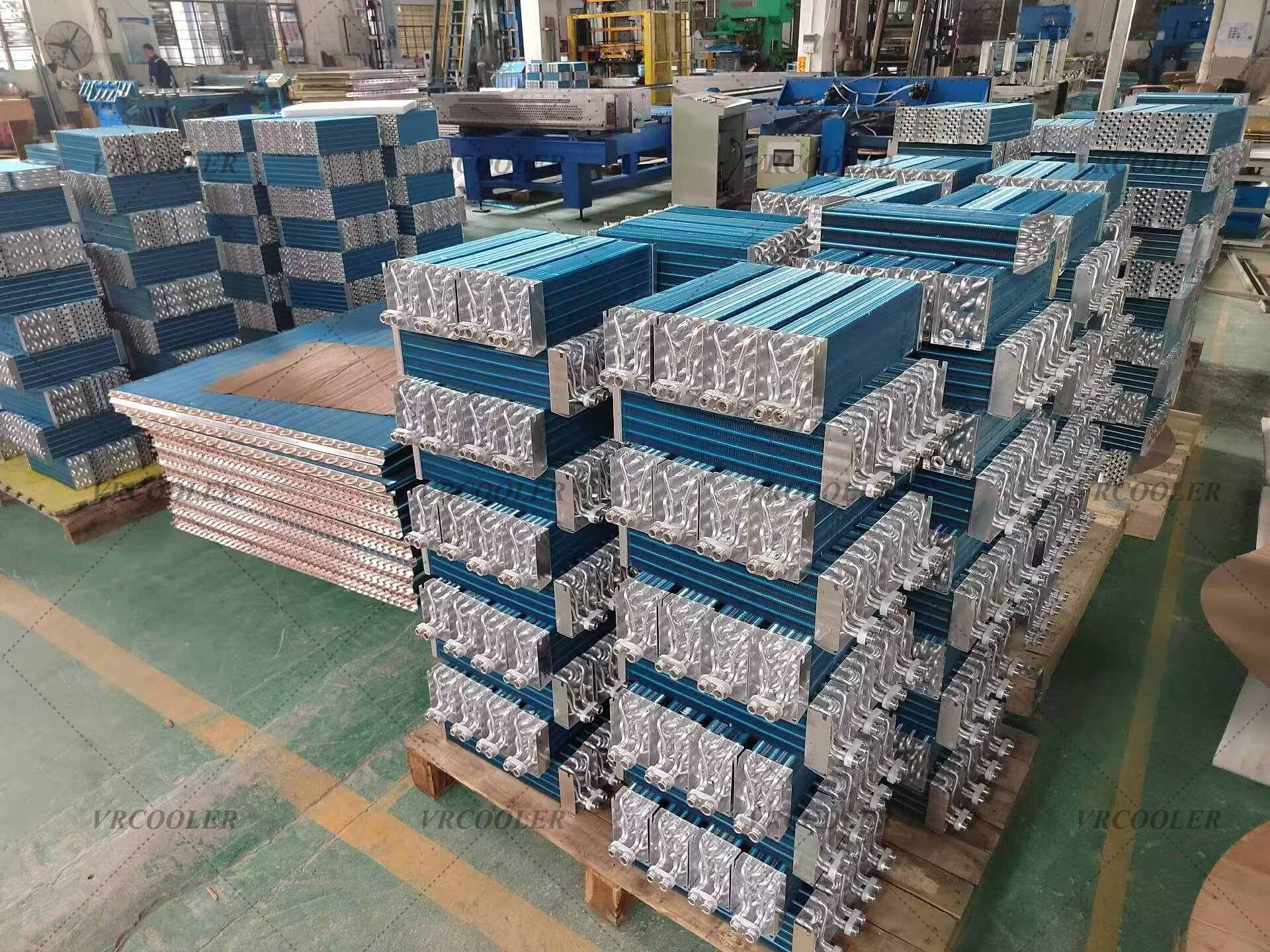

What aluminum alloys are commonly used for all aluminum tube fin coils

All-aluminum tube fin heat exchangers typically use different aluminum alloys for tubes, fins, headers, and brazing layers to balance heat transfer, strength, and corrosion resistance.

1. Aluminum Alloys for Fins

Fins require high thermal conductivity and good formability because they are thin and densely packed.

Common alloys:

• AA3003 – Most widely used fin material; excellent corrosion resistance and formability.

• AA1100 – Very high thermal conductivity; used in some high-efficiency coils.

• AA3102 – Often used in brazed heat exchangers; good strength and corrosion resistance.

Typical thickness: 0.08–0.2 mm.

2. Aluminum Alloys for Tubes

Tubes must provide mechanical strength, pressure resistance, and good brazing compatibility.

Common alloys:

• AA6061 – High strength and good corrosion resistance.

• AA6063 – Excellent extrudability and smooth internal surfaces.

• AA3003 – Used in some low-pressure applications.

Extruded aluminum multi-port tubes are also common in compact heat exchangers.

3. Aluminum Alloys for Headers and Manifolds

Headers distribute fluid to the tubes and must handle pressure and welding or brazing processes.

Common alloys:

• AA6061

• AA6063

• AA5083 (used when higher corrosion resistance is required)

4. Brazing Cladding Alloys

In brazed aluminum heat exchangers, a thin layer of Al-Si brazing alloy is applied to enable bonding during furnace brazing.

Typical materials:

• AA4343

• AA4045

These alloys melt at lower temperatures and create strong metallurgical joints between tubes and fins.

Summary

A typical all-aluminum tube fin coil may use:

• Fins: AA3003 or AA3102

• Tubes: AA6061 or AA6063

• Headers: AA6061 or AA5083

• Brazing layer: AA4343 or AA4045

Selecting compatible alloys ensures high heat transfer efficiency, structural reliability, and long service life in HVAC, dry cooler, and industrial air-cooling applications.
