A monoblock refrigeration unit (also called a packaged, plug-and-play, or drop-in cold room unit) is a self-contained, factory-assembled refrigeration system that integrates the entire condensing section (compressor, condenser, condenser fan) and evaporating section (evaporator coil, expansion valve, evaporator fan, defrost elements) into a single, pre-charged chassis. It is designed to be mounted directly through the wall or ceiling of a walk-in cold room to maintain the precise thermal conditions required for refrigerated products (0∘C to +8∘C0∘C to +8∘C / 32∘F to 46∘F32∘F to 46∘F) or frozen products (−18∘C to −25∘C−18∘C to −25∘C / 0∘F to −13∘F0∘F to −13∘F).
Because all refrigerant piping, electrical controls, and component matching are completed and pressure-tested at the factory, a CSTHEATEXCHANGER monoblock refrigeration unit eliminates the need for on-site pipe brazing, nitrogen pressure holding, system evacuation, or field gas charging. Installers simply mount the unit into a precut opening in the polyurethane insulated panels, seal the perimeter, connect power, and begin operation.
At CSTHEATEXCHANGER, we manufacture medium-temperature (chilled/fresh) and low-temperature (frozen/freezer) monoblock units from 1 HP to 5 HP (1.8 kW to 10.8 kW), as well as high-capacity commercial models up to 30 HP for large walk-in cold rooms, restaurants, food processing facilities, and distribution hubs.
Refrigerating fresh goods and freezing preserved products require fundamentally different thermodynamic parameters. While both applications use monoblock architecture, the internal compressor displacement, coil surface geometry, fin spacing, and defrost mechanisms differ substantially:
Engineering Parameter | Medium-Temperature Monoblock (Refrigerated / Chilled) | Low-Temperature Monoblock (Frozen / Freezer) | Technical Reason & Preservation Impact |
|---|---|---|---|
Target Cold Room Temp | 0∘C to +8∘C0∘C to +8∘C (32∘F to 46∘F32∘F to 46∘F) | −18∘C to −25∘C−18∘C to −25∘C (0∘F to −13∘F0∘F to −13∘F) | Chilled storage prevents spoilage while avoiding freezing; freezer storage arrests microbial growth. |
Evaporation Temp (SST) | −8∘C to −4∘C−8∘C to −4∘C (18∘F to 25∘F18∘F to 25∘F) | −28∘C to −35∘C−28∘C to −35∘C (−18∘F to −31∘F−18∘F to −31∘F) | Low SST in freezers requires larger displacement compressors with higher compression ratios. |
Typical Stored Products | Fresh meat, poultry, dairy, fruits, vegetables, beverages, pharmaceuticals, prepared meals | Frozen meat, seafood, ice cream, frozen vegetables, bakery goods, bulk frozen stock | Product respiration and moisture characteristics determine evaporator coil sizing. |
Evaporator Fin Spacing | 4.0 mm to 5.0 mm4.0 mm to 5.0 mm (5 to 6 FPI5 to 6 FPI) | 7.0 mm to 10.0 mm7.0 mm to 10.0 mm (2.5 to 3.5 FPI2.5 to 3.5 FPI) | Wide fin pitch in freezers prevents rapid frost bridging across coil fins during sub-zero operation. |
Defrost Mechanism | Air / Off-Cycle Defrost (or light electric heater) | Electric Heating Elements or Hot-Gas Defrost | Air defrost works at +4∘C+4∘C, but −20∘C−20∘C freezers require active electric/gas heat to melt ice. |
Drain Line Protection | Standard gravity drain pipe | Heated Drain Line Cable & Pan Heater | Prevents meltwater from re-freezing and clogging the drain trough inside the −20∘C−20∘C room. |
Panel Insulation (PU) | 75 mm to 100 mm75 mm to 100 mm (3′′ to 4′′3′′ to 4′′) | 120 mm to 150 mm120 mm to 150 mm (5′′ to 6′′5′′ to 6′′) | Thicker insulation minimizes transmission heat gain under high ambient-to-room temperature differentials. |
Refrigerant Options | R134a, R513A, R404A, R448A/R449A, R290 | R404A, R448A/R449A, R452A, R290 | Low-temperature compressors require refrigerants with high density and stable discharge temperatures. |
At CSTHEATEXCHANGER, we combine decades of heat exchanger engineering with modern packaged refrigeration manufacturing.
What Sets Our Monoblock Systems Apart:
Pre-Engineered Reliability: Perfectly matched compressor displacement, condenser heat rejection, and evaporator finned area for maximum Coefficient of Performance (COP).
Severe-Duty Casing: Heavy-gauge galvanized steel cabinet finished with electrostatic powder coating, or full AISI 304 stainless steel construction for food processing hygiene.
Global Climate Adaptability: High-ambient condenser designs capable of continuous operation in outdoor ambient temperatures up to +43∘C to +48∘C+43∘C to +48∘C.
Comprehensive Factory Support: 3D CAD cut-sheet dimensions, wiring schematics, and multilingual technical documentation provided for every unit.
A monoblock refrigeration unit is a self-contained, all-in-one cooling package where the compressor, condenser, evaporator, and controls are built into a single chassis. It is factory-charged with refrigerant and ready for plug-and-play installation on cold room walls or ceilings.
Medium-temperature units (0∘C to +8∘C0∘C to +8∘C) are designed for chilled/fresh products (dairy, meat, vegetables) using air or light electric defrost with tighter fin pitch (4–5 mm4–5 mm). Low-temperature units (−18∘C to −25∘C−18∘C to −25∘C) are built for frozen products (frozen meat, seafood, ice cream) featuring high-displacement compressors, wide fin spacing (7–10 mm7–10 mm), electric/hot-gas defrost, and heated drain lines.
No. While dual-temperature combination cold rooms exist, a single monoblock is engineered for either medium-temperature or low-temperature operation. A medium-temperature unit lacks the compressor compression ratio and defrost power to reach −20∘C−20∘C, while a low-temperature unit would short-cycle and over-dry fresh produce at +4∘C+4∘C.
Monoblock units are factory pre-charged and pre-tested, eliminating on-site copper brazing, vacuuming, and gas charging. This reduces installation time from days to hours, lowers labor costs, and minimizes the risk of refrigerant leaks.
Medium-temperature units typically use 4.0 mm to 5.0 mm4.0 mm to 5.0 mm (5–6 FPI5–6 FPI) fin spacing. Low-temperature freezer units use wide 7.0 mm to 10.0 mm7.0 mm to 10.0 mm (2.5–3.5 FPI2.5–3.5 FPI) spacing to prevent frost accumulation from bridging and blocking airflow.
In freezers, the controller automatically initiates defrost every 4 to 6 hours. The compressor and evaporator fans stop, and electric heating elements (or hot refrigerant gas) warm the coil to melt accumulated ice. Meltwater drains through a heated drain tube, and a short fan-delay cycle refreezes remaining droplets before the fans restart.
Choose wall-mounted if you have low ceiling height above the cold room and want easy walk-up maintenance access from the outside. Choose roof-mounted (drop-in) if you want to maximize 100% of internal perimeter wall space for pallet racking or shelving.
Please provide:
Cold room external dimensions (Length ×× Width ×× Height) or volume (m3m3);
Stored product type (fresh refrigerated or frozen) and target room temperature (∘C∘C);
Polyurethane panel insulation thickness (75 mm,100 mm,150 mm75 mm,100 mm,150 mm);
Maximum surrounding ambient temperature (∘C∘C);
Daily product turnover/loading (kg/daykg/day) and entering temperature;
Preferred mounting style (wall-mounted or roof-mounted) and power supply voltage.
Whether preserving fresh farm produce, dairy, pharmaceutical vaccines, or deep-frozen seafood, CSTHEATEXCHANGER monoblock refrigeration units deliver dependable thermal control in a compact, plug-and-play format. By integrating precision component matching, robust severe-duty metallurgy, and automated climate control, our monoblock units protect your inventory while minimizing installation complexity and operating costs.

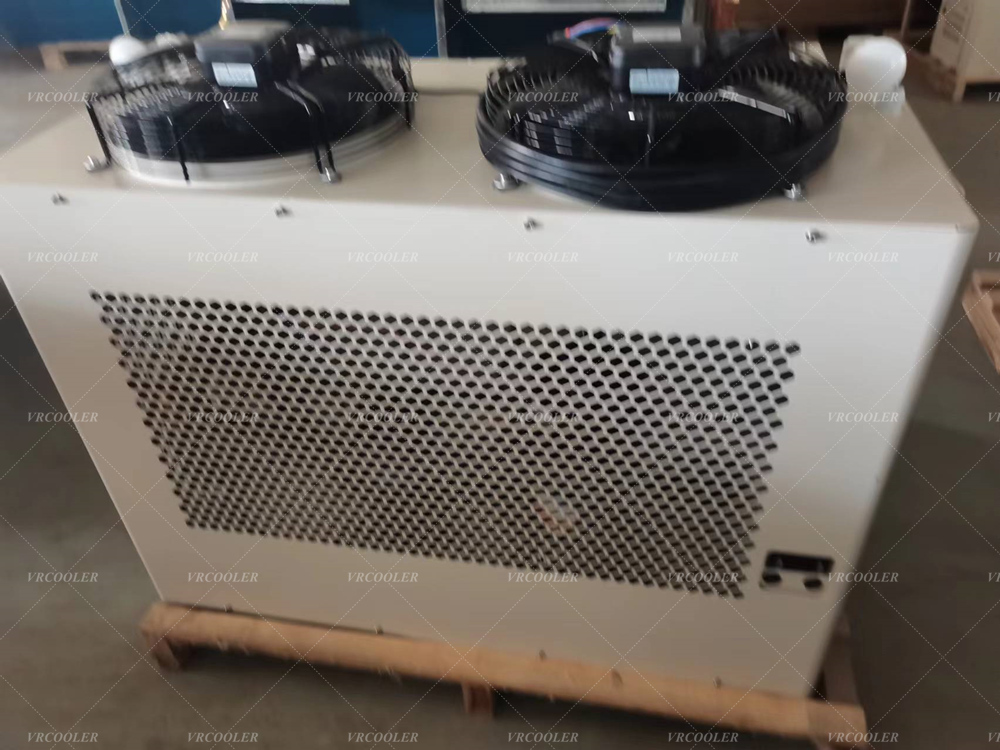

CSTHEATEXCHANGER can engineer and supply the exact monoblock refrigeration unit for your walk-in cooler or freezer project. Contact our refrigeration engineering team today with your cold room dimensions and temperature targets for an immediate technical selection and quotation.
