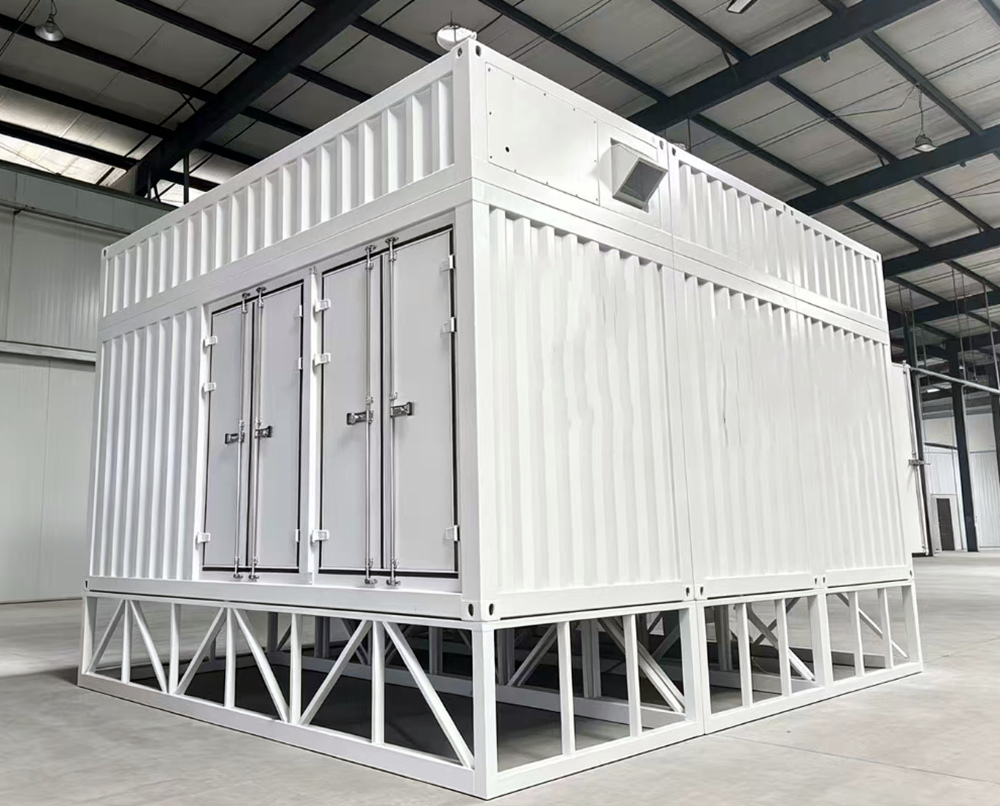

An all-in-one container data center (also known as a prefabricated modular container data center or mobile data center container) is a complete, factory-integrated, turnkey computing facility built inside a standardized, weatherproof 20ft or 40ft ISO shipping container.
It houses all mission-critical infrastructure subsystems within a single physical shell:
IT & Server Infrastructure: Standard 19-inch server racks (4 to 16 racks4 to 16 racks), cable management pathways, and sealed hot/cold aisle containment.
High-Efficiency Cooling & Heat Rejection: In-row precision air conditioners (In-Row CRAC/CRAH), direct-to-chip liquid cooling manifolds, or immersion cooling tanks, paired with rooftop or ground-mounted CSTHEATEXCHANGER Dry Coolers for closed-loop free cooling.
Power Distribution & Backup: Modular online Uninterruptible Power Supply (UPS), high-density Lithium-ion or VRLA battery banks, Automatic Transfer Switch (ATS), and precision power distribution cabinets (PDCs).
Fire Suppression & Physical Security: Novec 1230 / FM200 clean-agent gas fire suppression, VESDA early smoke detection, biometric access control, and CCTV monitoring.
Intelligent DCIM System: Centralized Data Center Infrastructure Management software monitoring power quality, rack temperatures, humidity, water leaks, and cooling performance in real time.
Compared to traditional brick-and-mortar facilities that take 18 to 24 months18 to 24 months to design and construct, a CSTHEATEXCHANGER all-in-one container data center is fully pre-assembled, pre-wired, and load-tested at the factory, enabling on-site deployment in under 1 to 3 months with an exceptional Power Usage Effectiveness (PUE <1.15<1.15 for air-cooled; <1.05<1.05 for liquid-cooled).
At CSTHEATEXCHANGER, we engineer custom 20ft and 40ft container data centers tailored for edge computing, 5G telecom base stations, AI supercomputing clusters, military/remote field operations, and cryptocurrency mining.
Prefabricated container data centers solve the cost, timeline, and spatial limitations of traditional facility construction:
Feature / Performance Metric | Traditional Brick-and-Mortar Data Center | CSTHEATEXCHANGER All-in-One Container Data Center | Project & Operational Impact |
|---|---|---|---|
Deployment Time | 18 to 24 Months18 to 24 Months (Lengthy civil construction & zoning) | 1 to 3 Months1 to 3 Months (Factory prefabricated & pre-tested) | Accelerates time-to-market and revenue generation by up to 80%80%. |
Initial Capital Cost (CapEx) | High (High civil engineering, architectural design, permits) | 30% to 50%30% to 50% Lower (Standardized manufacturing) | Significantly lowers initial capital investment barriers. |
Scalability & Expansion | Must overbuild empty "white space" years in advance | Modular "Pay-As-You-Grow" (Add 20ft/40ft modules as needed) | Eliminates stranded capital; matches investment directly with IT demand. |
Power Usage Effectiveness (PUE) | 1.30−1.601.30−1.60 (Long duct runs, wide room mixing) | 1.03−1.151.03−1.15 (Close-coupled cooling + dry coolers) | Drastically cuts annual utility electricity bills. |
Mobility & Relocation | Fixed, immovable real estate asset | 100%100% Mobile (Standard ISO shipping logistics) | Allows redeployment to low-cost power sites, edge nodes, or disaster zones. |
Site Requirements | Dedicated multi-story building, raised floors, heavy HVAC | Flat concrete pad + utility power + fiber connection | Can be installed in parking lots, rooftops, desert edges, or factory yards. |
Environmental Protection | Dependent on building envelope quality | Corten steel, IP55/IP65 sealed, C5M anti-corrosion paint | Resists sandstorms, coastal salt fog, seismic vibration, and heavy snow. |
CSTHEATEXCHANGER constructs container data centers based on standard ISO shipping container dimensions to ensure effortless transport via standard trucks, rail, and container ships:
Technical Specification | 20ft ISO Container Data Center | 40ft ISO High-Cube Container Data Center |
|---|---|---|
External Dimensions (L×W×HL×W×H) | 6,058 mm×2,438 mm×2,896 mm6,058 mm×2,438 mm×2,896 mm (20′×8′×9′6′′20′×8′×9′6′′) | 12,192 mm×2,438 mm×2,896 mm12,192 mm×2,438 mm×2,896 mm (40′×8′×9′6′′40′×8′×9′6′′) |
Server Rack Capacity | 4 to 8 Racks (19-inch 42U/48U) | 10 to 16 Racks (19-inch 42U/48U) |
Maximum Air-Cooled IT Load | 30 kW to 100 kW30 kW to 100 kW | 100 kW to 300 kW100 kW to 300 kW |
Maximum Liquid-Cooled IT Load | Up to 500 kW500 kW | Up to 1.5 MW+1.5 MW+ |
Integrated Precision In-Row Coolers | 2 to 4 In-Row Units2 to 4 In-Row Units (N+1N+1 redundancy) | 4 to 8 In-Row Units4 to 8 In-Row Units (N+1N+1 or 2N2N redundancy) |
Outdoor Heat Rejection | Rooftop/Ground CSTHEATEXCHANGER Dry Cooler | Multi-Fan Modular V-Bank CSTHEATEXCHANGER Dry Cooler |
UPS System Capacity | 50 kVA to 150 kVA50 kVA to 150 kVA (Modular Online) | 150 kVA to 500 kVA150 kVA to 500 kVA (Modular Online) |
Backup Battery Runtime | 10 to 30 Minutes (Lithium-ion / VRLA) | 10 to 30 Minutes (Lithium-ion / VRLA) |
Casing Ingress Protection | IP55 / IP65 Weatherproof | IP55 / IP65 Weatherproof |
At CSTHEATEXCHANGER, we bridge advanced industrial thermal engineering with turnkey modular data center manufacturing.
Our Core Value Deliverables:
Fully Integrated Manufacturing: In-house fabrication of the container chassis, in-row precision cooling units, liquid cooling piping, and high-efficiency outdoor dry coolers.
Ultra-Low PUE (<1.15<1.15 Air / <1.05<1.05 Liquid): Proprietary free-cooling dry cooler integration minimizes electrical parasitic load.
Tailored Form Factors: Custom 20ft, 40ft, and multi-container connected complexes engineered for edge telecom, defense, AI compute, and digital mining.
Comprehensive Quality Assurance: ISO 9001 certified production, 100% factory full-load burn-in testing, and complete 3D BIM / CAD engineering documentation.
It is a complete, prefabricated modular data center housed within an insulated 20ft or 40ft ISO shipping container. It integrates server racks, precision cooling, modular UPS power, fire suppression, and DCIM monitoring in a plug-and-play mobile format.
While traditional brick-and-mortar data centers take 18 to 24 months18 to 24 months to construct, a CSTHEATEXCHANGER container data center is built and tested in the factory within 6 to 8 weeks and can be deployed and commissioned on-site in under 3 to 5 days.
By utilizing close-coupled in-row cooling or direct liquid cooling paired with CSTHEATEXCHANGER Dry Coolers, air-cooled container data centers achieve a PUE of <1.15<1.15, while liquid-cooled and immersion containers achieve a PUE of <1.03 to 1.05<1.03 to 1.05.
Cooling is typically managed by In-Row Precision Air Conditioners with enclosed hot/cold aisles, or by Direct-to-Chip (D2C) liquid cold plates. Heat from the internal coils is rejected outdoors using rooftop or ground-mounted closed-loop CSTHEATEXCHANGER Dry Coolers, eliminating water consumption.
A 20ft container typically accommodates 4 to 8 standard server racks with 30 kW to 100 kW30 kW to 100 kW of IT capacity, making it ideal for 5G edge computing and remote sites. A 40ft container accommodates 10 to 16 server racks with 100 kW to 300 kW+100 kW to 300 kW+ IT load (or up to 1.5 MW1.5 MW in liquid cooling), suitable for cloud hubs and AI computing clusters.
Yes. CSTHEATEXCHANGER container data centers feature 50–100 mm50–100 mm thermal insulation panels, IP55/IP65 weatherproofing, C5M anti-corrosion paint, and optional adiabatic pre-cooling pads for +50∘C+50∘C desert heat, as well as automatic glycol bypass loops for −40∘C−40∘C arctic winters.
They utilize clean-agent gas fire extinguishing systems such as Novec 1230 or FM200, paired with VESDA laser aspirating smoke detectors. These extinguish electrical fires in seconds without water or chemical residue, protecting server electronics.
Please provide:
Target container size (20ft, 40ft, or custom dimensions);
Total IT power capacity (kWkW) and number of server racks required;
Cooling preference (in-row precision air cooling, direct-to-chip liquid cooling, or immersion);
UPS backup runtime requirement (minutes) and battery type (Lithium-ion vs VRLA);
Site ambient climate range (minimum winter and maximum summer temperatures);
Input utility power voltage and frequency (e.g., 380V/3Ph/50Hz380V/3Ph/50Hz or 480V/3Ph/60Hz480V/3Ph/60Hz).
As computing demand shifts toward edge processing, artificial intelligence, and rapid-deployment digital infrastructure, CSTHEATEXCHANGER all-in-one container data centers deliver the ultimate combination of speed, thermal efficiency, mobility, and rugged operational reliability.
CSTHEATEXCHANGER can engineer, customize, and manufacture the exact all-in-one container data center for your enterprise, edge, or high-density computing project. Contact our modular data center engineering team today with your power and rack requirements for a complete technical proposal, 3D general arrangement layout, and factory-direct quotation.
