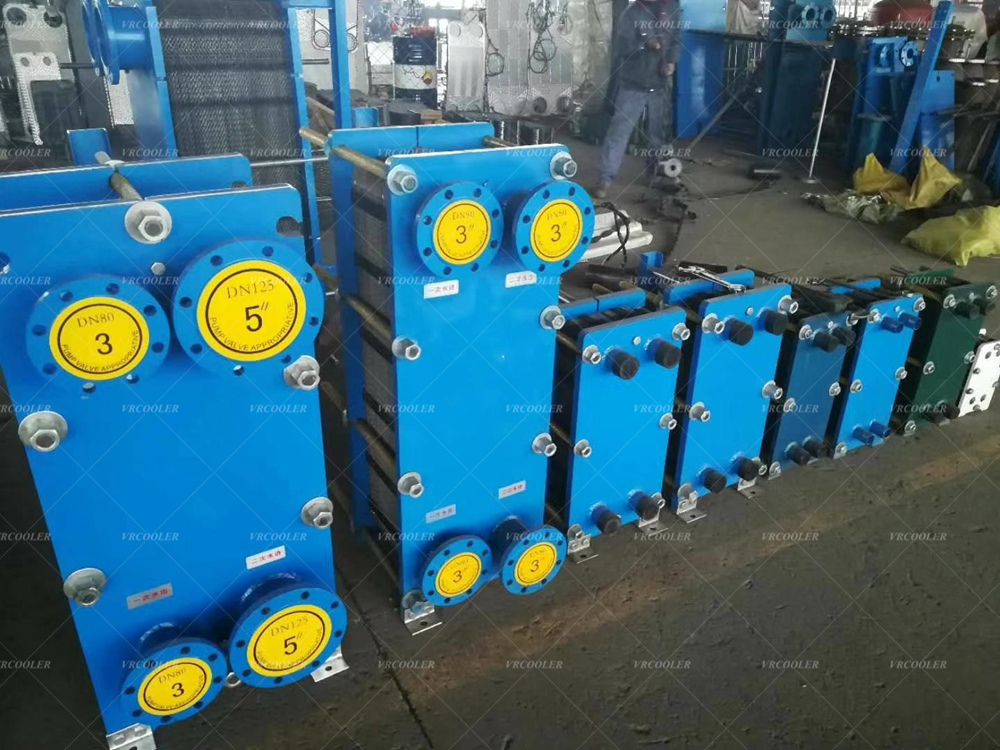

A Plate Heat Exchanger (PHE) in an immersion cooling system is a high-efficiency thermal interface that transfers heat from a primary dielectric fluid loop (circulating through submerged ASIC mining tanks, GPU server chassis, or high-density computing pods) to a secondary water or water/glycol heat rejection loop connected to an outdoor dry cooler or cooling tower.
Constructed from a pack of corrugated stainless-steel plates (AISI 304, AISI 316L, or Titanium), a CSTHEATEXCHANGER plate heat exchanger provides four essential engineering advantages for single-phase and two-phase liquid immersion applications:
Complete Fluid Isolation: Keeps expensive dielectric fluids (100%100% pure and contained indoors) separated from outdoor water/glycol loops, preventing contamination and drastically reducing total dielectric fluid volume.
Ultra-Close Temperature Approach (ΔTapproach≤1.0∘C to 3.0∘CΔTapproach≤1.0∘C to 3.0∘C / 2∘F to 5∘F2∘F to 5∘F): Intense plate micro-turbulence maximizes heat transfer, cooling hot dielectric fluid (55∘C to 65∘C55∘C to 65∘C) down to within 1–3∘C1–3∘C of the incoming cooling water temperature.
High Overall Heat Transfer Coefficient (U≥1,500 to 3,500 W/m2⋅KU≥1,500 to 3,500 W/m2⋅K): Delivers up to 3× to 5×3× to 5× higher thermal density than traditional shell-and-tube exchangers, fitting compactly inside containerized skids or tank enclosures.
Viscosity-Optimized Chevron Geometry: Utilizes custom low-theta and mixed-corrugation plate patterns engineered specifically for higher-viscosity dielectric oils, maintaining low pressure drop (ΔP<30–50 kPaΔP<30–50 kPa) and low pumping energy.
At CSTHEATEXCHANGER, we engineer custom Brazed Plate Heat Exchangers (BPHE), Gasketed Plate Heat Exchangers (GPHE with Viton FKM seals), and pre-packaged PHE Pumping Skids for AI supercomputing data centers, edge computing pods, and multi-megawatt cryptocurrency mining farms.
Selecting the appropriate plate heat exchanger type depends on facility scale, maintenance requirements, and pressure parameters:
Engineering Dimension | Brazed Plate Heat Exchanger (BPHE) | Gasketed Plate Heat Exchanger (GPHE) | Semi-Welded / Welded Plate Exchanger |
|---|---|---|---|
Construction & Sealing | Vacuum-brazed with 99.9% Copper or Nickel | Heavy-duty carbon/stainless frame with tie-bolts & elastomeric gaskets | Laser-welded plate cassettes on one side; gasketed on water side |
Gasket Requirements | Zero Gaskets (Braze sealed) | Requires 100% Viton (FKM) or HNBR (Never use standard EPDM) | Viton gaskets on secondary loop; welded on primary side |
Operating Pressure Rating | High (3.0 to 4.5 MPa3.0 to 4.5 MPa / 30 to 45 bar30 to 45 bar) | Moderate (1.0 to 2.5 MPa1.0 to 2.5 MPa / 10 to 25 bar10 to 25 bar)** | High (2.5 to 4.0 MPa2.5 to 4.0 MPa / 25 to 40 bar25 to 40 bar)** |
Thermal Disassembly & Cleaning | Non-openable (Chemical CIP flushing only) | 100%100% Disassemblable for mechanical brush cleaning | Partially openable on water side for inspection |
Capacity Scalability | Fixed capacity per unit; parallel modular banks | Fully Expandable (Add or remove plates to adjust kW) | Expandable within frame limits |
Footprint & Weight | Ultra-Compact & Lightweight | Larger frame; robust industrial footprint | Medium industrial footprint |
Best-Fit Application | Modular immersion pods, 50 kW to 300 kW container units | Central data centers, 500 kW to 10 MW+ facilities | Critical hazardous chemical / fluorochemical loops |
At CSTHEATEXCHANGER, we bridge advanced fluid dynamics with precision heat exchanger manufacturing for high-density computing and crypto mining.
Our Core Value Deliverables:
Single-Source Dual-Loop Integration: We manufacture both the indoor Plate Heat Exchangers (PHE) and the outdoor V-Bank Dry Coolers, ensuring perfectly matched thermal approaches and balanced flow rates.
Fluid-Specific Engineering: Custom thermal calculations modeling exact dielectric fluid viscosity, specific heat, and thermal conductivity curves.
Severe-Duty Metallurgy & Seals: Premium AISI 316L plates, Titanium options, and 100% Viton (FKM) sealing guarantee zero fluid degradation.
Complete Factory Support: Comprehensive 3D CAD/BIM models, P&ID schematics, pressure drop curves, and ISO 9001 certified quality documentation.
It is a compact, high-efficiency heat exchanger made of corrugated stainless-steel plates that transfers heat from a primary dielectric oil loop (submerged servers/miners) to a secondary water/glycol loop connected to an outdoor dry cooler, keeping the two fluids completely isolated.
A plate heat exchanger confines the expensive dielectric fluid inside the building, preventing outdoor contamination, reducing total fluid volume, and lowering pumping power because the outdoor loop circulates low-viscosity water/glycol instead of thick oil.
Brazed Plate Heat Exchangers (BPHE) are vacuum-brazed with copper or nickel, creating a compact, gasket-free, high-pressure unit ideal for modular 50 kW to 300 kW50 kW to 300 kW tanks. Gasketed Plate Heat Exchangers (GPHE) use bolted frames with Viton gaskets, allowing complete disassembly, mechanical cleaning, and expandable plate capacity for large 500 kW to 10 MW+500 kW to 10 MW+ facilities.
Hydrocarbon-based dielectric fluids chemically attack and swell EPDM rubber, causing gasket failure and severe fluid leaks within weeks. CSTHEATEXCHANGER specifies Viton (FKM) or PTFE gaskets, which are 100% chemically resistant to dielectric oils.
CSTHEATEXCHANGER plate heat exchangers achieve an ultra-tight temperature approach of 1.0∘C to 3.0∘C1.0∘C to 3.0∘C (2∘F to 5∘F2∘F to 5∘F) between the leaving cooled dielectric oil and entering cooling water.
Because dielectric oil has higher viscosity (4–15 cSt4–15 cSt) and lower thermal conductivity than water, the plate heat exchanger requires asymmetric low-theta chevron corrugations and an expanded surface area to maintain high heat transfer while keeping oil-side pressure drop under 30–50 kPa30–50 kPa.
For Brazed units, connect a Clean-in-Place (CIP) pump to circulate a mild, warm aqueous degreasing solution, followed by drying with dry compressed air or nitrogen. Gasketed units can also be opened mechanically for plate-by-plate manual inspection and soft brushing.
Please provide:
Total thermal heat duty (kWkW or MWMW);
Dielectric fluid type/brand and flow rate (m3/hm3/h or GPMGPM);
Dielectric oil hot inlet and required cold outlet temperatures (∘C∘C or ∘F∘F);
Secondary water/glycol supply and return temperatures (∘C∘C);
Maximum allowable pressure drop on both oil and water sides (kPakPa or barbar);
Preferred exchanger type (Brazed BPHE or Gasketed GPHE) and connection flange standards.
In single-phase and two-phase liquid immersion computing, the Plate Heat Exchanger is the core component that guarantees low operating temperatures, energy efficiency, and fluid isolation. Sizing your system with CSTHEATEXCHANGER high-performance plate heat exchangers and turnkey pumping skids ensures ultra-close temperature approaches, low pumping parasitic power, robust Viton chemical compatibility, and maximum computing uptime.
CSTHEATEXCHANGER can engineer, simulate, and manufacture the exact plate heat exchanger or pre-assembled pumping skid for your immersion cooling project. Contact our high-density thermal engineering team today with your fluid parameters for a complete technical selection data sheet, P&ID drawing, and factory-direct quotation.
