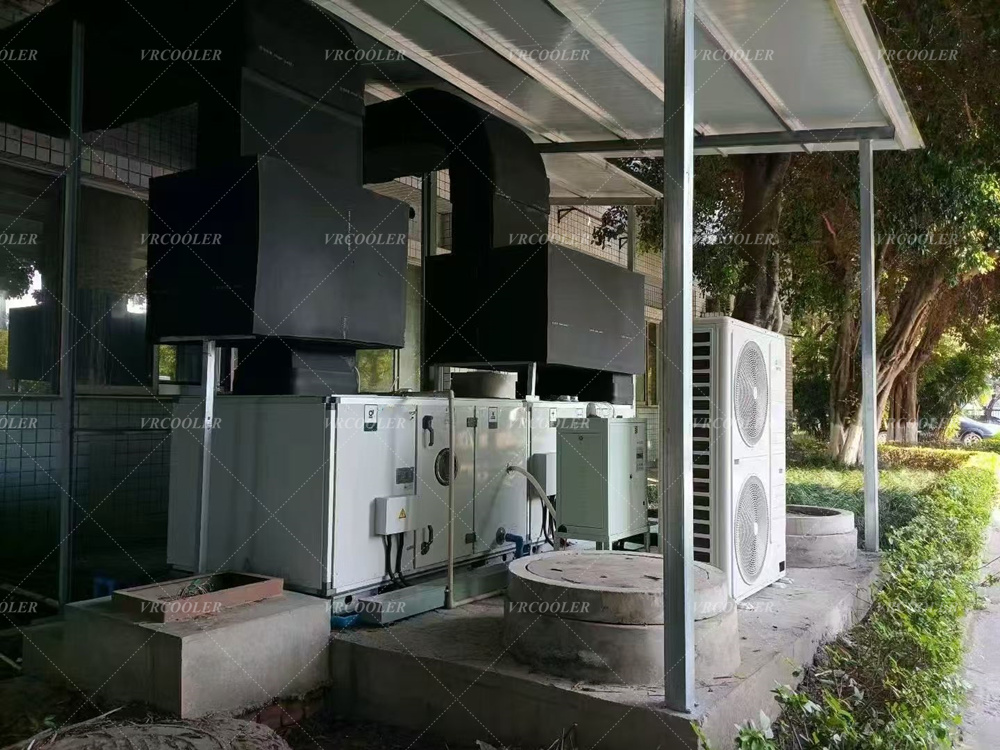

A cleanroom Air Handling Unit (AHU) is a specialized, high-performance HVAC system engineered to supply ultra-clean, conditioned air to contamination-controlled environments, such as pharmaceutical manufacturing plants, biotechnology laboratories, semiconductor cleanrooms, microelectronics facilities, medical device packaging suites, and hospital operating theaters.
Unlike standard commercial air handlers that merely provide basic thermal comfort, a CSTHEATEXCHANGER cleanroom AHU performs four critical engineering functions simultaneously:
Airborne Particulate & Microbial Control: Employs a rigorous 3-stage filtration chain (Primary G4 →→ Secondary F9 →→ Terminal HEPA H13/H14 or ULPA U15) to capture 99.99%+99.99%+ of airborne dust, aerosols, bacteria, and viable micro-organisms down to 0.3 μm0.3 μm.
High Air Change Rates (ACH): Circulates clean air at rates between 20 to 60+ ACH20 to 60+ ACH (for ISO Class 7/8 / GMP Grade C/D) up to 200 to 600+ ACH200 to 600+ ACH with unidirectional laminar flow (for ISO Class 5 / GMP Grade A/B) to continuously sweep contaminants out of the room.
Room Differential Pressure Cascades: Modulates variable-speed fans to maintain positive room pressure (+10 to +15 Pa+10 to +15 Pa) in cleaner spaces relative to surrounding areas to prevent external infiltration, or negative pressure for toxic/biohazard containment.
Precision Climate & Humidity Regulation: Holds room dry-bulb temperature within ±0.5∘C to ±1.0∘C±0.5∘C to ±1.0∘C and relative humidity within ±3% to ±5% RH±3% to ±5% RH, utilizing Make-up Air Unit (MAU) dehumidification coils and recirculation Dry Cooling Coils (DCC) to eliminate unwanted condensation.
At CSTHEATEXCHANGER, we engineer custom hygienic modular AHUs, double-skin thermal-break air handlers, and specialized cleanroom cooling/heating coils compliant with ISO 14644, EU GMP, FDA cGMP, and EN 1886 standards.
A cleanroom AHU is not an ordinary commercial air handler with a better filter. It is an entirely different class of hygienic machinery:
Engineering Dimension | Standard Commercial / Office AHU | CSTHEATEXCHANGER Hygienic Cleanroom AHU | Cleanroom Compliance & Quality Impact |
|---|---|---|---|
Casing Construction | Single-skin or basic 25 mm25 mm double-skin galvanized steel | 50 mm50 mm Double-Skin with Thermal Break (TB1/TB2) | Eliminates casing condensation (sweating) and thermal bridging. |
Interior Surface Finish | Galvanized steel with exposed sheet-metal screws, seams, and sharp 90° corners | AISI 304 / 316L Stainless Steel with coved internal corners & flush seams | Prevents dust trapping; allows chemical washdown and VHP decontamination. |
Air Leakage Rating | EN 1886 Class L3 / L4 (>1.0 L/(s⋅m2)>1.0 L/(s⋅m2)) | EN 1886 Class L1 / L2 (<0.15 L/(s⋅m2)<0.15 L/(s⋅m2)) | Prevents unconditioned or contaminated ambient air bypass into clean air stream. |
Fan Type & Drive | Belt-driven forward/backward curved centrifugal fans | Direct-Drive EC Plug Fan Wall Arrays | Eliminates rubber belt wear particles; enables variable speed control with zero particulate shedding. |
Filtration Chain | 1 or 2 stages: Pre-filter (MERV 8) + Final (MERV 13) | 3 Stages: G4 Pre-filter + F9 Intermediate + Terminal HEPA H13/H14 (99.995%) | Ensures absolute particle and microbial barrier before room entry. |
Cooling Coil Strategy | Wet cooling coils where condensation regularly occurs | Make-Up Air Wet Coil + Recirculation Dry Cooling Coil (DCC) | Keeps cleanroom recirculation ducts 100% dry, preventing fungal/bacterial growth. |
Drain Pan Engineering | Flat galvanized pan with central drain | 304 Stainless Steel with 4-way positive slope & deep P-trap | Guarantees immediate, complete condensate drainage with zero standing water. |
Static Pressure Capability | Low to Moderate (300 Pa to 600 Pa300 Pa to 600 Pa) | High to Severe (1,000 Pa to 2,200 Pa1,000 Pa to 2,200 Pa) | Overcomes high pressure drops across multiple filter stages and terminal HEPA units. |
At CSTHEATEXCHANGER, we bridge advanced thermal heat exchanger manufacturing with high-precision cleanroom HVAC engineering.
Our Core Capabilities Deliver:
Custom Modular AHU Architecture: Scalable from 2,000 m3/h2,000 m3/h to >100,000 m3/h>100,000 m3/h (1,200 to 60,000 CFM1,200 to 60,000 CFM) to fit tight mechanical penthouses.
Hygienic Cleanroom Metallurgy: Double-skin thermal-break casings, AISI 304/316L stainless-steel interiors, and non-outgassing antimicrobial sealants.
Specialized Coil Engineering: Integrated Make-Up Air wet coils, sensible Dry Cooling Coils (DCC), and hot-water/steam heating coils with severe-duty corrosion protection.
Full Validation Documentation: Comprehensive DQ, IQ, and OQ validation support packages, 3D CAD models, psychrometric performance data sheets, and ISO 9001 quality compliance.
A cleanroom AHU is an engineered air handling system that conditions, pressurizes, and purifies air for contamination-controlled environments. It combines multi-stage high-efficiency filtration (up to HEPA/ULPA), high air change rates (20–600+ ACH20–600+ ACH), and precision temperature/humidity control in an airtight, hygienic casing.
Cleanroom AHUs feature 304 stainless-steel interior skins with coved corners, thermal-break double-skin casings (EN 1886 Class L1 airtightness), direct-drive EC plug fans (no belt dust), 3-stage filtration up to HEPA H14, and Dry Cooling Coils (DCC) to prevent bacterial growth.
Standard cleanroom HVAC uses a sequential 3-stage filtration train:
Primary Pre-Filter (G4 / MERV 8): Traps coarse particles >10 μm>10 μm;
Secondary Filter (F9 / ePM1 85% / MERV 15): Captures fine dust 1–3 μm1–3 μm;
Terminal Filter (HEPA H13/H14 or ULPA U15): Eliminates 99.995%+99.995%+ of micro-particles down to 0.3 μm0.3 μm.
A Dry Cooling Coil (DCC) is a sensible-only cooling coil operating with chilled water (12∘C to 14∘C12∘C to 14∘C) above the cleanroom air dew point. It extracts internal heat from process equipment without condensing moisture on the fins, eliminating biofilm and mold proliferation in the recirculation air stream.
Required ACH depends on the ISO cleanliness class:
ISO Class 8 (Grade D): 15 to 30 ACH15 to 30 ACH;
ISO Class 7 (Grade C): 30 to 60 ACH30 to 60 ACH;
ISO Class 6: 60 to 150 ACH60 to 150 ACH;
ISO Class 5 (Grade A/B Laminar Flow): 240 to 600 ACH240 to 600 ACH.
Belt-driven fans shed rubber micro-particles and carbon dust as the V-belts wear. In a cleanroom AHU, these black particles quickly clog expensive downstream filters and create contamination risks. Direct-drive EC plug fans eliminate all belt wear.
The AHU modulates variable-speed supply and return/exhaust fans based on differential pressure sensors. Supplying slightly more air than is exhausted creates positive pressure (+10 to +15 Pa+10 to +15 Pa) to keep out external contamination; exhausting more air than is supplied creates negative pressure for biohazard containment.
Please provide:
Cleanroom area, ceiling height, and target classification (ISO 14644 Class or GMP Grade);
Total design airflow (m3/hm3/h or CFMCFM) or required Air Change Rate (ACH);
Target indoor temperature (∘C∘C) and relative humidity (% RH% RH);
Fresh outdoor air ratio (%%) or makeup airflow volume;
Cooling and heating utility media (chilled water, DX refrigerant, hot water, steam);
External static pressure requirements and physical casing dimension constraints.
Maintaining an uncompromised cleanroom environment requires an Air Handling Unit engineered to the highest standards of hygienic design, filtration efficiency, and psychrometric precision. By combining double-skin thermal-break casings, 3-stage HEPA filtration, zero-condensation Dry Cooling Coils (DCC), and direct-drive EC fan walls, CSTHEATEXCHANGER delivers cleanroom AHUs that protect your sensitive processes, ensure regulatory compliance, and minimize lifecycle operating costs.
CSTHEATEXCHANGER can engineer, simulate, and manufacture the exact cleanroom AHU for your pharmaceutical, semiconductor, medical device, or laboratory project. Contact our cleanroom HVAC engineering team today with your facility specifications for a comprehensive technical selection data sheet, general arrangement drawing, and factory-direct quotation.
