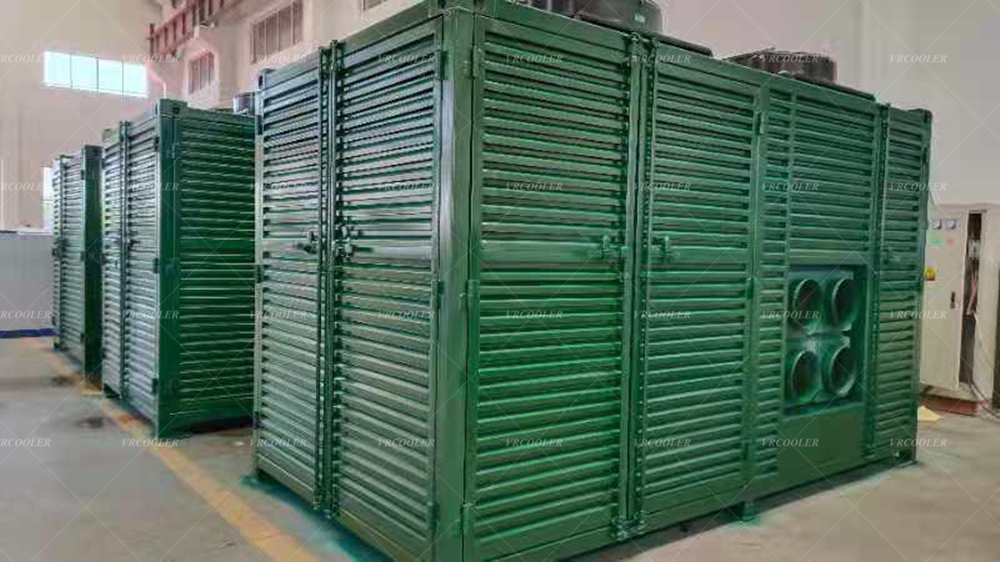

An industrial air-cooled dehumidifier for marine spray coating rooms and blast paint plants is a high-capacity, heavy-duty mobile environmental control system designed to continuously supply large volumes of dry, conditioned air to shipyard blast paint halls, drydock facilities, marine spray booths, ballast tanks, and offshore oil and gas fabrication yards.
During surface preparation—such as abrasive blasting to ISO 8501-1 Sa 2.5 / Sa 3.0 or SSPC-SP 10 (Near-White Metal)—reactive bare steel is highly susceptible to flash rusting (bloom rust) if ambient Relative Humidity (RHRH) exceeds 50%50% or if the steel surface temperature falls within 3∘C3∘C (5∘F5∘F) of the air dew point.
A CSTHEATEXCHANGER industrial air-cooled marine dehumidifier solves this challenge through four purpose-built engineering capabilities:
Flash Rust Prevention & Dew Point Depression: Lowers relative humidity below 40% to 45% RH40% to 45% RH and maintains a safe 5∘C+5∘C+ margin between steel temperature and the air dew point, allowing blasted steel to remain pristine for days before primer application.
Refrigeration Condensation Heat Recovery: An evaporator coil chills incoming humid coastal air (30∘C−35∘C30∘C−35∘C, 80%−95% RH80%−95% RH) to condense out gallons of liquid water, while an air-cooled condenser coil recovers waste refrigeration heat to reheat the dry air back to process temperature with zero auxiliary electric heating power.
C5M Severe-Duty Marine Metallurgy: Engineered with ElectroFin E-coated or epoxy-coated finned coils, 304/316 stainless-steel components, and heavy galvanized steel skids finished with multi-layer marine polyurethane paint to withstand harsh salt-fog atmospheres.
High-Static Pressure Ducting Power (800 Pa to 1,500 Pa+800 Pa to 1,500 Pa+): Powerful industrial plug fans force high-velocity dry air through long temporary flexible duct runs into deep ship cargo holds, double-bottoms, and confined water ballast tanks.
At CSTHEATEXCHANGER, we engineer and manufacture custom mobile and stationary marine air-cooled dehumidifiers ranging from 3,000 m3/h3,000 m3/h to >30,000 m3/h>30,000 m3/h (1,800 to 18,000 CFM1,800 to 18,000 CFM) compliant with IMO PSPC, NACE, and SSPC marine coating standards.
To guarantee 24/7 reliability during continuous multi-week painting schedules, CSTHEATEXCHANGER enforces rigorous testing:
100% Underwater Nitrogen Pressure Test: Pressurized with dry nitrogen to 2.5 MPa to 3.0 MPa2.5 MPa to 3.0 MPa (25 to 30 bar25 to 30 bar) to guarantee zero refrigerant leakage.
Full Electrical & Thermal Load Run-Test: Every machine is fully run-tested in our environmental test chamber to verify moisture extraction rates (kg/hkg/h) and air static pressure curves before shipment.
Weekly Pre-Filter Inspection: Wash or replace the G4 inlet air filter to prevent abrasive blast dust and salt crust from fouling the evaporator fins.
Inspect Condensate Drain Lines: Ensure the gravity drain hose is clear of debris and routed away from high-traffic work paths.
Monthly Coil Inspection: Inspect fin coatings for salt deposits; rinse with low-pressure fresh water to extend coil operating life.
At CSTHEATEXCHANGER, we bridge advanced thermal heat exchanger manufacturing with heavy-duty marine environmental control engineering.
Our Core Value Deliverables:
Energy-Saving Heat Recovery: Waste condensation heat recovery saves thousands of dollars in electrical generator fuel compared to desiccant or electric-reheat systems.
C5M Severe-Duty Corrosion Resistance: E-coated coils, 304 stainless-steel interior components, and heavy-gauge galvanized skids built for 15+ year shipyard service.
High-Static Pressure Fan Arrays: Overcomes 1,000–1,500 Pa1,000–1,500 Pa of duct resistance to reach the deepest ship ballast tanks and remote blast halls.
Complete Factory Certification: Built to ISO 9001 quality standards with full electrical CE / UL compliance and complete 3D CAD documentation.
It is a heavy-duty, all-weather mobile refrigeration system that continuously removes moisture from ambient air and delivers dry, low-humidity air (<40%−45% RH<40%−45% RH) to shipyard blast halls, drydocks, and ship tanks to prevent flash rusting on bare steel.
When steel is blasted to bare metal (ISO 8501-1 Sa 2.5 / SSPC-SP 10), high coastal humidity (>50% RH>50% RH) causes instantaneous "flash rusting". Applying paint over flash rust causes blistering and coating delamination. Dehumidifiers hold the blast in pristine condition for days.
According to IMO PSPC, NACE, and SSPC standards, the steel surface temperature must remain at least 3∘C3∘C (5∘F5∘F) above the air dew-point temperature throughout abrasive blasting, paint spraying, and coating curing.
The system uses its air-cooled condenser coil to capture the waste heat generated during refrigeration. It transfers this heat to the cold, dry air exiting the evaporator, raising its temperature back to 25∘C−30∘C25∘C−30∘C and plunging relative humidity without consuming expensive electric heating power.
Refrigerated air-cooled dehumidifiers are the most energy-efficient choice for warm, humid coastal ambient conditions (15∘C to 45∘C15∘C to 45∘C), consuming 50%50% less power. Desiccant wheel dehumidifiers are preferred for extreme sub-zero winter temperatures or specialty tank linings requiring ultra-low dew points (below −10∘C−10∘C).
We utilize seamless deoxidized copper tubes with ElectroFin E-coatings or baked epoxy finishes (passing 3,000+ hours ASTM B117 salt spray tests), 304 stainless-steel drain pans, and heavy structural steel skids with C5M marine-grade paint.
Because dry air must travel through 50 to 100 meters50 to 100 meters of flexible lay-flat ventilation ducting into deep ship holds, CSTHEATEXCHANGER marine dehumidifiers are equipped with high-performance plug fans delivering 800 Pa to 1,500 Pa+800 Pa to 1,500 Pa+ external static pressure.
Please provide:
Spray booth / tank volume (m3m3 or cu ftcu ft) or required airflow (m3/hm3/h or CFMCFM);
Local maximum coastal ambient temperature (∘C∘C) and relative humidity (% RH% RH);
Target indoor relative humidity (%%) and required steel surface dew-point margin;
Duct length and layout requirements;
Available power supply voltage and frequency (e.g., 380V/3Ph/50Hz380V/3Ph/50Hz or 460V/3Ph/60Hz460V/3Ph/60Hz).
In maritime surface preparation and protective coating, environmental control is the deciding factor between a 20-year marine coating lifecycle and catastrophic premature delamination. Equipping your shipyard, drydock, or blast paint plant with CSTHEATEXCHANGER industrial air-cooled marine dehumidifiers guarantees flash-rust-free steel, compliant dew-point margins, accelerated paint curing, and dramatic reductions in energy operating costs.
CSTHEATEXCHANGER can engineer, customize, and supply the exact industrial air-cooled marine dehumidifiers for your shipyard, drydock, or offshore coating project. Contact our marine environmental engineering team today with your facility parameters for a complete technical selection data sheet, dimensional drawing, and factory-direct quotation.
