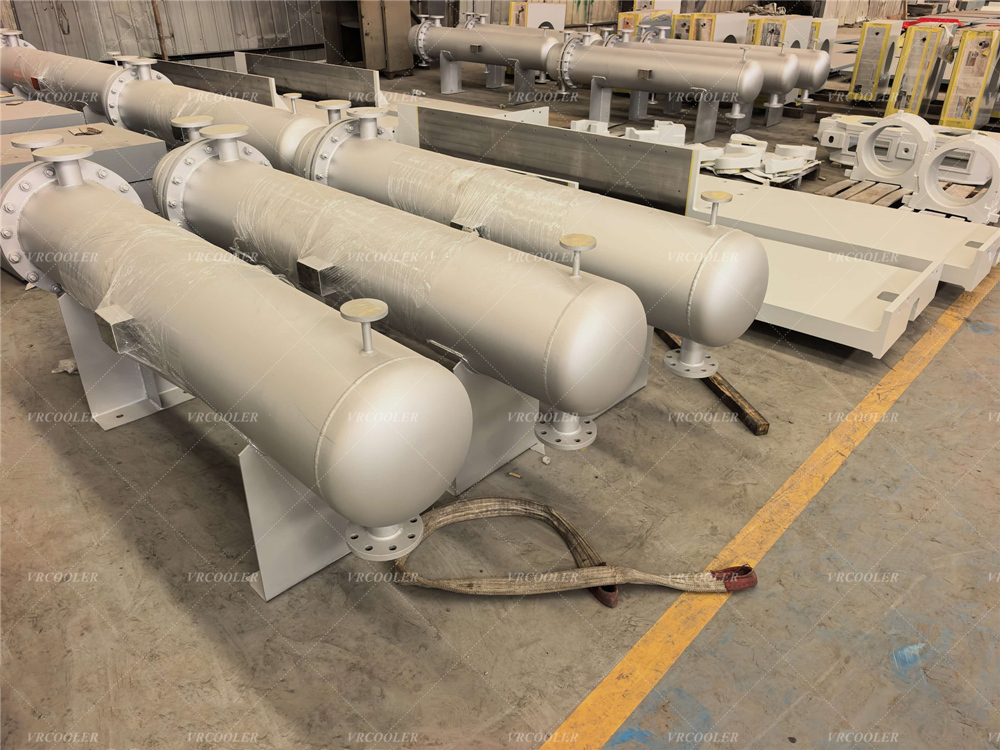

A stainless-steel shell and tube heat exchanger for a biogas dryer process is a specialized, corrosion-resistant heat exchanger designed to cool raw, water-saturated biogas produced in anaerobic digesters (AD), wastewater treatment plants (WWTP), landfills, and agricultural biomethane facilities.
By circulating chilled water or cold outgoing gas against the hot raw biogas, the heat exchanger drops the gas temperature from 35∘C to 55∘C35∘C to 55∘C (95∘F to 131∘F95∘F to 131∘F) down to 3∘C to 5∘C3∘C to 5∘C (37∘F to 41∘F37∘F to 41∘F), condensing and separating over 90%90% of the airborne water vapor.
Because raw biogas is laden with moisture and acid gases—predominantly Hydrogen Sulfide (H2SH2S) and Carbon Dioxide (CO2CO2)—a CSTHEATEXCHANGER stainless-steel shell and tube heat exchanger is engineered with:
Acid-Resistant Metallurgy (AISI 304, AISI 316L, or Duplex 2205): Withstands aggressive sulfuric acid (H2SO4H2SO4) and carbonic acid (H2CO3H2CO3) formed when moisture co-condenses with H2SH2S and CO2CO2.
Straight-Through Gas-Side Flow with Low Pressure Drop (ΔPgas<10–15 mbarΔPgas<10–15 mbar): Prevents overloading low-pressure digester blowers while avoiding particle, tar, and siloxane clogging.
Gravity-Assisted Condensate Runoff: Vertical shell-and-tube orientation ensures liquid droplets sheet continuously downward into an integrated cyclone demister with zero dead zones.
Integrated 2-Stage Heat Recovery: Couples a Biogas-to-Biogas Economizer with a Biogas-to-Chilled Water Condenser, recovering up to 50%50% of chilling energy while reheating dry gas to prevent pipeline condensation.
At CSTHEATEXCHANGER, we engineer custom shell-and-tube biogas heat exchangers, gas coolers, and drying skids compliant with international pressure vessel and environmental standards.
Shell and Tube vs. Brazed Plate Heat Exchangers in Biogas Drying
While brazed plate heat exchangers (PHE) are common in clean HVAC systems, they fail rapidly in raw biogas applications:
Engineering Metric | CSTHEATEXCHANGER Stainless Shell and Tube Exchanger | Brazed Plate Heat Exchanger (PHE) | Biogas Operational Impact |
|---|---|---|---|
Clogging & Fouling Resistance | Superior (Wide straight tubes, 12–25 mm12–25 mm ID) | Very Poor (Narrow 2–3 mm2–3 mm corrugated channels) | Raw biogas particulates, elemental sulfur, and biological tars clog plate channels within weeks. |
Corrosion & Crevice Attack | Excellent (Seamless stainless tubes with full weld penetration) | Poor (Copper/nickel braze alloy rapidly attacked by H2SH2S) | Copper braze in standard PHEs dissolves in sour biogas, causing catastrophic internal cross-leaks. |
Gas-Side Pressure Drop (ΔPΔP) | Ultra-Low (<5 to 15 mbar<5 to 15 mbar) | High (30 to 80 mbar30 to 80 mbar+) | Low ΔPΔP is essential for low-pressure anaerobic digester blowers (<50 mbar<50 mbar total head). |
Condensate Gravity Drainage | Direct Vertical Flow (Zero liquid entrapment) | Trapped in plate corrugation pockets | Standing condensate accelerates local pitting corrosion inside plate heat exchangers. |
Mechanical Cleanability | Full Access (Removable bonnets for mechanical rodding) | Non-cleanable (Must be acid-flushed or scrapped) | Shell and tube exchangers can be easily serviced, inspected, and brushed during annual overhauls. |
Service Life Expectancy | 15 to 25+ Years15 to 25+ Years | 1 to 4 Years1 to 4 Years (Frequent replacement) | Shell and tube design provides maximum long-term reliability for continuous energy plants. |
At CSTHEATEXCHANGER, we bridge advanced thermal engineering with severe-duty metallurgy for renewable energy, wastewater treatment, and agricultural biogas facilities worldwide.
Our Core Engineering Advantages:
Tailored Process Sizing: Custom thermal modeling based on your exact biogas flow rate (Nm3/hNm3/h), methane/carbon dioxide ratio, H2SH2S ppm level, and available chilled water temperatures.
Premium Stainless Metallurgy: Complete in-house fabrication in AISI 304, AISI 316L, and Duplex 2205 with certified welding and full acid passivation.
Ultra-Low Pressure Drop Engineering: Optimized tube diameters and pass arrangements ensuring ΔPgas<10–15 mbarΔPgas<10–15 mbar to conserve digester blower power.
Complete Validation & Quality Compliance: Full ASME Section VIII / EN 13445 pressure vessel design, material traceability test reports (MTRs), and ISO 9001 quality certification.
It is an industrial heat exchanger built from stainless steel (SS304 or SS316L) that cools warm, moisture-laden raw biogas using chilled water or cold return gas. Cooling the biogas condenses out over 90% of its moisture, protecting downstream CHP engines, boilers, and upgrading systems from acid corrosion.
Raw biogas contains moisture mixed with Hydrogen Sulfide (H2SH2S) and Carbon Dioxide (CO2CO2). When cooled, these gases dissolve into the condensing water to form corrosive sulfuric acid (H2SO4H2SO4) and carbonic acid (H2CO3H2CO3). Carbon steel and copper corrode rapidly under these conditions; stainless steel (especially SS316L) provides vital acid resistance.
SS304 is suitable for clean agricultural biogas with low H2SH2S levels (<200 ppm<200 ppm). SS316L contains 2%–3%2%–3% Molybdenum, providing superior resistance to pitting, crevice corrosion, and aggressive sulfuric acid in sour biogas (>500 to 3,000+ ppm H2S>500 to 3,000+ ppm H2S) or wastewater treatment facilities.
Biogas is typically cooled down to 3∘C to 5∘C3∘C to 5∘C (37∘F to 41∘F37∘F to 41∘F) using chilled water supplied at 1∘C to 3∘C1∘C to 3∘C. This achieves a deep dew-point drop and condenses more than 90%90% of water vapor along with heavy siloxanes.
Brazed plate heat exchangers have narrow channels (2–3 mm2–3 mm) that quickly clog with biogas dust and biological tars, and their copper braze joints dissolve in H2SH2S. Shell and tube heat exchangers feature wide straight tubes (12–25 mm12–25 mm), ultra-low gas pressure drop (<15 mbar<15 mbar), gravity condensate drainage, and full cleanability.
A biogas economizer is a gas/gas heat exchanger that uses cold, dry biogas leaving the chiller to pre-cool the incoming hot raw biogas. This cuts chiller power consumption by up to 50%50% while reheating the dry gas before it enters the CHP engine, dropping relative humidity below 40%40% to prevent pipeline condensation.
Most anaerobic digesters operate at very low pressure (20 to 50 mbar20 to 50 mbar). Therefore, a well-designed CSTHEATEXCHANGER biogas heat exchanger is engineered for an ultra-low gas-side pressure drop of <5 to 15 mbar<5 to 15 mbar (0.5 to 1.5 kPa0.5 to 1.5 kPa) to avoid overloading the booster blower.
Please provide:
Biogas flow rate (Nm3/hNm3/h or SCFMSCFM);
Biogas inlet temperature (∘C∘C) and operating pressure (mbarmbar or barbar);
Biogas composition (% CH4% CH4, % CO2% CO2, and H2S ppmH2S ppm);
Target gas outlet temperature (∘C∘C);
Chilled water supply and return temperatures (∘C∘C);
Maximum allowable gas-side pressure drop (mbarmbar).
In anaerobic digestion and biomethane upgrading, eliminating moisture and acid gases is essential to protect high-value CHP engines and gas processing equipment. By deploying CSTHEATEXCHANGER stainless steel shell and tube heat exchangers, plant operators achieve maximum moisture condensation, robust H2SH2S acid resistance, ultra-low gas pressure drop, and long-term operating reliability.
CSTHEATEXCHANGER can engineer, simulate, and manufacture the exact stainless-steel shell and tube heat exchanger or 2-stage drying skid for your biogas project. Contact our industrial thermal engineering team today with your biogas parameters for a comprehensive technical selection data sheet, general arrangement drawing, and factory-direct quotation.
