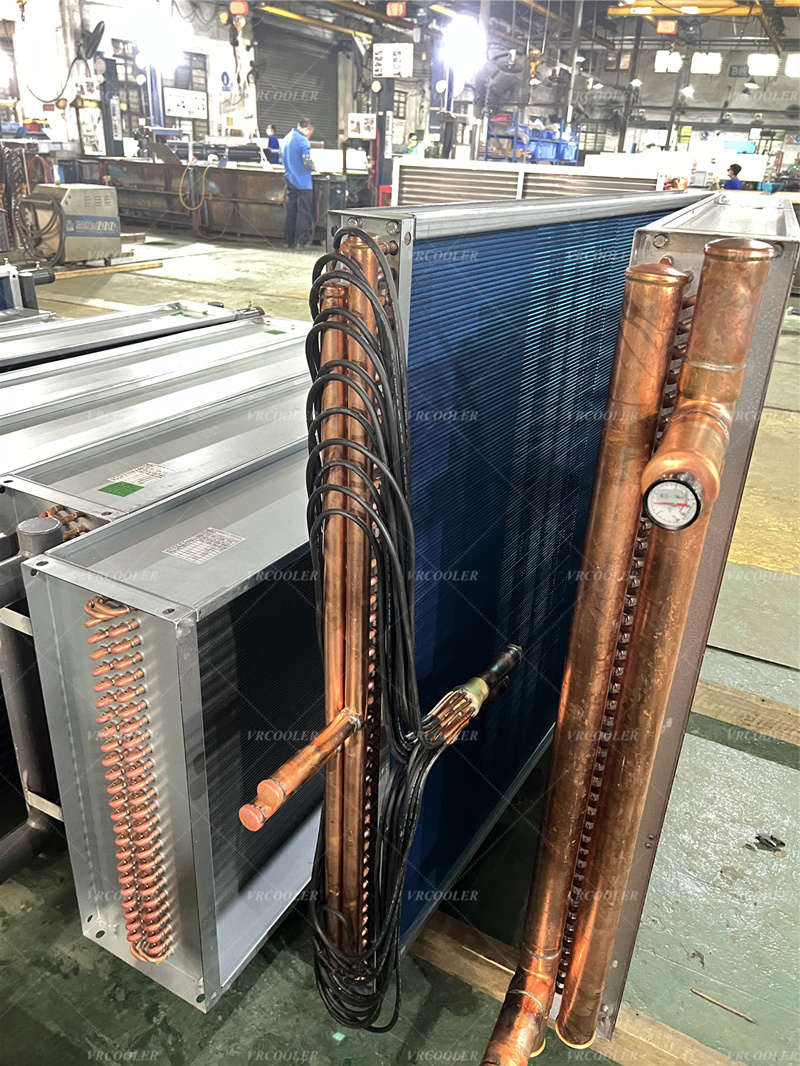

An evaporator coil for a plastic drying machine dehumidifier is a specialized finned-tube heat exchanger that cools warm, moisture-laden return air coming from a resin drying hopper down below its dew-point temperature. As the air passes through the chilled coil, excess water vapor condenses into liquid droplets on the fin surfaces and drains away, producing cold, dry air that is subsequently reheated or routed through a desiccant rotor before re-entering the drying hopper.
In plastic injection moulding, blow moulding, and extrusion, removing moisture from hygroscopic engineering resins—such as PET, PA (Nylon), PC, PBT, ABS, PMMA, and TPU—is critical to prevent hydrolysis, structural brittleness, and surface cosmetic flaws (splay marks, silver streaking, and voids).
Because return air in plastic drying loops is hot (40∘C to 80∘C40∘C to 80∘C) and contains airborne polymer dust, plasticizers, and volatile chemical vapors, a CSTHEATEXCHANGER dehumidifier evaporator coil is engineered with:
High Latent-and-Sensible Thermal Capacity: Sized to handle deep temperature drops and high condensation rates without choking airflow or causing liquid refrigerant floodback.
Volatile & Corrosion Resistance: Built with heavy-wall seamless copper or 304/316L stainless-steel tubes and hydrophilic blue or epoxy-coated aluminum fins that resist acidic/alkaline plasticizer condensation.
Smooth Condensate Drainage: Hydrophilic fin metallurgy prevents water bridging, promoting rapid, continuous drainage into an insulated stainless-steel drain pan.
Custom OEM & Retrofit Fit: Engineered to exact cabinet dimensions, connection locations, and circuiting for direct replacement in existing honeycomb, desiccant, or refrigeration-type plastic dryers.
At CSTHEATEXCHANGER, we engineer and manufacture custom direct-expansion (DX) evaporator coils and chilled-water cooling coils specifically tailored to the demanding operating conditions of plastic auxiliary machinery.
