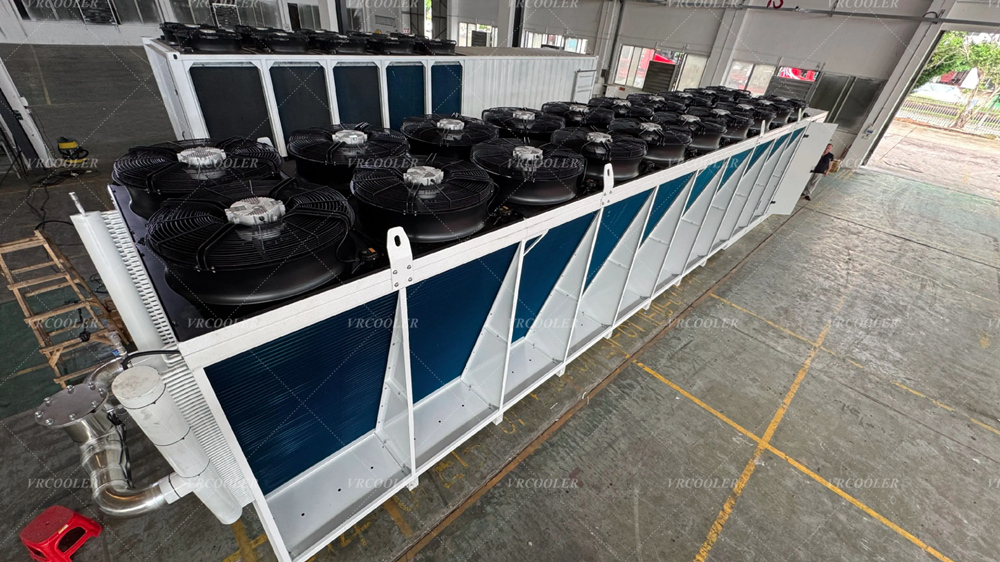

A dry cooler for submerged digital mining is a closed-loop, air-cooled heat rejection system designed to cool non-conductive dielectric fluids (synthetic hydrocarbon oils, polyalphaolefin PAO, or engineered fluids) used in single-phase liquid immersion mining. In submerged mining, ASIC hashboards, GPUs, and power supplies are submerged directly in dielectric fluid inside specialized tanks, capturing 100%100% of the generated heat into the fluid without noisy fans or dust exposure.
To reject this thermal energy efficiently to the atmosphere, a CSTHEATEXCHANGER immersion cooling system is deployed in one of two proven engineering configurations:
Dual-Loop Architecture with Plate Heat Exchanger (PHE) Skid (Recommended for Mega-Scale Farms): Dielectric oil circulates only inside the building through a Stainless Steel 316 Plate Heat Exchanger. An outdoor CSTHEATEXCHANGER Dry Cooler circulates a low-viscosity water/glycol loop to reject the heat. This minimizes the total volume of expensive dielectric oil, reduces pumping power by up to 60%60%, and prevents outdoor winter oil thickening.
Direct Dielectric Fluid Dry Cooler (Single-Loop): The dielectric oil is pumped directly through heavy-tube outdoor dry cooler coils equipped with Viton (FKM) seals, wide-bore headers, and low-pressure-drop multi-pass circuiting.
Both architectures achieve an outstanding Power Usage Effectiveness (PUE <1.03<1.03), consume zero water, eliminate cooling tower scaling/biocides, and enable 20% to 50%+20% to 50%+ continuous ASIC overclocking by keeping chip temperatures stably below 65∘C−70∘C65∘C−70∘C.
At CSTHEATEXCHANGER, we engineer custom V-bank dry coolers, flat-table fluid coolers, and integrated brazed/gasketed plate heat exchanger skids tailored to containerized immersion mining pods from 100 kW100 kW to 10 MW+10 MW+.
At CSTHEATEXCHANGER, we are an established leader in high-density computing and cryptocurrency immersion cooling heat rejection.
What We Deliver:
Customized Sizing: Modular dry cooler units from 50 kW50 kW to 2,000 kW2,000 kW per block, scalable to 100 MW+100 MW+ mining farms.
Turnkey Skid Solutions: Integrated Stainless Steel 316 Plate Heat Exchanger (PHE) stations, redundant VFD circulation pumps, and PLC control cabinets.
Fluid-Specific Engineering: Optimized tube circuits and 100% Viton (FKM) seals built specifically for synthetic hydrocarbon and PAO dielectric oils.
Global Deployment Experience: Factory-direct engineering support with containerized shipping configurations designed for rapid deployment worldwide.
A dry cooler is an air-cooled, closed-loop heat rejection system that cools the dielectric oil (or secondary water/glycol loop) circulated from single-phase liquid immersion mining tanks, rejecting heat into ambient air with zero water consumption.
ASIC mining rigs or GPUs are fully submerged in non-conductive dielectric fluid. The fluid absorbs heat directly from the chips and power supplies. The heated fluid is pumped through a heat exchanger (either a direct dry cooler or a plate heat exchanger), cooled, and returned to the immersion tank.
In a direct system, dielectric oil circulates directly through the outdoor dry cooler. In a dual-loop system, the dielectric oil stays indoors and transfers heat across an intermediate Stainless Steel 316 Plate Heat Exchanger (PHE) to an outdoor water/glycol dry cooler loop. The dual-loop system minimizes expensive oil volume and simplifies outdoor winter operation.
Synthetic hydrocarbon dielectric oils chemically attack and swell standard EPDM rubber gaskets, causing rapid seal failure and leaks. CSTHEATEXCHANGER specifies Viton (FKM) or PTFE (Teflon) gaskets, which are 100% chemically resistant to dielectric oils.
Dielectric oil typically leaves the immersion tanks at 55∘C to 65∘C55∘C to 65∘C (131∘F to 149∘F131∘F to 149∘F) and is cooled by the dry cooler system down to 38∘C to 45∘C38∘C to 45∘C (100∘F to 113∘F100∘F to 113∘F) before returning to the miners.
Immersion cooling eliminates all miner chassis fans. The only parasitic electrical load is the dry cooler's variable-speed EC axial fans and circulating pumps, which draw only 1.5% to 2.5%1.5% to 2.5% of total facility power, achieving a PUE of <1.03<1.03.
Yes. CSTHEATEXCHANGER equips dry coolers with optional adiabatic pre-cooling pads that evaporatively cool incoming ambient air by 8∘C to 12∘C8∘C to 12∘C during peak summer heat waves, allowing the system to deliver 40∘C40∘C cooling fluid without wetting the coil tubes directly.
Please provide:
Total thermal heat rejection duty (kWkW or MWMW);
Specific dielectric fluid brand/type and flow rate (m3/hm3/h or GPMGPM);
Fluid inlet and required outlet temperatures (∘C∘C or ∘F∘F);
Maximum ambient dry-bulb temperature and site altitude;
Preferred system architecture (direct dielectric cooling or dual-loop PHE skid);
On-site power supply voltage and frequency.
Single-phase liquid immersion mining represents the future of high-density digital infrastructure. Sizing your facility with CSTHEATEXCHANGER high-efficiency dry coolers and plate heat exchanger skids guarantees ultra-low PUE, zero water consumption, robust chemical compatibility, and 24/7 thermal stability for maximum mining profitability.
CSTHEATEXCHANGER can engineer, simulate, and manufacture the exact dry cooler or turnkey PHE pumping skid for your immersion mining project. Contact our high-density thermal engineering team today with your facility parameters for a complete technical selection data sheet, P&ID drawing, and factory-direct quotation.
