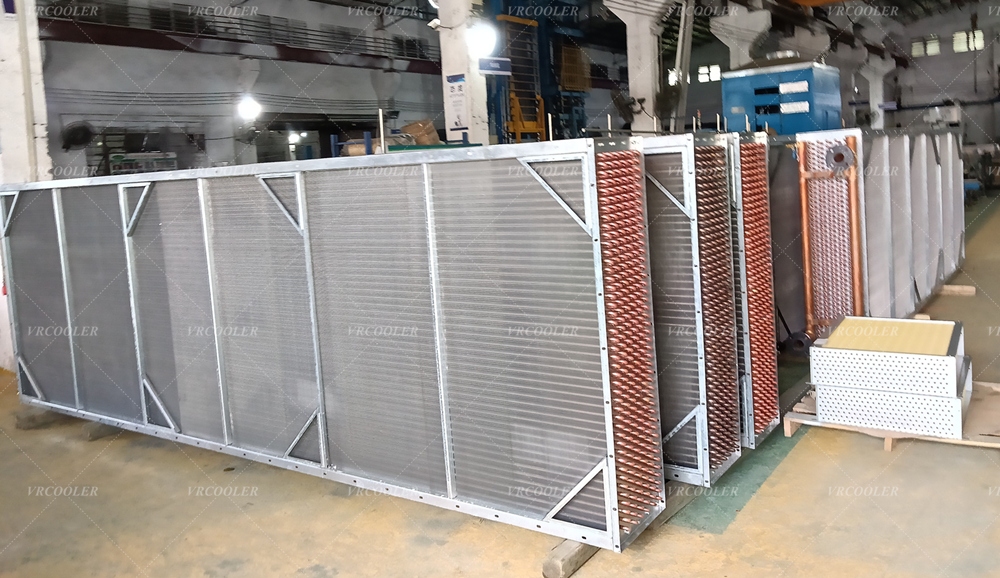

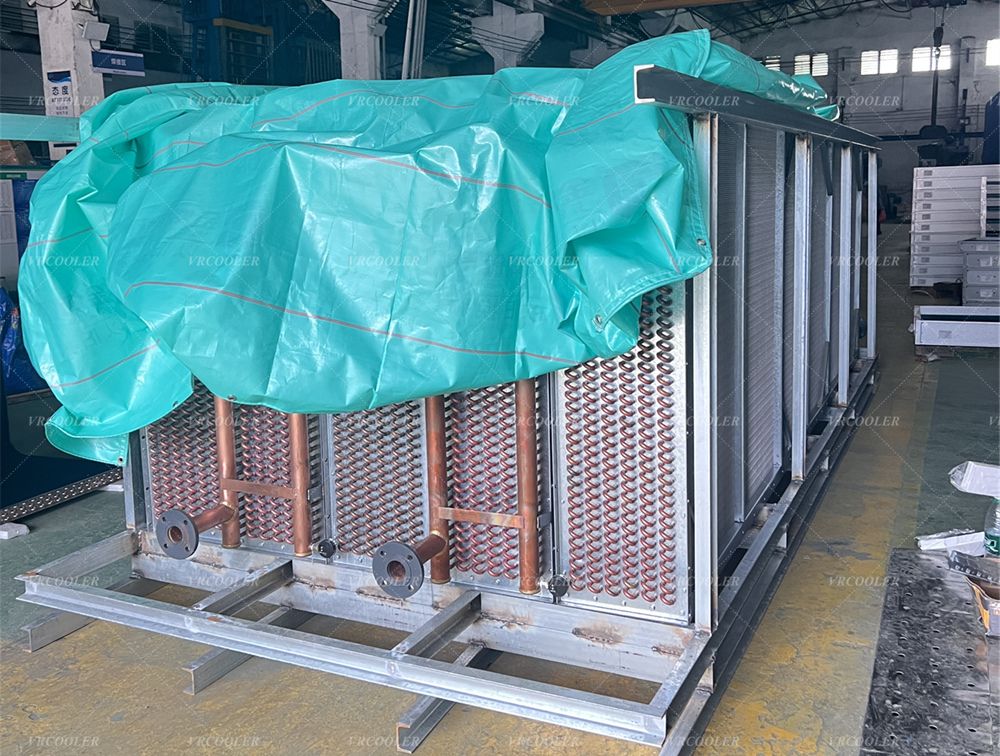

Tube-Fin Heat Exchanger for Heating the Circulating Gas During the Vacuum Drying Process

Tube‑and‑fin heat exchangers are widely selected as core heating components for circulating gas loop in vacuum drying equipment, an important thermal solution for pharmaceutical, chemical, new‑material low‑temperature vacuum drying process.

In vacuum drying closed circulation loop, process gas (nitrogen or inert circulating gas) passes across fin surface of the exchanger, absorbing heat from hot medium inside tubes (steam / thermal oil). It raises circulating gas temperature steadily before entering drying chamber, maintaining uniform drying temperature for raw materials, replacing bulky shell‑and‑tube heating sections in many projects.

CST Heat Exchanger delivers tailor‑made tube fin units for vacuum drying circulating gas heating scenarios. We optimize fin pitch, tube material, shell sealing structure specially for vacuum‑circulation working condition.

Key advantages for vacuum drying circulating gas heating:

1. Compact footprint. Extended fin surface boosts gas‑side heat transfer coefficient, smaller overall dimension comparing with bare tube heat exchanger, easy to integrate into limited duct space of vacuum drying cabinet.

2. Flexible heating source compatibility. Works well with saturated steam, hot thermal oil, hot water as heating medium; realize accurate gas outlet temperature control for low‑temperature vacuum drying.

3. Material customizability. Supply 304 / 316L stainless steel finned bundle, anti‑corrosion coating options, suitable for solvent‑containing humid circulating gas inside vacuum loop, resist condensation corrosion from vapor‑rich process gas.

4. Modular & replaceable structure. Follow customer drawing or original sample for one‑to‑one replacement, convenient for existing vacuum dryer renovation upgrade.

Points needing attention in application:

Vacuum drying circulation gas carries solvent vapor and moisture, condensation may occur on fin surface under improper working point. CST adjusts fin spacing and flow velocity design to reduce condensate adhesion risk; reinforce shell and tube‑plate welding to satisfy vacuum‑loop sealing requirement, avoid air leakage impacting vacuum degree of whole drying system.

These custom fin tube heat exchangers are available for both new vacuum drying machine projects and old‑equipment retrofits. CST supports full drawing communication, thermal calculation and complete non‑standard manufacturing.
