Lithium‑ion battery manufacturing is an energy‑intensive process, especially during electrode coating. Large volumes of N‑Methyl‑2‑pyrrolidone (NMP) solvent are consumed for preparing cathode slurry. Meanwhile, high‑temperature exhaust air from coating ovens carries massive waste heat. Without effective recycling systems, factories face high raw‑material expenses, huge power/gas consumption and heavy carbon emissions, all pushing up per‑kWh battery production cost.
NMP is an expensive polar solvent widely used in cathode production. In traditional lines, NMP‑laden hot exhaust is directly discharged, causing continuous solvent loss.
A complete NMP recovery system captures NMP vapor from coating oven exhaust, condenses and purifies it for reuse in slurry mixing.
Recycle rate can reach 95%‑99%, drastically lowering fresh NMP purchasing volume.
Reduces chemical waste disposal fees and meets local environmental compliance requirements.
Directly brings down material cost per battery cell, one of the largest cost drivers in cathode production.
Without reliable recovery, large‑scale gigafactories will bear recurring huge spending on new NMP supply. Solvent recycling turns waste vapor back into usable production material.
Coating and drying sections consume most thermal energy in lithium battery plants. The exhaust after NMP condensation still holds considerable sensible heat.

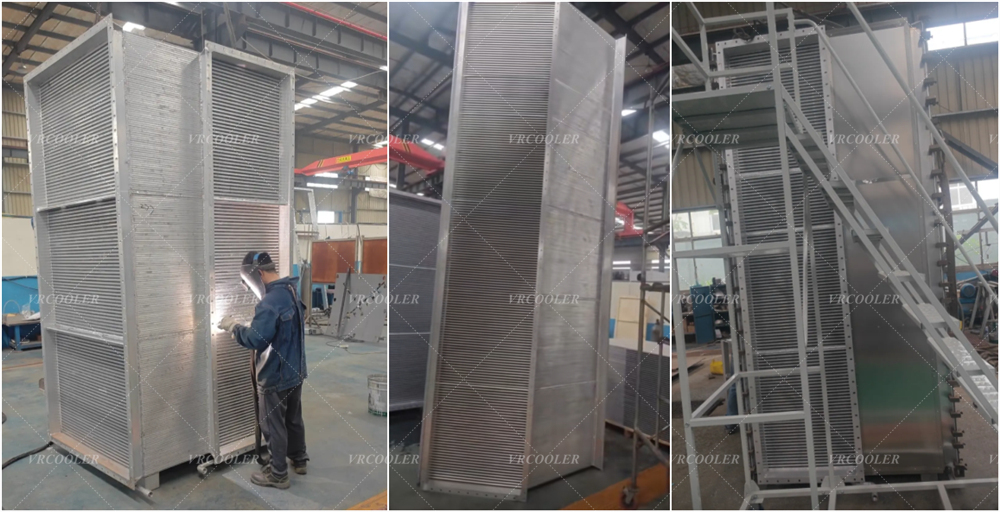

Plate fin gas‑gas heat exchangers act as core waste‑heat recovery equipment here: they transfer heat from high‑temperature exhaust to incoming fresh process air. Pre‑heated fresh air enters the coating oven, so the heating system burns far less natural gas or uses less electric heating power.
Key economic benefits:
Sharp reduction of heating energy consumption for drying ovens.
Lower utility bills (gas & electricity) throughout continuous production.
Less peak‑load pressure for plant heating equipment, extending service life of ovens.
For gigawatt‑scale battery factories, cumulative energy savings year‑round contribute significantly to lowering overall manufacturing expenditure.
The two systems work best as a combined solution rather than separate units.
Hot exhaust from cathode oven first goes into NMP recovery loop for solvent condensation and capture.
The exhaust outflow then passes through plate‑fin gas‑gas heat exchanger to recover residual waste heat.
Recovered heat preheats incoming fresh air back to the coating process.
This closed‑loop workflow achieves dual value: solvent reuse + energy reuse. It helps battery makers hit two core goals simultaneously: cost reduction and carbon footprint reduction.
For new battery plant investment or old‑production‑line retrofits, selecting high‑efficiency plate fin heat exchangers for the NMP recovery process delivers long‑term ROI. Poor heat‑exchange performance will result in low NMP reclaim efficiency and high ongoing operating cost, even if the initial equipment purchase price is low.
In today’s competitive lithium‑ion battery market, raw‑material price fluctuation puts pressure on profit margins. Optimizing operating cost via NMP and waste‑heat recovery brings tangible competitive advantages:
Lower cell production cost to improve gross margin.
Meet tightening emission regulations for volatile organic compounds (VOC).
Support customers’ ESG and carbon‑neutral targets for battery products.
NMP solvent recovery and waste heat recovery are no longer optional add‑ons for lithium‑ion battery factories. They are essential modules to control manufacturing expenditure. High‑performance plate fin heat exchangers serve as the heart of this energy‑saving loop, enabling high solvent recovery ratio and stable waste‑heat reuse.
If you are evaluating heat‑exchange equipment for new NMP recovery lines or production‑line upgrading, visit info@cstheatexchanger.com for technical support and custom solution consultation.
