Crossflow vs. Counterflow Heat Exchanger

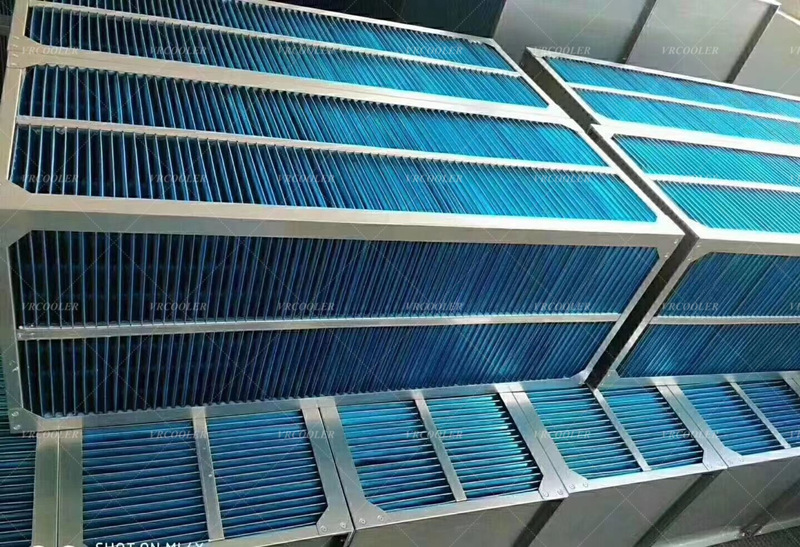

In a crossflow design, the two air streams move perpendicular (at a right angle) to one another. As they cross, heat is transferred through the thin metal plates that separate them.
Typical Efficiency: A standard crossflow unit has a sensible efficiency of 40-65%.
Key Characteristics:
Complete Air Separation: There is no risk of cross-contamination between the airstreams, making it ideal for hospitals, large canteens, and the food industry where hygiene is critical.
Simple & Cost-Effective: The straightforward design generally makes crossflow units less expensive than other types.
No Moisture Transfer: It is a sensible heat exchanger only, meaning it does not transfer humidity between the airstreams.
In a counterflow design, the two air streams move parallel to each other but in opposite directions. This opposing flow maintains a consistent temperature difference (gradient) across the entire length of the heat exchanger.
Typical Efficiency: Counterflow units are significantly more efficient, with ratings typically between 75-85%, and some advanced models claiming up to 90% or higher.
Key Characteristics:
Superior Performance: The consistent thermal gradient allows for a "temperature cross," where the cold outlet air can actually become warmer than the hot outlet air. This makes it possible to achieve much tighter temperature approaches and greater energy recovery.
Compact Design: Because it is more efficient, a counterflow heat exchanger can achieve the same duty as a larger crossflow unit, saving valuable mechanical room space.
More Complex: The design is more sophisticated, often requiring more careful management of airflow and potentially leading to a higher pressure drop across the unit.
