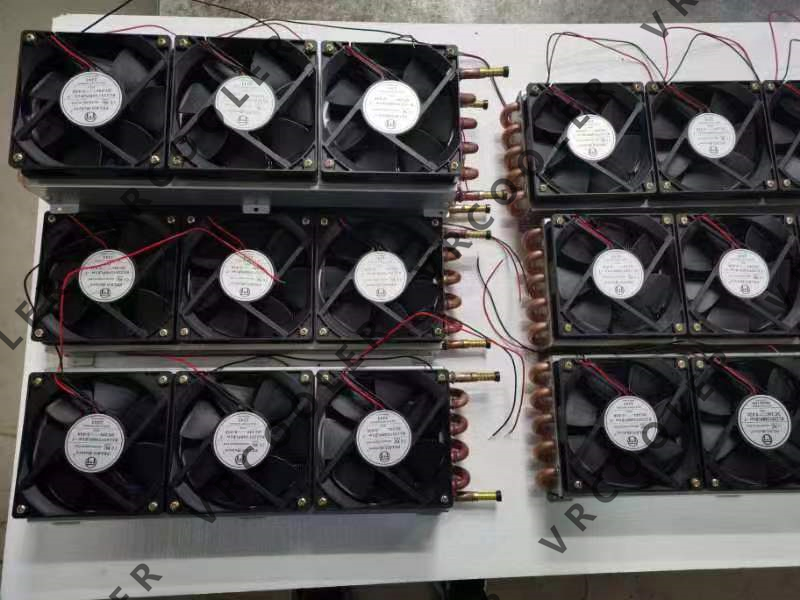

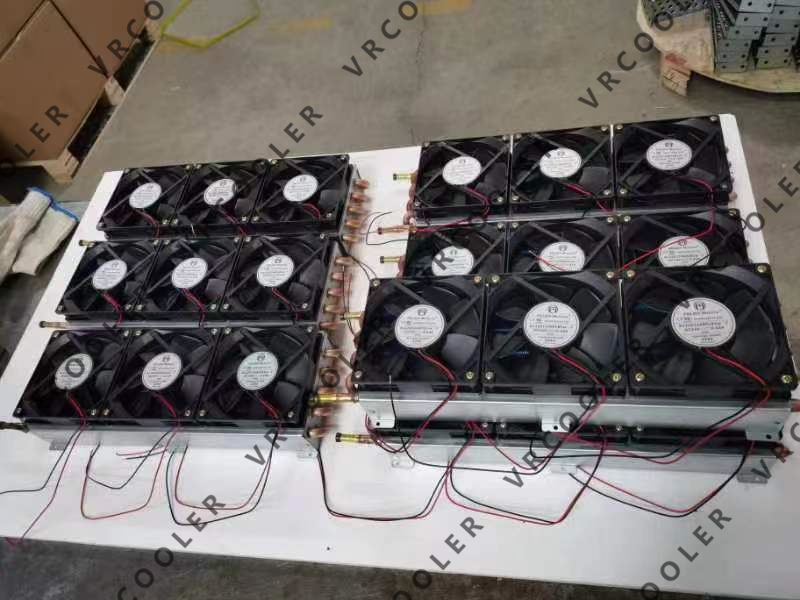

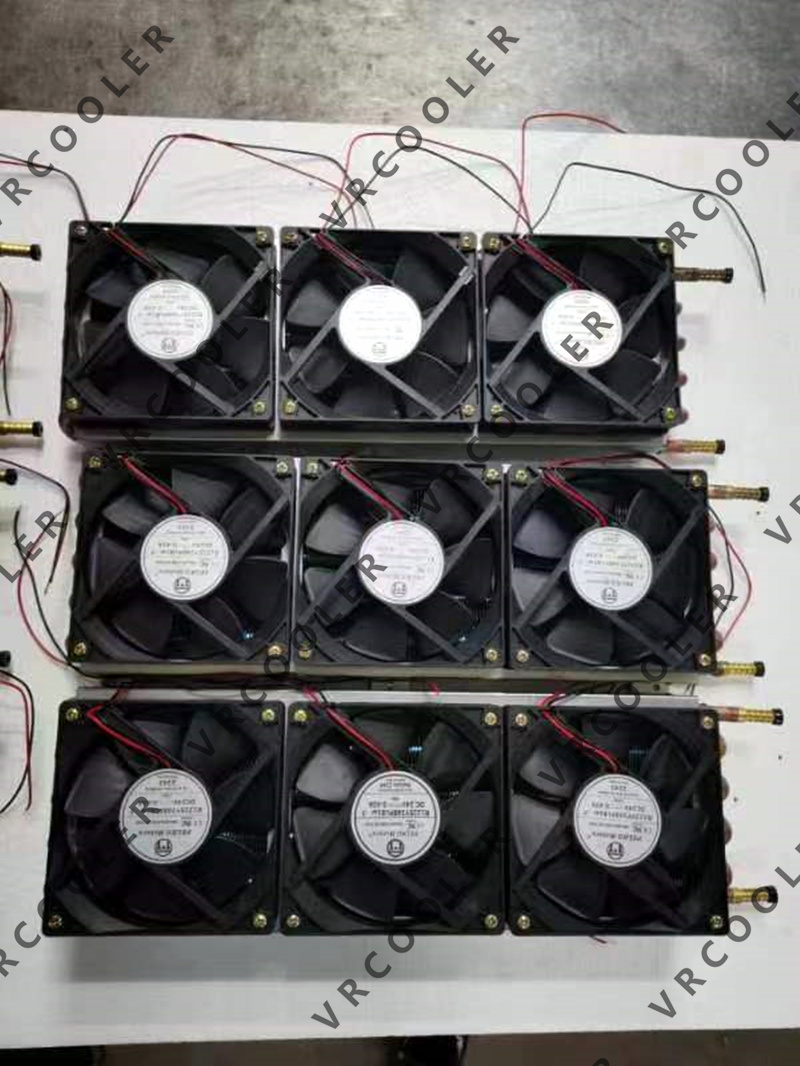

Air To Water Heat Exchanger in Liquid Cooling System

Air To Water Heat Exchanger in Liquid Cooling System

In an air-to-water heat exchanger, the cooling fluid (typically a water-glycol mixture or pure water) is pumped through coils or tubes inside the heat exchanger. Ambient air is then blown over these coils using fans or natural convection. Heat is transferred from the liquid coolant to the air, lowering the temperature of the fluid as it passes through the exchanger.

Heat Transfer Process:

Hot Fluid (Water or Coolant): The coolant absorbs heat from the equipment (e.g., mining computers or industrial machinery) and carries it through the system.

Airflow: Air is moved over the surface of the heat exchanger by either forced fans or natural airflow. The heat from the fluid is transferred to the air through the surface area of the heat exchanger tubes or fins.

Coolant Returns: The now-cooled fluid is then returned to the cooling system to absorb more heat from the equipment, maintaining the desired temperature.

Applications of Air-to-Water Heat Exchanger in Liquid Cooling Systems

Mining Computers (Cryptocurrency Mining):

Cryptocurrency mining rigs, especially those with high-performance ASICs or GPUs, generate a significant amount of heat. An air-to-water heat exchanger can efficiently cool the coolant circulating through the mining rig, helping to maintain stable operating temperatures for the equipment.

Industrial Equipment Cooling:

In industries such as manufacturing or chemical processing, where machinery operates under high temperatures, an air-to-water heat exchanger can cool the heat transfer fluid, ensuring machinery operates within safe thermal limits.

Data Centers:

Data centers use liquid cooling systems to cool servers and other sensitive equipment. An air-to-water heat exchanger helps to maintain the temperature of the liquid coolant circulating around the servers.

Laboratory Equipment:

Laboratories often use liquid cooling systems for equipment that generates heat, such as reactors or high-precision instruments. Air-to-water heat exchangers are used to dissipate the heat from the coolant to the surrounding air.

HVAC and Chilled Water Systems:

In large HVAC systems, especially those using chilled water for cooling, air-to-water heat exchangers are used in cooling towers or air handlers to reject heat from the water.
