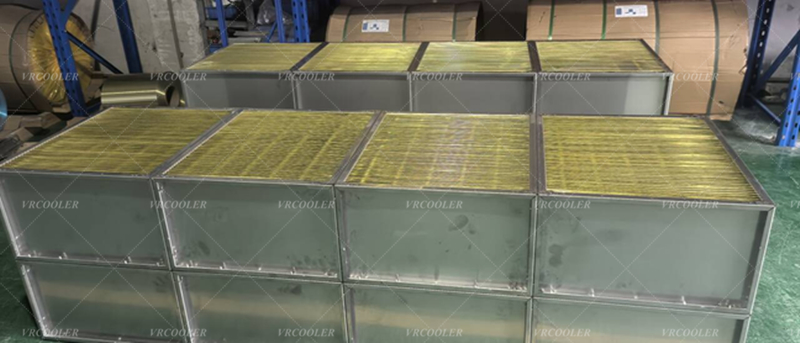

Advantages of Crossflow Heat Exchangers for Ventilation Systems

1. Simple, Compact & Space-Saving Structure

Supply air and exhaust air flow perpendicularly at 90°, forming a straight-through layout. The core and ventilation unit take up less installation space, easy to fit into ceiling cavities, small mechanical rooms and compact wall-mounted fresh air machines. Compared with counterflow cores that need folded air channels, crossflow design simplifies cabinet structure greatly.

2. Lower Manufacturing & Procurement Cost

Straight plate stacking production process cuts material and assembly costs. It is the most cost-effective heat recovery core for mid-low budget ventilation projects, ideal for mass OEM production of residential and light commercial HRV/ERV units.

3. Easy Fabrication & Flexible Sizing

Manufacturers can customise core dimensions freely according to required airflow (small household 50 m³/h to medium commercial 5,000 m³/h). Standardised moulds reduce lead time for custom ventilation equipment.

4. Convenient Installation, Cleaning & Maintenance

• Rectangular straight air paths allow easy removal of the core for washing;

• Flat plate surfaces do not easily trap heavy dust compared to complex folded counterflow channels;

• No rotating components like rotary heat wheels, so no bearings, motors or belts to replace. Only periodic filter and core cleaning is needed.

5. Stable Air Separation, No Cross Contamination

Solid isolating plates fully separate fresh supply air and stale exhaust air. Odours, bacteria and pollutants from exhaust cannot leak into intake air, meeting hygiene requirements for offices, schools, apartments and food processing workshops.

6. Balanced Air Pressure Drop

Well-designed crossflow cores maintain moderate air resistance. They match standard ventilation fan static pressure without requiring high-power, high-energy-consumption blowers, helping control overall unit power consumption.

7. Wide Compatibility with All Ventilation Scenarios

Works seamlessly for sensible heat recovery (aluminium core HRV) and total heat recovery (polymer membrane ERV). Suitable for residential fresh air systems, commercial AHU, factory workshop ventilation, greenhouses and livestock farms.

8. Reliable Long Service Life

All static plate structure with zero moving parts eliminates mechanical wear. Aluminium or stainless steel plates resist corrosion under normal indoor ventilation humidity, with a service life over 10 years under regular maintenance.
