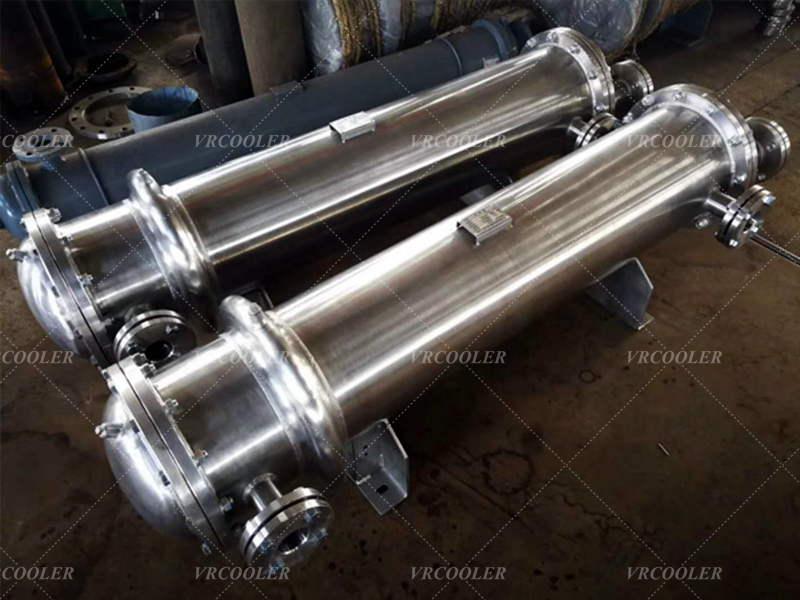

Stainless Steel 316 Shell And Tube Heat Exchanger for Corrosive Fluids

For applications involving corrosive fluids, a shell and tube heat exchanger manufactured from Stainless Steel 316 (SS 316) or its low-carbon variant 316L is a proven and reliable solution.

To maximize the life and safety of the heat exchanger, the use of SS 316 can be applied to several critical components.

All-316 Construction: For maximum corrosion resistance, the tubes, tubesheets, and end bonnets (or channels) can be fabricated from 316 Stainless Steel. This is essential when both the shell-side and tube-side fluids are corrosive .

Hybrid Design (Steel Shell): A more cost-effective approach for some applications uses a standard carbon steel shell with 316 stainless steel tubes and tubesheets. The steel shell relies on a corrosion allowance and is not suitable for highly corrosive shell-side fluids .

Composite Tube Sheets: In extreme cases, such as in salt production where failures occurred, a design using S31603 (316L) + TA10 (Titanium alloy) clad plate for the tubesheet provides an exceptionally durable sealing surface against aggressive brines.

Proper engineering is critical to prevent premature failure, even with corrosion-resistant materials.

Gasket and Seal Selection: The choice of gasket material for the tube-to-tubesheet and channel-to-tubesheet joints is crucial. To prevent crevice corrosion, non-asbestos gaskets like Reinforced Polytetrafluoroethylene (RPTFE) or specific metal gaskets (e.g., spiral wound) are recommended in highly corrosive chloride or acid services . Using inappropriate gaskets (e.g., standard rubber or asbestos) can trap corrosive fluid and initiate localized attack .

Fabrication Quality: The quality of the tube-to-tubesheet weld is paramount. A "weld then expansion" rolling process is often recommended to create a tight, crevice-free joint that minimizes the risk of localized corrosion .

Avoiding Mechanical Damage: The protective oxide layer on SS 316 can be damaged by aggressive cleaning methods. For instance, the use of high-energy water jets or metal brushes can compromise the surface, creating notches that lead to pitting and eventual tube failure
