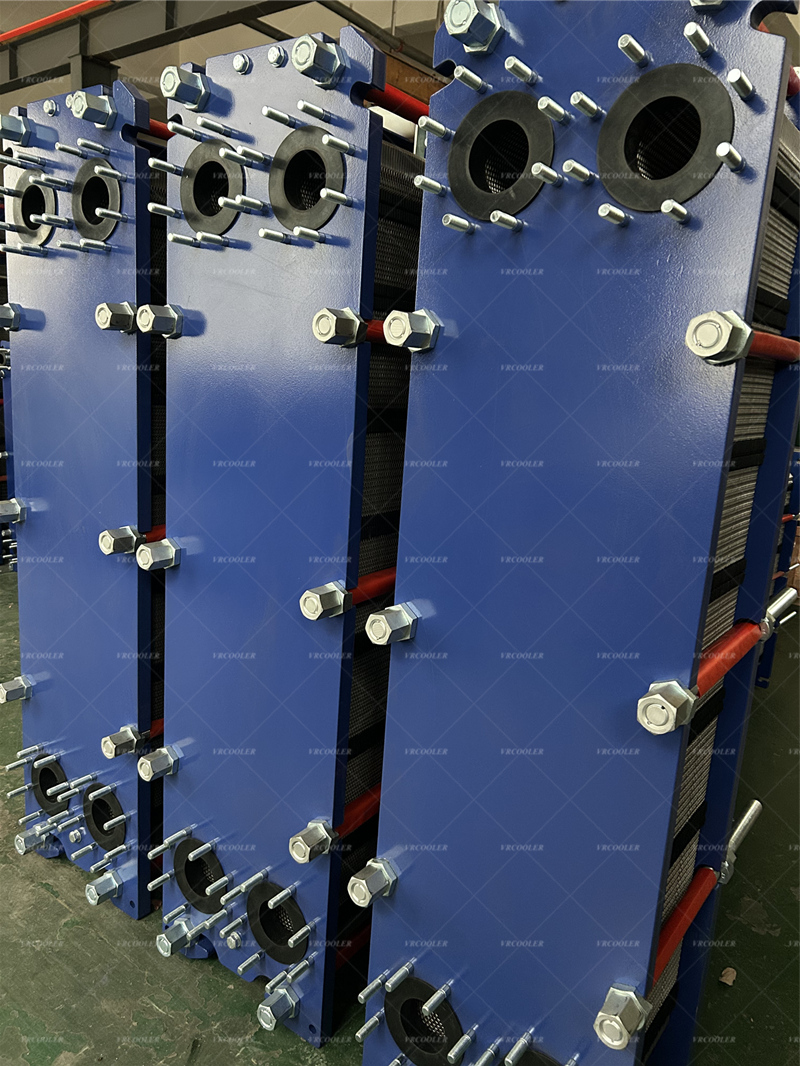

Gasket Plate Heat Exchanger with ASME Standard

Gasket Plate Heat Exchanger Comply with ASME Standards

1. Core Governing ASME Codes

1.1 ASME BPVC Section VIII (Boiler & Pressure Vessel Code)

This is the mandatory core standard for ASME-stamped gasket plate heat exchangers (GPHE), classifying GPHE as pressure vessels for North American industrial, oil & gas, chemical, pharmaceutical projects:

Division 1 (VIII-1)

For general medium-pressure GPHE, mainstream for most HVAC, food, chemical processes. Covers general pressure vessel design, material selection, bolt load, flange gasket sealing, hydro/pneumatic test rules (UG-99 hydrostatic test: 1.3×MAWP; UG-100 pneumatic test: 1.1×MAWP).

Division 2 (VIII-2)

For high-pressure, high-duty, cyclic thermal load GPHE (refinery, power, marine). Contains dedicated Appendix 3 for plate heat exchanger special design rules, with exclusive official data report form A-1P for GPHE factory certification.

Key special rules for gasket PHE:

Double-sided differential pressure test requirement; frame bolt tension calculation accounting for gasket compression force; minimum/maximum plate stack clamping dimension limits; MDMT (minimum design metal temperature) impact test for low-temperature service.

2. ASME U-Stamp Certification (Critical for ASME Standard GPHE)

To be recognized as "ASME standard GPHE", manufacturers must obtain ASME authorization stamp:

U Stamp: For VIII-1 GPHE, standard industrial general-purpose units

U2 Stamp: For VIII-2 high-duty GPHE, required for high pressure / cyclic service

Compliance deliverables:

Material test reports (MTR) per ASME II

Full mechanical design calculation report (frame, plate, bolt, gasket sealing load)

Hydro/pneumatic pressure test record (dual-chamber differential pressure test for gasket PHE)

Form A-1P Manufacturer’s Data Report (official ASME PHE certificate)

Nameplate permanently marked with MAWP, MDMT, serial No., U/U2 stamp mark, code edition year

Main Design & Fabrication Requirements under ASME

3.1 Structural Components Compliance

Heat transfer plates: Corrugated stainless steel/titanium, minimum thickness, corrosion allowance per UG-16; pressure resistance under cross-channel differential pressure verified by finite element or code formula

Fixed & movable end frames: Thick pressure plate, bolt tension calculation to prevent gasket blowout under full design pressure; bolt material grade & torque records mandatory

Gaskets: EPDM/NBR/FKM; seating width & compression stress calculated per ASME VIII-1 Appendix 2 gasket sealing rules; temperature limit matched to MDMT & design temperature

Nozzles & flanges: Designed per ASME B16.5, reinforcement calculation for large port openings

3.2 Test Mandates (ASME UG-99 / UG-100)

Hydrostatic test: 1.3 times MAWP, hold minimum 30 minutes, no leakage between plate channels

Special GPHE test method: Pressurize both fluid sides simultaneously, then create differential pressure to simulate real operation, avoid plate over-compression damage from single-side high pressure test

Pneumatic test only allowed if water contamination is prohibited, limited to 1.1×MAWP

Application Scenarios Requiring ASME Standard GPHE

US domestic chemical, refinery, power plant

Marine & offshore (ABS + ASME dual certification)

Pharmaceutical, food & beverage FDA/USDA combined with ASME

Data center liquid cooling, district energy projects exported to North America

Process systems regulated by OSHA, National Board of Boiler Inspectors
