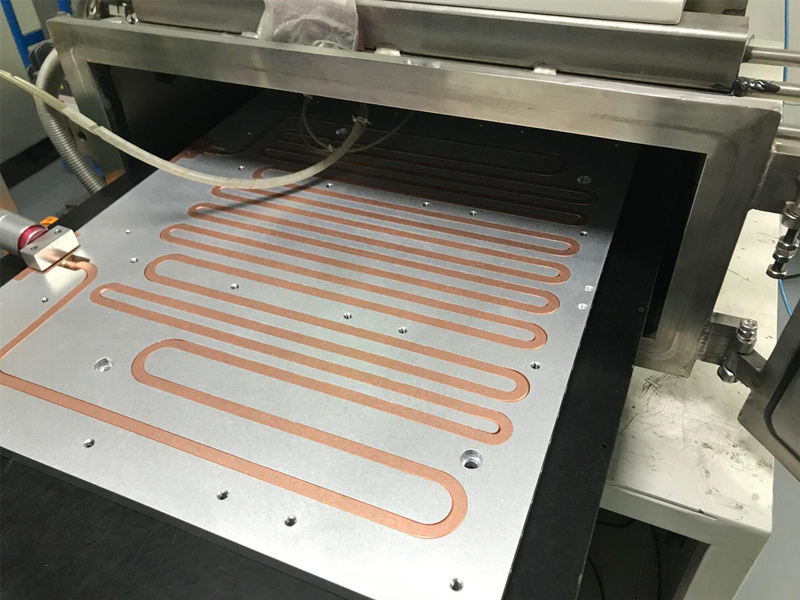

Liquid-cooled Cold Plate Heat Exchange for Data Center Switches

Liquid-cooled cold plate heat exchange for data center switches is the definitive thermal management technology to handle power densities in AI computing clusters where single-switch power consumption exceeds 1 kW (e.g., 51.2T and 102.4T switches). This method replaces conventional air cooling by circulating a high-specific-heat fluid (typically water-glycol or dielectric fluid) through metallic cold plates mounted directly onto high-power components.

Core System Components

ASIC Cold Plate: Designed for the core switch ASIC. It is typically machined from high-thermal-conductivity copper and features internal micro-channels to maximize the heat transfer surface area.

Liquid-Cooled Optical Module Cage: Because optical transceivers must remain hot-pluggable, they cannot be permanently fixed to a cold plate. The industry standard utilizes a spring-loaded thermal sink or a blind-mate contact cold plate mechanism to maintain exceptionally low thermal contact resistance while allowing seamless insertion and removal.

Manifolds and Quick Disconnects (QDs): Fluid routing inside the chassis is handled via stainless steel or EPDM tubing. Connections at the chassis boundary use non-drip blind-mate quick disconnects to guarantee zero-leakage risks during routine rack maintenance.
