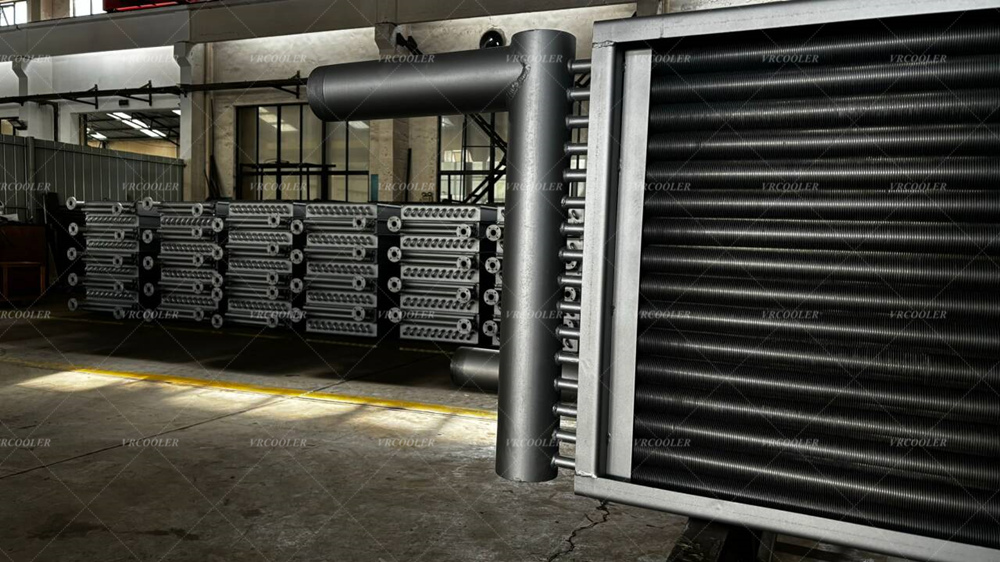

High Frequency Welded Finned Tube Heat Exchanger for High-pressure Or High-temperature Applications

In industrial sectors such as power generation, petrochemicals, metallurgy, and boiler systems, high-pressure and high-temperature working conditions demand heat exchange equipment that combines exceptional durability, thermal efficiency, and safety. As a leading global exporter and manufacturer, CSTHEATEXCHANGER specializes in high frequency welded finned tube heat exchanger for high-pressure or high-temperature applications, delivering custom-engineered solutions that excel in harsh environments.

Unlike traditional finned tube heat exchangers, our high frequency welded models are specifically designed to withstand extreme pressures and temperatures—making them the ideal choice for critical industrial processes where reliability and performance are non-negotiable. With years of expertise in high frequency welding technology and global export experience, we serve clients in 80+ countries, providing heat exchangers that reduce energy consumption, extend service life, and ensure operational safety.

Why High Frequency Welded Finned Tubes Excel in High-Pressure & High-Temperature Scenarios

High frequency welding (HFW) technology is the core advantage that makes our finned tube heat exchangers suitable for high-pressure (up to 10MPa) and high-temperature (up to 600°C) applications. This advanced welding process creates a seamless, high-strength bond between the fin and the base tube, addressing the key pain points of traditional welded or bonded finned tubes.

1. Superior Welding Strength & Structural Integrity

Our high frequency welding process uses electromagnetic induction to heat the fin and base tube to a precise melting point, creating a metallurgical bond that is stronger than the base material itself. This ensures:

- Finn-to-tube bonding strength exceeding 150MPa, preventing fin peeling or detachment even under extreme pressure and temperature fluctuations.

- Seamless, leak-free joints that eliminate the risk of medium leakage—a critical safety factor for high-pressure fluids (steam, thermal oil, or corrosive media).

- Exceptional structural stability, withstanding long-term operation in temperatures ranging from 200°C to 600°C and pressures up to 10MPa.

2. Optimized Heat Transfer Efficiency for Harsh Conditions

In high-pressure and high-temperature applications, heat transfer efficiency directly impacts energy consumption and operational costs. Our high frequency welded finned tube heat exchangers are engineered to deliver maximum efficiency:

- Precision-designed fin geometry (spiral, H-type, or serrated) expands the heat transfer area by 5–10 times compared to bare tubes, enhancing thermal conductivity by 30–50%.

- Smooth fin surfaces reduce fouling and dust buildup, ensuring consistent heat transfer performance even in high-particulate industrial environments (e.g., metallurgy, power plants).

- Customizable fin spacing and tube thickness, tailored to specific high-pressure/high-temperature media (steam, thermal oil, or high-temperature flue gas).

3. High-Grade Materials for Extreme Durability

To complement our high frequency welding technology, we use premium materials that are resistant to high temperatures, corrosion, and pressure:

- Base Tubes: Alloy steel (SA213 T91/T22), stainless steel (304/316L), or ND steel—selected based on the application’s temperature, pressure, and medium corrosiveness.

- Fins: Carbon steel, stainless steel, or aluminum alloy—with anti-corrosion coatings (enamel, galvanization) available for harsh chemical or high-humidity environments.

- All materials meet ASME, ISO, and CE standards, ensuring compatibility with global industrial regulations and long service life (8–12 years).

Applications of Our High Frequency Welded Heat Exchangers

Our high frequency welded finned tube heat exchangers for high-pressure and high-temperature applications are widely used in:

- Power plants (boiler flue gas waste heat recovery, steam condensation).

- Petrochemical and refinery plants (heat recovery from high-temperature flue gas, process fluid heating/cooling).

- Metallurgical industry (blast furnace waste heat recovery, steel rolling process heating).

- Industrial boilers (high-pressure steam heat exchange, feedwater preheating).

- Chemical plants (corrosive, high-temperature medium heat exchange).
