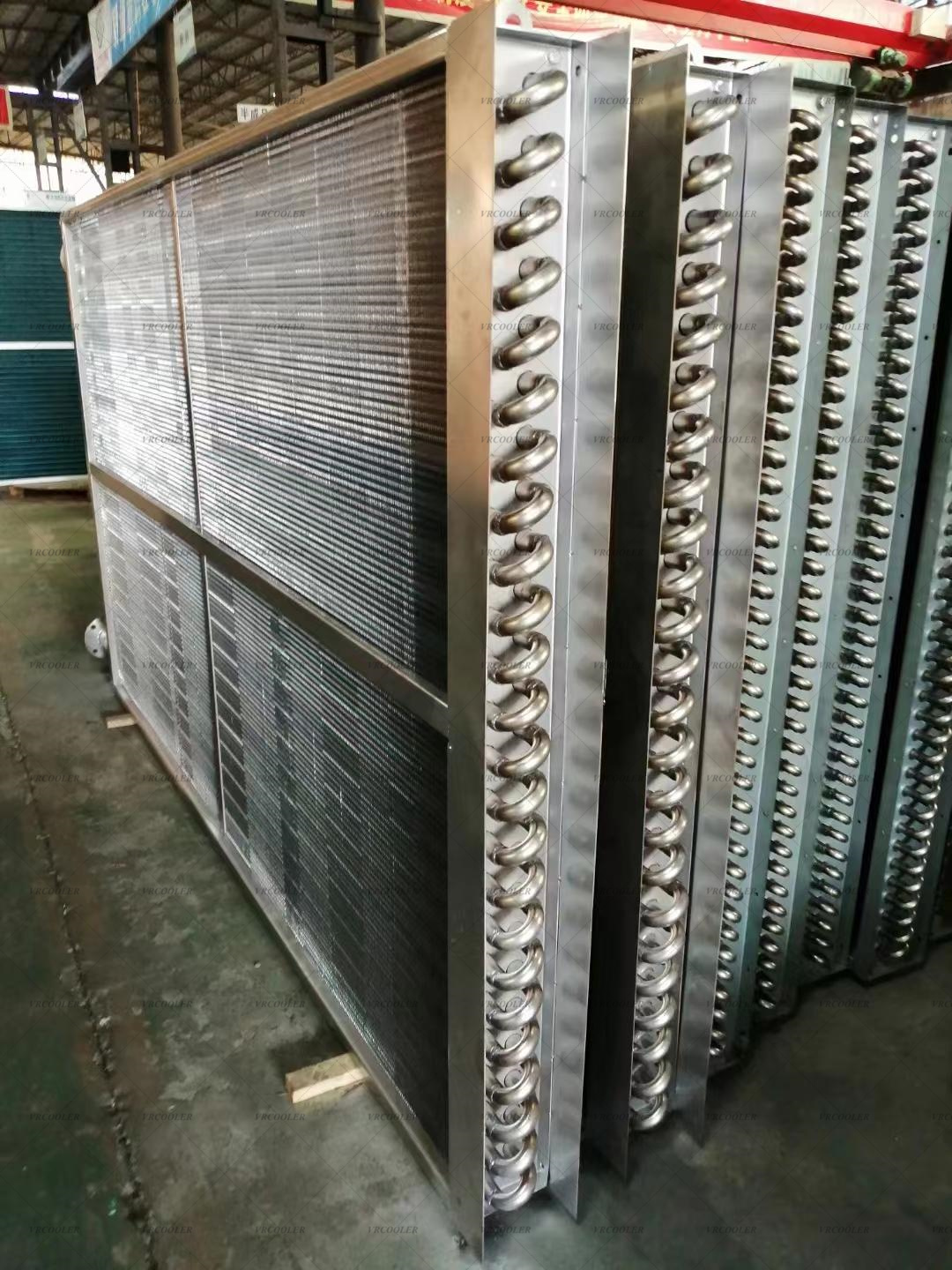

A one-row freon condenser with stainless steel tubes and aluminum fins is a highly specialized heat exchanger designed to handle corrosive refrigerants while maximizing heat dissipation. The stainless steel tubing prevents corrosion from harsh elements, while the aluminum fins maximize the heat transfer surface area.
Key Design & Performance Specs
Material Composition: Features inner-grooved or smooth stainless steel tubing (commonly 304/316) mechanically bonded to high-quality aluminum fins.
Refrigerants: Fully rated to handle common freon/halocarbon gases like R134A, R22, R404A, and R407C.
Coil Thickness: Single-row (1-row) configurations minimize airflow resistance and drop fan power requirements.
Pressure Testing: Typically nitrogen or water pressure tested above 2.8 MPa to ensure hermetic leak prevention before shipping.
Applications
Because of the pairing of stainless steel and aluminum, these coils are highly suited for environments that require rugged durability.
Commercial Refrigeration: Ideal for condensing units, walk-in coolers, and freezing systems.
Specialized HVAC: Used in environments where ambient air contains corrosive elements.
Industrial Cooling: Used for process cooling and specialized temperature management.
