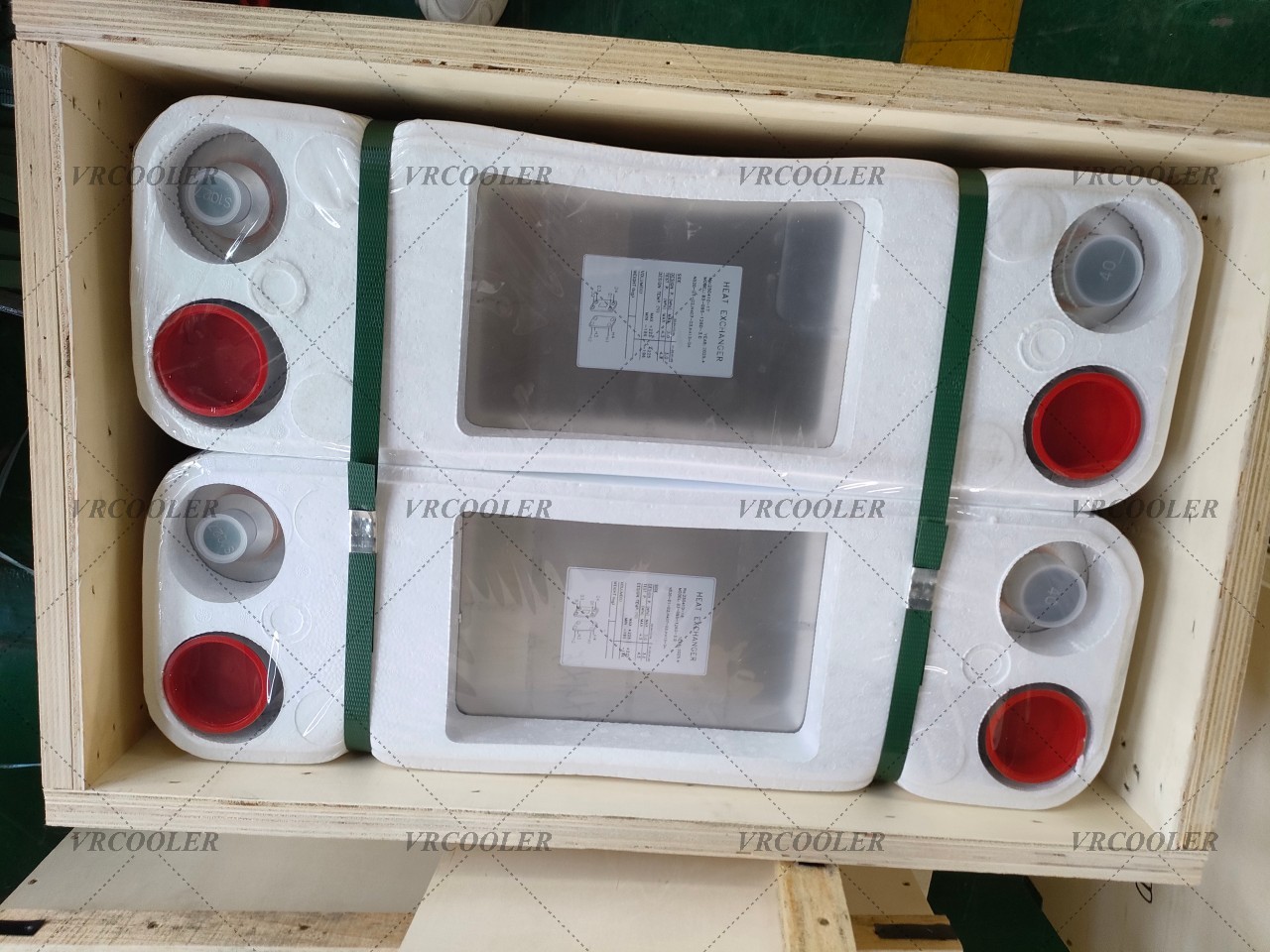

Can a brazed plate heat exchanger handle high pressure?

A brazed plate heat exchanger can handle relatively high pressure, but the actual limit depends on the plate material, brazing material, plate thickness, design standard, and model specification.

In water-to-water cooling systems, many brazed plate heat exchangers are designed for demanding closed-loop service and can operate safely under higher pressure than many standard light-duty heat exchangers. Their stainless steel plate pack and brazed construction give them a strong and compact structure.

What determines the pressure capability

The pressure rating mainly depends on:

• plate material
  Most units use stainless steel plates for strength and corrosion resistance.

• brazing material
  Copper-brazed or nickel-brazed construction affects compatibility and design strength.

• plate design and thickness
  The shape and thickness of the plates influence the mechanical resistance.

• connection design
  Port size and connection type also affect allowable operating pressure.

• temperature
  Higher temperature can reduce the allowable working pressure.

• manufacturer design standard
  The exchanger must meet the relevant pressure vessel or product design code.

Important practical point

Even though a brazed plate heat exchanger can handle high pressure, it must always be selected according to:

• operating pressure

• design pressure

• pressure fluctuations

• temperature range

• fluid type

So the correct answer is: yes, it can handle high pressure, but only within the rated limits of the specific unit. For actual project selection, the manufacturer’s pressure rating should always be checked.
