Commercial fruit ripening—for bananas, avocados, mangoes, and papayas—has evolved from traditional static cold rooms to modern Forced-Air Pressurized Ripening Rooms. In conventional rooms, circulating air takes the path of least resistance around pallet perimeters, leaving inner cartons warm and resulting in uneven green-tipped fruit.

At CSTHEATEXCHANGER, we design and manufacture Custom High-Performance Ripening Air Coolers (Ripening Room Evaporators). In this engineering guide, our thermal engineers explain how pressure ripening works, the differences between tarped and airbag systems, and how our specialized air coolers ensure 100% uniform fruit color and firmness.

1. What is Pressure Ripening and How Does a Banana Room Work?

A Banana Ripening Room is a specialized, gastight thermal chamber equipped with ethylene gas dosing, humidity injection, and high-static air handling:

                  CSTHEATEXCHANGER PRESSURE RIPENING MECHANICS

   ┌────────────────────────────────────────────────────────────────────────┐
   │ CSTHEATEXCHANGER High-Static Ripening Air Cooler (Reversible EC Fans)   │
   └───────────────────┬────────────────────────────────┬───────────────────┘
                       │ High-Pressure Discharge Air    │
                       ▼                                ▼
   ┌───────────────────────────────┐        ┌───────────────────────────────┐
   │ Pallet Row A (Banana Cartons) │ ◄────► │ Pallet Row B (Banana Cartons) │
   │   [Vent] ──► [Pulp] ──► [Vent]│  TARP  │   [Vent] ──► [Pulp] ──► [Vent]│
   └───────────────────────────────┘ AIRBAG └───────────────────────────────┘
                       ▲                                ▲
                       └────── Center Return Plenum ────┘

• Forced-Air Airflow Principle: By sealing the top and ends of two pallet rows with an overhead tarp or inflatable airbag, air is forced horizontally through the box vent holes, directly washing across individual banana fingers to remove intense biological respiration heat (2,000−3,500 BTU/ton⋅hr2,000−3,500 BTU/ton⋅hr).

2. Airbag Ripening Systems vs. Tarped Ripening Systems

3. What is Reverse Airflow Ripening?

In standard single-direction ripening, air heats up by 1.5°C–2.5°C as it passes through pallet rows. Consequently, fruit on the discharge side ripens faster than fruit on the suction side.

CSTHEATEXCHANGER Ripening Air Coolers feature Reversible EC Axial Fans and Symmetrical Finned Coils. By automatically reversing fan rotation direction every 2 to 4 hours:

• Pulp temperatures across all pallets equalize within ±0.3∘C±0.3∘C.

• Color grade uniformity reaches 100% across the entire room.

• Dehydration is distributed evenly, eliminating shriveled box corners.

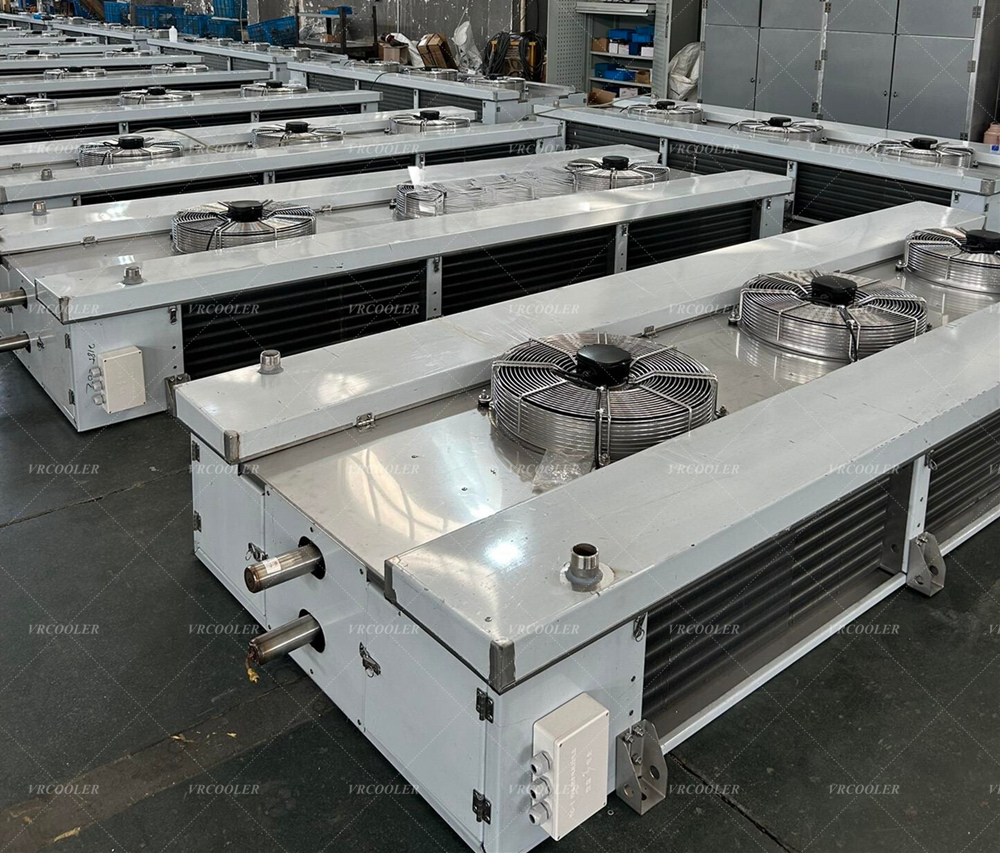

4. CSTHEATEXCHANGER Ripening Air Cooler Manufacturing Capabilities

As a specialized industrial heat exchanger manufacturer, CSTHEATEXCHANGER custom-engineers and fabricates turnkey Ripening Air Coolers:

• High-Static Pressure Reversible EC Fans (> 150–200 Pa): Overcomes dense pallet carton resistance to ensure high CFM delivery.

• Large-Surface High-Humidity Coils (ΔT≤3.5∘CΔT≤3.5∘C): Holds room relative humidity naturally at 90%–95%, minimizing fruit weight shrinkage.

• Integrated Dual-Stage Cooling & Heating: Seamlessly integrates DX/Glycol cooling with stainless steel electric heating or hot water coils for multi-stage temperature ramp schedules (warming to 18°C for gassing, then pulling down to 13.5°C for holding).

• 1:1 Custom Retrofit Fit: Custom dimensions and mounting brackets built to replace aging ripening evaporators in existing rooms.

5. Contact CSTHEATEXCHANGER for Ripening Air Cooler Sizing

Upgrade your banana and avocado ripening rooms with custom-engineered ripening air coolers. Contact CSTHEATEXCHANGER today for thermal sizing calculations and room layout CAD drawings.
