Microchannel Dry Coolers for Data Centers: High-Efficiency All-Aluminum Cooling

As server rack power densities climb from 15 kW to over 100 kW with modern AI accelerators, data center infrastructure requires heat rejection equipment that maximizes surface area while minimizing weight and physical footprint.

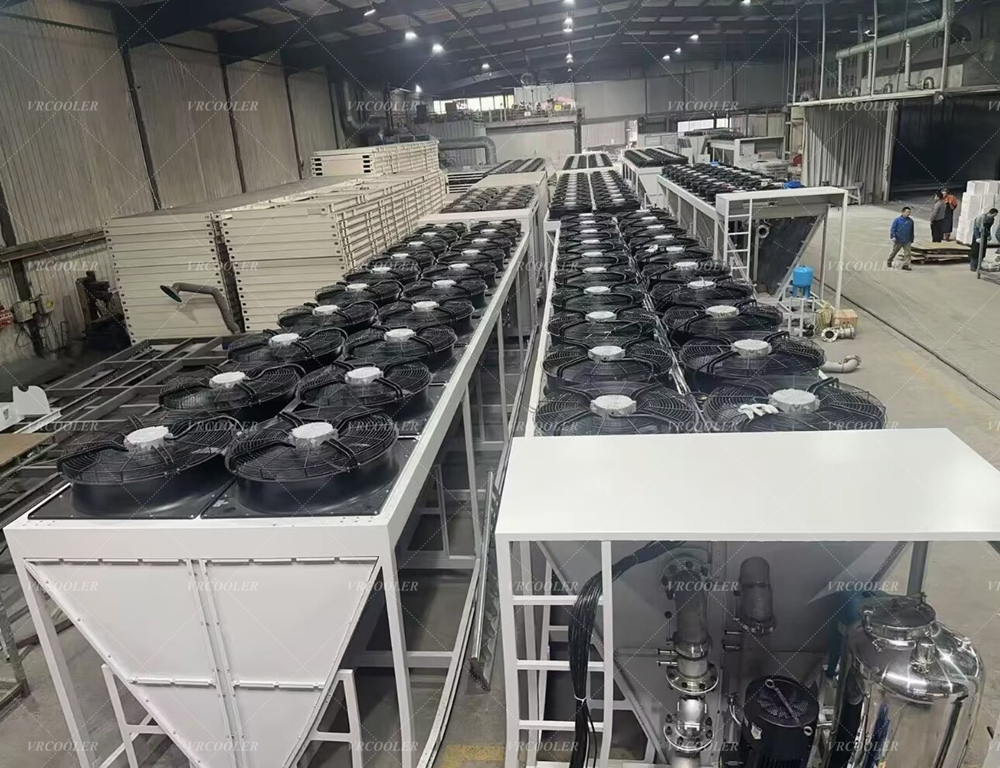

At CSTHEATEXCHANGER, we manufacture All-Aluminum Microchannel Dry Coolers (MCHE) engineered specifically for high-efficiency closed-loop data center heat rejection.

1. Microchannel (MCHE) Technology Overview

A Microchannel Dry Cooler replaces round copper tubes with flat, multi-port extruded (MPE) aluminum tubes brazed to high-density louvered aluminum fins:

                  CSTHEATEXCHANGER MCHE CORE ARCHITECTURE

   ┌────────────────────────────────────────────────────────────────────────┐
   │ [Aluminum Header Manifold]                                             │
   ├────────────────────────────────────────────────────────────────────────┤
   │ ═══ Flat Multi-Port Extruded Tubes (Micro Channels < 1mm) ════════════ │
   │ ░░░ Louvered Aluminum Fin Matrix (High Surface Density) ░░░░░░░░░░░░░░ │
   │ ═══ Flat Multi-Port Extruded Tubes (Micro Channels < 1mm) ════════════ │
   ├────────────────────────────────────────────────────────────────────────┤
   │ [Aluminum Return Header]                                               │
   └────────────────────────────────────────────────────────────────────────┘

• High Heat Transfer Coefficient: Microscopic hydraulic channels induce secondary fluid turbulence, boosting the internal heat transfer coefficient by 25%–35%.

• Aerodynamic Flat Tube Profile: Flat tubes present a streamlined profile to oncoming air, reducing fan static pressure drop and fan power consumption.

2. Advantages for Modern Data Center Facilities

1. 45% to 55% Lighter Construction: Drastically reduces roof deadweight limits on data center facilities and modular container roofs.

2. 60% Lower Fluid Charge: Slashing internal coil volume reduces the volume of expensive glycol/inhibitor solutions required.

3. No Galvanic Corrosion: 100% all-aluminum brazed construction eliminates bimetallic voltage potentials between copper and aluminum.

4. Enhanced Corrosion Resistance: Available with full dip electrophoretic E-coating (2,000+ hours ASTM B117 salt spray certified).

3. CSTHEATEXCHANGER Custom Engineering & Supply

CSTHEATEXCHANGER provides custom MCHE dry cooler configurations:

• Single-pass and multi-pass header circuitry optimized for target fluid flow rates and pressure drops.

• Premium brushless EC fan integration with intelligent speed modulation.

• Factory testing: 100% helium mass-spectrometer leak testing to ensure hermetic reliability.

4. Contact CSTHEATEXCHANGER for Sizing & Quotations

• Website: www.cstheatexchanger.com

• Email: info@cstheatexchanger.com

• Phone / WhatsApp: +86 0519 8878 2189 / +86 181 3659 3690

• Manufacturer: Changzhou Vrcoolertech Refrigeration Co., Ltd., Changzhou, Jiangsu, China
