In commercial AHUs handling sub-zero outdoor air (-10°C to -30°C), traditional single-tube steam coils frequently suffer catastrophic freeze-burst splits during modulated low-load operation.

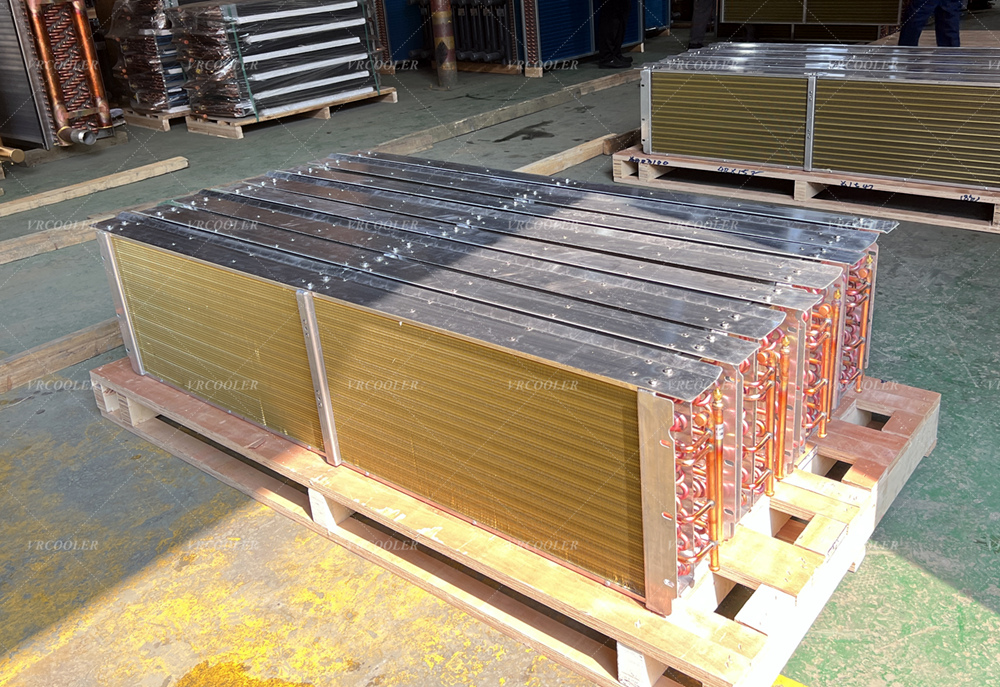

At CSTHEATEXCHANGER, we engineer Heavy-Duty Non-Freeze Steam Distributing Coils (Dual-Tube / Tube-in-Tube Design). In this technical guide, our engineers explain why standard steam coils freeze and how steam distributing geometry guarantees freeze immunity in 100% outdoor makeup air systems.

1. Why Do Standard Steam Coils Freeze in Winter?

The root cause of steam coil freezing is condensate backup under modulated steam control:

[ Room Temp Satisfied ] ──► [ Valve Throttles Steam ] ──► [ Vacuum Forms in Coil (P < 0 bar) ]
                                                                     │
[ Condensate Backs Up in Tubes ] ◄── [ Condensate Cannot Drain ] ◄───┘
               │
               ▼
[ Sub-Zero Air (-15°C) Strikes Coil ] ──► [ Trapped Water Freezes & Expands ] ──► [ Tube Splits ]

1. Modulating Valve Throttling: As heating demand decreases, the steam control valve throttles down, dropping internal coil pressure to near or below atmospheric pressure.

2. Vacuum Lock: Without positive steam pressure, liquid condensate cannot overcome steam trap backpressure and remains trapped inside lower tube passes.

3. Flash Freezing: Incoming sub-zero outdoor air freezes the trapped condensate, expanding by 9% and rupturing copper tube return bends.

2. How CSTHEATEXCHANGER Non-Freeze (Tube-in-Tube) Coils Work

                CSTHEATEXCHANGER TUBE-IN-TUBE STEAM DISTRIBUTING PRINCIPLE

  Steam In ──► ┌────────────────────────────────────────────────────────┐
               │ Inner Perforated Tube (5/8" OD) — Directional Orifices │
               └──────────┬───────────────────────┬─────────────────────┘
                          │ Steam Jets            │ Steam Jets
                          ▼                       ▼
  Condensate ◄ ┌────────────────────────────────────────────────────────┐ ◄── Heat Out
  Drain        │ Outer Heavy-Wall Finned Tube (1" OD) — Heated Annulus  │
               └────────────────────────────────────────────────────────┘

1. Inner Distribution Tube (5/8" OD): High-velocity steam enters the inner tube and discharges through precision-metered, directional jet orifices along the entire length.

2. Outer Condensing Tube (1" OD): Steam condenses in the outer annular space, keeping the entire tube wall warm along its full span.

3. Gravity Drainage: The outer tube slopes continuously toward the condensate outlet header, ensuring rapid gravity evacuation.

3. Standard Steam Coil vs. Steam Distributing Coil

4. Contact CSTHEATEXCHANGER for Freeze-Proof Steam Coils

Protect your air handlers from winter freeze disasters. Contact CSTHEATEXCHANGER today for non-freeze steam distributing coil calculations and replacement drawings.
