Battery Energy Storage Systems (BESS) are becoming essential components of modern power grids, renewable energy integration, and peak load management. As battery capacity increases, efficient thermal management becomes critical to ensure system safety, performance, and long battery life. One of the most reliable heat rejection technologies used in large-scale BESS installations is the dry cooler.

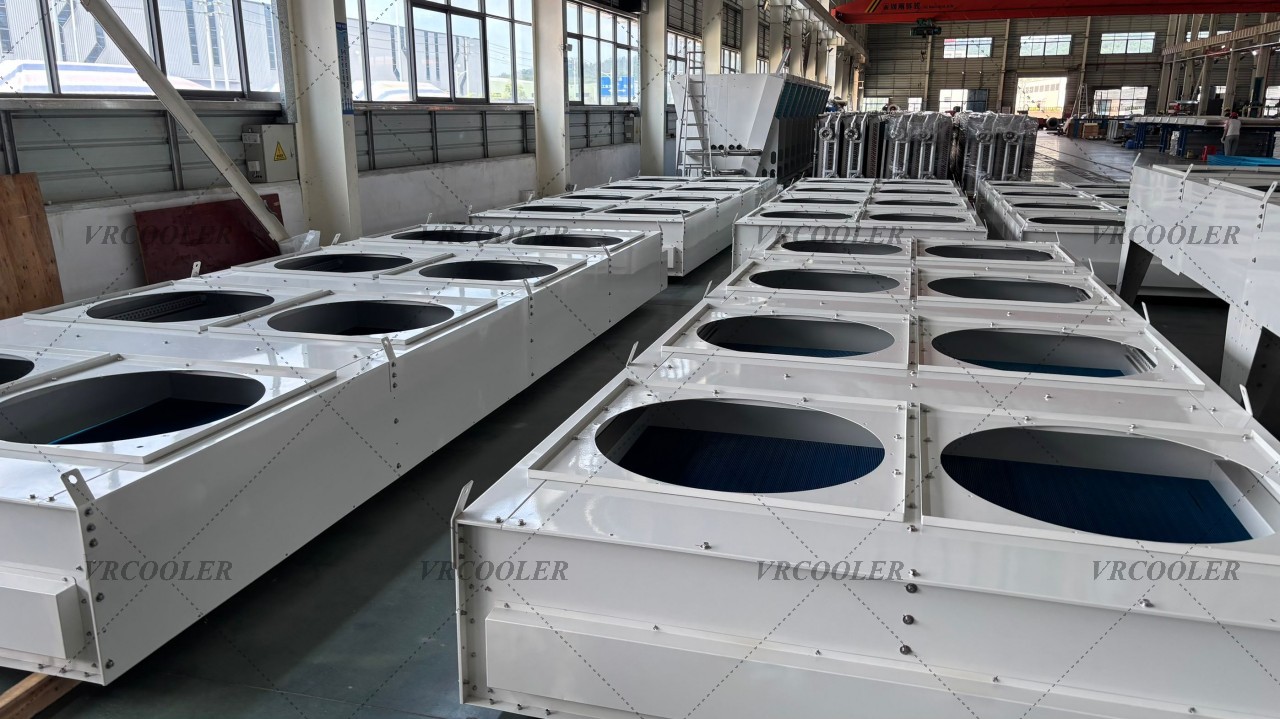

A dry cooler is an air-cooled heat exchanger that removes heat from a circulating liquid—typically water or water–glycol mixture—using ambient air. Unlike cooling towers, dry coolers operate without water evaporation, making them highly suitable for energy storage installations.
Lithium-ion batteries generate heat during both charging and discharging processes. Excessive heat can cause several operational issues:
Reduced battery efficiency
Accelerated battery degradation
Increased safety risks
Reduced system reliability
To prevent these issues, BESS systems rely on liquid cooling loops that absorb heat from battery modules and transport it to an outdoor heat rejection system such as a dry cooler.
In a typical BESS cooling configuration:
Heat generated by battery cells is absorbed by a coolant loop.
The coolant transfers heat to a plate heat exchanger or CDU (coolant distribution unit).
The heated fluid flows to the dry cooler installed outdoors.
Ambient air removes heat from the finned tube coil using fans.
The cooled liquid then returns to the battery cooling system.
Dry coolers designed for energy storage applications usually incorporate:
Aluminum finned tube heat exchanger coils
EC axial fans for energy-efficient airflow
Glycol-compatible tubing systems
Outdoor weather-resistant enclosures
Low-noise operation for urban installations
The use of aluminum finned coils improves heat transfer while maintaining a lightweight structure.
Dry coolers offer several advantages for battery energy storage facilities:
Water-free operation
Dry coolers do not consume water, which is beneficial in regions with limited water resources.
High reliability
The simple design reduces maintenance requirements and improves operational reliability.
Lower maintenance costs
Unlike cooling towers, dry coolers eliminate the need for water treatment and scaling control.
Flexible installation
Dry coolers can be installed on rooftops, ground-mounted platforms, or containerized systems.
Energy efficiency
Modern EC fans provide precise airflow control and reduced power consumption.
Dry coolers are widely used in:
Grid-scale lithium battery storage plants
Renewable energy storage systems
Microgrid energy storage systems
Data center backup battery storage
Industrial battery storage facilities
As BESS capacity continues to expand worldwide, dry coolers remain a key component of reliable thermal management systems.
