Cabinet Air-to-Air Heat Exchangers Used in Battery Energy Storage Systems

Battery Energy Storage Systems (BESS) generate heat during charging and discharging cycles. If this heat is not effectively removed, it can reduce battery performance, accelerate degradation, and increase safety risks. Cabinet air-to-air heat exchangers are commonly used to maintain stable temperatures inside battery cabinets while keeping the internal environment sealed from outside contaminants.

What Is a Cabinet Air-to-Air Heat Exchanger?

A cabinet air-to-air heat exchanger is a passive cooling device that transfers heat from the warm air inside a battery cabinet to the cooler ambient air outside the enclosure. The two air streams remain completely separated, preventing dust, humidity, or corrosive gases from entering the cabinet.

This type of heat exchanger is widely used in sealed electrical enclosures and energy storage cabinets.

Working Principle

The system typically operates as follows:

1. Warm air circulates inside the battery cabinet.

2. Internal fans move the hot air across the heat exchanger core.

3. Ambient air flows through the opposite side of the heat exchanger.

4. Heat transfers through the aluminum plates or finned surfaces.

5. Cooled air returns to the cabinet while warm air is discharged outside.

Because the air streams never mix, the cabinet remains sealed and protected.

Key Design Features

Cabinet air-to-air heat exchangers used in BESS usually include:

• Aluminum plate or finned heat exchanger cores for efficient heat transfer

• Dual fan systems for internal and external airflow

• Sealed cabinet mounting design

• Corrosion-resistant housings for outdoor installations

• Low power consumption compared with active cooling systems

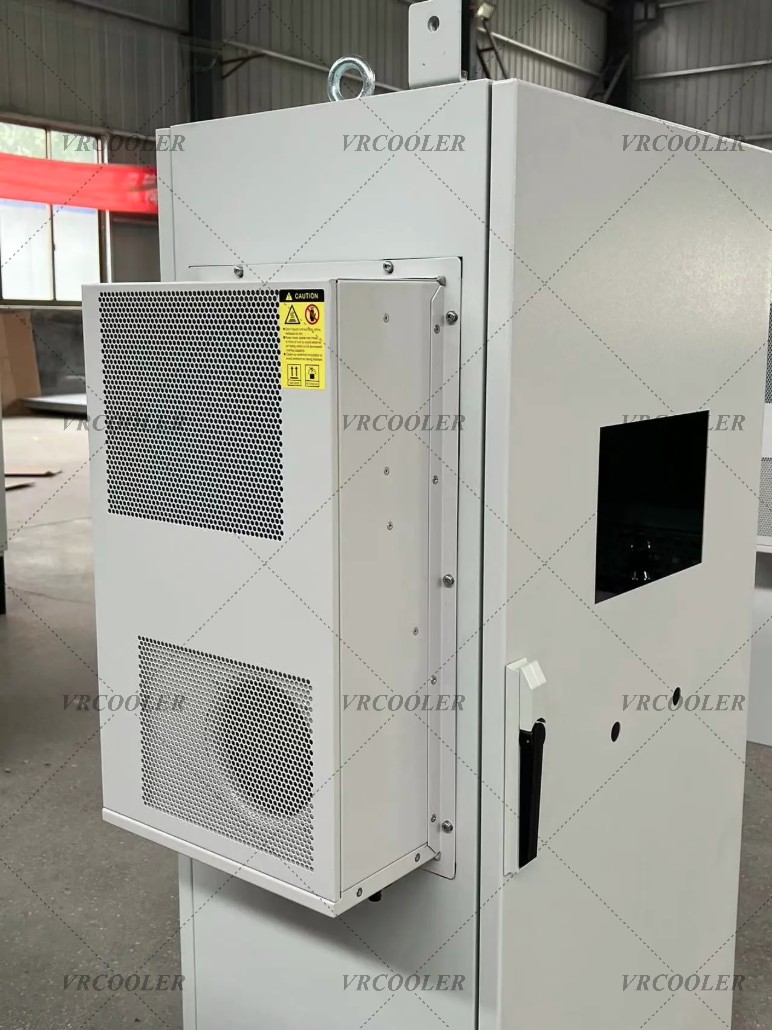

These units are typically installed on the side wall or door of battery cabinets.

Advantages in BESS Applications

Air-to-air cabinet heat exchangers provide several benefits:

• Protection of sensitive electronics
  The sealed design prevents dust, moisture, and pollutants from entering the cabinet.

• Energy efficiency
  These systems consume less power compared with compressor-based air conditioners.

• Simple installation
  Compact cabinet-mounted units are easy to integrate with battery enclosures.

• Low maintenance requirements
  With fewer moving parts and no refrigerant circuits, maintenance is minimal.

Typical Applications

Cabinet air-to-air heat exchangers are widely used in:

• Grid-scale battery energy storage cabinets

• Telecom battery backup systems

• Renewable energy storage units

• Power conversion system (PCS) cabinets

• Electrical control cabinets

Conclusion

Cabinet air-to-air heat exchangers are an effective and energy-efficient cooling solution for BESS installations. By maintaining proper cabinet temperatures while keeping the enclosure sealed, they help ensure safe operation, longer battery life, and reliable performance in modern energy storage systems.
