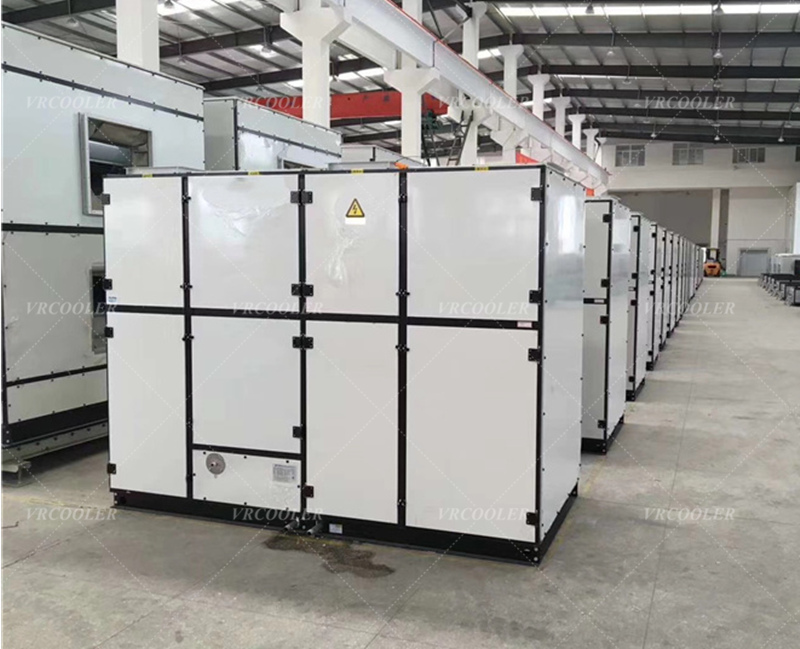

The primary difference between a Data Center AHU and a CRAH lies in their cooling method and typical application. A CRAH (Computer Room Air Handler) is a specialized, highly efficient type of AHU that uses chilled water, while a standard AHU (Air Handling Unit) is a broader term for air-moving systems that may use various cooling methods and are less optimized for the unique demands of a data center.
CRAH vs. AHU vs. CRAC
Feature | CRAH (Computer Room Air Handler) | CRAC (Computer Room Air Conditioner) | Standard AHU (Air Handling Unit) |
|---|---|---|---|
Primary Cooling Method | Chilled water from a central chiller plant . | Direct Expansion (DX) refrigerant cycle (like a standard AC unit) . | Variable (chilled water, DX, evaporative cooling, etc.), depending on design . |
Typical Application | Large to hyperscale data centers (typically >1 MW load) . | Smaller server rooms or legacy facilities (<500 kW load) . | General building HVAC, or as part of a larger, customized data center solution . |
Energy Efficiency | Higher. Only fans and pumps, no on-board compressor, enabling better PUE . | Lower. Consumes ~30% more power per ton of cooling due to compressor use . | Highly variable; can be efficient with economizers but often less optimized than CRAH for IT loads . |
Space Efficiency | Modular, compact designs available for high cooling capacity (e.g., up to 700 kW/unit) . | Generally requires more floor space per unit of cooling. | Can be very large (building-wide) or small, but not designed for high-density server rooms. |
Key Components | Chilled water coil, EC fans, controls, no onboard compressor . | Compressor, refrigerant coil, condenser, fans. | Fans, heating/cooling coils, filters, dampers, heat recovery wheel (optional) . |
Ideal For | Maximizing energy efficiency in large, 24/7 operations with high rack densities (15-30 kW/rack) . | Projects with low upfront budget, smaller scale, or where a central chiller plant is not feasible. | Building-wide climate control or as a CRAH when specifically designed as a "room-based AHU" with chilled water . |
Key Takeaways for Data Center Design
CRAH is a Subset of AHU: In the context of a data center, a CRAH is essentially a specific, specialized type of AHU designed for precision cooling. It is an air handler that moves air across a chilled water coil .
Efficiency is the Main Driver: The choice between a CRAC and a CRAH usually comes down to scale and efficiency. For any medium to large facility, the higher upfront cost of a CRAH (and its required chilled water plant) is quickly offset by lower operating costs and a better Power Usage Effectiveness (PUE) rating .
Modern AHUs are Also Evolving: The definition is not always rigid. Some modern data centers are moving away from dozens of small CRAH units and instead using a few large, custom AHUs with advanced features like air-side economizers. These function like oversized CRAHs but are more integrated with the building's architecture .
