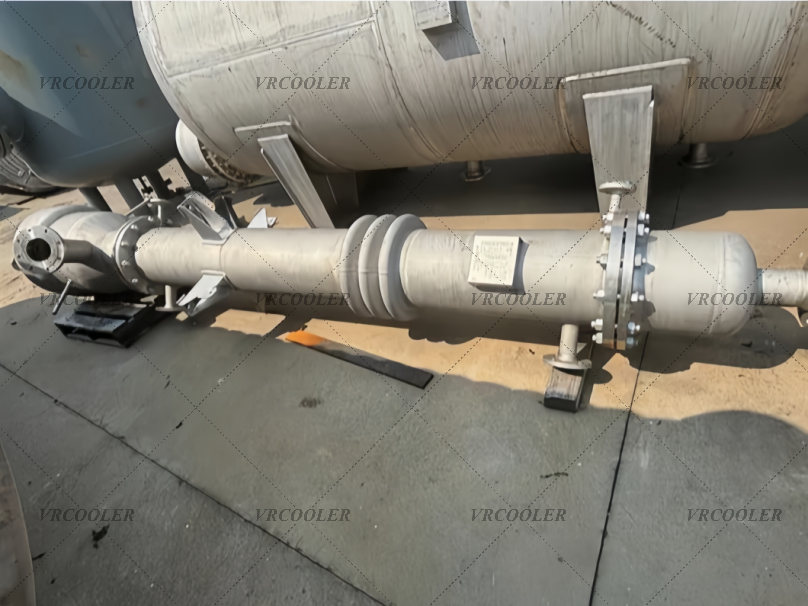

An overhead condenser shell and tube heat exchanger is a process condenser installed at the top (overhead) of a distillation column. Its function is to condense vapor leaving the column and convert it into liquid for reflux and product recovery.

It is widely used in refineries, petrochemical plants, and chemical processing units.

Where It Is Installed

In a distillation system:

1. Vapor rises through the column.

2. Light components exit from the overhead nozzle.

3. The vapor flows into the overhead condenser.

4. The vapor is partially or fully condensed.

The condensed liquid is then:

• Returned to the column as reflux, and/or

• Sent to storage as distillate product

How It Works

1. Vapor Enters the Shell Side (Common Design)

• Hot hydrocarbon vapor flows into the shell.

• Cooling medium (water or air) flows inside the tubes.

2. Heat Transfer Occurs

• Vapor releases latent heat.

• It condenses on the tube surface.

• Heat is transferred to the cooling fluid.

3. Liquid Collection

• Condensed liquid flows to a reflux drum (accumulator).

• Non-condensable gases are vented or routed to flare.

Why Shell and Tube Design Is Used

Overhead condensers are typically shell-and-tube because they:

• Handle high pressure and temperature

• Manage large vapor volumes

• Tolerate fouling and corrosive fluids

• Allow mechanical cleaning

• Provide structural robustness

They are suitable for hydrocarbon service where reliability is critical.

Types of Overhead Condensers

1. Total Condenser

• Condenses all vapor into liquid.

• No vapor leaves the condenser.

2. Partial Condenser

• Condenses part of the vapor.

• Remaining vapor continues to downstream separation.

Selection depends on process design and product specification.

Typical Cooling Media

• Cooling water

• Seawater

• Air (in air-cooled condensers)

• Refrigerant (in low-temperature service)

Key Design Considerations

• Vapor composition

• Condensing temperature

• Pressure drop limits

• Non-condensable gas removal

• Fouling tendency

• Materials compatibility

Summary

An overhead condenser shell and tube heat exchanger is a critical unit in distillation systems. It condenses overhead vapor into liquid, enabling reflux control and product recovery.

Its robust design makes it ideal for refinery and chemical process applications where high pressure, temperature, and reliability requirements exist.
