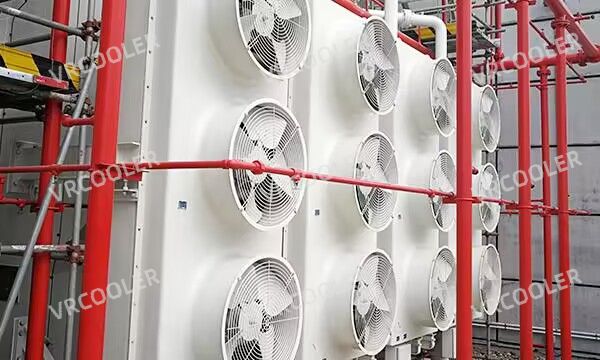

OFAF (Oil Forced Air Forced) oil coolers are advanced transformer cooling systems widely used in renewable energy grid substations. They are essential for managing thermal loads in high-capacity transformers connected to wind, solar, and hybrid power plants.

What Does OFAF Mean?

• O – Oil

• F – Forced (oil circulation by pump)

• A – Air

• F – Forced (air circulation by fans)

In OFAF systems:

• Oil is pumped through an external cooler.

• Fans force ambient air across finned heat exchanger surfaces.

• Heat is rejected efficiently to the atmosphere.

Why Renewable Energy Stations Need OFAF Cooling

Renewable grid stations often experience:

• High load fluctuations (wind speed or solar irradiance changes)

• Peak power injection into the grid

• High ambient temperatures (solar farms in desert areas)

• Compact substation footprints

OFAF cooling ensures transformer oil temperature remains within safe operating limits, protecting insulation life and maintaining grid reliability.

How the OFAF Oil Cooler Works

1. Oil Circulation

Hot transformer oil is pumped out of the tank into the oil cooler.

2. Heat Exchange

Oil flows through finned tubes or radiator banks.
Fans push ambient air across the fins.

3. Cooled Oil Return

Cooled oil returns to the transformer tank, reducing winding and core temperatures.

Key Components

• Oil circulation pumps

• Finned tube radiator banks

• Axial or EC fans

• Temperature sensors

• Control panel (automatic staging)

Benefits for Renewable Substations

1. Higher Cooling Capacity

Suitable for large power transformers (20–300+ MVA).

2. Dynamic Load Handling

Fan and pump staging allows cooling capacity to adjust with load.

3. Extended Transformer Life

Lower oil temperature slows insulation aging.

4. Compact & Modular

Can be skid-mounted for wind and solar farms.

5. Reliable in Harsh Environments

Designed for outdoor installation, high dust, and high ambient conditions.

Typical Design Parameters

• Oil inlet temperature: 70–85°C

• Ambient temperature: up to 50°C (solar regions)

• Cooling capacity: customized based on transformer rating

• Redundant pump/fan design optional

Applications in Renewable Energy

• Wind farm step-up substations

• Solar PV grid interconnection stations

• Battery energy storage systems (BESS) transformers

• Hybrid renewable microgrids

Summary

OFAF oil coolers provide high-efficiency, forced circulation cooling for transformers in renewable energy grid stations. Their ability to handle fluctuating loads, high ambient temperatures, and large transformer capacities makes them essential for reliable and long-life grid operation.
