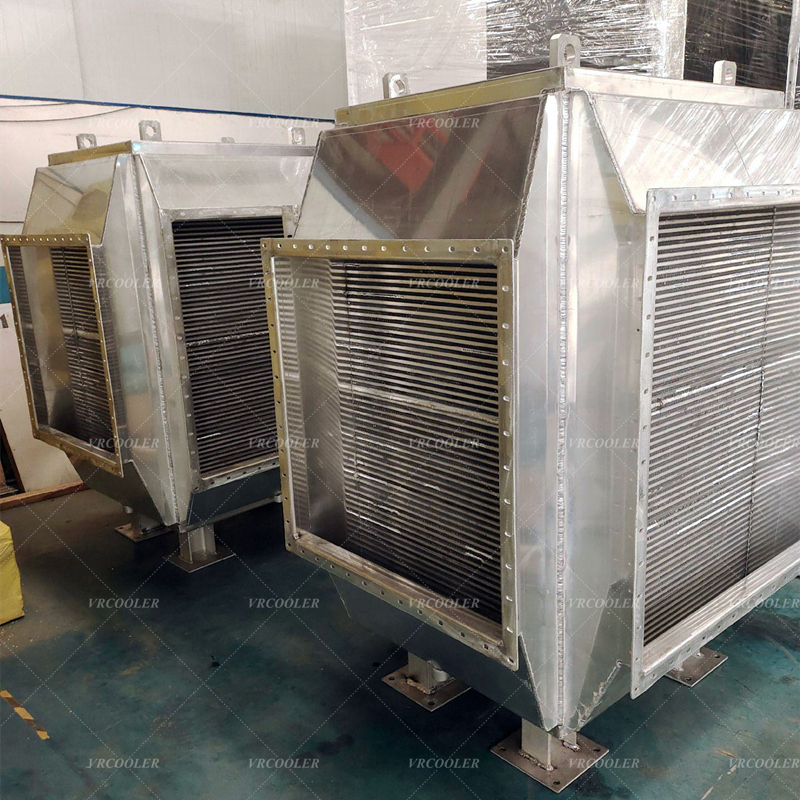

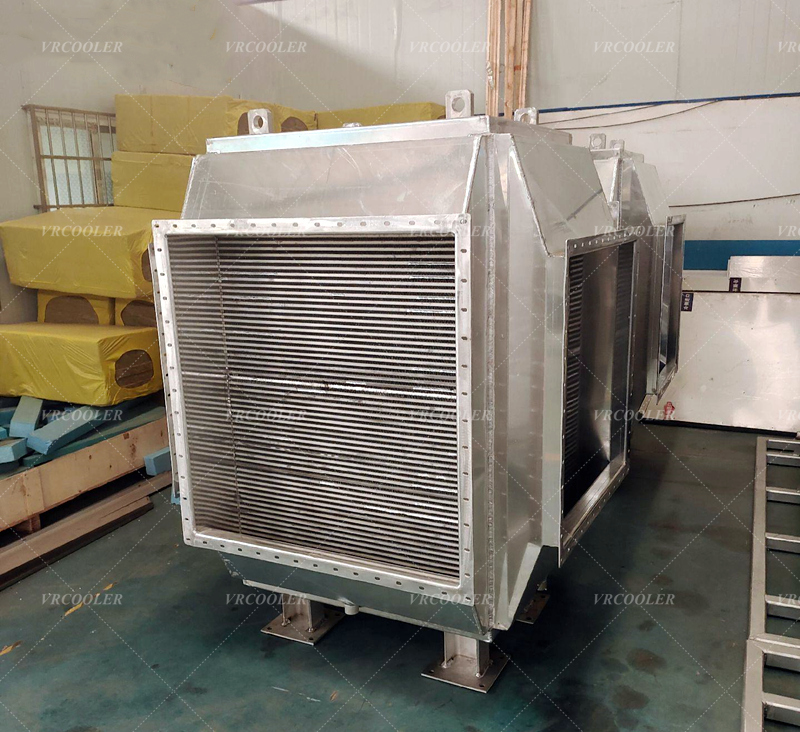

Plate Gas-gas Heat Exchanger for NMP Recovery

CST Heat Exchanger, a professional manufacturer of industrial plate fin heat recovery equipment, officially launched its optimized SUS316L plate gas-gas heat exchanger tailored for cathode coating drying lines. The new recuperator recovers sensible heat from high-temperature NMP-containing exhaust gas, preheats fresh process air, cools waste gas for higher NMP condensation efficiency, and delivers dual savings on energy consumption and solvent loss for lithium battery gigafactories worldwide.

Lithium battery electrode coating production generates massive hot exhaust loaded with NMP organic solvent vapor at 80–120℃. Traditional production lines face two major costly pain points:

Massive thermal waste: Cold ambient air is fully heated by steam or electric heaters before entering drying ovens, leading to 30%–45% extra energy expenditure every year.

Low NMP recycling efficiency: Hot exhaust directly enters condensation units without pre-cooling, limiting liquid NMP recovery rate below 85% and causing continuous raw material loss.

Hidden safety risks: Low airtight standard heat exchangers risk NMP vapor leakage and cross-contamination between fresh air and waste gas channels.

To solve these industry bottlenecks, CST’s R&D team upgraded its core plate fin structure, anti-corrosion material and airtight welding technology, rolling out a purpose-built gas-gas heat exchanger exclusively for NMP waste gas recovery scenarios.

The equipment adopts a fully isolated counter-flow dual-channel design, perfectly matching standard NMP recovery system workflow:

Cold fresh air (20–30℃) flows through independent clean channels, absorbing heat from hot waste gas and preheating to 50–68℃ before entering the oven heating section.

High-temperature NMP exhaust (80–120℃) passes through separated sealed flues, releasing heat and cooling down to 40–55℃.

Pre-cooled low-temperature waste gas flows into multi-stage condensers, raising NMP liquid recovery rate to 90%–95%.

Only sensible heat transfer occurs inside the heat exchanger core; exhaust outlet temperature stays above NMP dew point to avoid internal liquid solvent accumulation and corrosion.

All fresh air and waste gas passages are completely separated by laser-welded stainless steel partitions, zero cross-contamination to guarantee electrode production cleanliness.

Application Scenarios

Power battery / consumer lithium ion battery cathode coating drying oven waste heat recovery

Front-end pre-cooling equipment for NMP solvent condensation recovery systems

High-speed double-layer coating production lines & gigafactory VOC energy-saving retrofits

Battery recycling NMP waste gas heat recycling projects
