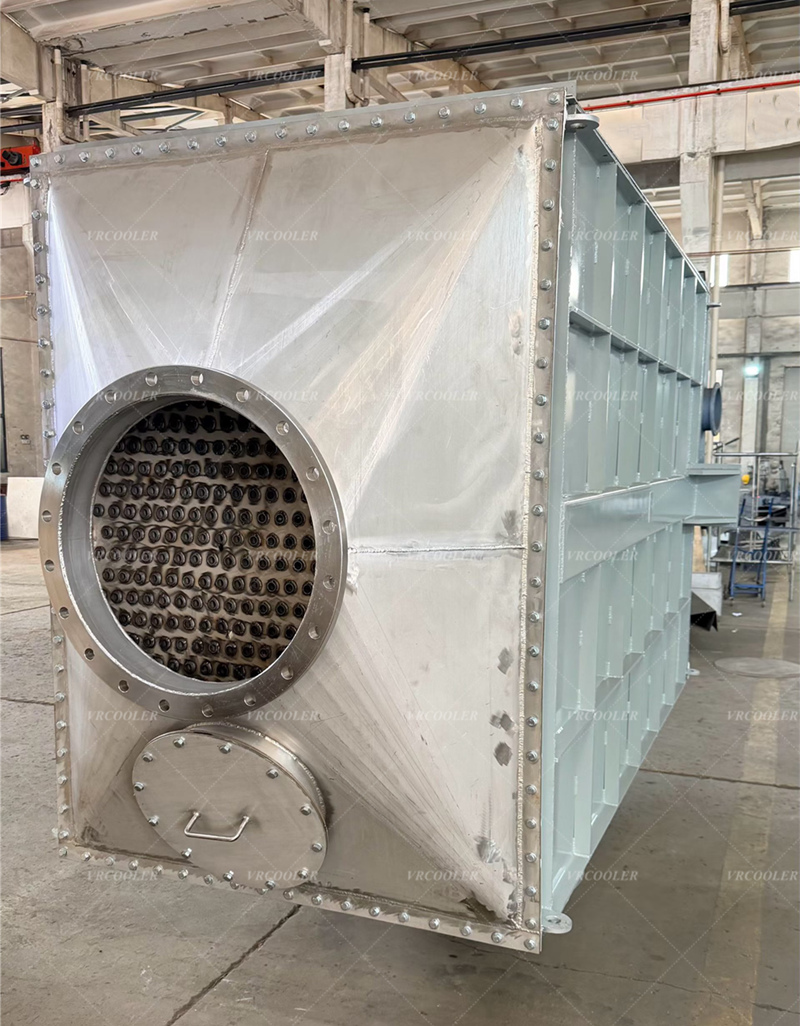

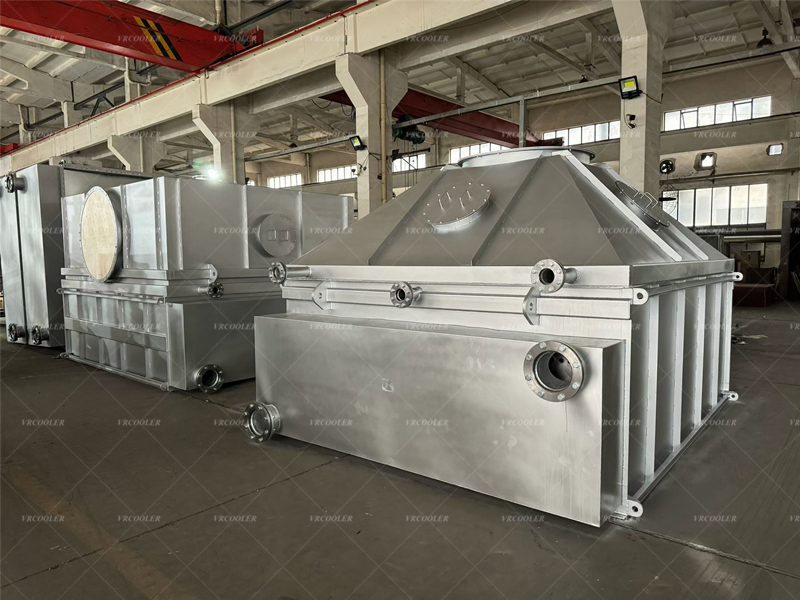

Waste Heat Recovery Fin Tube Economizer Manufacturer

We are a professional industrial heat exchanger manufacturer integrating R&D, custom design, production and after-sales service, specializing in high-efficiency waste heat recovery fin tube economizers for global boiler, power plant, biomass incineration and industrial waste heat recovery projects.

With over 10 years of manufacturing experience, we strictly implement ISO 9001 quality management system, adopt automatic high-frequency fin welding production lines, and produce full-series fin tube economizers including spiral fin tube economizers, H-type anti-wear fin tube economizers, ND steel anti-dew corrosion economizers and stainless steel finned waste heat recovery units. All pressure-bearing components comply with ASME and national boiler pressure vessel standards, supporting one-stop customized solutions for medium & large thermal power plants, coal-fired boilers, biomass boilers, waste incinerators and chemical self-provided power stations.

Our core focus is to help industrial clients recover flue gas waste heat, cut fuel consumption, lift boiler thermal efficiency and realize energy conservation & emission reduction. We provide free thermal calculation, on-site measurement, drawing design and whole-life after-sales support for all waste heat recovery fin tube economizer orders.

2. Product Introduction: Waste Heat Recovery Fin Tube Economizer

Finned tube economizer is the core waste heat recovery equipment installed at boiler tail flue. It recovers residual heat from high-temperature dusty flue gas to preheat low-temperature boiler feed water, drastically reducing exhaust temperature and fuel burning volume. Compared with traditional bare tube economizers, high-frequency welded fin tube structure expands heat exchange area 4~8 times, featuring compact layout, high heat transfer efficiency, strong wear & corrosion resistance, stable continuous operation for 24-hour industrial production.

Main Structural & Material Configurations

Pressure-resistant Base Tube

High-temperature & high-pressure working section: 20G boiler seamless steel tube, 15CrMoG alloy steel tube

Low-temperature dew point anti-corrosion section: ND steel (09CrCuSb) tube to resist sulfuric acid dew point corrosion

Corrosive flue gas (waste incineration, chemical exhaust): 304 / 316L stainless steel seamless tube

Integrated Welded Fin Structure

Two mainstream fin types for different flue gas conditions:

Spiral high-frequency welded steel fins: High heat transfer coefficient, suitable for clean gas natural gas boilers

H-type square finned tube: In-line arrangement, anti-abrasion & anti-dust accumulation, the first choice for coal-fired, biomass high-ash flue gas boilers

All fins are fully welded with base tube without gap, low thermal resistance, no fin shedding under long-term flue gas scouring. Windward vulnerable parts are equipped with wear-resistant guard rings to extend service life.

Thickened Forged Header & Reinforced Support Frame

Heavy-wall pressure-bearing header ensures even feed water distribution and smooth condensate drainage; reinforced steel support bracket eliminates flue vibration deformation. Modular tube bundle design supports customized flue size, heat load and installation layout.

Auxiliary Matching Parts

Reserved sootblower interface, drain valve port, temperature & pressure measuring ports, convenient for system automatic control and regular ash cleaning maintenance.

Working Principle

High-temperature flue gas transversely scours the outer fin surface of the fin tube bundle and releases waste heat via convection & radiation heat transfer; cold boiler feed water flows inside the base tube from bottom to top and absorbs heat to raise temperature before entering the boiler steam drum. The cooled flue gas is sent to dust removal and emission system, while preheated feed water reduces boiler heating load, realizing full utilization of flue gas waste heat and closed energy circulation.

3. Core Advantages of Our Factory’s Fin Tube Economizer

3.1 Outstanding Waste Heat Recovery & Significant Energy Saving Effect

Extended fin heat exchange surface greatly improves heat transfer efficiency. For every 20°C drop of exhaust flue gas temperature, boiler overall efficiency rises by about 1%, cutting coal, biomass and natural gas consumption by 3%~8% annually, bringing short investment payback period for industrial enterprises.

3.2 Dual Anti-wear & Anti-corrosion Design for Harsh Flue Gas

H-type finned tube economizer adopts in-line anti-scouring layout, service life 3~4 times longer than staggered bare tube units. Optional ND steel low-temperature section completely solves acid corrosion caused by SO₂/SO₃ condensation in flue gas, perfectly matching coal, biomass, garbage incineration high-dust sulfur-containing flue gas working conditions.

3.3 Stable High Temp & High Pressure Operation

All pressure parts undergo 1.5 times working pressure hydraulic test before delivery, adapting to working pressure 1.6~10MPa and flue gas temperature 200~550℃, stable operation under frequent boiler start-stop load fluctuation without pipe burst or leakage failure.

3.4 Anti-block Structure Reduces Maintenance Downtime

Reasonable fin spacing and straight-through airflow channel avoid ash accumulation; matched steam/acoustic soot blower interface supports regular automatic ash cleaning, preventing heat efficiency attenuation caused by dust covering fin surfaces.

3.5 Full Customization Service for All Working Conditions

Our factory customizes fin tube material, fin pitch, tube bundle layout, equipment size and heat load according to clients’ flue gas volume, inlet temperature, ash content, corrosive medium and site space. Support horizontal & vertical installation modes for new boiler matching and old energy-saving reconstruction projects.

3.6 Complete One-Stop Technical Support

Free thermal load calculation, 3D drawing design, factory pre-assembly inspection, on-site installation guidance, operation training and regular after-sales maintenance service; spare parts supply available throughout equipment service life.

4. Wide Application Scope of Waste Heat Recovery Fin Tube Economizer

Thermal power station boiler tail waste heat recovery system

Biomass pellet boiler, straw incineration boiler flue gas economizer

Municipal solid waste incineration power plant low-temperature heat recovery equipment

Steel, chemical, paper mill self-provided industrial boiler energy-saving renovation

Natural gas boiler, waste heat boiler feed water preheating unit

Cement kiln, furnace exhaust gas waste heat recovery economizer

5. Factory Production & Quality Control

As a professional fin tube economizer manufacturer, we own 3 automatic high-frequency fin welding production lines, CNC pipe cutting equipment, full-automatic welding workshops and independent pressure test laboratories.

Raw material incoming inspection: Test tube material yield strength, corrosion resistance and fin steel plate thickness;

Automatic fin welding: Real-time welding penetration monitoring to ensure zero gap between fin and base tube;

Tube bundle assembly & header full penetration welding;

100% hydraulic pressure test and air tightness inspection before delivery;

Complete finished product labeling, parameter report and installation manual delivery.

All finished fin tube economizers are packed with anti-rust oil and wooden case to avoid damage during long-distance sea and land transportation for overseas clients.

6. Regular Operation & Maintenance Guidance

Equip sootblower system to periodically blow ash on fin surface to maintain stable heat recovery efficiency;

Quarterly inspect header welding seams and windward wear parts to eliminate water leakage hidden dangers;

Strictly control boiler feed water deoxidation and descaling to prevent inner tube scaling and corrosion;

Adjust boiler load to keep exhaust temperature higher than acid dew point during low-load operation, slowing low-temperature corrosion;

Fully drain internal medium and fill dry nitrogen protection during long-term shutdown.

7. Conclusion

As a reliable waste heat recovery fin tube economizer manufacturer, we integrate independent R&D, standardized production and customized engineering solutions. Our H-type & spiral fin tube economizers feature high heat recovery efficiency, anti-wear anti-corrosion performance and long service life, widely exported to Southeast Asia, Middle East, Europe and North America for boiler waste heat recovery energy-saving projects. We provide cost-effective custom fin tube economizer solutions for power plants, industrial factories and energy-saving engineering companies worldwide.
