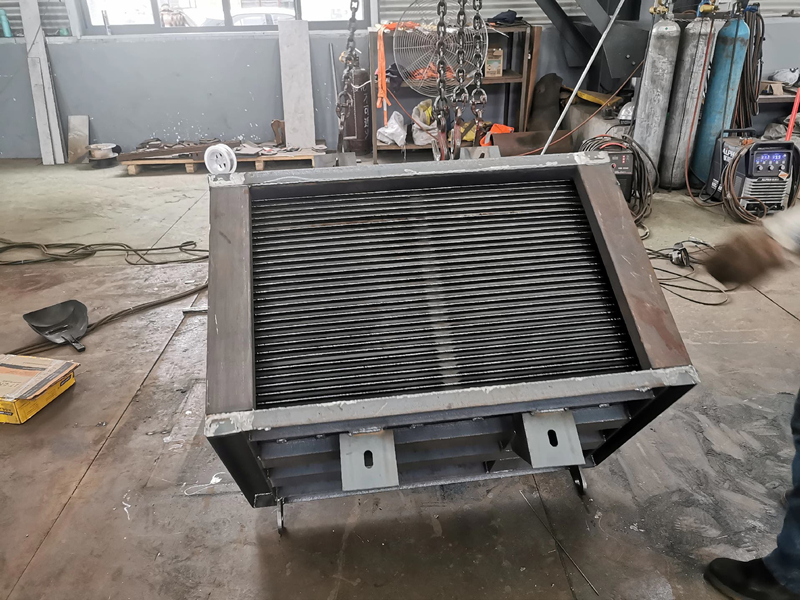

High Efficiency Air Preheater for Boiler Save Fuel Cost

A high-efficiency air preheater recovers waste heat from boiler flue gas to heat cold combustion air before it enters the burner.

Higher air intake temperature → more complete fuel combustion

Reduces heat loss carried away by exhaust gas

Directly lowers natural gas, coal, biomass or oil consumption, slashing monthly fuel expenditure

Typical Saving Data

Gas-fired boiler: Fuel cost reduction 8%–14%

Coal/biomass boiler: Fuel cost reduction 10%–18%

Furnace thermal efficiency boosted from 82–86% up to 90–95%

Example Calculation

A 10t/h gas boiler consumes 750 m³ natural gas per hour at full load, running 8,000 hours yearly.

With 12% fuel saving:

Yearly saved gas volume = 750 × 8000 × 12% = 720,000 m³

If gas price = $0.4/m³, annual fuel cost saving = $288,000

Usually recovers the equipment investment within 6–18 months.

High-Efficiency Air Preheater Types for Boilers (Cost-Effective Ranking)

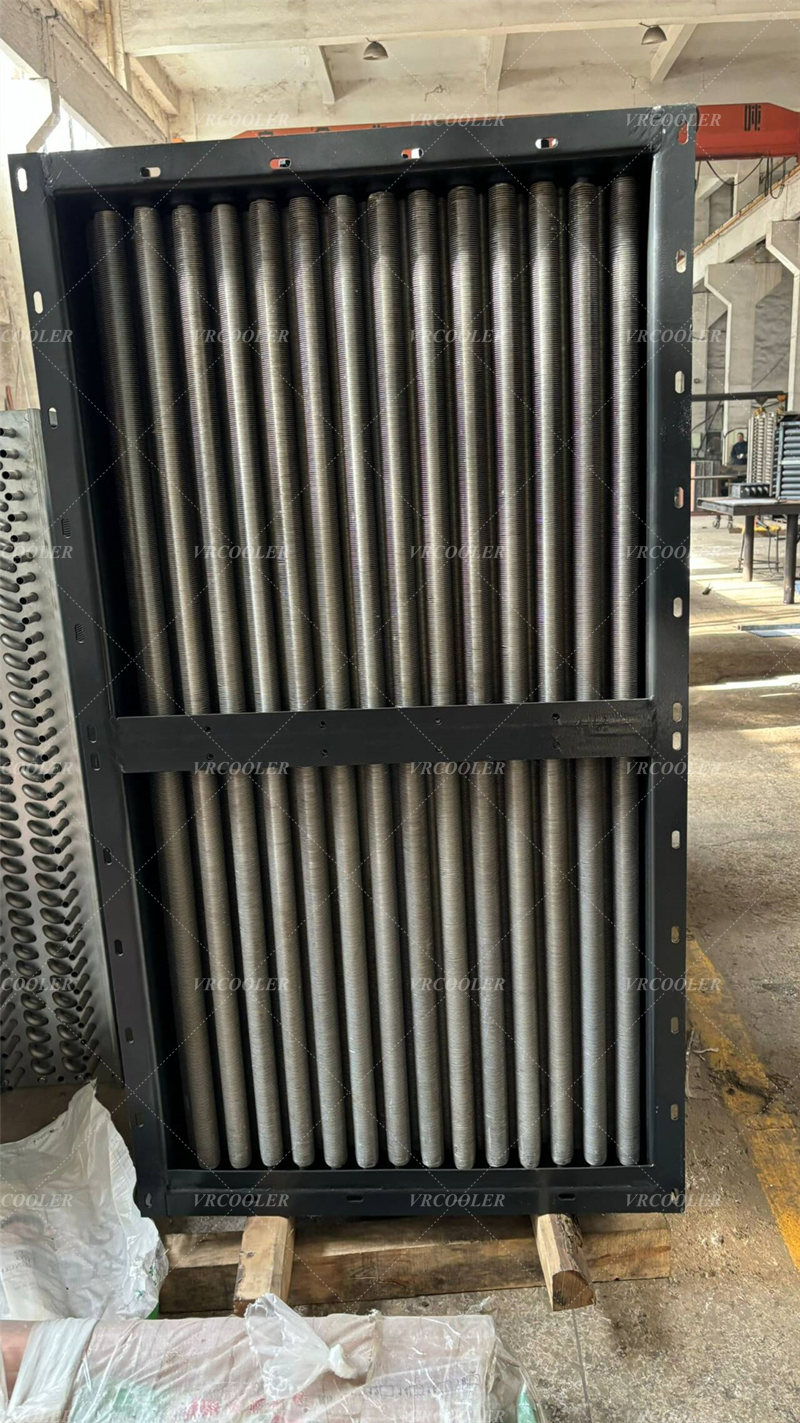

1) Heat Pipe Air Preheater (Top choice for long-term fuel saving)

Ultra-high heat transfer efficiency, controllable wall temperature to avoid acid dew corrosion

Independent heat pipe design; partial failure does not halt boiler operation

Low gas leakage, minimal heat loss, stable energy-saving performance for 10+ years

Suitable for coal, biomass, gas boilers with sulfur-containing flue gas

2) Welded Plate Air Preheater (Compact, small-medium gas boilers)

2–3 times higher heat transfer coefficient than tubular models

Small footprint, ideal for old boiler retrofit

Best for clean flue gas (food, light industry gas boilers)

3) Enamel Tubular Air Preheater (Cost-effective for coal/biomass boilers)

Enamel coating solves cold-end corrosion, extends service life

Lower upfront cost than heat pipe type, reliable for high-dust flue gas

Stable fuel saving in heavy industrial boilers

4) Rotary Regenerative Air Preheater (Large power station boilers above 35t/h)

Large heat recovery capacity for high flue gas flow

Slightly higher air leakage, requires regular maintenance

Extra Hidden Cost Savings Besides Fuel

Lower auxiliary power consumption

Higher combustion air temperature reduces burner fan load, cutting electricity bills for blowers.

Less flue gas treatment chemical consumption

Lower exhaust temperature reduces acid condensation, less alkali neutralizer for desulfurization.

Longer boiler service life

Reduced temperature fluctuation inside furnace slows corrosion and abrasion of boiler tubes.

Lower carbon emission tax

Less fuel burning cuts CO₂ output, lowering carbon fees and meeting environmental standards.

Key Design Features to Maximize Fuel Savings

Counterflow heat exchange layout to maximize temperature difference

Extended heat transfer area via fins or corrugated plates

Anti-corrosion structure to prevent heat transfer efficiency decline over time

Low-resistance flow channel to avoid excessive fan power loss

Automatic soot blowing system to keep heat surfaces clean (ash buildup cuts efficiency by 10–25%)
