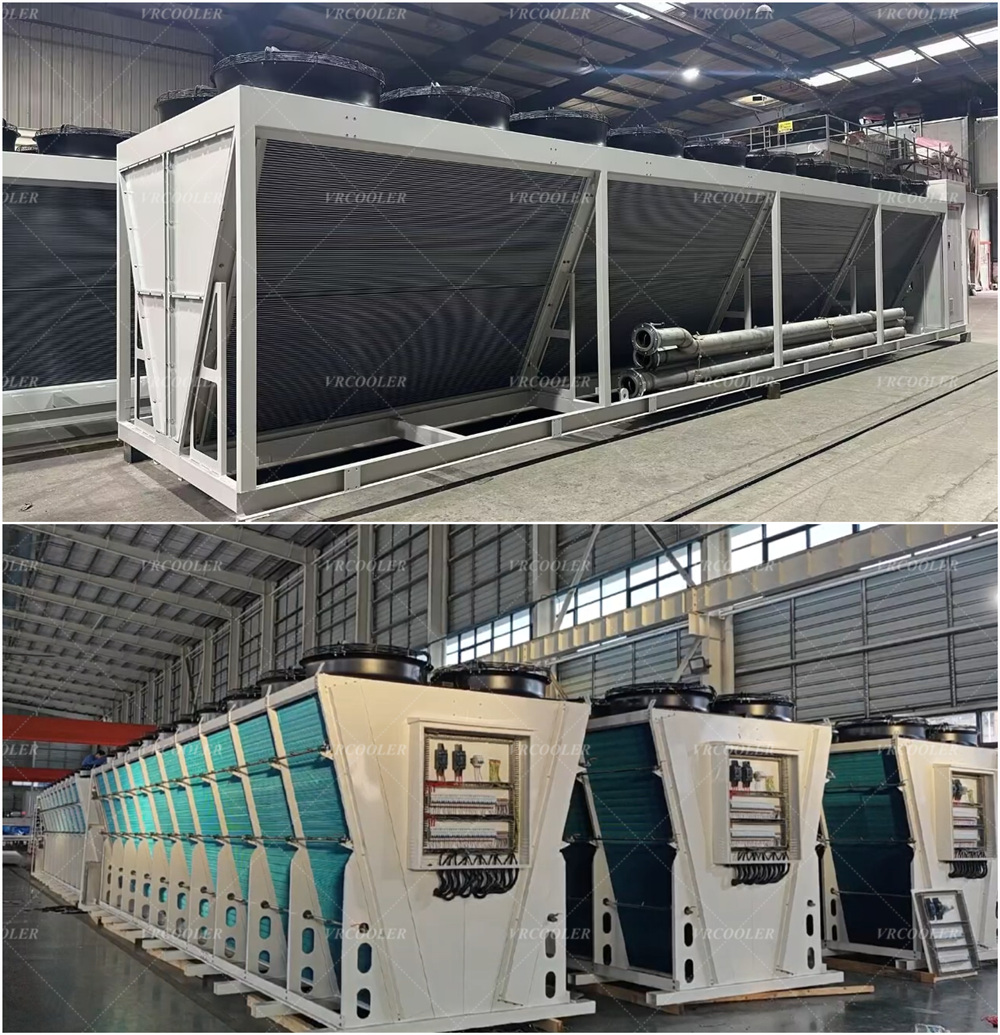

Microchannel Dry Cooler vs Copper‑Aluminum Tube‑Fin Dry Cooler: Key Differences for Industrial Cooling

When specifying dry coolers for data‑center immersion cooling, power generation, CHP and industrial process cooling projects, system designers frequently choose between <strong>all‑aluminum microchannel dry coolers and traditional copper‑tube aluminum‑fin (copper‑aluminum) tube‑fin dry coolers. Each coil technology brings distinct trade‑offs in size, weight, maintainability, fluid requirements and site‑adaptability.

Microchannel dry coolers adopt fully‑brazed all‑aluminum multi‑port flat tube cores. Thanks to high‑density micro‑passages, they deliver high heat‑transfer performance within a compact footprint. Compared with copper‑aluminum tube‑fin units of equal thermal capacity, microchannel dry coolers are lighter in weight, occupy smaller installation space, and hold much lower internal fluid volume, cutting glycol filling quantity for closed‑loop water‑glycol systems. Their main limitation lies in small internal passages: they demand clean coolant with proper filtration to avoid particle clogging. Once the brazed coil suffers serious damage, whole‑coil replacement is normally required, and local on‑site repair is not practical. Anti‑corrosion coating is recommended for coastal or heavy‑pollution environments.

Copper‑aluminum tube‑fin dry coolers represent the mature, widely‑proven industrial solution. Copper tubes with aluminum louver fins provide stable heat exchange performance. Larger tube bores tolerate moderate particle contamination in working fluids. A practical advantage for field operation is serviceability: under certain conditions, individual leaking tubes can be plugged or repaired on‑site instead of replacing the whole coil. Material flexibility is another strength; besides copper‑aluminum, tube material can be upgraded to stainless‑steel, Cu‑Ni alloy for aggressive process fluids or harsh ambient conditions. The main drawbacks are higher overall weight, bigger footprint and larger glycol charge for the same cooling load.

Typical application‑fit guidance: Microchannel dry coolers work well for clean closed‑loop projects such as immersion‑cooled data centers, edge‑computing sites and modular crypto‑mining racks where compact layout and lightweight are high priorities. Copper‑aluminum tube‑fin dry coolers remain the preferred selection for general industrial cooling, gas engine CHP, transformer cooling and sites expecting possible on‑site maintenance, or where working fluid cleanliness cannot be strictly guaranteed.

CST Heat Exchanger supplies both microchannel and copper‑aluminum tube‑fin dry coolers, supporting custom capacity, fan configuration, anti‑corrosion treatment and 1:1 dimension replacement according to existing unit drawings for global‑customer projects.
