Pharmaceutical / Vaccine Cold Room Evaporator | 2‑8℃ High‑Reliability & Uniform Temperature

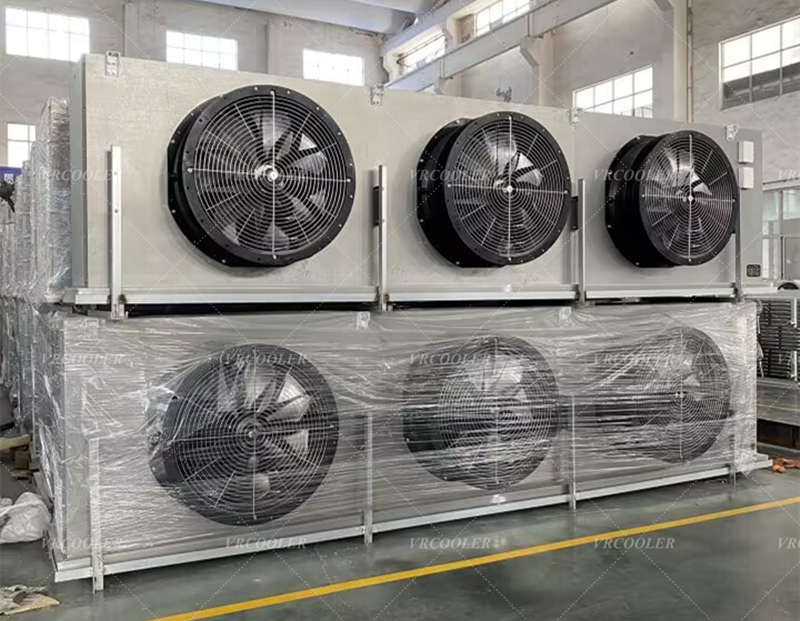

VRCOOLER custom‑engineers unit coolers & glycol evaporators for pharmaceutical and vaccine cold rooms operating at +2 ℃ ~ +8 ℃. These GMP‑compliant cold rooms store vaccines, injectables, biological reagents and sensitive pharmaceutical products. The core requirements are tight temperature tolerance (typically ±2 °C or better), excellent temperature uniformity, high operational reliability, low maintenance risk and clean‑room‑adaptable construction. Deviations of temperature will invalidate vaccine and biologic batches, leading to huge product loss.

Typical site operating parameters

• Set point: 2 ~ 8 °C, continuous 24/7 year‑round running

• Temperature tolerance: ±1 ~ ±2 °C (project‑dependent GMP requirement)

• Relative humidity: 35‑65% RH (pharmaceutical specification)

• Operation mode: non‑stop duty; redundant refrigeration design is widely adopted for critical vaccine storage

• Environment: clean‑grade space, low dust accumulation requirement, periodic sanitization

Core evaporator design requirements

1. Coil & fin specification

• Fin spacing: 4.5 mm ~ 6.0 mm. Wider fin pitch reduces dust‑clog risk and lowers defrost frequency; avoid too‑dense fins for long‑term stable performance.

• Coil: Copper tube + hydrophilic epoxy‑coated aluminum fins. Smooth fin surface reduces dust / particle adhesion, easy for sanitization.

Ammonia‑system project: copper tubes forbidden; use carbon‑steel / stainless‑steel tube coils.

• Proper TD selection: Usually 6‑7 K TD. Prevent excessive dehumidification which drifts RH out of pharmaceutical‑required range. Coil surface area shall be sized for real working TD, not standard catalogue 10 K rating.

2. Airflow & temperature uniformity

• Low‑to‑medium velocity airflow; single‑discharge or dual‑discharge ceiling‑mount models according to room geometry. Dual‑discharge preferred for larger cold rooms to eliminate dead‑spots.

• EC variable‑speed fans are highly recommended. Fan speed modulation stabilizes air circulation under partial‑load conditions, maintaining even room temperature without over‑cooling local zones.

• Optimised air throw distance to avoid short‑circuit airflow; prevent cold air directly blowing onto product racks.

3. Casing, drain pan & mechanical hygiene

• Preferred material: 304 stainless steel casing and drain pan. Smooth welded surfaces, rounded corners, no hidden gaps or dead‑zones for dust and microbial buildup.

• Fully sloped drain pan with large outlet, no standing condensate. Stainless‑steel bolts, fan guards and accessories.

• Avoid ordinary painted‑galvanized steel for GMP‑grade pharmaceutical cold rooms; paint peeling risks particle contamination.

4. Defrost logic (critical for 2‑8℃ cold rooms)

Even though room keeps above zero, coil surface temperature can drop below 0 °C under partial‑load, generating frost.

• Electric defrost with anti‑corrosion nickel‑plated heaters is standard.

• Control logic: long defrost interval, short defrost duration. Minimize temperature fluctuation during defrost cycle, prevent vaccine‑harmful temperature spikes.

• Glycol evaporator: only electric defrost available, hot‑gas defrost cannot be used.

• Defrost termination sensor must be tightly mounted on coil fins for accurate control.

5. Electrical & reliability features

• IP54‑IP55 sealed fan motors; resistant to sanitizer mist.

• Components selected for 24/7 continuous operation; low‑failure‑rate parts.

• Easy‑access service design for inspection without large‑scale disassembly of cold‑room envelope.

6. System choice: DX vs glycol indirect evaporator

1. Glycol evaporator (high‑priority for vaccine cold rooms) Refrigerant is fully isolated outside the cold‑room space. Zero risk of refrigerant leakage contaminating pharmaceutical / vaccine inventory. Matches redundant central chiller systems widely used in biopharma projects.

2. DX direct‑expansion unit cooler Lower initial cost. Must implement strict periodic leak‑testing of refrigerant piping for GMP compliance.

Key common project pitfalls

1. Adopt standard commercial DL‑type evaporator sized at TD 10 K: causes too‑large temperature difference, RH drifting out of specification, poor uniformity.

2. Poor‑quality defrost control: big temperature swing during defrost → violates cold‑chain requirement for vaccines.

3. Galvanized painted casing: risk of paint chipping, particle contamination for GMP space.

4. High‑fixed‑speed fan: partial‑load leads to uneven room temperature and local cold spots.

VRCOOLER supplies GMP‑oriented pharmaceutical / vaccine cold‑room evaporators, both DX and glycol indirect versions. Support custom sizing for low‑TD, uniform‑temperature demand, and 1:1 drop‑in replacement by drawings or old‑unit dimensions.
