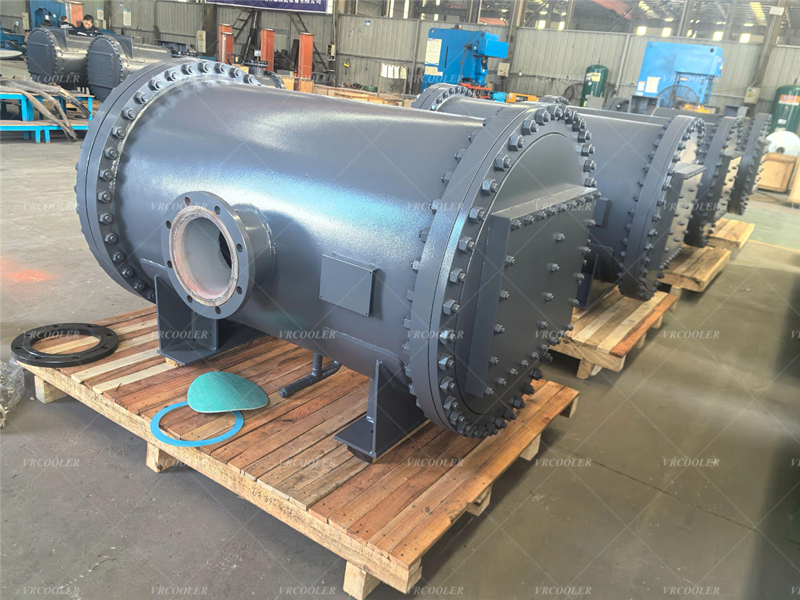

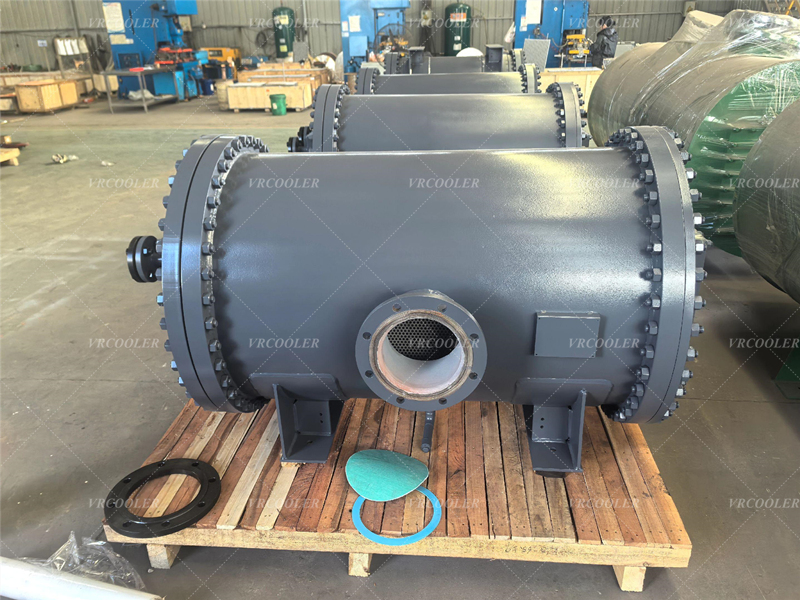

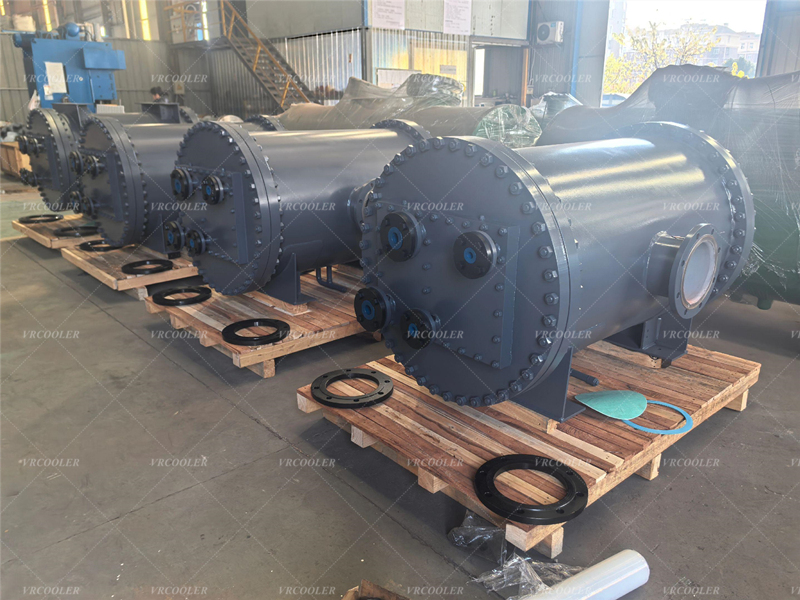

Shell and Tube Heat Exchanger for Air Compressor Waste Heat Recovery

The shell and tube heat exchanger is a mainstream core device for air compressor waste heat recovery, widely matched with screw, reciprocating and centrifugal compressors of medium and large power. It recovers high-temperature heat from compressor lubricating oil and hot compressed air to heat cold water for domestic use, production cleaning and workshop heating. Compared with plate heat exchangers, shell-and-tube models feature stronger pressure resistance, wider flow channels and lower risk of clogging, ideal for long-term 24-hour continuous operation of industrial compressor stations.

Working Principle

High-temperature compressor lubricating oil flows inside the heat transfer tubes, while cooling water circulates through the shell side outside the tubes. Efficient heat exchange occurs between oil and water, heating cold water to 50–85°C for recycling. After heat release, the cooled lubricant oil flows back to the compressor circulation system to maintain normal operating temperature of the unit. When hot water demand is saturated, it can cooperate with auxiliary cooling equipment to realize safe temperature control of the compressor.

Core Advantages

Excellent Anti-Clogging Performance

Large independent flow channels for oil and water, not easy to accumulate oil sludge, sediment and impurities. Suitable for compressor stations with poor water quality and unfiltered lubricating oil.

High Pressure & Temperature Resistance

Integral welding structure, standard design pressure up to 1.6MPa, customized maximum 4.0MPa. Stable operation under oil temperature 90–180°C, no deformation or leakage under long-term high-load working conditions.

Long Service Life & Low Failure Rate

Multiple material options: carbon steel, 304 stainless steel, 316L stainless steel tubes and shells. Good oil resistance, high temperature resistance and anti-corrosion performance, service life up to 10–15 years.

Large Heat Recovery Capacity

Suitable for single or multiple combined large-power compressors (200HP–1000HP). Large heat exchange area, stable heat output without sharp temperature fluctuation under variable load.

Simple Structure & Low Maintenance Cost

Conventional detachable design, easy to open the tube bundle for regular cleaning of dirt inside tubes and shell side; fewer vulnerable parts, reducing annual maintenance expense.

Wide Compatibility

Can be connected in series/parallel for multi-compressor centralized waste heat recovery systems, compatible with air-cooled and water-cooled compressor original cooling circuits.

Main Technical Parameters

Medium matching: Compressor lubricating oil (tube side) / circulating hot water (shell side)

Operating temperature range: Oil inlet 100~175°C, hot water outlet 50~85°C

Standard design pressure: 1.0MPa / 1.6MPa, customizable high pressure version

Tube optional material: Carbon steel, SUS304, SUS316L seamless tubes

Shell material: Carbon steel or stainless steel as customer request

Applicable Scenarios

Large manufacturing plants with multiple high-power screw compressors

Chemical, mining, metallurgy factories with poor water quality and high impurity content

Industrial parks with centralized compressor stations and continuous all-day hot water demand

Food, textile, electroplating factories requiring stable large-flow process hot water

Factories with insufficient water treatment equipment (not easy to block)

Custom & Global Export Support

We customize shell and tube heat exchangers according to compressor total power, oil flow, target hot water output and on-site pipeline layout. Support OEM/ODM, customized flange, thread connection size and overall dimension.

All finished products undergo 100% hydrostatic pressure test and air tightness inspection, meet ISO 9001, CE international standards for global export. We provide professional thermal calculation, installation drawings, operation manuals and remote after-sales technical guidance for overseas projects.
