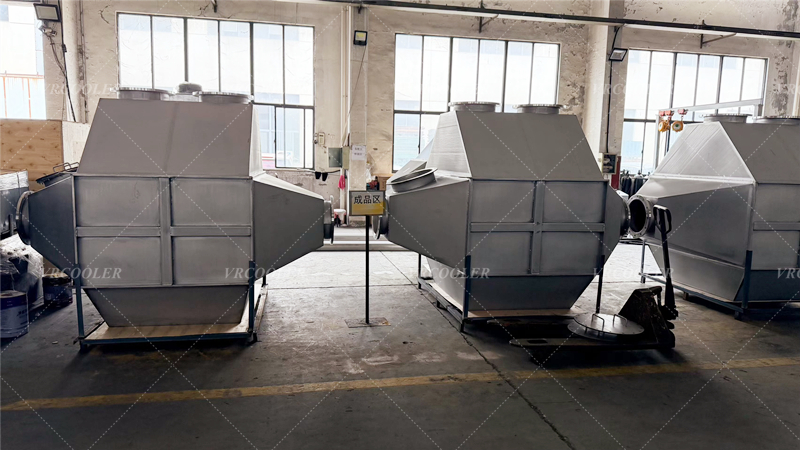

Finned Tube Economizer for Coal-fired Boiler

Finned tube economizer is a core tail heating surface installed in the flue duct after boiler convection bank/superheater of coal-fired boilers. It uses high-dust, sulfur-containing high-temperature flue gas to preheat cold boiler feedwater, recover waste heat, lower exhaust temperature and cut coal consumption.

Heat Transfer Mechanism

Tube side: Cold boiler feedwater flows inside seamless base tubes;

Gas side: High-temperature coal flue gas transversely scours finned tube bundles;

Heat path: Flue gas convection → fin surface conduction → base tube wall → feedwater inside tubes.

Coal flue gas has far poorer heat transfer performance than water; fins expand gas-side heat transfer area 5–10 times vs bare tubes, greatly reduce gas-side thermal resistance.

Energy-saving rule: Every 20 ℃ drop of exhaust gas temperature raises boiler efficiency by ~1% and reduces coal consumption by 1.2%~2.4%.

Core Structure & Tube Types for Coal-Fired Boiler

Coal flue gas features heavy fly ash, sulfur oxides, moisture and low-temperature dew point corrosion, so two mainstream finned tube structures are applied selectively:

2.1 H-Type Finned Tube (Most Widely Used for Coal Boilers)

Structure: Two symmetrical rectangular steel fins welded on both sides of one base tube, H-shaped cross-section; double-H for twin tubes

Advantages for coal flue gas:

Straight vertical gas channels, low ash deposition, easy soot blowing;

Uniform flue velocity, reduced fly ash erosion;

Low flue resistance, less induced draft fan power consumption;

Suitable: All medium/large coal-fired industrial boilers, high-dust tail flue sections.

2.2 Spiral Welded Finned Tube (Laser/High-Frequency Welded)

Structure: Continuous steel strip spirally welded around base tube

Advantages: Larger heat transfer area, higher heat recovery efficiency, compact layout

Limitation: Narrow fin gaps tend to accumulate sticky ash;

Suitable: Low-dust clean coal flue, high-temperature front section of economizer.

Standard Material Matching (Anti-corrosion & Anti-wear)

Key Structural Parameters

Base tube OD: Φ25/Φ32/Φ38/Φ42 mm, wall thickness 2.8–5 mm (thickened for anti-wear)

Fin thickness: 0.5–1.2 mm; Fin pitch: 6–12 mm (wider pitch for heavy dust)

Tube bundle arrangement: In-line preferred for coal boilers — easy soot cleaning, low erosion; staggered only for clean low-dust flue.

3. Fin-Tube Connection Processes & Laser Weld Superiority

Three mainstream welding processes for coal boiler economizer fin tubes, laser welding is premium option for harsh coal flue conditions:

3.1 High-Frequency Resistance Welding (Conventional Standard)

Pros: Low cost, high production speed

Cons: Shallow fusion, poor anti-vibration; welds oxidize severely, prone to sulfur corrosion; fins easy to peel after long thermal cycling; fin deformation blocks flue channels

3.2 Laser Continuous Welding (High-End Coal Boiler Retrofit)

Core Advantages for Coal-Fired Economizer

Near-zero contact thermal resistance: Full metallurgical fusion, heat transfer efficiency +15%~22% vs high-frequency welded tubes;

Ultra-narrow heat-affected zone (0.1–0.5 mm): Minimal tube deformation, no fin warping, avoids ash accumulation;

High weld strength close to base metal: Resists flue scouring, fly ash wear and long-term vibration; no fin peeling even after years of boiler start-stop thermal fatigue;

Dense, oxide-free welds: Strong resistance to sulfuric dew-point corrosion, service life extended by 30%+ in sulfur-containing coal flue;

Smooth weld surface, no burrs or buildup, reduces ash adhesion.

3.3 Integral Rolled Fin Tube

Pros: Zero contact resistance, extreme anti-wear

Cons: Ultra-high cost, limited fin height, rarely used for full economizer bundles.

4. Core Advantages of Finned Tube Economizer vs Bare Tube Economizer

Higher waste heat recovery: Gas-side heat transfer coefficient rises 30%–50%, exhaust temperature can drop to 130–160 ℃;

Compact footprint: Same heat load requires 40% smaller space, lower boiler civil engineering cost;

Flexible layout: Adaptable to narrow tail flue space of old coal boiler energy-saving retrofits;

Customizable anti-fouling design: H-type + wide fin pitch match coal heavy ash environment, cooperate with acoustic soot blowers for stable long-term operation;

Reduce thermal stress of boiler drum: Feedwater temperature rises sharply, temperature difference between feedwater and saturated steam shrinks, extend boiler drum service life.

5. Typical Operating Parameters for Coal-Fired Boilers

Inlet flue gas temperature: 300–450 ℃

Outlet flue gas temperature: 130–200 ℃

Feedwater temperature rise: 25–50 ℃

Design flue velocity: 6–9 m/s (balance heat transfer & fly ash erosion)

Working water pressure: 1.0–4.0 MPa (match industrial boiler rated pressure)

6. Anti-Corrosion & Anti-Wear Design (Critical for Coal-Fired Conditions)

Material grading: Use ND steel low-temperature section to prevent acid dew point corrosion;

Inlet anti-wear protection: Install wear-resistant shields at flue inlet to avoid direct high-speed ash scouring;

Soot blowing system matching: Equip acoustic soot blowers / steam soot blowers to clean fin surface ash regularly;

Flue drain port design: Discharge condensed acid water from low-temperature section to avoid long-term weld corrosion;

Laser welding fin tube upgrade: Replace high-frequency welded tubes for boilers burning high-sulfur coal to solve early-stage fin peeling and corrosion failure.

7. Application Scenarios

New industrial coal-fired water tube boilers (4t/h–35t/h);

Energy-saving retrofit of old coal boilers (core equipment to reduce coal consumption);

Low-temperature waste heat recovery for coal-fired thermal power small units;

Coal-fired heating furnaces, coal-fired chemical heating boilers with high-sulfur flue gas.
