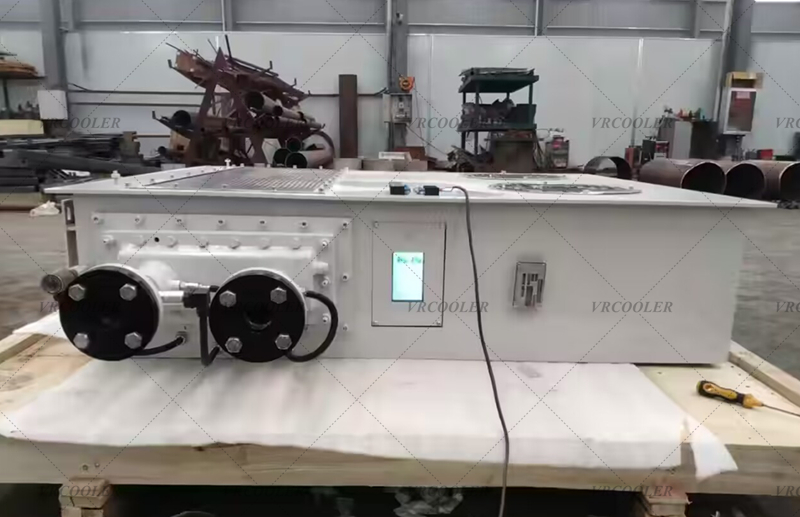

For shipboard power transformers, selecting the right heat exchanger is a critical engineering decision that directly impacts reliability, safety, and space utilization. The choice primarily comes down to balancing the high efficiency of water cooling against the inherent safety and simplicity of air cooling.
Cooling Technology | Key Features | Typical Applications | Safety & Maintenance |
|---|---|---|---|
Water-Cooled (AFWF) | Uses ship's centralized water system; very high heat dissipation; compact footprint | High-power propulsion drives; confined engine rooms | Safety: Leak detection mandatory . Maintenance: Susceptible to fouling; requires regular checks . |
Air-Cooled (AN/AF) | Uses ambient/finned air; simple, standalone system; moderate cooling capacity | Smaller, lower power transformers; auxiliary systems | Safety: Non-conductive, no leak risk. Maintenance: Lower; filters need cleaning in dusty/salty air. |
Hybrid / Dry (Air-to-Water) | Water coil cools air; air cools transformer. Double-wall tubes prevent water contact. | Ships requiring water cooling efficiency with zero electrical risk | Safety: "Dry" design; double-wall tubes prevent transformer contact. Ideal for retrofits . |
Emerging: Two-Phase Dielectric | Uses non-conductive refrigerant (phase-change); very high isolation (>30kV); uniform cooling | Next-gen Medium Voltage (MV) SSTs | Safety: Excellent electrical isolation. Maintenance: Specialized fluid management required. |
How to Select the Right System for Your Vessel
To choose the most suitable heat exchanger, evaluate your vessel's specific requirements against these key criteria:
Power Rating and Space Constraints: For high-power transformers (e.g., >1 MVA for propulsion) in tight engine rooms, the high efficiency of a water-cooled (AFWF) system is often essential as it offers the smallest footprint for the cooling capacity provided .
Safety and Leak Risk: This is the primary concern for marine transformers. If a leak of conductive water into the transformer would be catastrophic, a hybrid "dry" cooler (with double-walled tubes) or a forced air system is the safest choice, as they eliminate the risk of electrical shorts .
Maintenance and Reliability: Air-cooled systems have fewer components and lower maintenance needs, making them robust. Water-cooled systems require a consistent supply of clean water and are prone to fouling, demanding more regular monitoring .
Regulatory Compliance: Ensure the chosen system complies with major classification society rules (e.g., ABS, DNV, LR). Regulations mandate features like leakage detection for liquid-cooled heat exchangers and alarms for temperature and cooling medium failure .
