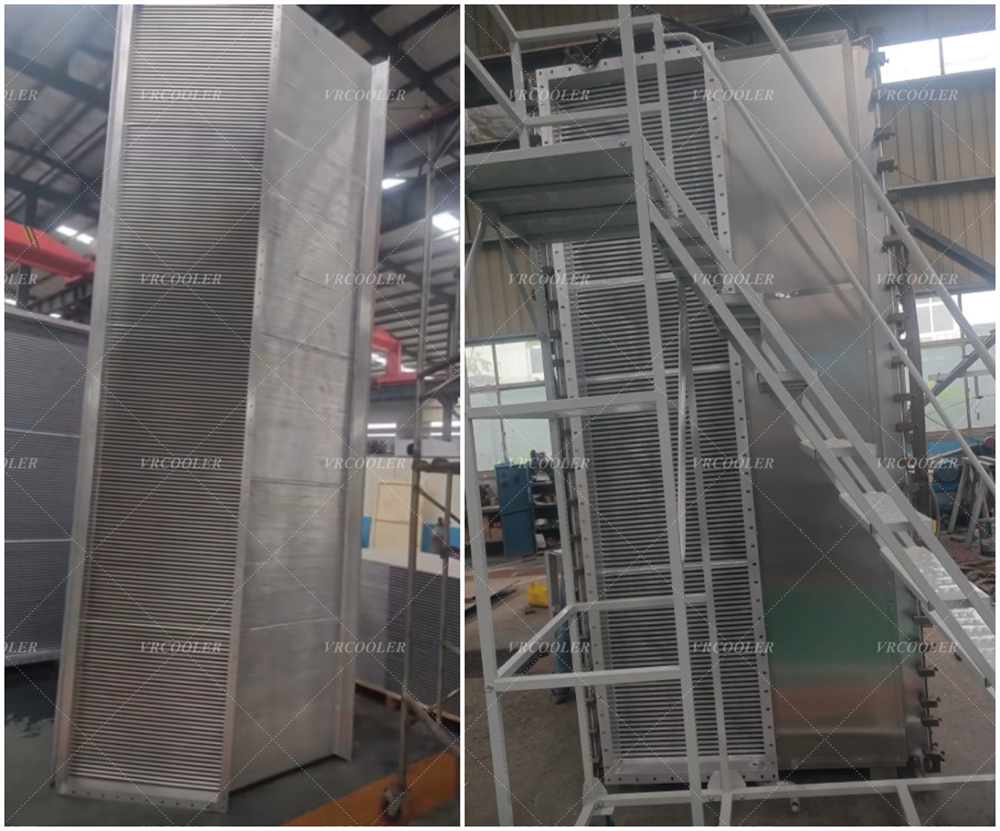

Plate‑Fin Heat Exchanger for NMP Waste‑Heat Recovery in Lithium‑ion Battery Coating Machine

During cathode coating & drying process, the coating oven exhausts large‑volume hot waste gas (80‑120 °C) mixed with N‑Methyl‑2‑pyrrolidone (NMP) vapor. Direct discharge leads to heavy solvent loss, high energy cost and VOC non‑compliance.

Plate‑fin gas‑to‑gas heat exchanger is the core waste‑heat recovery component installed between coating oven outlet and NMP condensation unit.

- Hot NMP‑laden exhaust transfers sensible heat inside separated channels, exhaust gas is pre‑cooled before entering condensation section.

- Cold fresh process air absorbs heat and gets pre‑heated, then feeds back to coating drying oven, cutting steam or electric heating consumption.

- Two streams are fully separated to prevent cross‑leakage of NMP vapor and avoid electrode contamination. Pre‑cooled exhaust flows into chiller‑driven condenser or scrubber for liquid NMP capture, and recovered NMP can be purified and reused for slurry mixing.

Key operating conditions

- Exhaust temperature: 80‑120 °C

- Air volume: 20000‑70000 m³/h per coating line

- Strict low leakage requirement for battery‑grade safety

- Drain ports for condensed NMP liquid, slope design to avoid liquid pooling

Material options

1. Brazed aluminum plate‑fin: high heat transfer efficiency, compact size, cost‑effective; for condition without long‑term NMP liquid immersion.

2. Full stainless steel (304 / 316L) plate‑fin: better resistance against NMP condensate corrosion, preferred for high‑reliability lithium‑battery production lines.

Main benefits

1. Reduce drying‑section energy consumption by 30‑45 % via waste‑heat reuse.

2. Improve total NMP solvent recovery rate up to 95‑99 %, cut raw‑material purchasing cost.

3. Lower cooling load for downstream chiller system.

4. Help meet local VOC emission regulations.

Typical workflow

Coating oven exhaust → Plate‑fin heat exchanger → Condenser / scrubber → NMP collection & purification

Fresh air → Pre‑heated by plate‑fin exchanger → Coating drying oven
