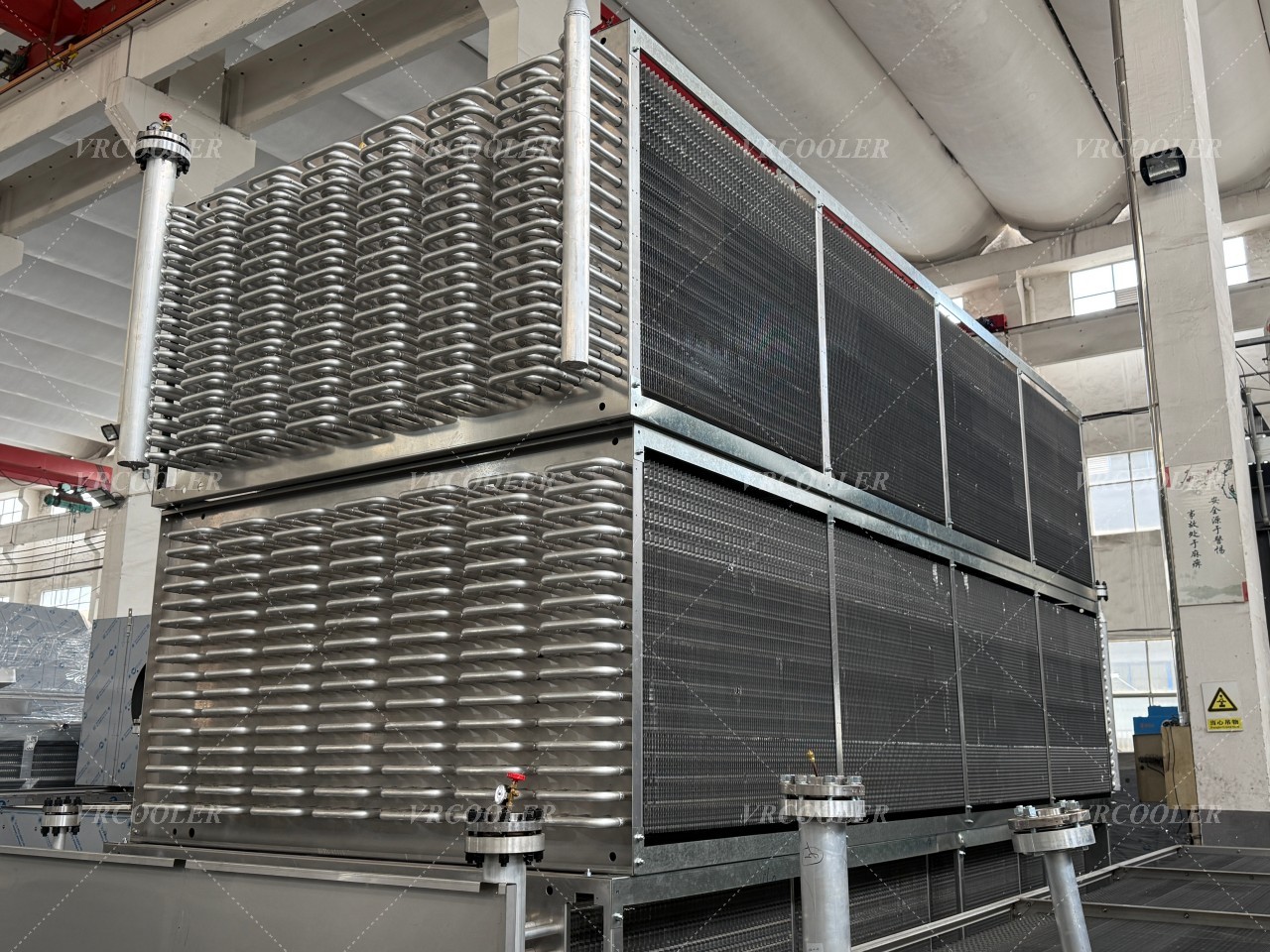

IQF Freezer Evaporator Coil for Pre-Cut Pineapple Freezing

In frozen fruit processing, pineapple is one of the products that demands careful temperature control. Its high moisture content, natural sugar level, and soft fiber structure make it sensitive to the freezing process. If freezing is too slow, the fruit can lose texture, release too much juice after thawing, and show a clear drop in overall quality. That is why the cooling coil inside an IQF freezer is such an important part of the production line. For pre-cut pineapple pieces entering at around +25°C and requiring a core temperature of -18°C at a throughput of 1000 kg/h, the coil must deliver strong, stable, and efficient low-temperature performance.

An IQF freezer cooling coil is responsible for removing heat from the circulating air inside the freezer and maintaining the low-temperature environment needed for rapid freezing. In pineapple processing, this is especially important because the product must pass quickly through the critical freezing zone. Fast freezing helps form smaller ice crystals inside the fruit tissue, which can better preserve the original shape, color, and eating quality. For export-grade frozen pineapple, this directly affects customer acceptance and market value.

The duty in this application is not small. Cooling pre-cut pineapple from +25°C down to -18°C core temperature means the system must handle three stages at the same time: first removing sensible heat above freezing, then removing latent heat during the phase change, and finally pulling the product temperature down below freezing to the final storage level. At 1000 kilograms per hour, the evaporator coil must support a continuous freezing load while keeping airflow and temperature uniform across the entire freezer.

That is where coil design becomes critical. A standard cold room evaporator is usually not enough for a demanding IQF process like this. Pineapple pieces are wet, delicate, and often irregular in size, so the freezer needs a coil designed for low-temperature duty, strong heat transfer, and stable operation under frost-forming conditions. Tube diameter, fin spacing, row arrangement, refrigerant circuit design, and fan matching all affect how well the coil performs. If the coil is too compact, frost can build up quickly and reduce airflow. If it is too open, the heat transfer capacity may not be enough. The right design finds the balance between freezing performance and operating reliability.

Airflow is just as important as refrigeration capacity. In an IQF freezer, the coil works together with the fan system to create the cold air pattern around the pineapple pieces. If airflow is too weak, freezing becomes slow and uneven. If it is too strong or poorly distributed, product dehydration and weight loss can increase. A properly engineered cooling coil helps maintain the uniform air temperature and air velocity needed for fast freezing without damaging product appearance or reducing yield.

For pineapple processing, frost management must also be considered from the start. The product releases moisture during freezing, and that moisture eventually forms frost on the coil surface. As frost thickness grows, the coil loses efficiency and airflow drops. That is why an IQF freezer coil for pineapple should be designed with suitable fin pitch and an effective defrost method, such as hot gas defrost or another system matched to the refrigeration setup. Stable defrost performance is essential for a plant that runs continuously and needs dependable production output.

Material selection matters too. In fruit processing plants, hygiene and corrosion resistance are important. Many customers prefer coils with durable tube and fin materials, food-plant-friendly casing construction, and surfaces that are easier to clean and maintain. Depending on the refrigerant and plant standard, the coil can be designed for ammonia, Freon, or CO2 systems. In each case, the goal is the same: reliable low-temperature operation in a demanding production environment.

A custom IQF freezer cooling coil offers the best solution for this kind of application because every pineapple line is slightly different. Product size, belt width, loading density, freezing time, refrigerant type, and room conditions all influence the final design. For a process requiring 1000 kg/h capacity and a temperature pull-down from +25°C to -18°C core, the coil should be selected according to the actual production layout rather than from a general catalog model. This helps the freezer achieve better freezing speed, more stable operation, and more consistent product quality.

In practical terms, the right IQF freezer cooling coil helps the processor do more than just freeze pineapple. It helps protect color, texture, yield, and export quality. It supports continuous production, improves freezing consistency, and reduces the risk of product defects caused by uneven or insufficient cooling. For frozen fruit processors, that makes the cooling coil one of the most valuable components in the entire IQF system.
